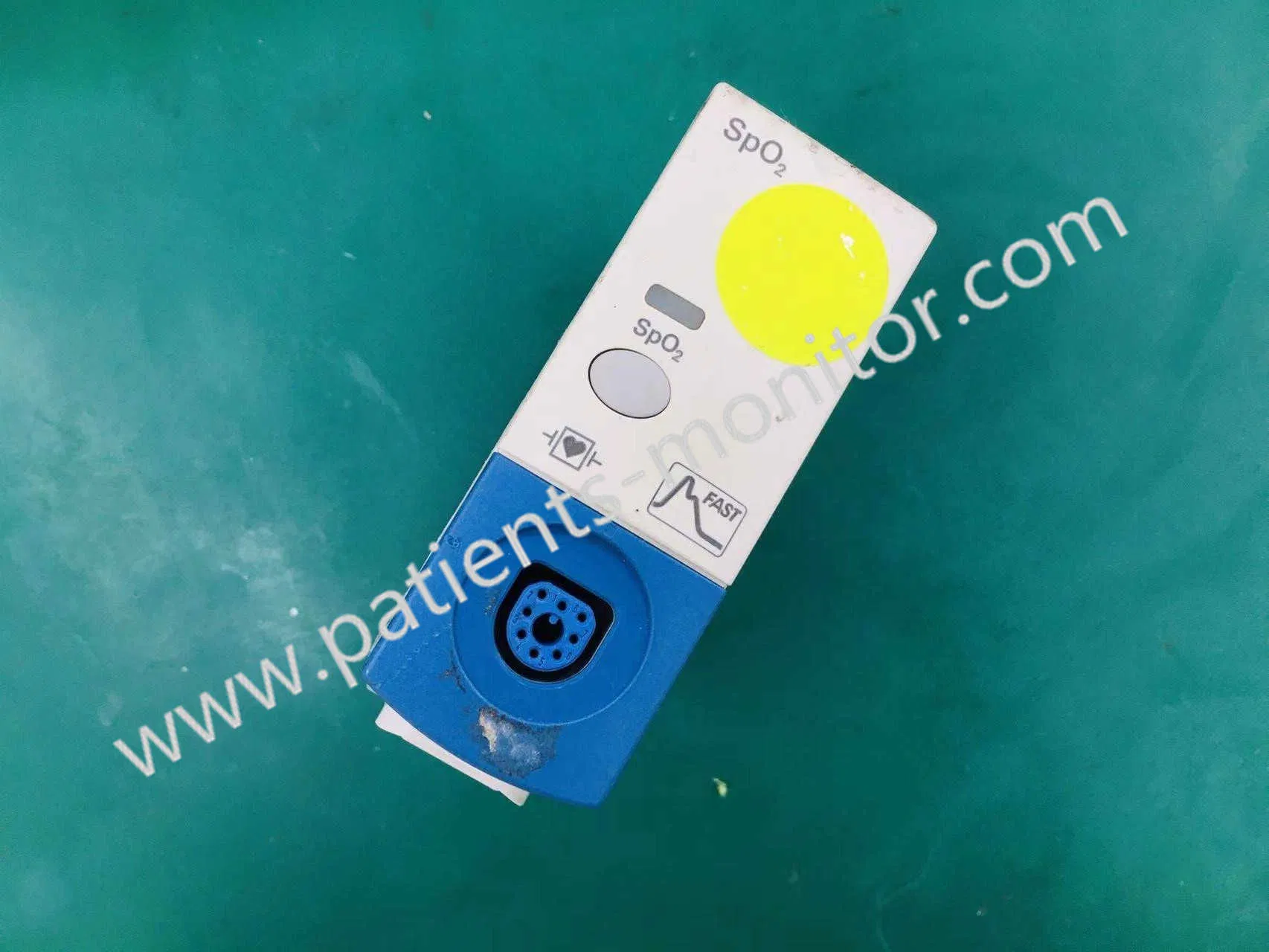

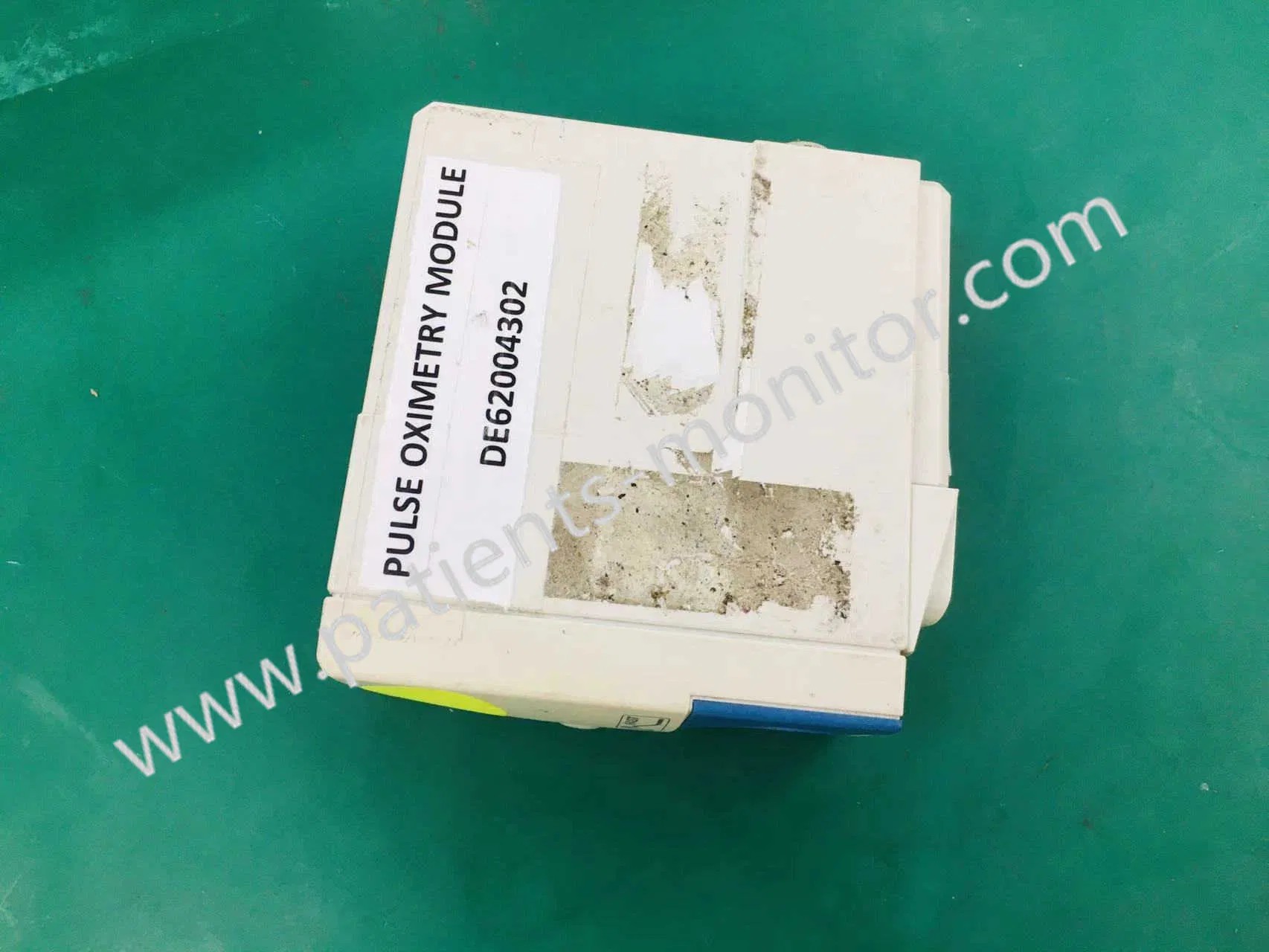

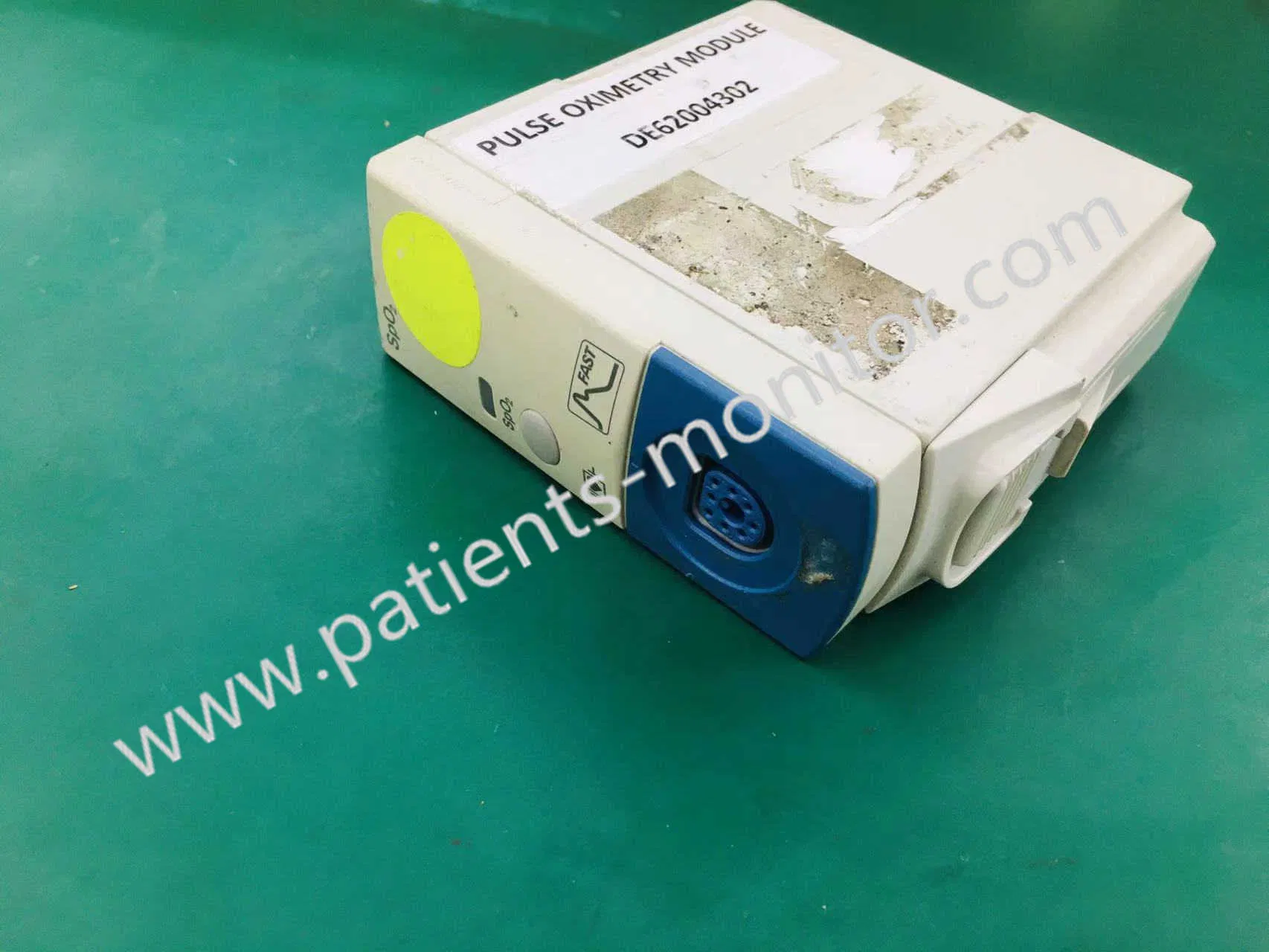

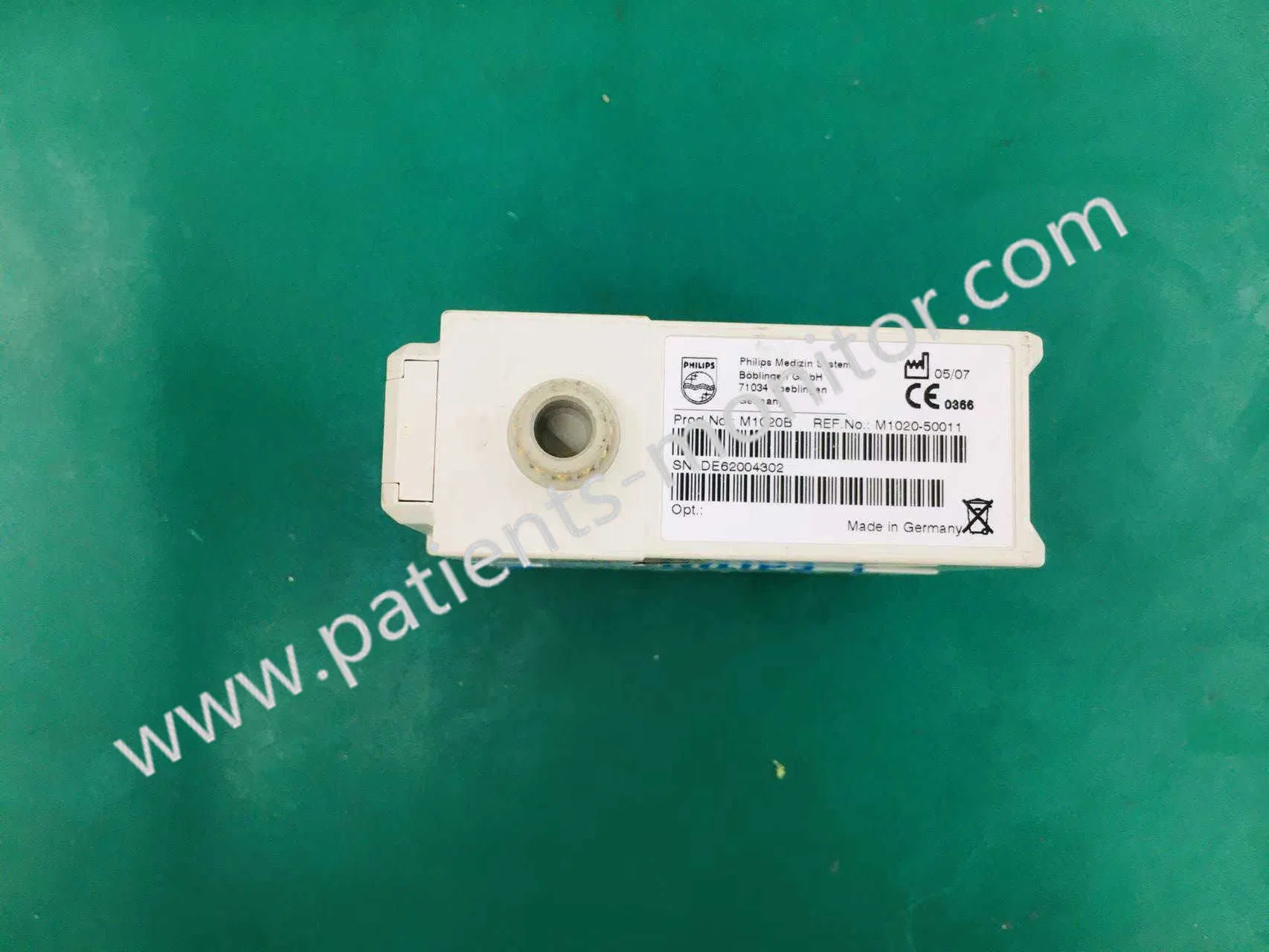

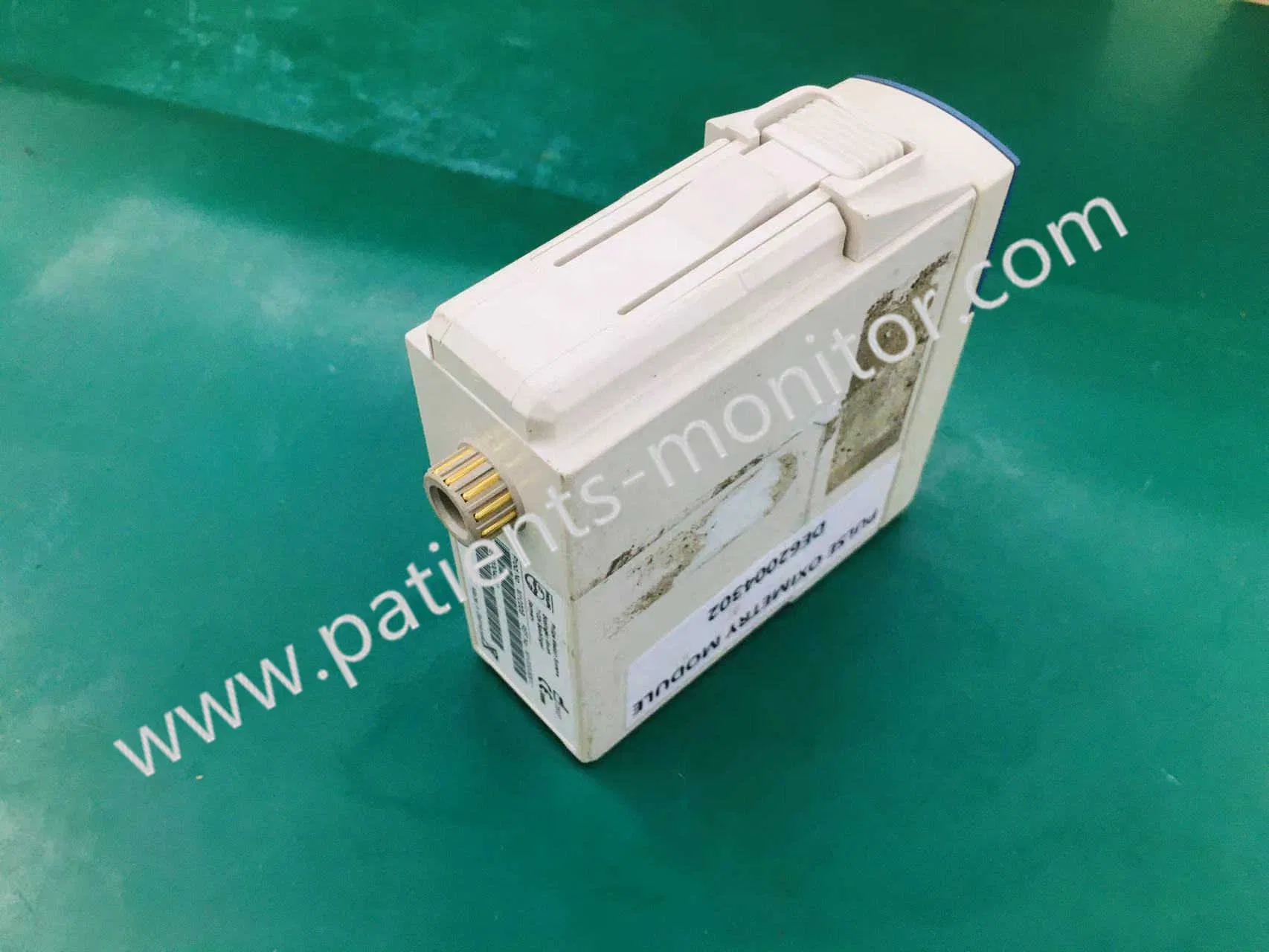

M1020b SpO2 Pulse Oximetry Module Ref: M1020-50011

1 / 5

M1020b SpO2 Pulse Oximetry Module Ref: M1020-50011

Customization:	Available
Customized:	Non-Customized
Transport Package:	Carton

Send Inquiry

Product Description

M1020B SpO2 Pulse Oximetry Module

REF: M1020-50011

Brief Description

The M1020B SpO2 Pulse Oximetry Module is designed to non-invasively measure arterial oxygenation saturation by passing light through tissue. This module is essential for detecting patient pulse oximetry data and is specifically compatible with IntelliVue patient monitors, including the MP40-MP90 and MX500-MX850 series. It provides accurate, real-time data for clinical reference.

We offer the M1020B Pulse Oximetry Module in both brand new and professionally used conditions. Each unit is fully functional and rigorously tested to meet medical standards.

Technical Specifications

Model Number	M1020B
REF Number	M1020-50011
Product Category	SpO2 Pulse Oximetry
Compatibility Standards	IEC 60601-1-2, EN 60601-1-2
Weight	0.3 kg (0.7 lb)
Dimensions	36 x 102 x 111 mm (1.4 x 4.0 x 4.4 in)
Operating Temperature	0-45°C (32-113°F)
Storage Temperature	-40-70°C (-40°-158°F)
Operating Humidity	95% RH max. at 40°C (104°F)
Operating Altitude	Up to 4600 m (15000 ft)
Main Color	Blue, White
Condition	Used OR New Available

Monitor Compatibility

The M1020B SpO2 Pulse Oximetry Module is compatible with the following IntelliVue series patient monitors:

IntelliVue MX500 (Internal slots)
IntelliVue MX550 (Internal slots)
IntelliVue MX700 (via FMS-4 or FMS-8)
IntelliVue MX800 (via FMS-4 or FMS-8)
IntelliVue MX750 (via FMX-4)
IntelliVue MX850 (via FMX-4)

Product Gallery

M1020b SpO2 Pulse Oximetry Module View 1

M1020b SpO2 Pulse Oximetry Module View 2

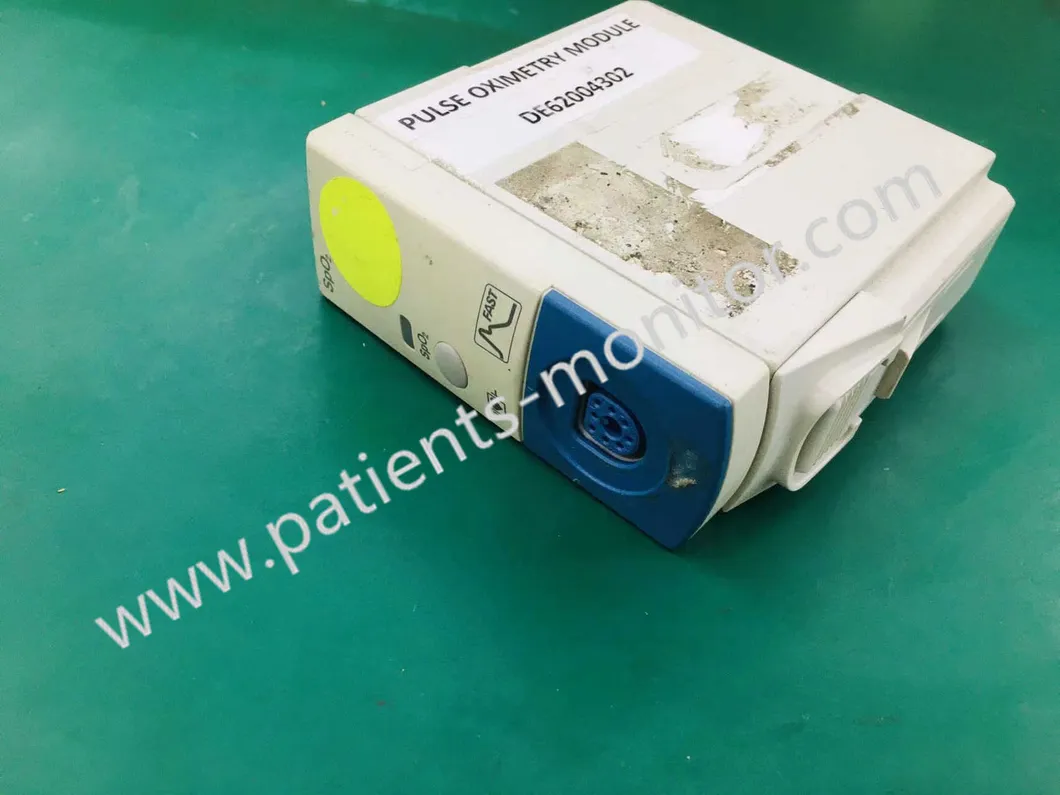

M1020b SpO2 Pulse Oximetry Module View 3

M1020b SpO2 Pulse Oximetry Module View 4

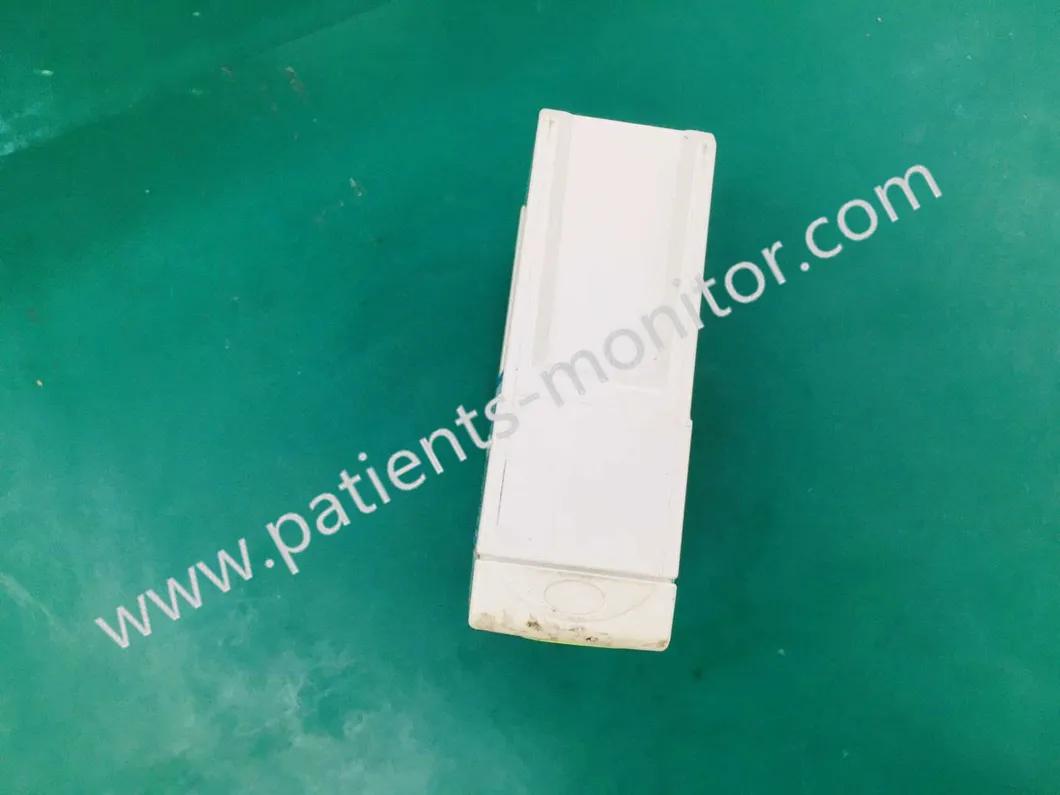

M1020b SpO2 Pulse Oximetry Module View 5

Frequently Asked Questions

Q: What is the primary function of the M1020B module? A: It non-invasively measures arterial oxygen saturation (SpO2) and pulse data for patient monitoring.

Q: Which patient monitors are compatible with M1020B? A: It is compatible with IntelliVue series monitors including MP40-MP90 and various MX series (MX500 to MX850).

Q: Is the M1020B available in different conditions? A: Yes, we provide both brand new and high-quality used modules that are fully tested and functional.

Q: What is the weight and size of this module? A: The module weighs 0.3 kg (0.7 lb) and has dimensions of 36 x 102 x 111 mm.

Q: What safety standards does the module comply with? A: It complies with electromagnetic compatibility standards IEC 60601-1-2 and EN 60601-1-2.

Q: Can it be used at high altitudes? A: Yes, it is rated for operating altitudes up to 4600 meters (15,000 feet).
