Medical Monitoring Device PCBA Assembly for ECG, EKG, and Patient Care Equipment

1 / 5

Medical Monitoring Device PCBA Assembly for ECG, EKG, and Patient Care Equipment

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

JC-P0922#033

Layers

Multilayer

Base Material

FR-4

Certification

RoHS, CCC, ISO

Customized

Condition

New

Certificates

ISO13485, IATF16949, UL, CE, RoHS

Production Capacity

30000 pieces/Day

🚀

Product Description

Technical Specification

Category	Details & Capabilities
PCB Capability & Services	Single-sided, double side & multi-layer PCB, FPC, Flex-Rigid PCB.
	CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base, Polyimide.
	HAL, HAL lead free, Immersion Gold/Silver/Tin, OSP surface treatment.
	Quantities range from sample to mass order.
	100% E-Test.
SMT & DIP Process	Material Sourcing & Component insertion.
	100% AOI testing & ICT testing.
	IC pre-programming / Burning on-line.
	Complete Unit assembly (plastics, metal box, coil, cables).
	Conformal coating; OEM/ODM welcomed.
Production Capacity	Feature	Value
Min component size	SMT Component	0201
Min. pin space of IC	Precision	0.3mm
SMT Capacity	Daily Output	≥2 million points/day
DIP Capacity	Daily Output	≥100k parts/day

⚙️

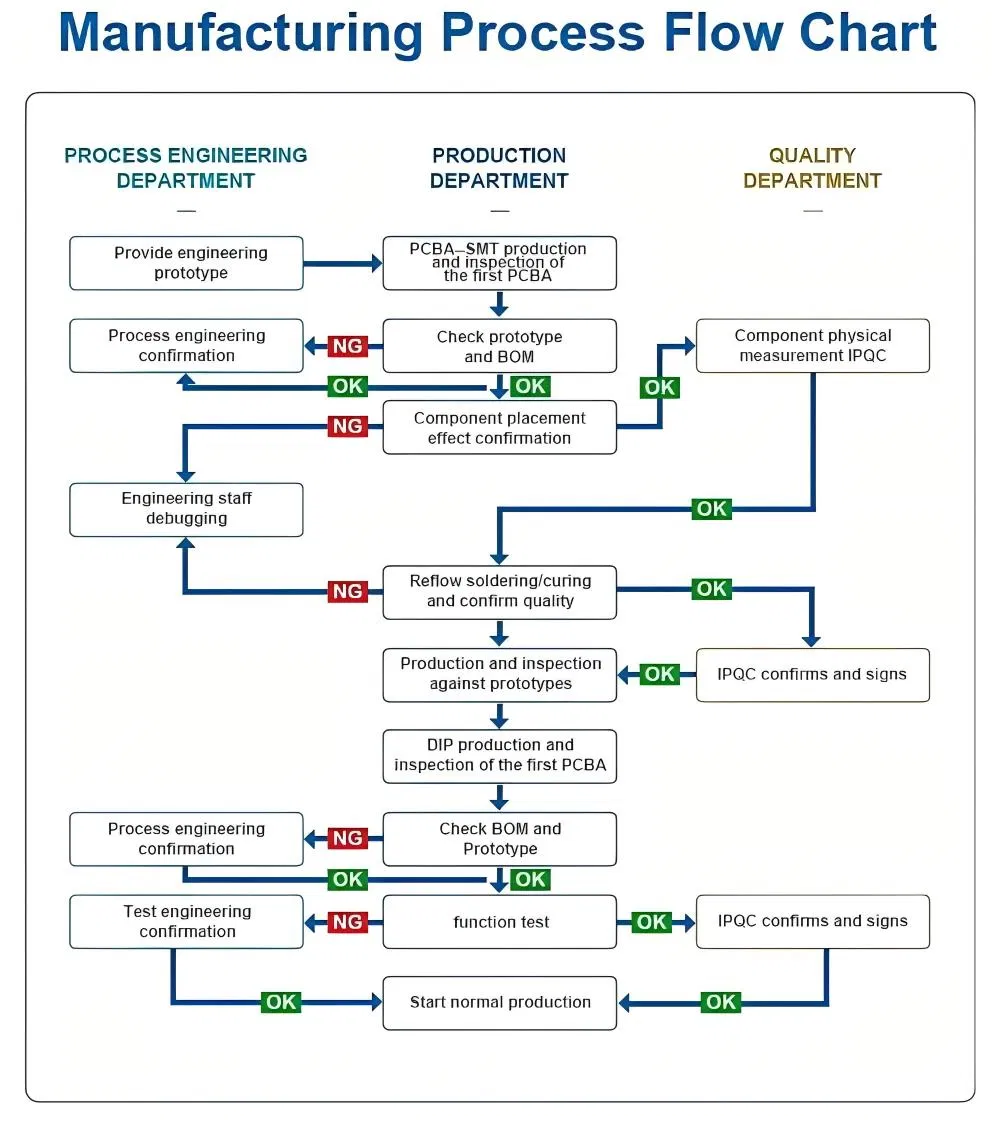

Manufacturing Process & Application

Application Fields: Widely used in industrial, consumer electronics, medical equipment, new energy, security products, and other high-tech fields.

🛠️

Our Services

PCB Assembly OEM

Electronic components material purchasing
Bare PCB fabrication
SMT, BGA, DIP Assembly
AOI, ICT, and Functional Test (FCT)
Cable and Wire-harness assembly
Conformal coating service

PCBA ODM Service

PCB layout and design based on concepts
PCBA copy/clone
Digital & Analog Circuit Design
Embedded Software & Firmware Programming
Windows Application (GUI) Programming

🏢

Professional Manufacturing Facility

Established in 2005, our UL certified factory focuses on customized high-quality wire harness, cable assembly, PCBA, and mechanical fabrication. We provide one-stop solutions for self-service kiosks, robotics, medical instruments, and communication systems.

Mechanical Shop: 10000 sqm for precision sheet metal, CNC machining, and plastic injection.
PCBA & EMS Shop: 6000 sqm equipped with Juki and Samsung SMT machines, X-ray, SPI, and AOI.
Lead-Free Process: Dust-free workshops with ten-temperature zone reflow ovens.

📜

Certifications & Delivery

Packing: Bubble packing, paper boxes, cartons, and pallets. Customized packing available upon request.

Lead Time: 3-7 days for stock items; 15-25 days for mass production depending on quantity.

❓

Frequently Asked Questions

Q1: What files are required for a PCBA quotation?

For PCB, we need Gerber files and manufacturing requirements. For PCBA, please provide the BOM (Bill of Materials) and testing documents if available.

Q2: How do you ensure the security of my intellectual property?

Your files are held in complete safety. We have strict IP protection protocols and never share customer documents with third parties.

Q3: What is the typical delivery time for projects?

Samples usually take 5-7 working days. Bulk production typically ranges from 7-25 working days. Urgent projects can be fast-tracked.

Q4: Is there a Minimum Order Quantity (MOQ)?

We do not have a strict MOQ. We are flexible enough to handle both small prototypes and large-volume mass production.

Q5: What testing methods do you use for PCBA?

We utilize various testing methods including AOI (Automated Optical Inspection), X-ray Inspection, ICT (In-Circuit Test), and Functional Testing.

Q6: What payment terms do you accept?

We generally accept T/T, PayPal, and L/C. Please discuss specific requirements with our team.

Product Detail

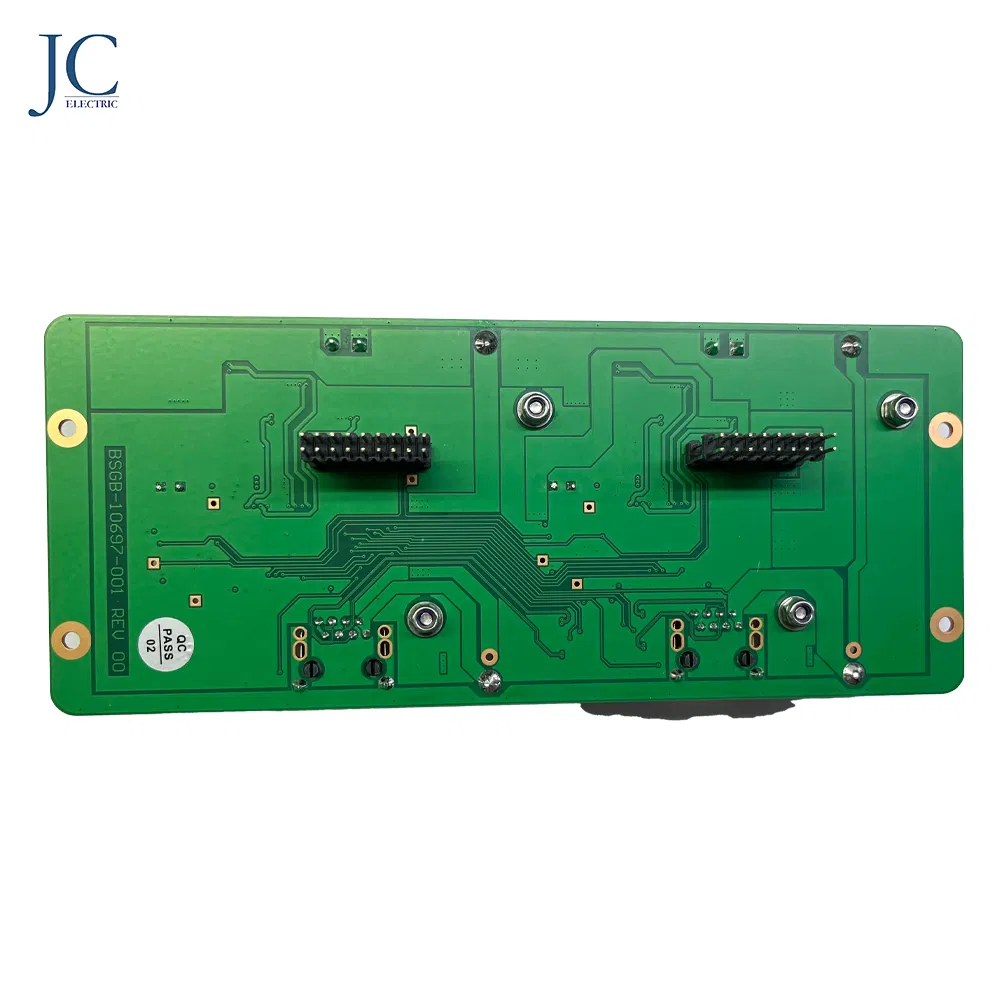

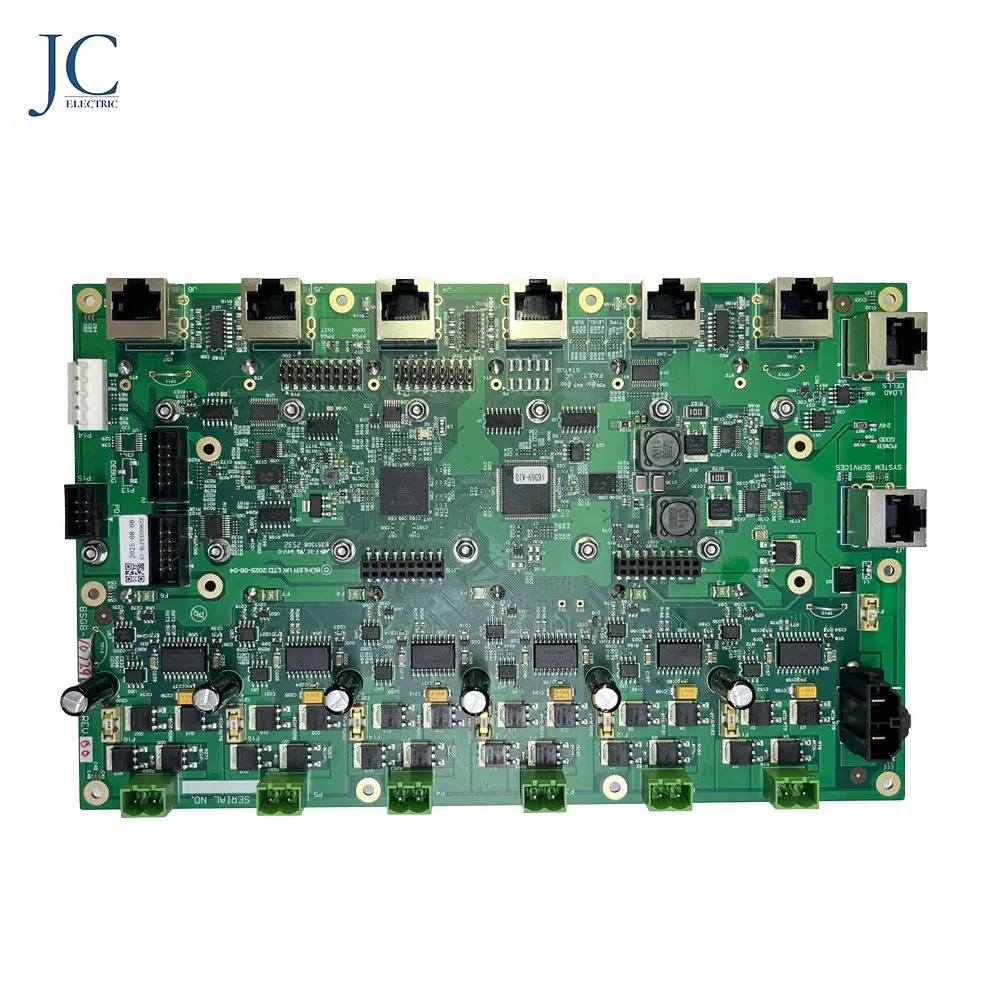

Medical Monitoring Device PCBA Assembly for ECG, EKG, and Patient Care Equipment
