Simulator Pulse Oximeter Tester Pulse Oximetry Analyzers

1 / 5

Simulator Pulse Oximeter Tester Pulse Oximetry Analyzers

Customization:	Available
Type:	SpO2 Simulator
Certification:	CE, ISO13485

Send Inquiry

Product Description

Basic Information

Model NO.

BM100

Power Source

Electricity

Main Parameters

SpO2, Pulse Rate, Amplitude

Power Supply

Voltage 3.7 Rechargeable Lithium Battery

Material

Plastic

Package

Carton

Specification

189mm*125mm*56mm

Origin

China

HS Code

9023009000

Capacity

10000 Units Per Month

Product Overview

Blood Oxygen Saturation SpO2 Simulator for Hospital Use

Key Features

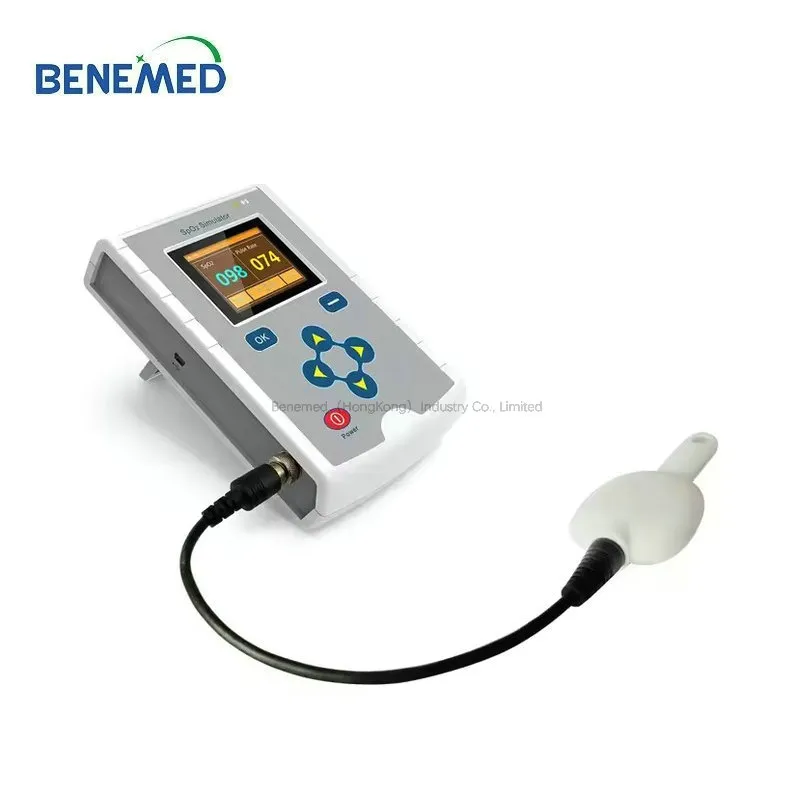

Separated connection between simulator probe and host for convenient operation.

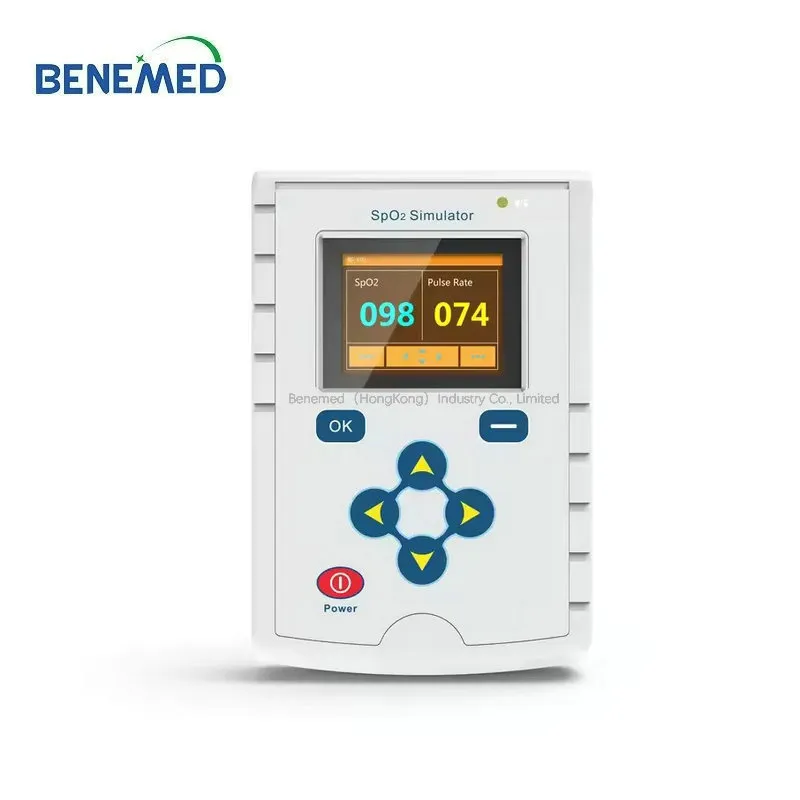

262K color and 320*240 TFT display with adjustable brightness.
Film key-press design for comfortable tactile feedback.
Rechargeable lithium battery with real-time charge display.
Adjustable key volume (ON/OFF).

Main Functions

Oxygen saturation & Pulse rate simulation.
Patient state simulation presets.
Device reaction time testing.
Simulation under different amplitudes and interference sources.
Multi-selection for R-curves.

Technical Specifications

Parameter	Measuring Range & Details
SpO2	Range: 35%~100%; Resolution: 1%; Error: ±2% (75%-100% range)
Pulse Rate	Range: 25bpm~250bpm; Resolution: 5bpm; Error: 1%±1bpm
Amplitude	Range: 0.000%~20.000%; Variable resolution based on range.
Patient State	24 presetting conditions; 8 default conditions at start.
Power	DC 3.6V~4.2V; 3.7V rechargeable lithium battery (500+ cycles).

Standard Accessories: MS100 User Manual × 1, 5.0V Adaptor × 1

Quick Spec Reference

Place of Origin	China
Model Number	BM100
Warranty	1 Year
Service	Online technical support
Material	Plastic
Certification	CE
Classification	Class II

Product Display

Frequently Asked Questions

What is the primary application of the BM100 SpO2 simulator?

It is primarily used for testing and calibrating oximeters and hospital monitoring equipment by simulating various patient oxygen saturation and pulse rate levels.

Does the simulator support rechargeable batteries?

Yes, it is powered by a 3.7V rechargeable lithium battery, supporting over 500 charge-discharge cycles.

Can I simulate different patient conditions?

Yes, the device comes with 24 preset patient states, allowing you to test how medical equipment reacts to different physiological conditions.

Is the display easy to read in different environments?

The BM100 features a 262K color TFT screen with adjustable brightness levels to ensure visibility in various lighting conditions.

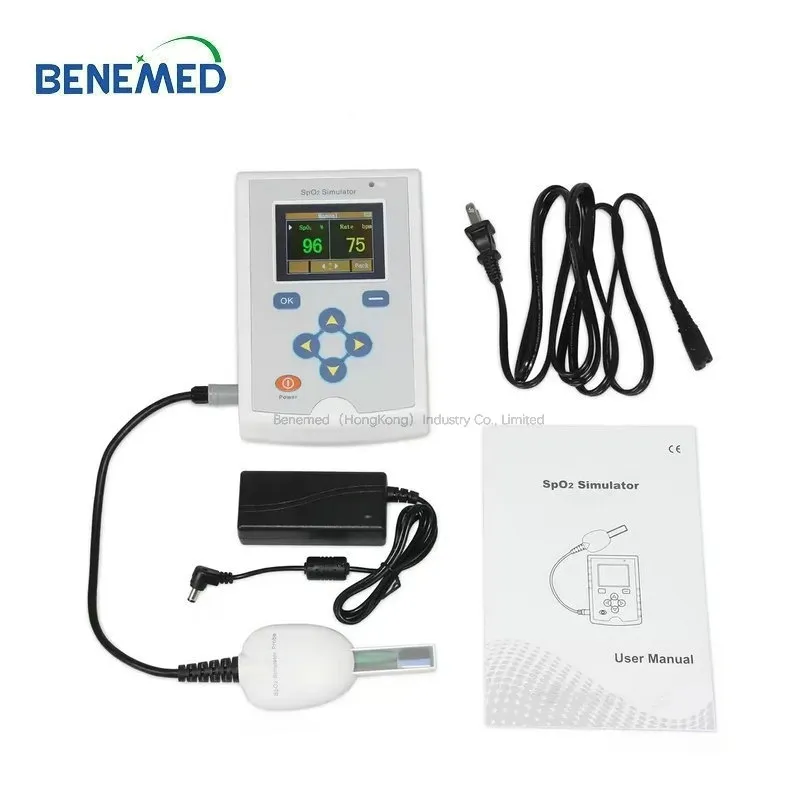

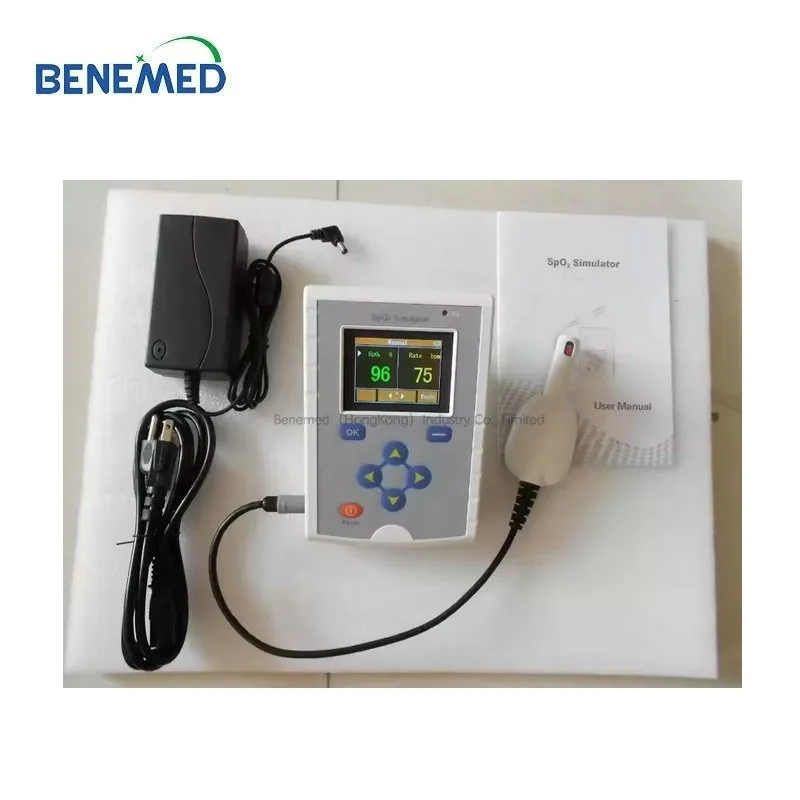

What is included in the standard package?

The standard package includes the simulator host, a user manual, and a 5.0V power adaptor.

What is the warranty period for this device?

The product comes with a 1-year warranty and lifetime online technical support.
