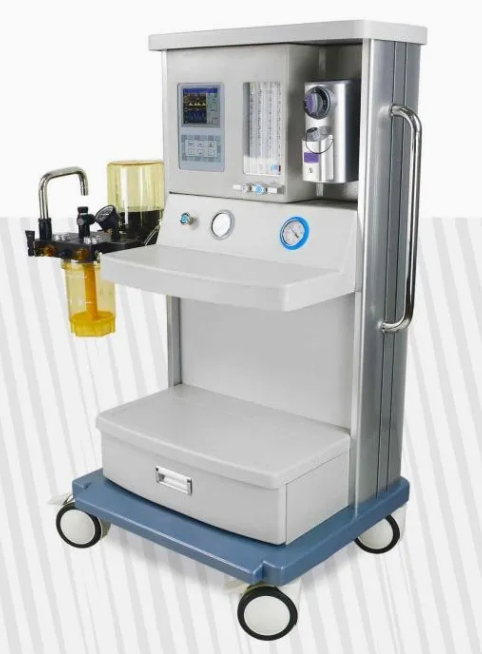

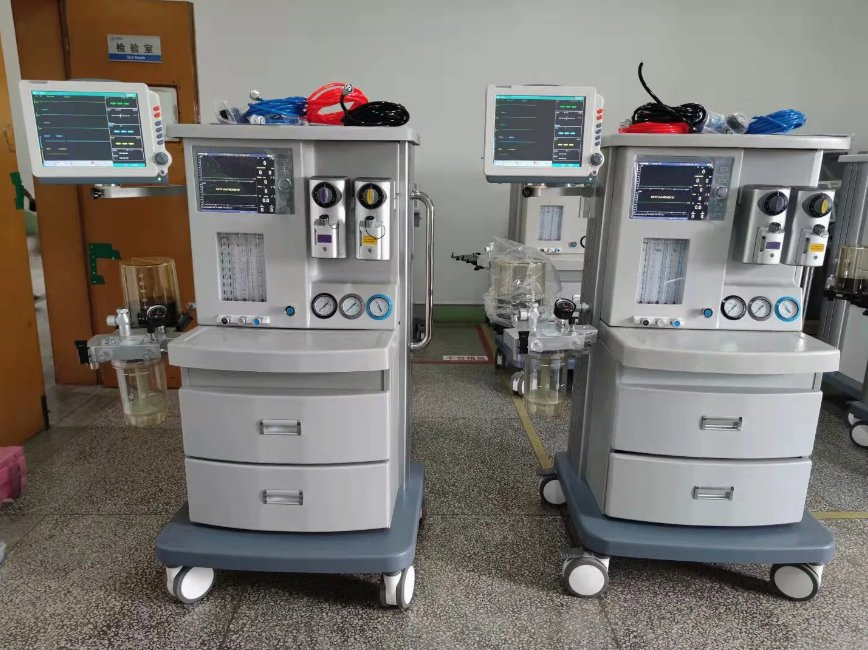

Advanced Anesthetic Delivery System for Enhanced Patient Comfort Our 10.4-Inch LCD Display

1 / 5

Advanced Anesthetic Delivery System for Enhanced Patient Comfort Our 10.4-Inch LCD Display

Customization:	Available
Specification:	100X20X30 cm
Origin:	Nanjing

Send Inquiry

Product Description

Basic Information

Model NO.

JINLING 820

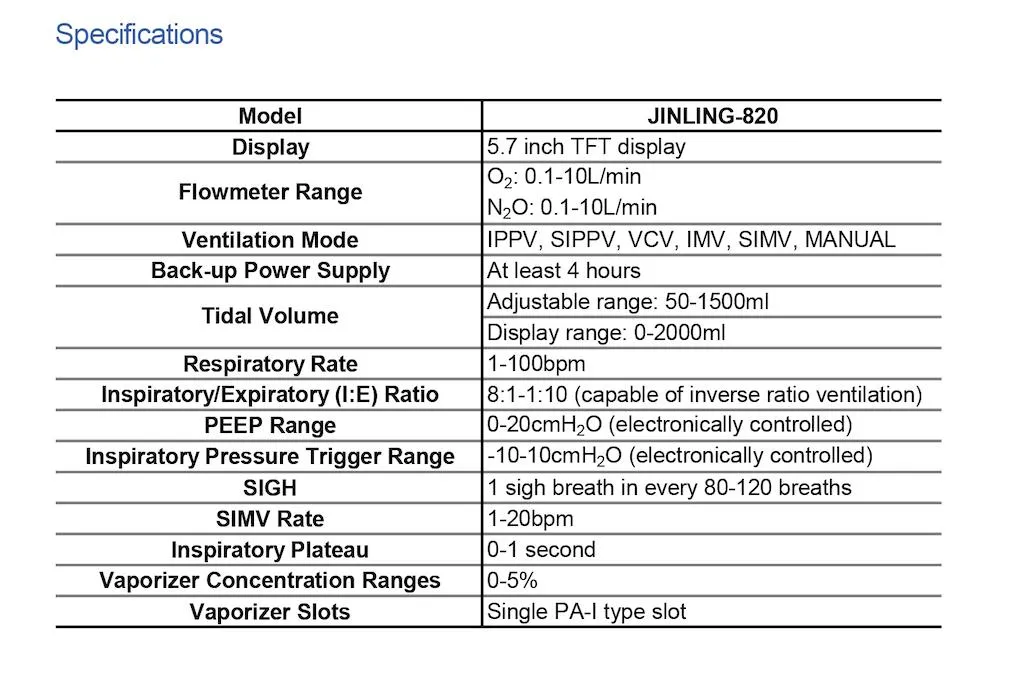

Technical Specifications

Display	5.7 inch TFT display
Flowmeter Range	O₂: 0.1-10L/min
Flowmeter Range	N₂O: 0.1-10L/min
Ventilation Mode	IPPV, SIPPV, VCV, IMV, SIMV, MANUAL
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 50-1500ml
Tidal Volume	Display range: 0-2000ml
Respiratory Rate	1-100bpm
I:E Ratio	8:1-1:10 (capable of inverse ratio ventilation)
PEEP Range	0-20cmH₂O (electronically controlled)
Pressure Trigger Range	-10-10cmH₂O (electronically controlled)
SIGH	1 sigh breath in every 80-120 breaths
SIMV Rate	1-20bpm
Inspiratory Plateau	0-1 second
Vaporizer Concentration	0-5%
Vaporizer Slots	Single PA-I type slot

Product Highlights

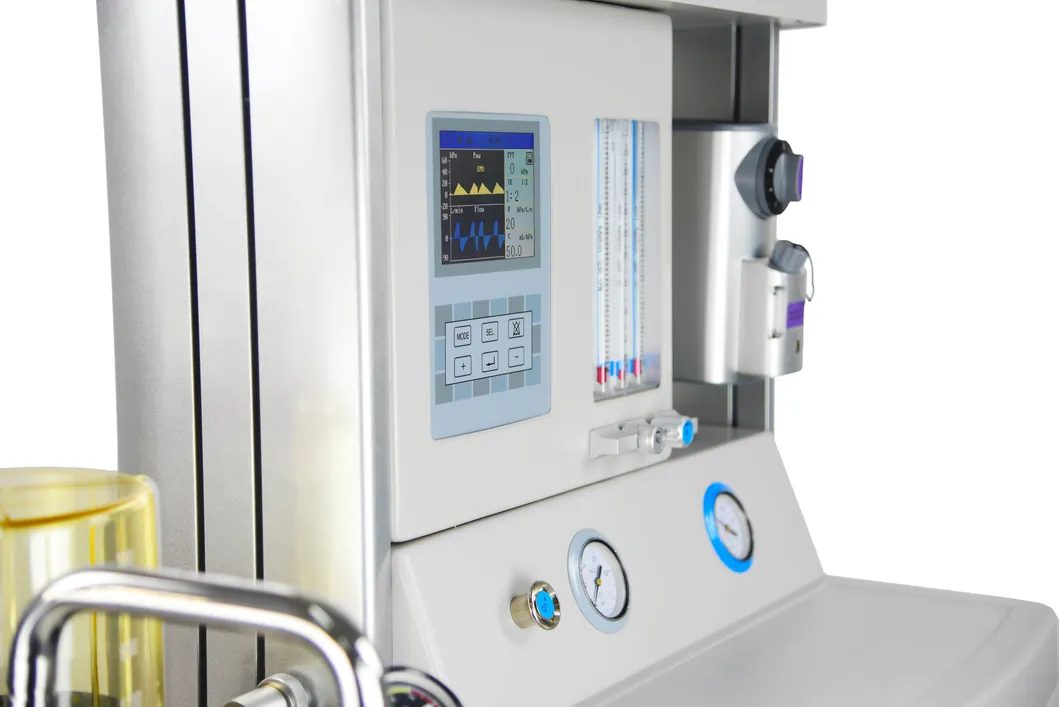

Experience unparalleled clarity with our 10.4-inch LCD display, seamlessly integrating a built-in Ventilator for optimal performance.

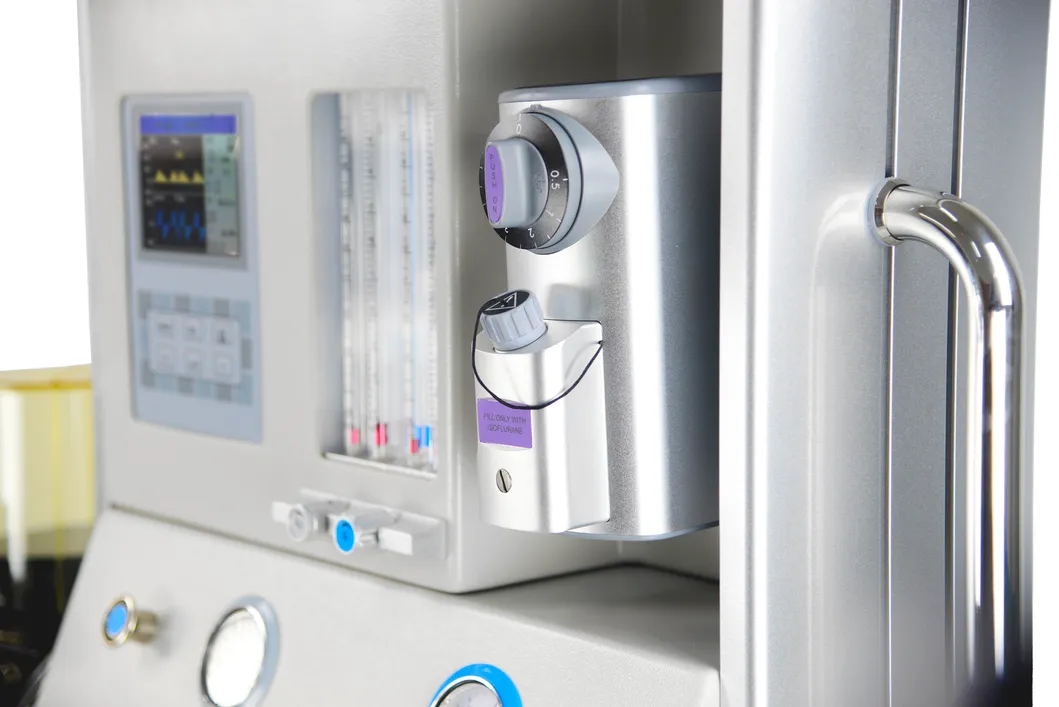

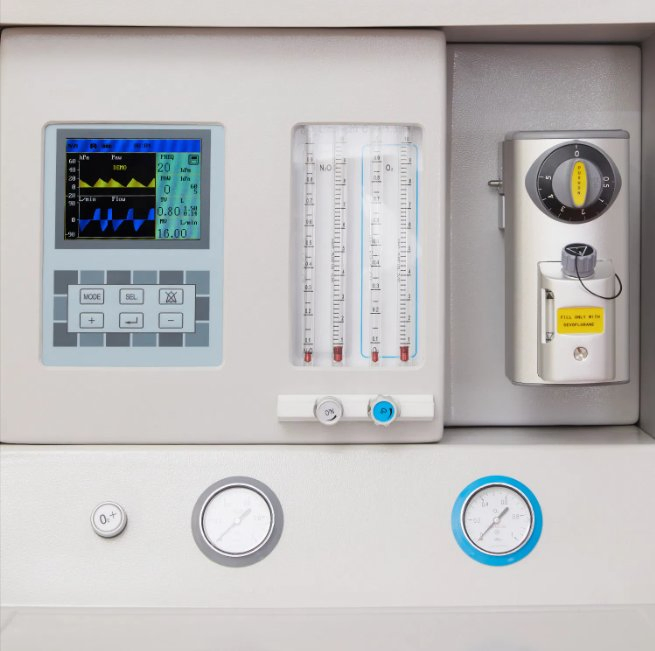

Precision at your fingertips with our 5-Tube Flowmeters, providing accurate measurements for O2, N2O, and AIR ranging from 0.1L to 10L per minute.

Versatility meets reliability with our dual Vaporizer system, compatible with Enflurane, Isoflurane, Sevoflurane, and Halothane for diverse anesthetic needs.

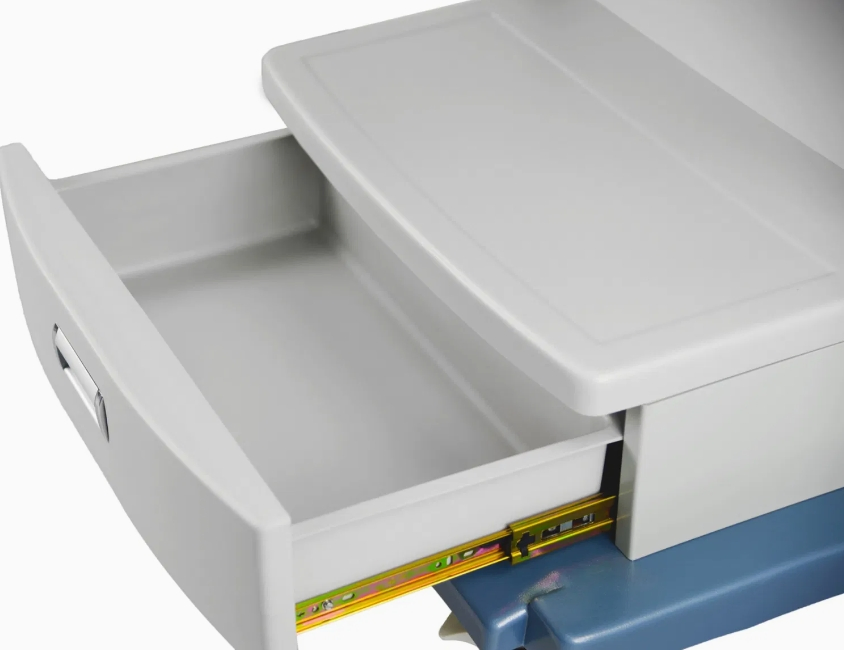

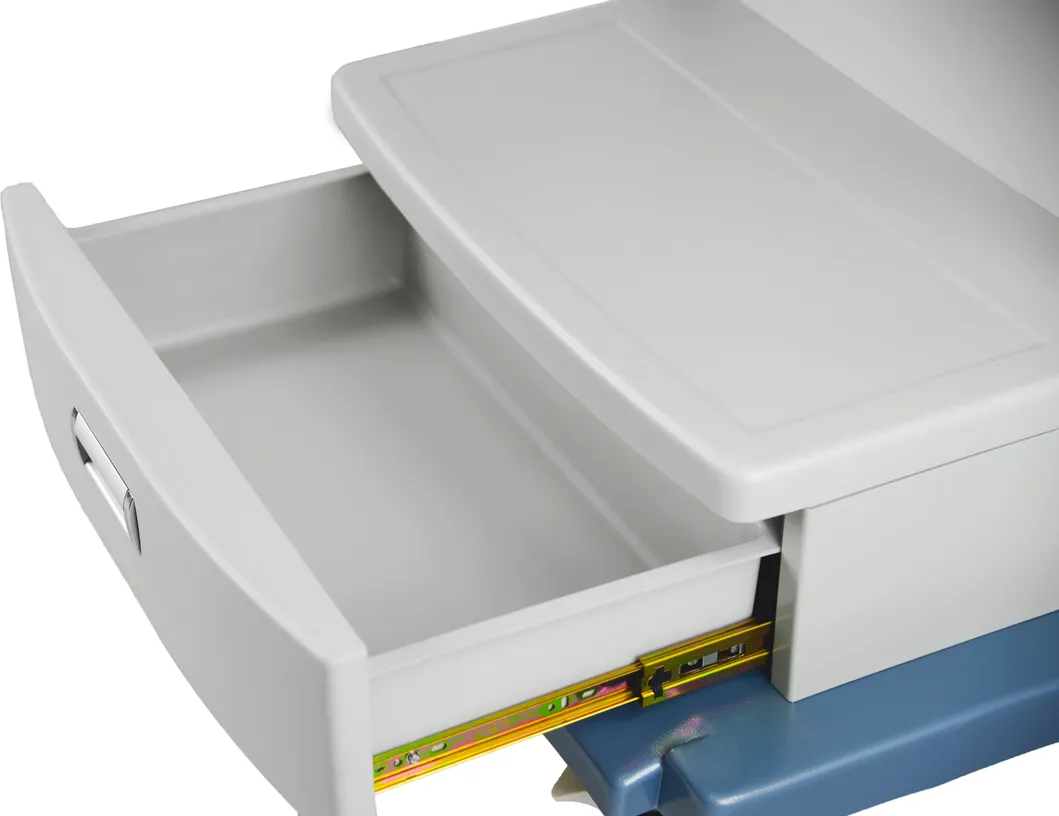

Convenience and efficiency with two spacious drawers, designed to keep essential tools and supplies within easy reach.

Cutting-edge ventilation modes including A/C, IPPV, VCV, SIPPV, IMV, SIMV, PCV, PEEP, SIGH, and MANUAL, ensuring comprehensive patient care.

Tailor your patient's care with an adjustable tidal volume from 50 to 1500ml, and a display range of 0 to 2000ml for precise monitoring.

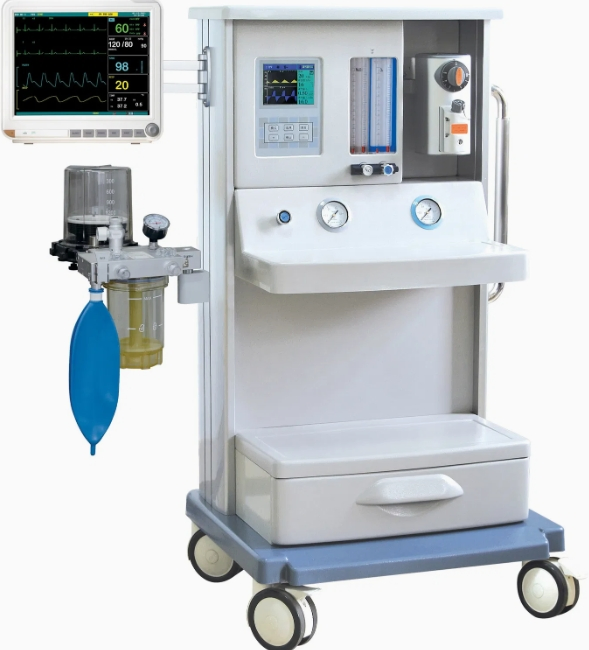

Product Visuals

Frequently Asked Questions

Q: What is the tidal volume range for the JINLING 820? A: The tidal volume is highly adjustable, ranging from 50ml to 1500ml, with a display range up to 2000ml to suit various clinical needs.

Q: How many ventilation modes does this anesthesia machine support? A: It supports multiple advanced modes including IPPV, SIPPV, VCV, IMV, SIMV, PCV, PEEP, SIGH, and MANUAL.

Q: Does the system have an emergency power backup? A: Yes, it is equipped with a back-up power supply that provides at least 4 hours of continuous operation in case of power failure.

Q: What types of vaporizers are compatible with this model? A: The system is compatible with Enflurane, Isoflurane, Sevoflurane, and Halothane vaporizers.

Q: What are the flowmeter specifications for O2 and N2O? A: Both the O2 and N2O flowmeters have a precise measurement range of 0.1L to 10L per minute.

Q: Can the machine perform inverse ratio ventilation? A: Yes, the I:E ratio is adjustable from 8:1 to 1:10, making it capable of inverse ratio ventilation.
