Technical Parameters
Work Conditions
Gas source: O2 | Pressure: 280kpa~600kpa | Voltage: 100V~240V (50/60HZ)
Adjusting Range
- Frequency: 1 bpm ~ 100 bpm (SIMV: 1-20 bpm)
- Tinsp (Inspiratory Time): 0s ~ 6s
- VT (Tidal Volume): 0 mL ~ 1500 mL
- PEEP / CPAP: 0 cmH2O ~ 20 cmH2O
- O2 Concentration: 45 % ~ 100 %
- Pressure Limit: 20cmH2O ~ 100 cmH2O
Monitoring & Graphics
Monitors Frequency, Tidal Volume (up to 2000mL), Minute Volume (MV), Tube Pressure, and Inhaled Oxygen concentration. Includes Tube pressure-time and Air flow-time wave lines.
Alarming & Protection
AC Power failure alarm
Low battery voltage alarm
Ventilation volume high/low alarm
Tube pressure high/low alarm
Oxygen concentration alarm
Suffocation & Pressure safety relief
Frequently Asked Questions

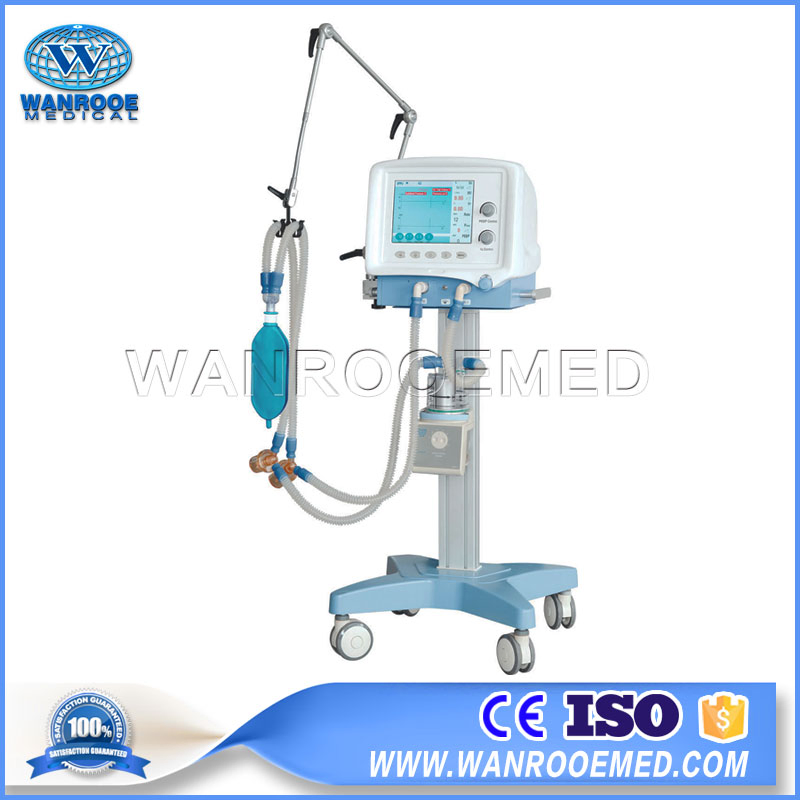

Q1: Can the S1600 ventilator be used for pediatric patients?
Yes, the S1600 is designed to be applicable for both adults and children.
Q2: What are the available ventilation modes on this system?
It supports multiple modes including IPPV, A/C, SIMV, SPONT/CPAP, and MAUN.
Q3: What is the tidal volume range of the S1600?
The adjustable tidal volume range is from 0 mL to 1500 mL, while monitoring can detect up to 2000 mL.
Q4: Does the device work during a power outage?
Yes, it features a built-in spare power source that automatically starts working if the external power supply fails.
Q5: What kind of display screen does it have?
The S1600 is equipped with a high-clear 10.4'' TFT LCD display screen for monitoring parameters and waveforms.
Q6: What gas sources are required for operation?
The system requires O2 as the primary gas source with a rated working pressure between 280kpa and 600kpa.
