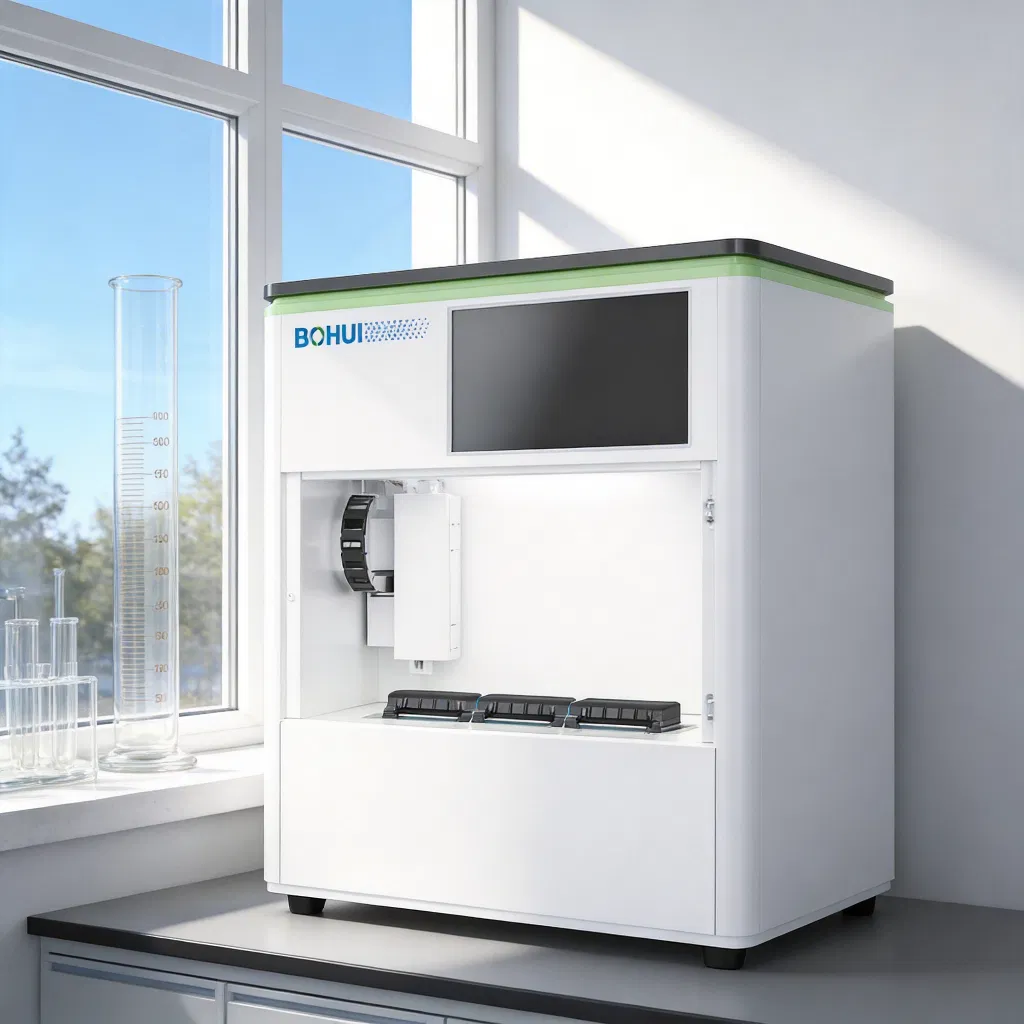

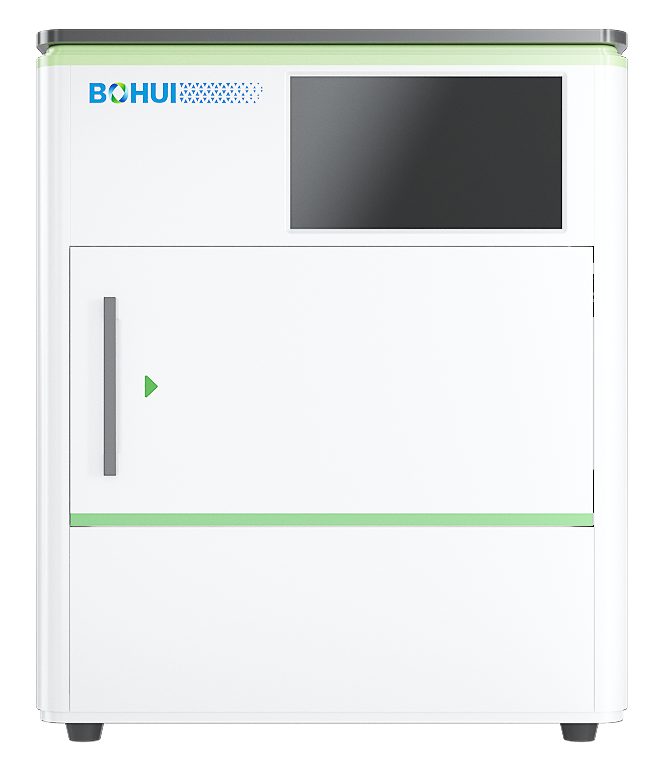

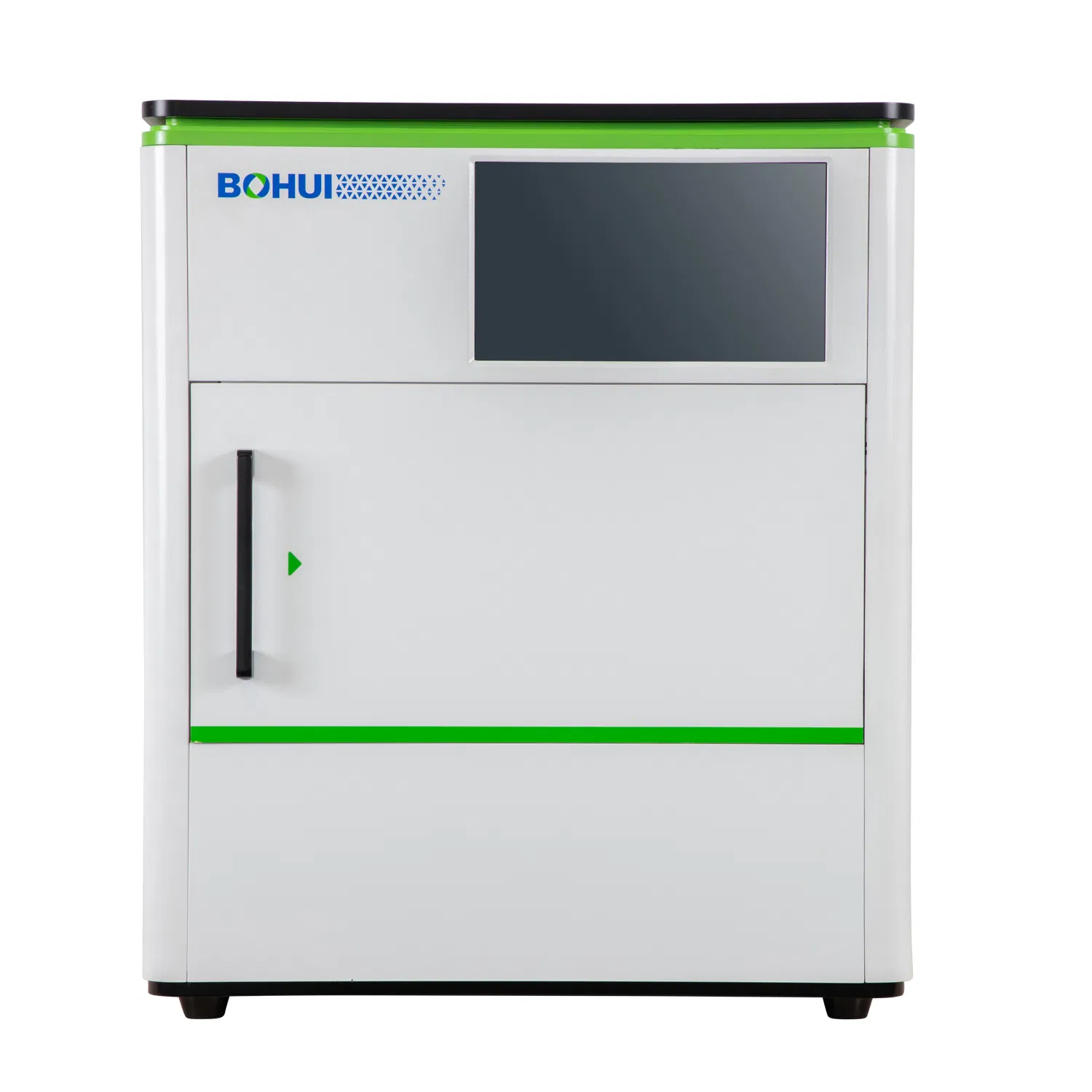

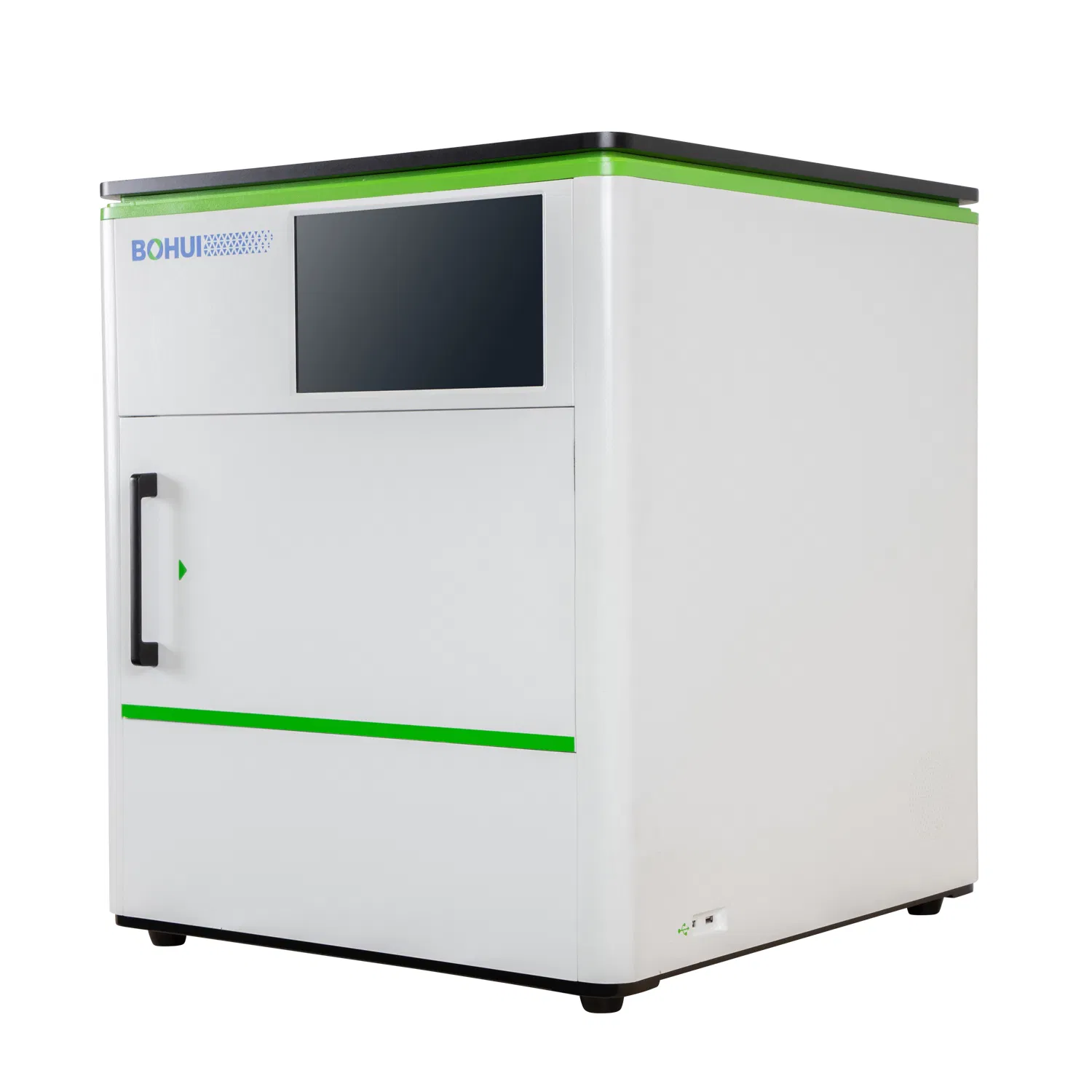

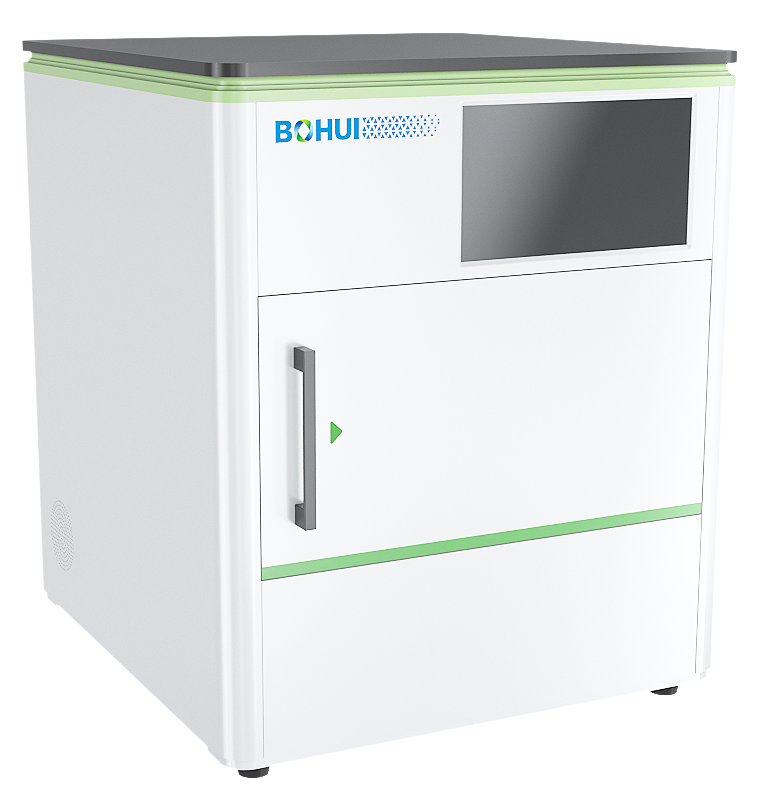

Automatic Nucleic Acid Testing System for Real-Time PCR Applications
Automatic Nucleic Acid Testing System for Real-Time PCR Applications
Automatic Nucleic Acid Testing System for Real-Time PCR Applications
Automatic Nucleic Acid Testing System for Real-Time PCR Applications
Automatic Nucleic Acid Testing System for Real-Time PCR Applications
1 / 5
Automatic Nucleic Acid Testing System for Real-Time PCR Applications
Automatic Nucleic Acid Testing System for Real-Time PCR Applications
Automatic Nucleic Acid Testing System for Real-Time PCR Applications
Automatic Nucleic Acid Testing System for Real-Time PCR Applications
Automatic Nucleic Acid Testing System for Real-Time PCR Applications

Automatic Nucleic Acid Testing System for Real-Time PCR Applications

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Molecular Diagnostic Instrument
Send Inquiry

Product Description

Basic Information
Model NO. BHQ-III
Certification CE, ISO13485
Group Full Range
HS Code 9027899090
Technology Overview
The instrument uses fluorescent quantitative PCR tech for pathogen analysis. Once samples are added, the instrument automatically dispenses reagents. Micro-pumps on the chip complete DNA extraction and PCR amplification. The optical system detects fluorescence changes to identify pathogens.
Product Specification

Automatic Real-time Fluorescent Nucleic Acid Chip Analyzer

System includes a host unit and optional printer.

Host Unit Integrates:

✓ 1. Image display system
✓ 2. Automated Reagent Dispensing System
✓ 3. Pneumatic Control System (positive/negative pressure)
✓ 4. Temperature Control System
✓ 5. Fluorescence Signal Detection System
✓ 6. 3D Movable Platform System

Sample Type: Nasopharyngeal swab, Vaginal discharge, Urethral discharge, Sputum, Bronchoalveolar lavage fluid (BALF), Feces / Stool

Application: Respiratory, Gastrointestinal, Genital, and Urinary Tract Infection Nucleic Acid Detection

Automatic Nucleic Acid Testing System

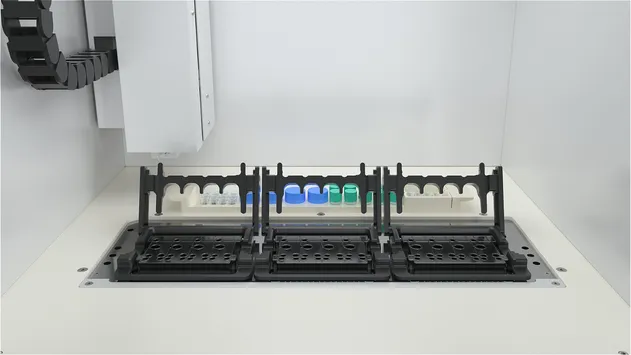

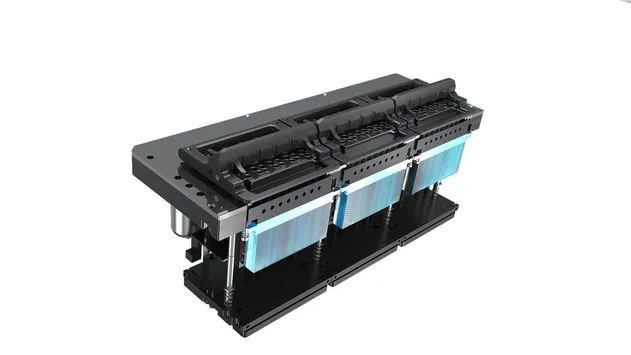

PCR Application 1 PCR Application 2 PCR Application 3
Technical Specifications
ModelBHQ-III
Detection PlatformReal-time PCR
Detection Modules3 Modules
Sample Capacity12
Heating rate≥1.5 ℃/s (from 50℃ to 90℃)
Cooling rate≥1.5 ℃/s (from 90℃ to 50℃)
Electrical specificationAC220V/50HZ
Dimension566mm X 624mm X 672mm
Altitude≤2300m
Weight≤70kg

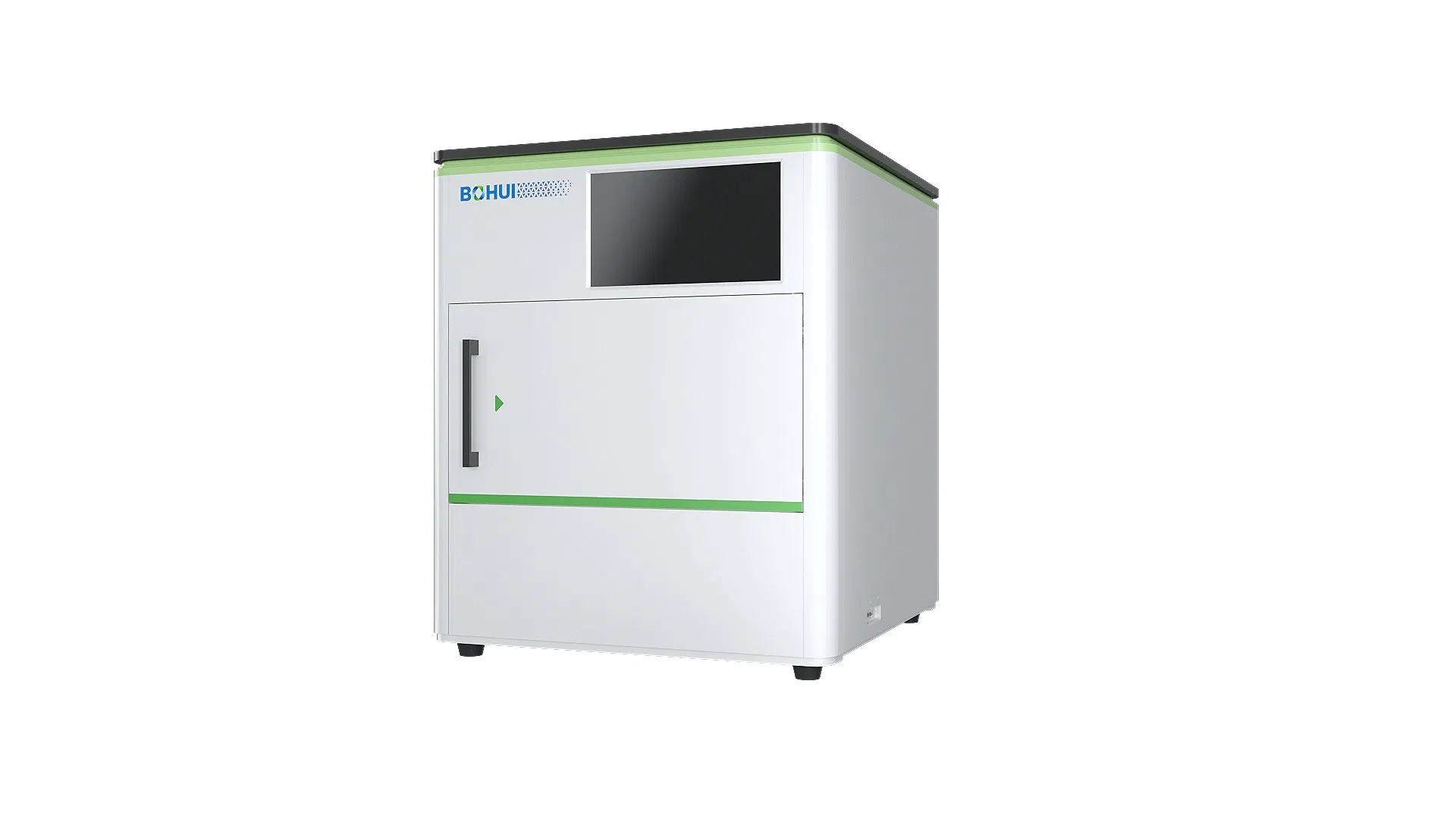

Technical Layout
Product Features
Simple 5 minutes of hands-on time
Easy No precise measuring or pipetting needed
Fast Turnaround time of about 2 hours
Company Profile
Company Banner
Beijing Bohui Innovation Biotechnology Group Co., Ltd., founded in 2001, is a high-tech biomedical enterprise integrating R&D, production, sales, and service. Listing on the Shenzhen Stock Exchange ChiNext in 2012 (Stock Code: 300318), the group excels in independent R&D with a focus on molecular diagnosis and mass spectrometry.

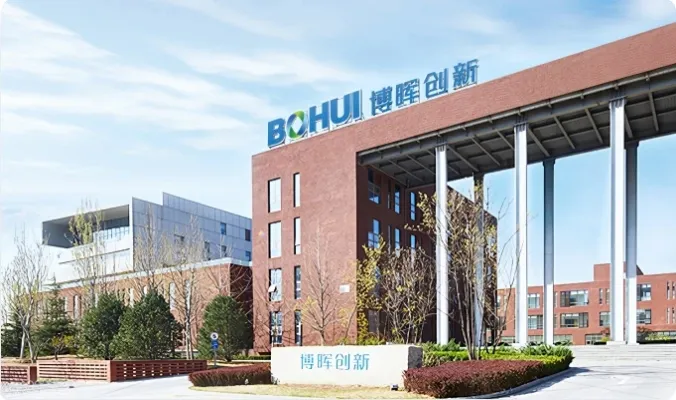

R&D Center Laboratory

Why Choose Us?

Innovating continually, we have created platforms like molecular diagnosis and mass spectrometry. Our products serve 4,000+ hospitals, detecting up to 22 million annually using automated microfluidic tech.

Other Information

Bohui Group leads in inspection and testing with strong R&D. Our "chip lab" and acquisition of Advion enhance life sciences mass spectrometry, delivering top user experiences.

Frequently Asked Questions
Can I obtain samples?
Yes, samples can be provided upon request.
Can I use my own logo or design on the products?
Currently, we do not support OEM/ODM services for these specific diagnostic products.
Do you have a factory?
Absolutely! We have a professional manufacturing facility located in Beijing for high-tech medical production.
What is your production capacity?
We produce approximately 2,000 instrument units and 1 million person-time reagents every month.
When will the goods be shipped?
For products currently in stock, we typically ship within 7 days after order confirmation.
What diagnostic areas do these products cover?
They are primarily used for Respiratory, Gastrointestinal, Genital, and Urinary Tract Infection Nucleic Acid Detection.
