Basic Specifications
Driving Type
Hydraulic Type
Control Mode
Push-Button Control
Product Description

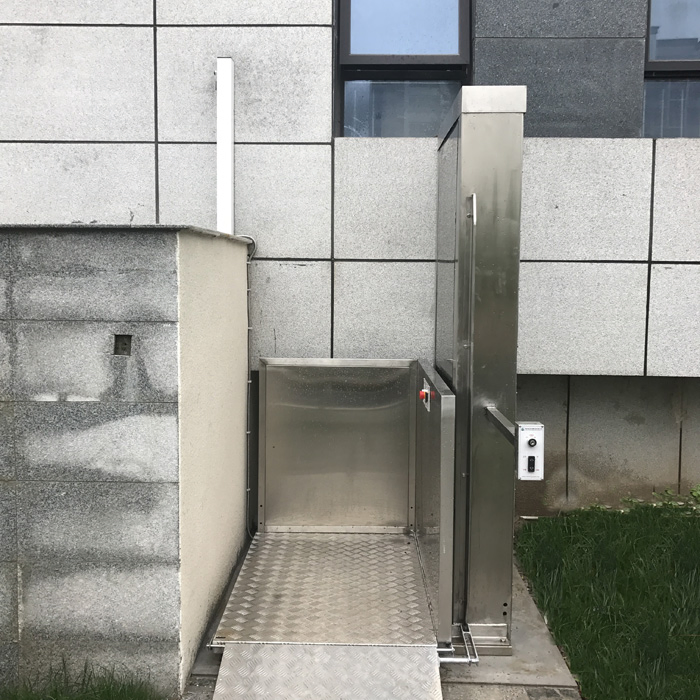

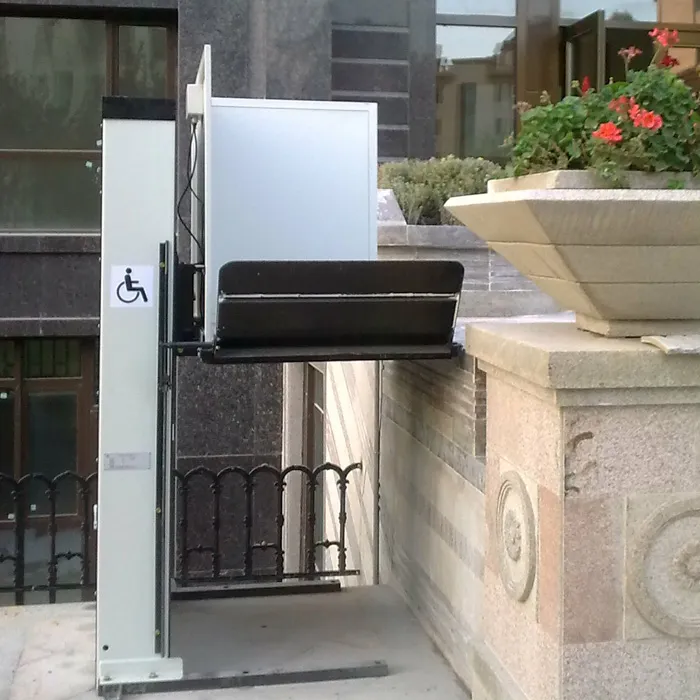

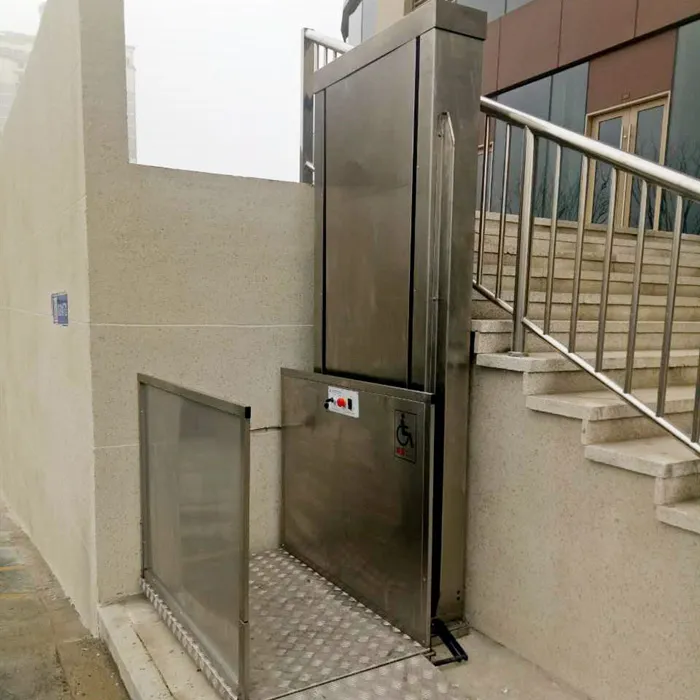

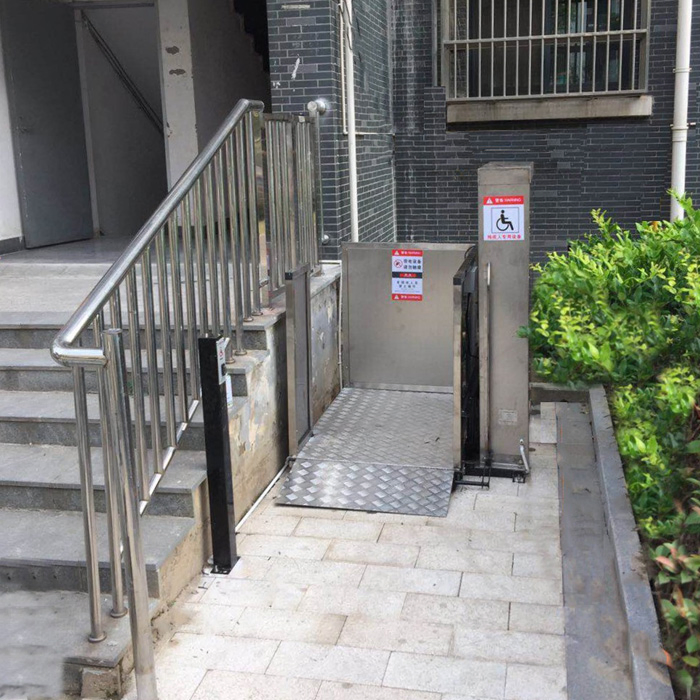

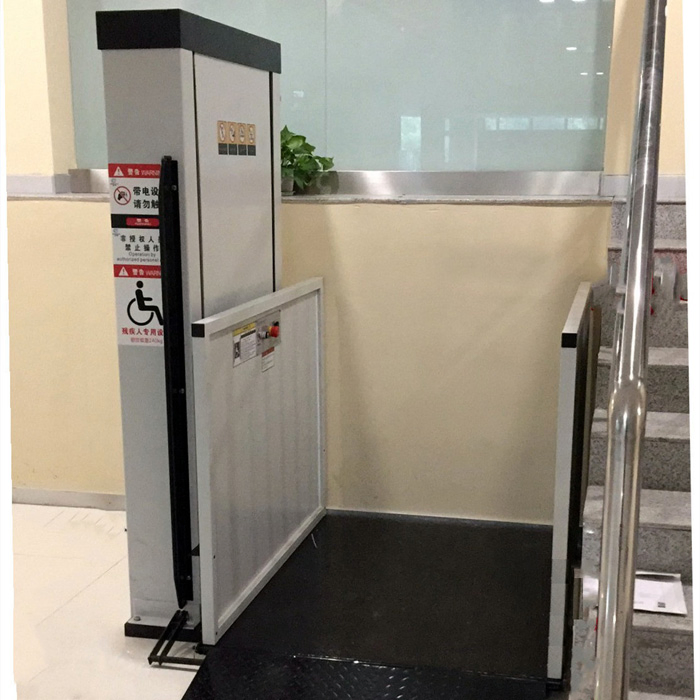

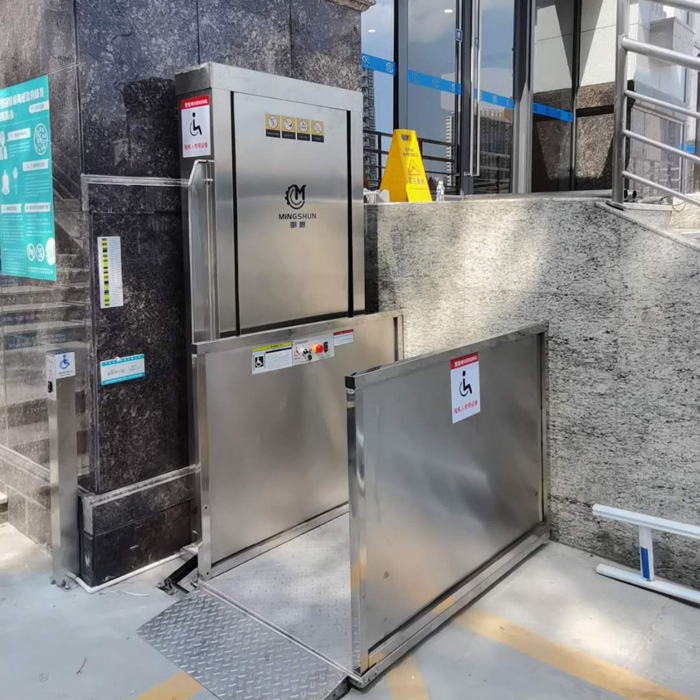

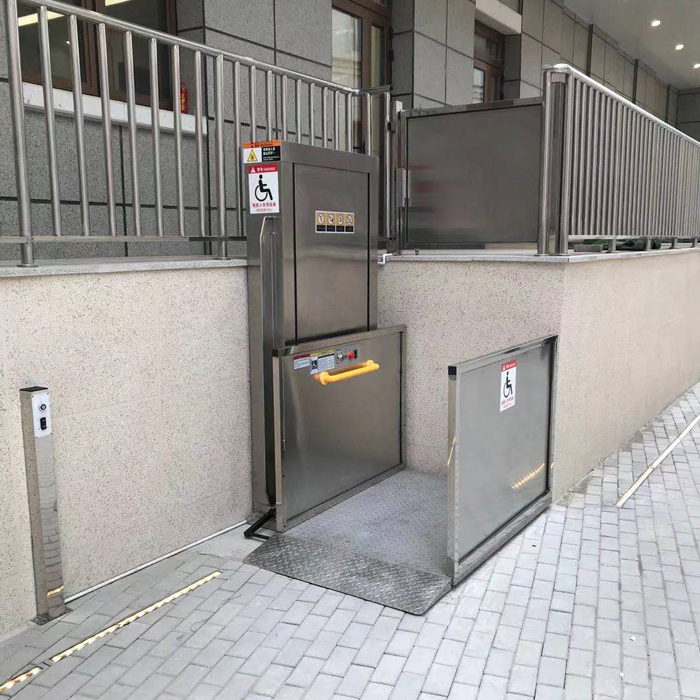

Wheelchair platform lift for home is customized products for lifting cargo or wheelchair for disabled people. It is suitable for solving disabled passengers with large height differences between floors. Platform space can accommodate both wheelchairs and escorts.
Key Features:
- Smooth running speed and high safety standards
- Easy installation with minimal space required
- No pits required for installation
- Customizable colors and door configurations
Technical Parameters
| Voltage |
220V/50HZ or Customized |
| Overall Dimensions |

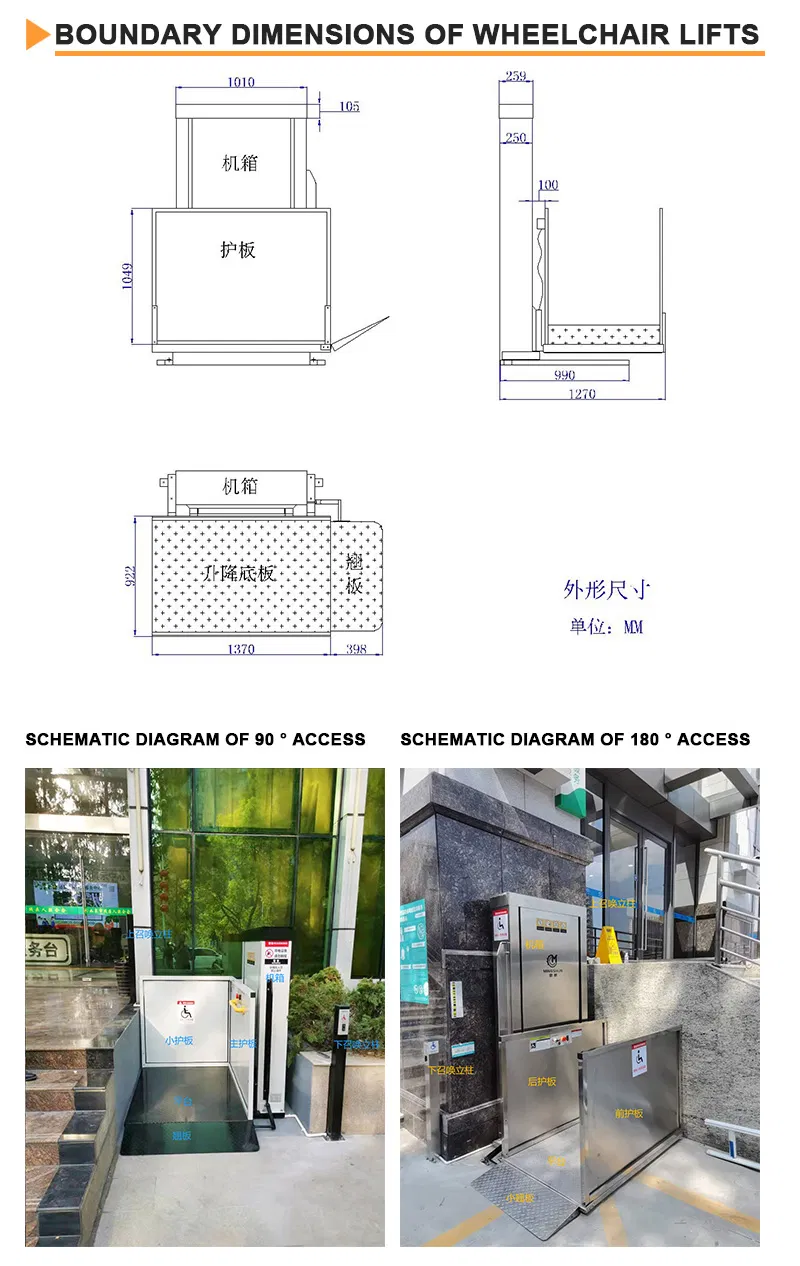

1670mm(L)×1270mm(W)×(lifting height+550)mm(H) |
| Max Loading |
240kg |
| Lifting Speed |
60mm/s inverter control, soft start soft brake |
| Drive System |
Screw Drive |
| Power |
2.2kw 220V/AC |
| Environment |
Indoor & Outdoor (-20°C to 60°C) |
Safety Equipment
| Safety Rocker |
Automatically tilts up to prevent the wheelchair from sliding out of the platform. |
| Overload Protection |
The equipment will not operate when overloaded. |
| Emergency Stop |
Manual emergency button to control immediate stopping of the machine. |
| Emergency Descent |
Equipped with an electric emergency descent system. |
Safe performance and pit-free installation design bring you the convenience of barrier-free access construction and elevator-like enjoyment. Widely used in residential quarters, hotels, restaurants, administrative office buildings, subways, banks, gymnasiums, hospitals and other public places. It is in line with ASME A18-1 and CSA-B613 standards.
Frequently Asked Questions
What is the maximum weight capacity for this wheelchair lift?
The standard maximum loading capacity is 240kg-250kg, which comfortably accommodates a wheelchair and an escort.
Can this platform lift be installed outdoors?
Yes, the lift is designed for both indoor and outdoor environments, with a working temperature range of -20°C to 60°C and weather-resistant finishing.
Does the installation require a foundation pit?
No, one of the main advantages of this model is that no pit is required. It can be installed directly on the ground or a simple concrete base.
Is the lifting height customizable?
Yes, the lifting height can be customized according to your specific site requirements, typically ranging from 1 meter up to 10 meters.
How is the lift controlled by the user?
The lift features simple push-button controls on the platform and can also be operated via remote control or outbound call columns installed at the stop floors.
What safety features are included for wheelchair users?
The lift includes a safety rocker that prevents the wheelchair from sliding out, emergency stop buttons, overload protection, and an emergency descent system for power failures.
