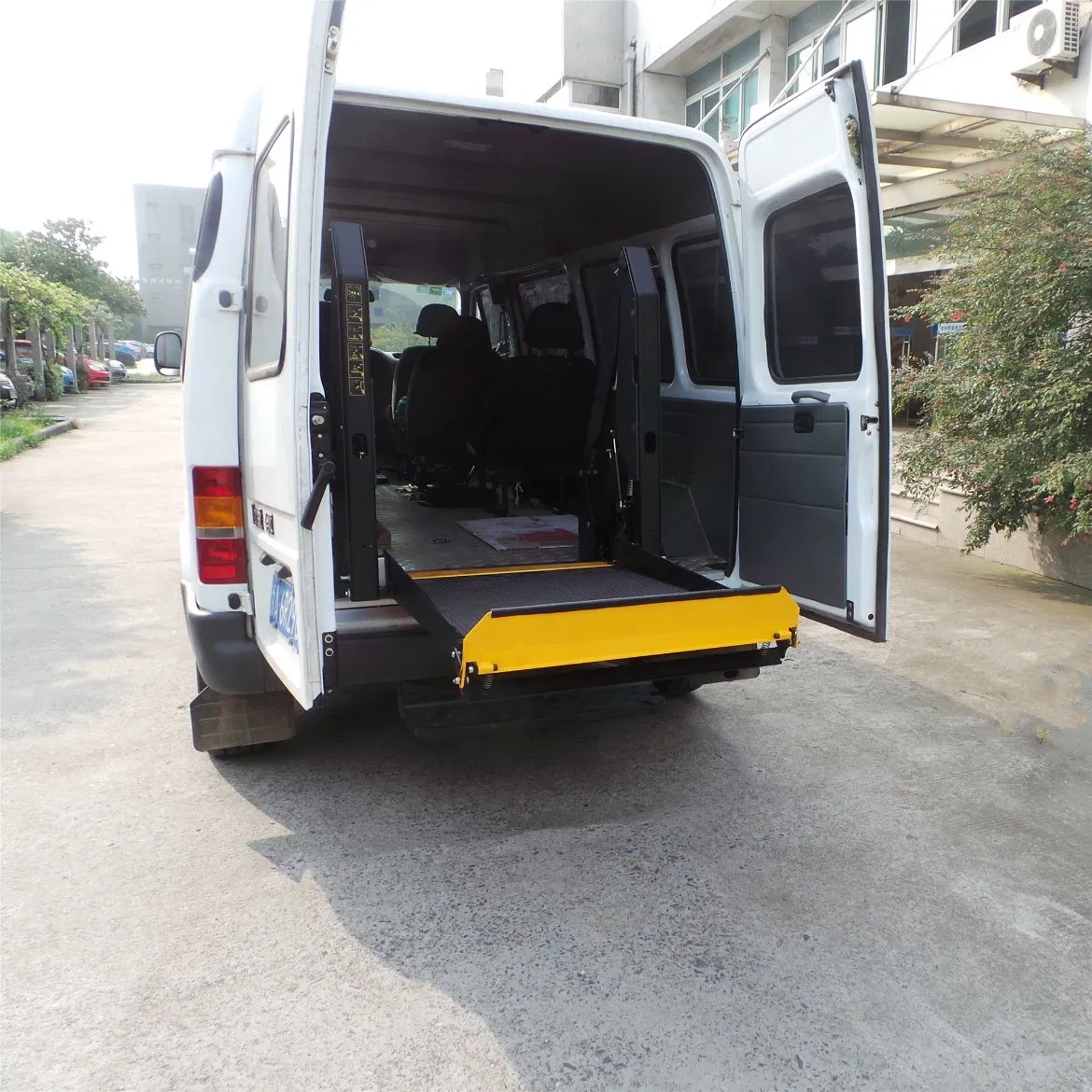

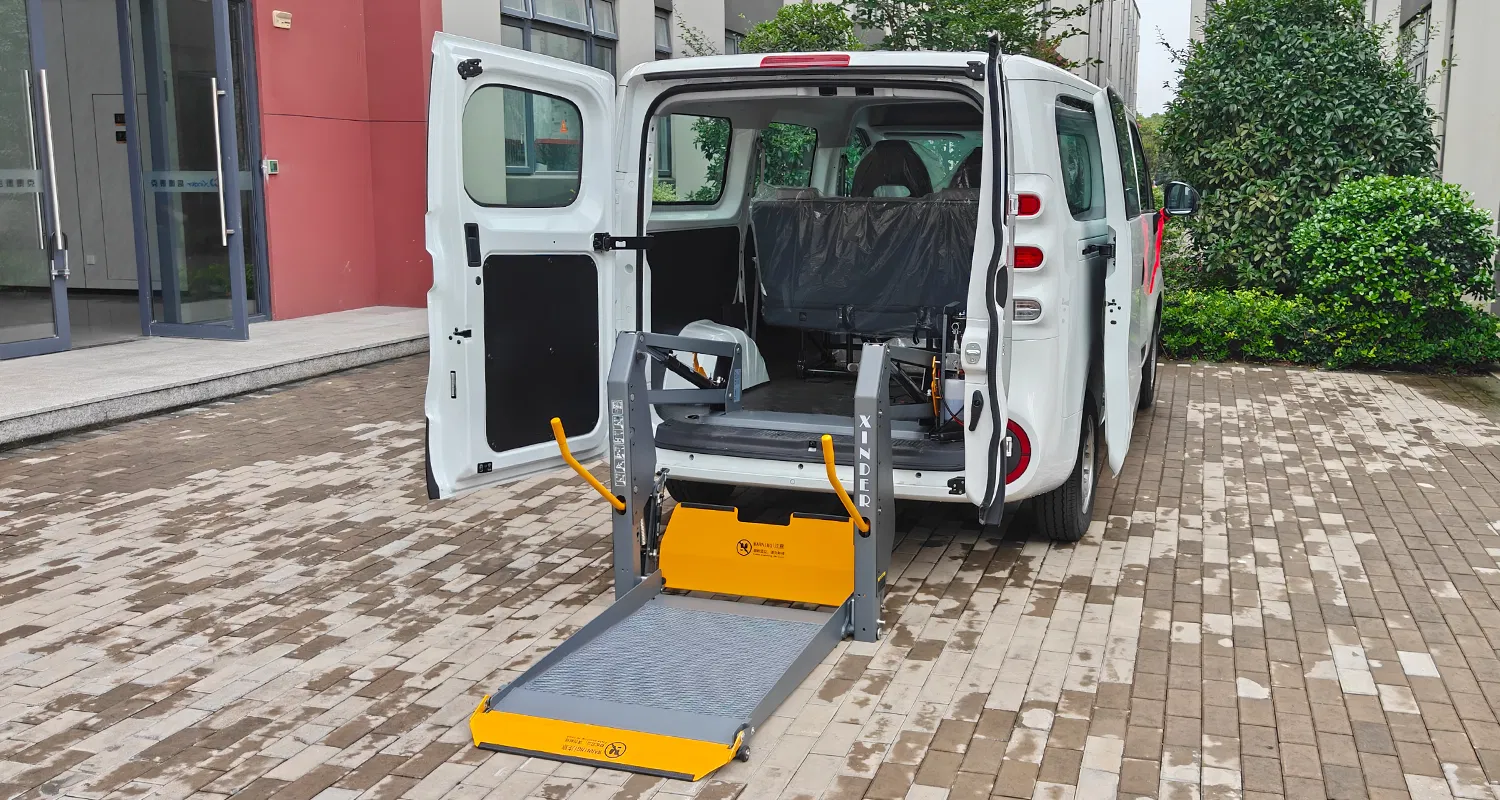

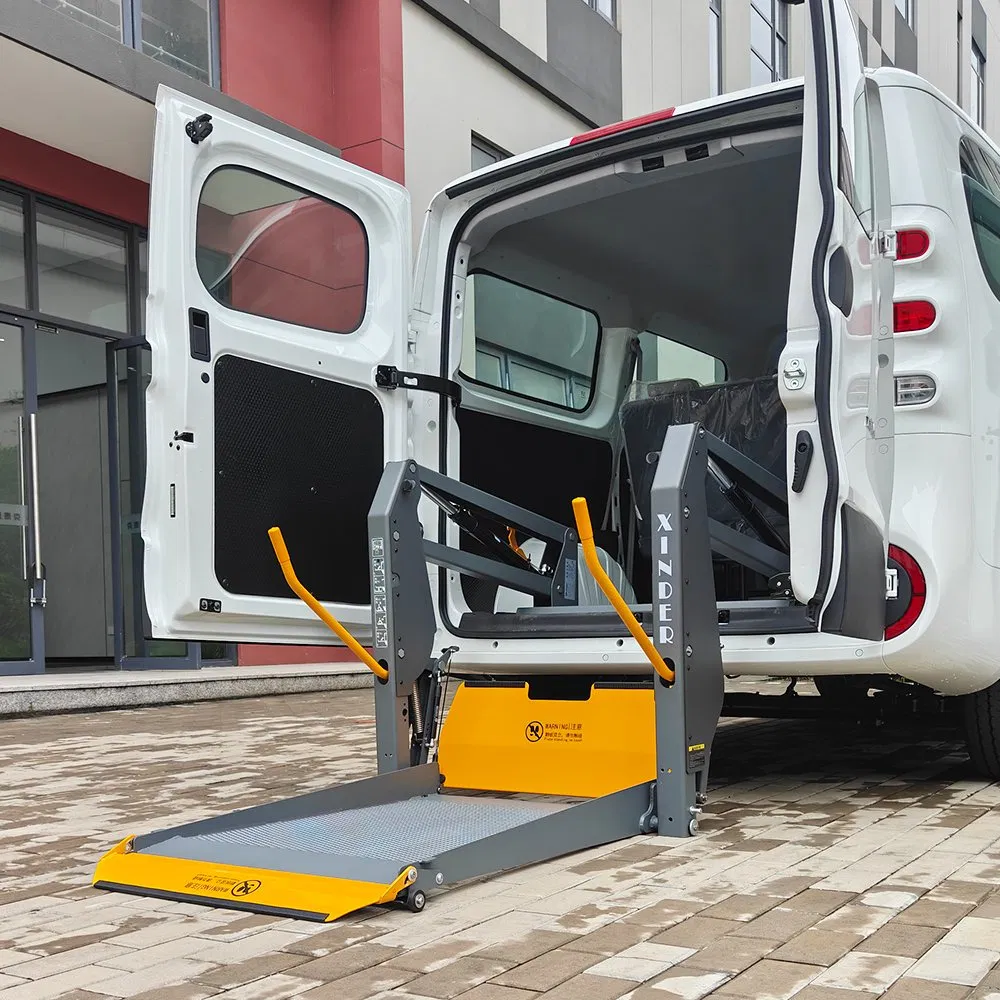

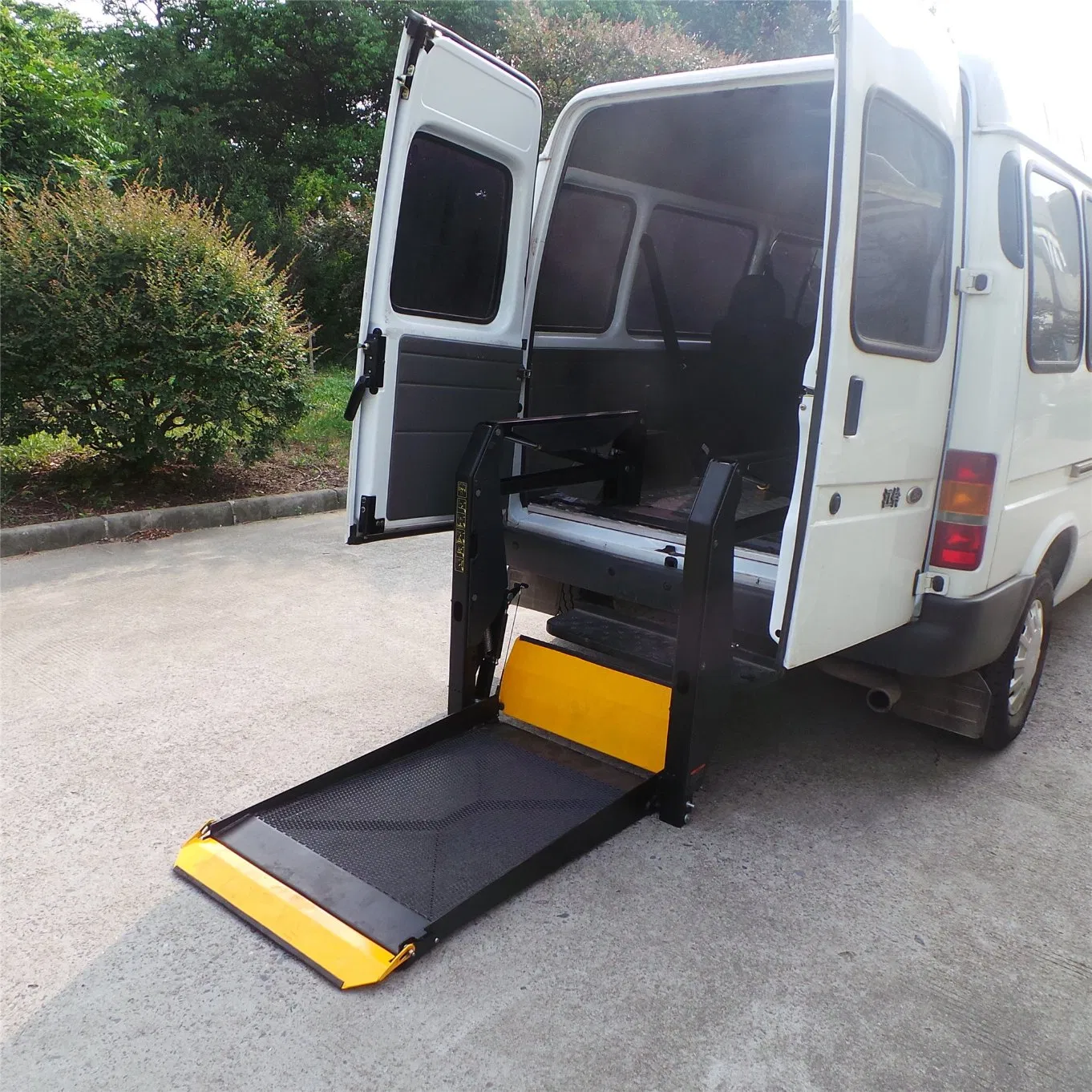

This lift is the first choice for a person to enter a vehicle. It can be installed at the rear door or side door, providing good visibility for both passengers and the driver! Powered by hydraulics, the movement of lifting, lowering, and rotating is fully automatic. A wired remote control operates this lift. We provide three types of platforms for your choice: solid platform, split platform, and folding platform.

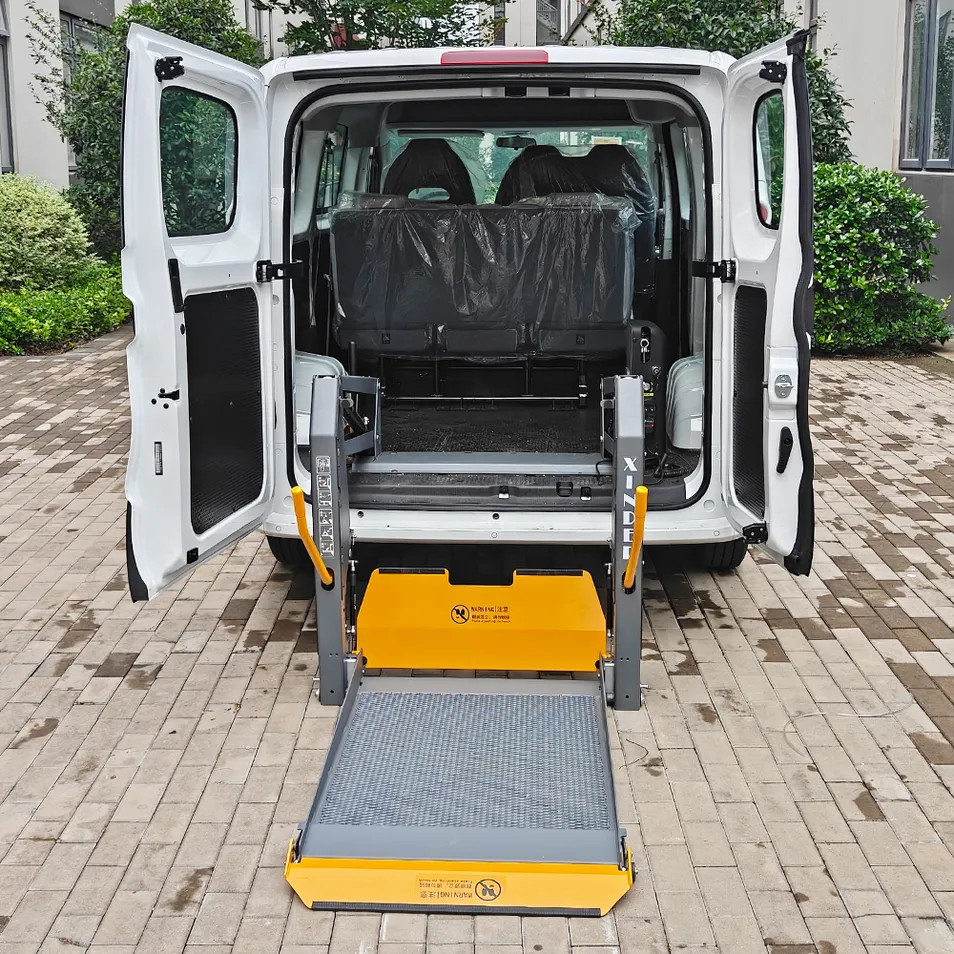

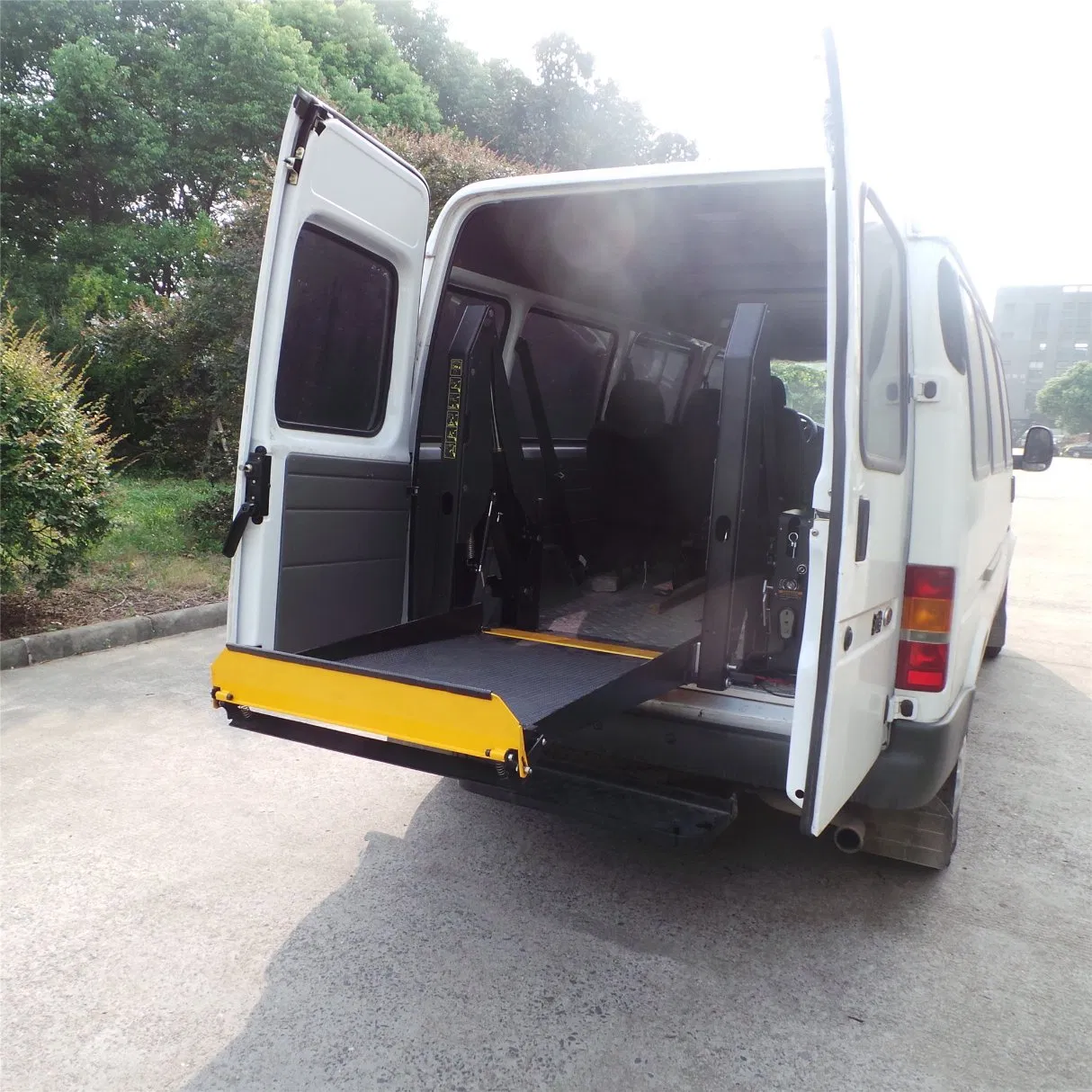

Platform Open

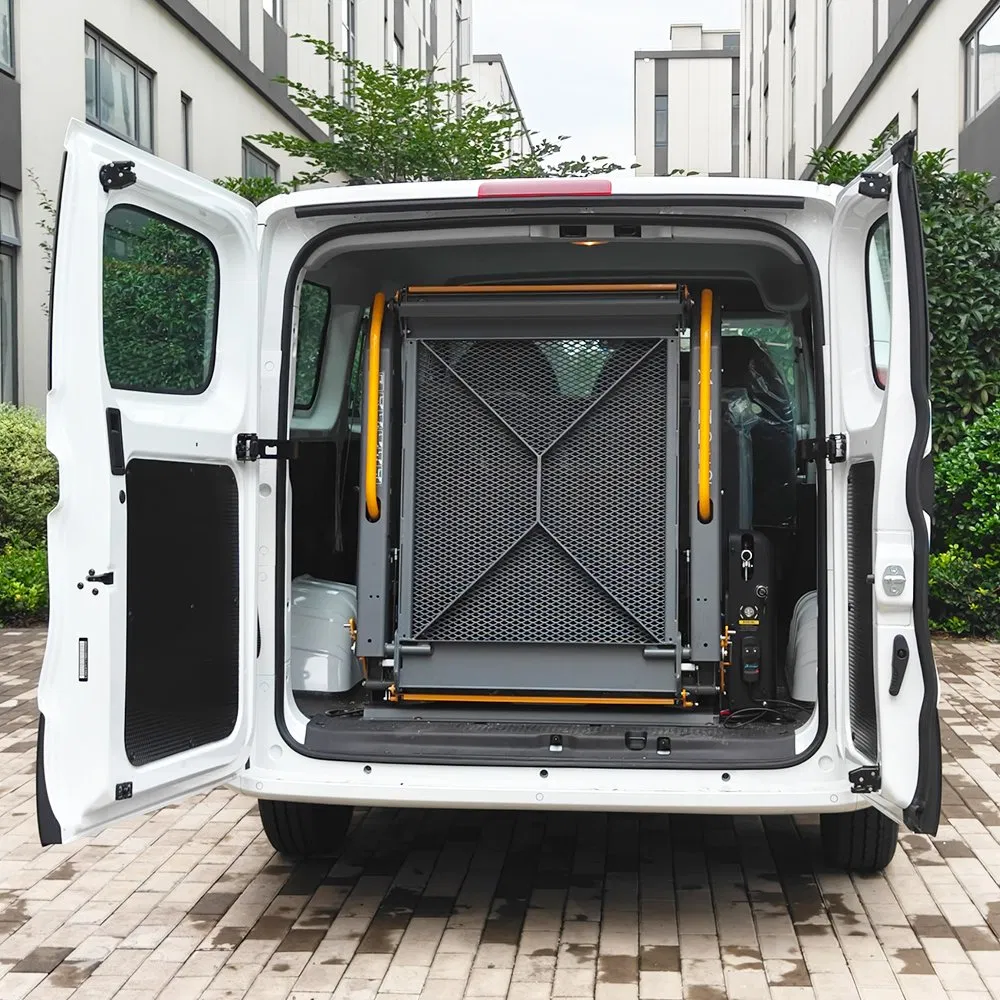

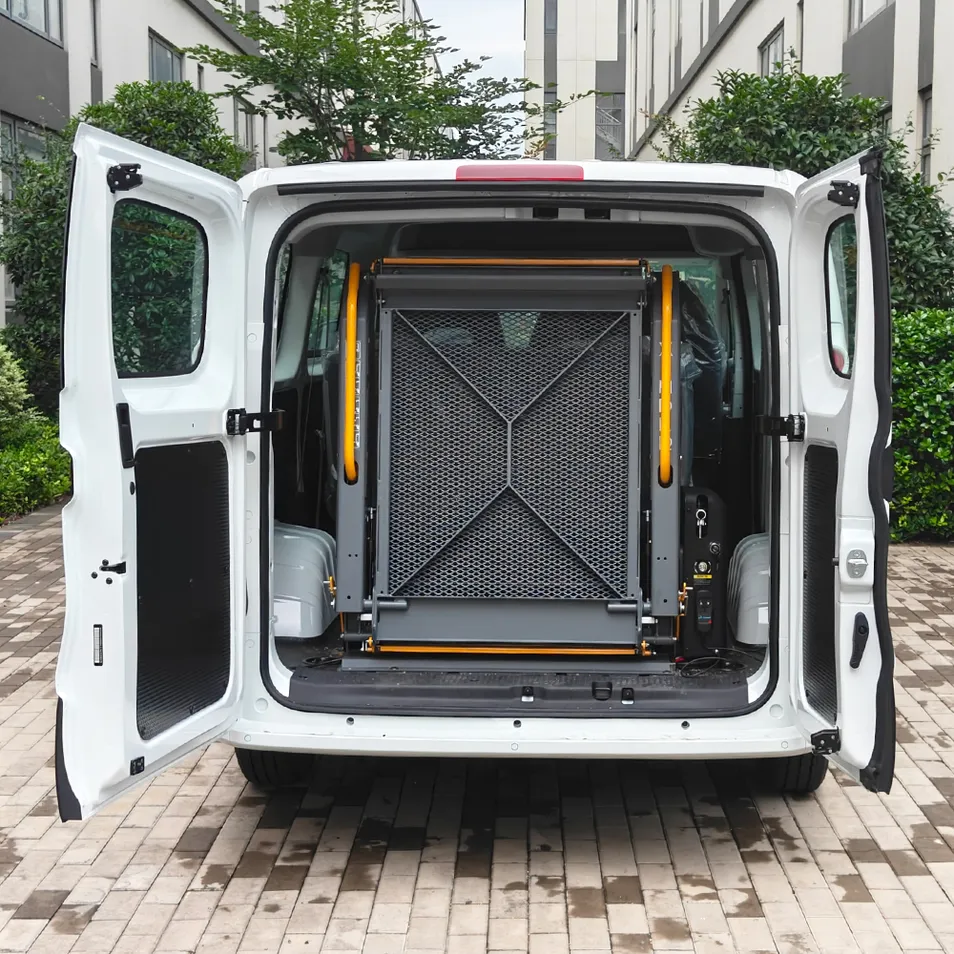

Platform Retraction

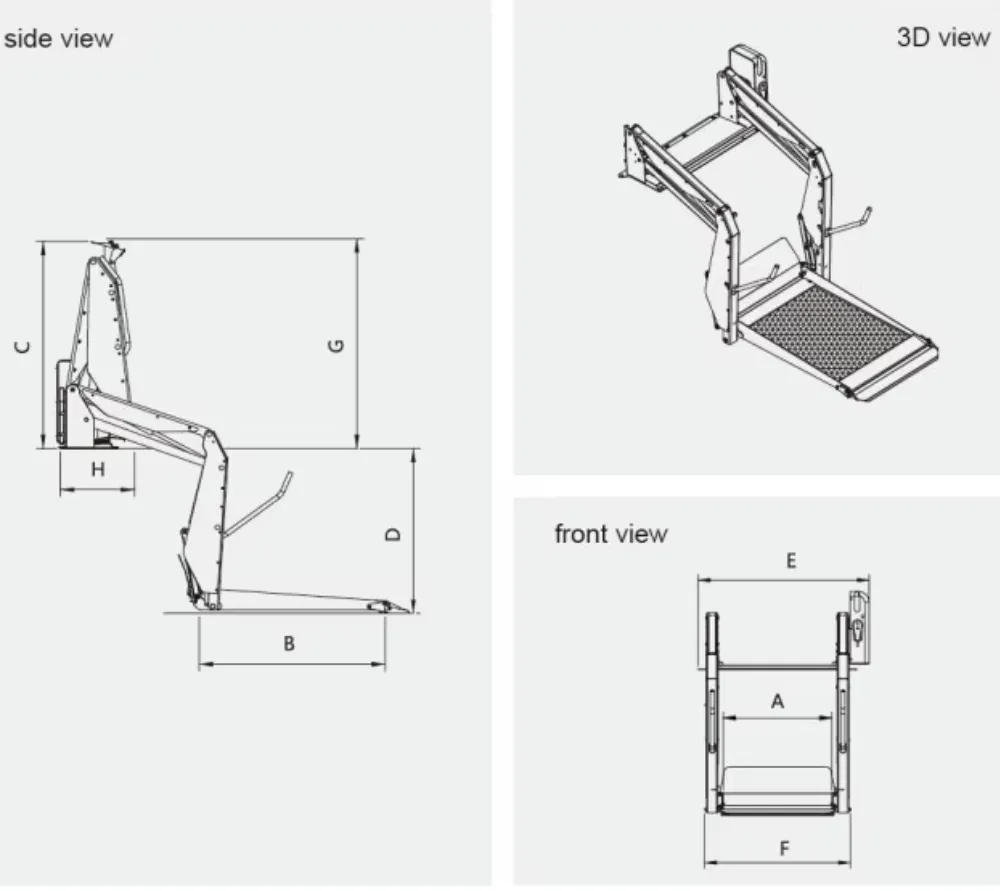

| Model | Platform net width A | Platform net length B | Overall height C | Max lifting height D | Overall width E | Door net width F | Door net height G | Depth H |
|---|---|---|---|---|---|---|---|---|
| DN-880-1150 | 720 | 1140 | 1215 | 880 | 1137 | 1150 | 1230 | 435 |
| DN-880-1250 | 820 | 1240 | 1315 | 880 | 1237 | 1250 | 1330 | 435 |
| TECHNICAL DATA | |
| Voltage | 12V/24V |
| Power | 800W |
| Loading capacity | 350kg |
| Operation method | Electric and hydraulic |

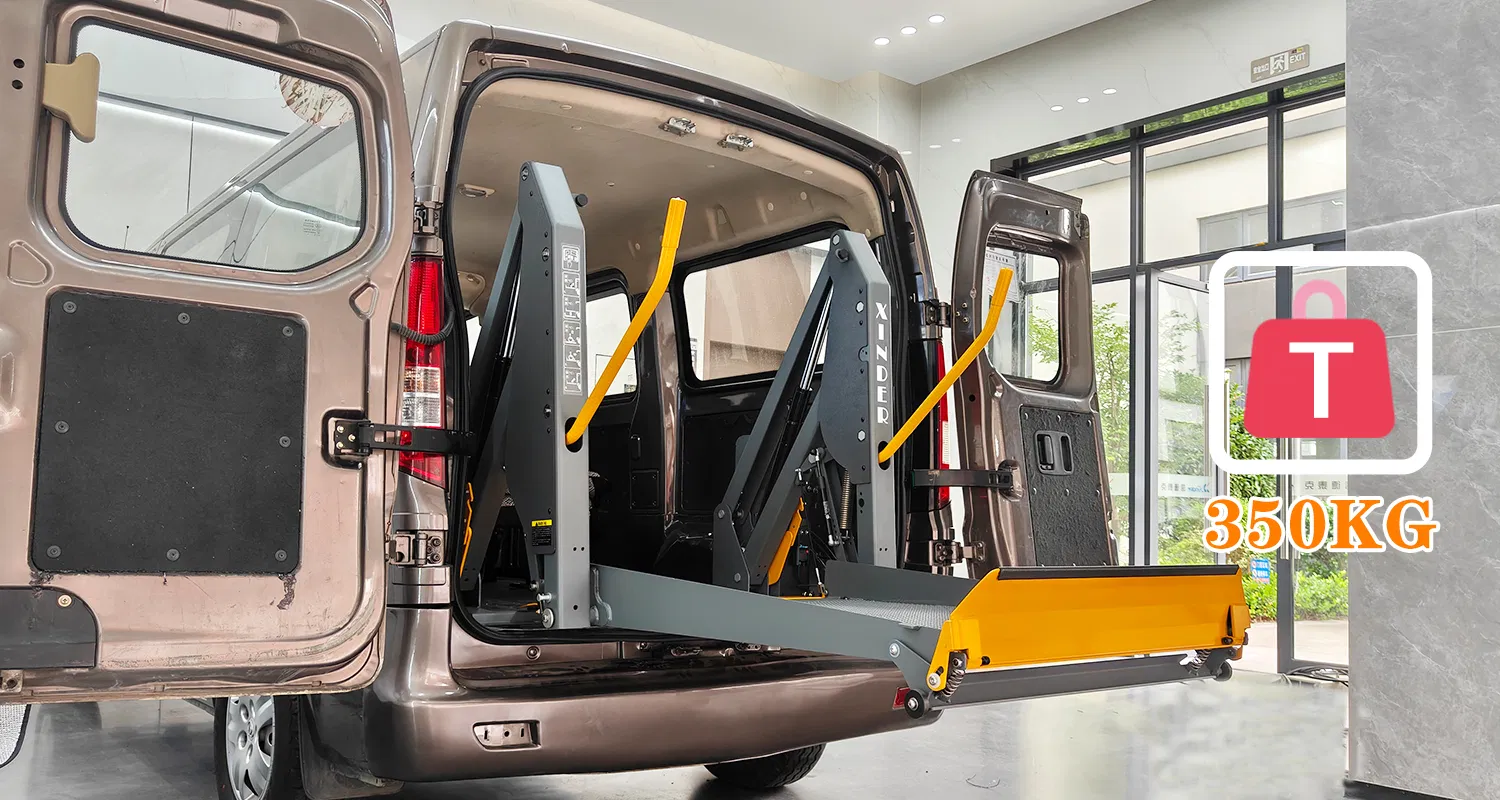

High load capacity: 350kg capacity for wheelchair and personnel.

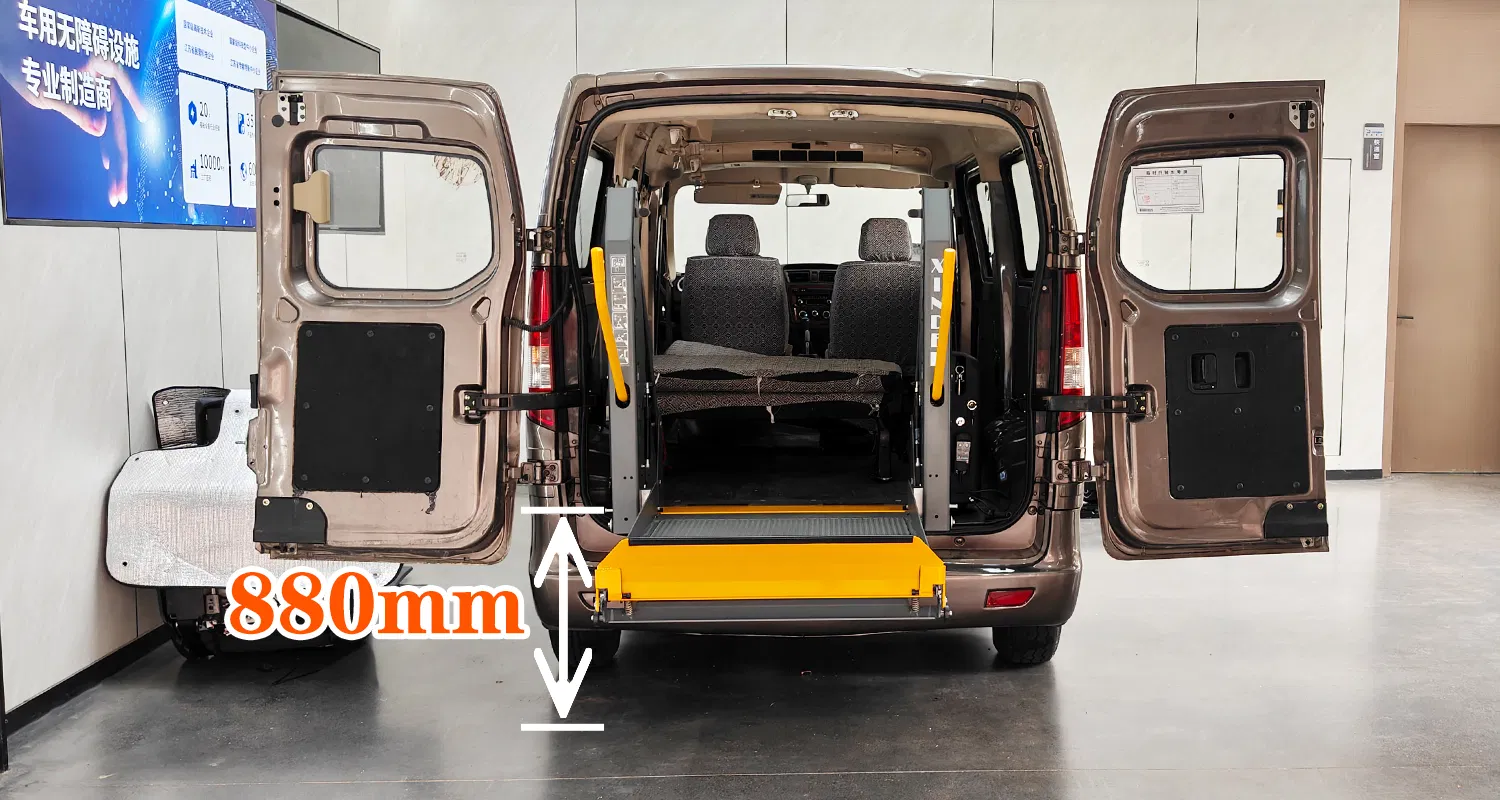

Long Descent Stroke: 880mm stroke for most truck models.

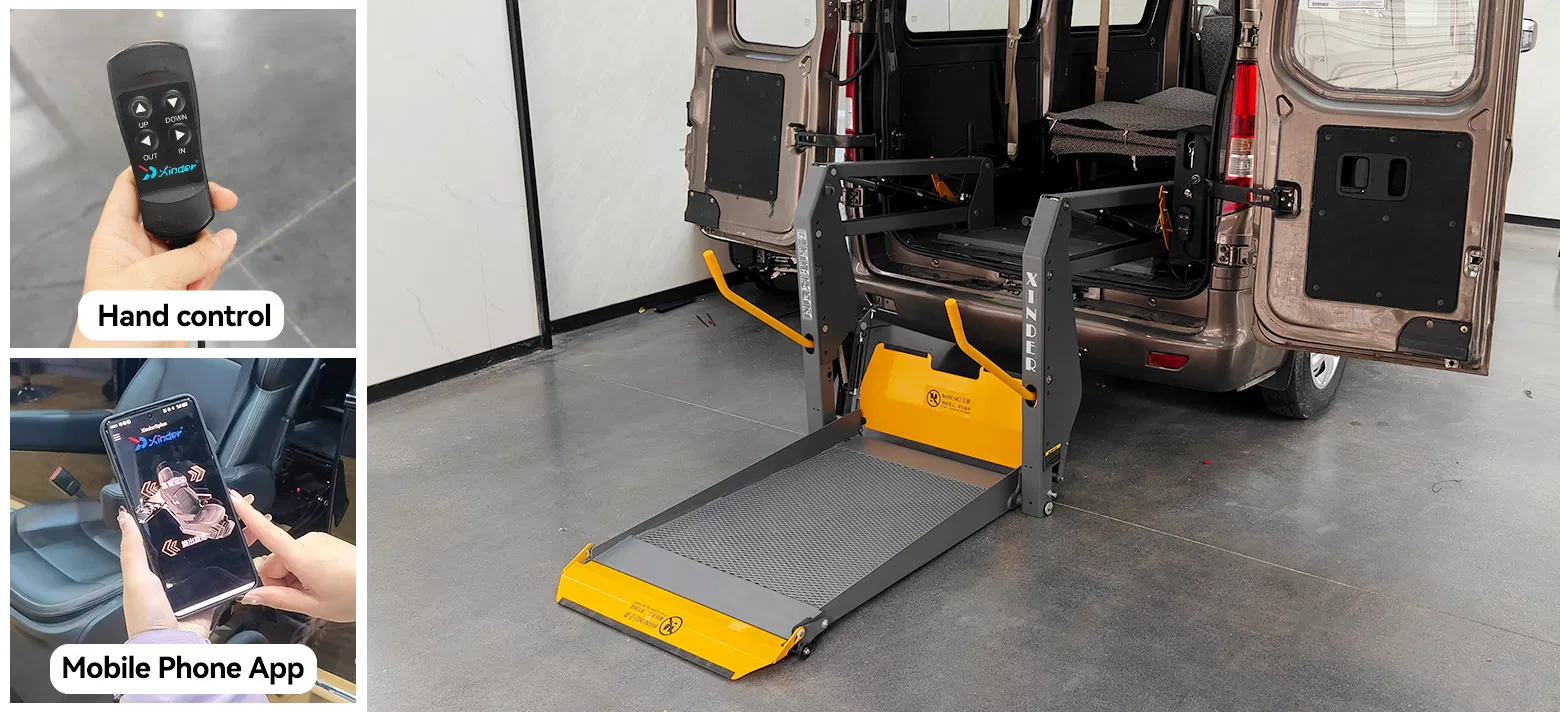

Control Methods: Supports hand controller and mobile APP.

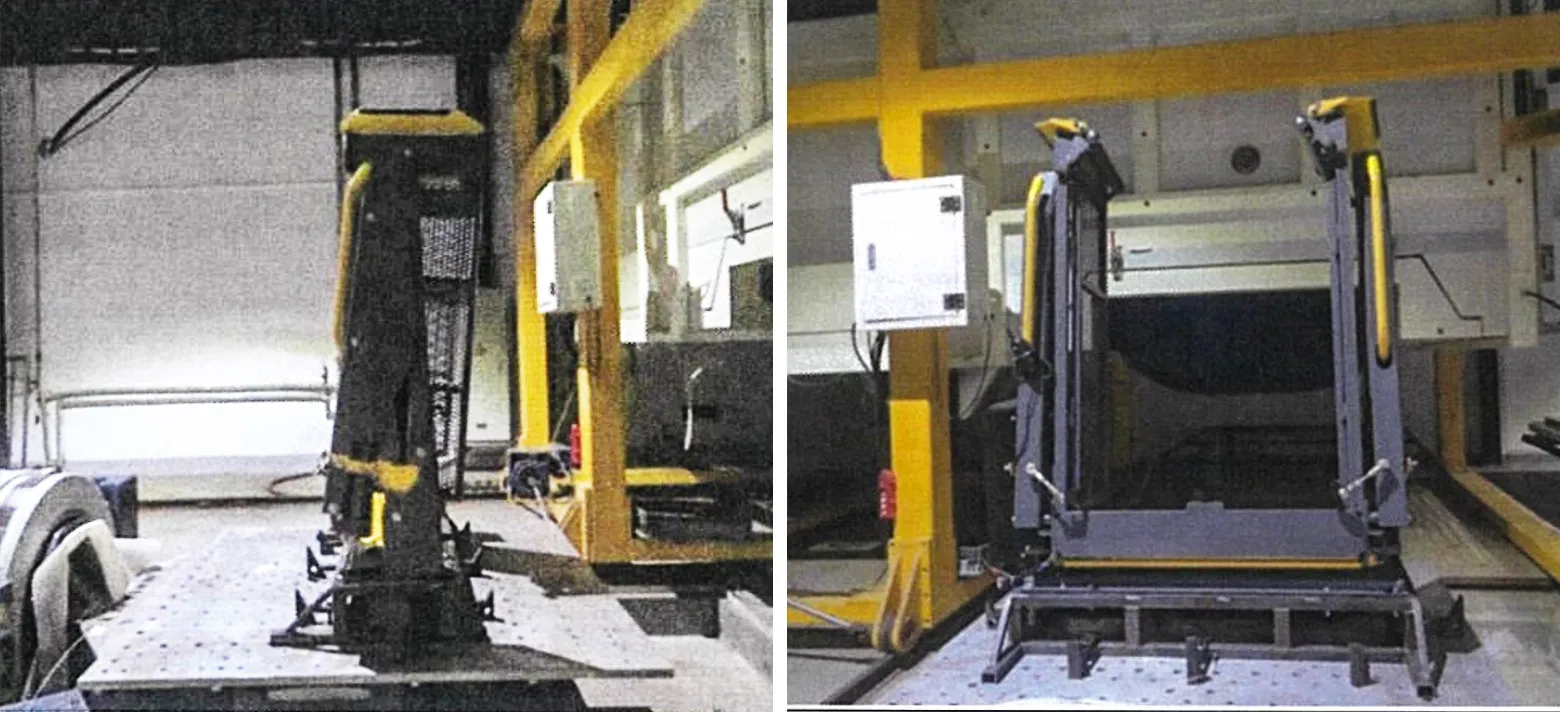

Safety Tested: Passed EMC, high and low temperature tests.
