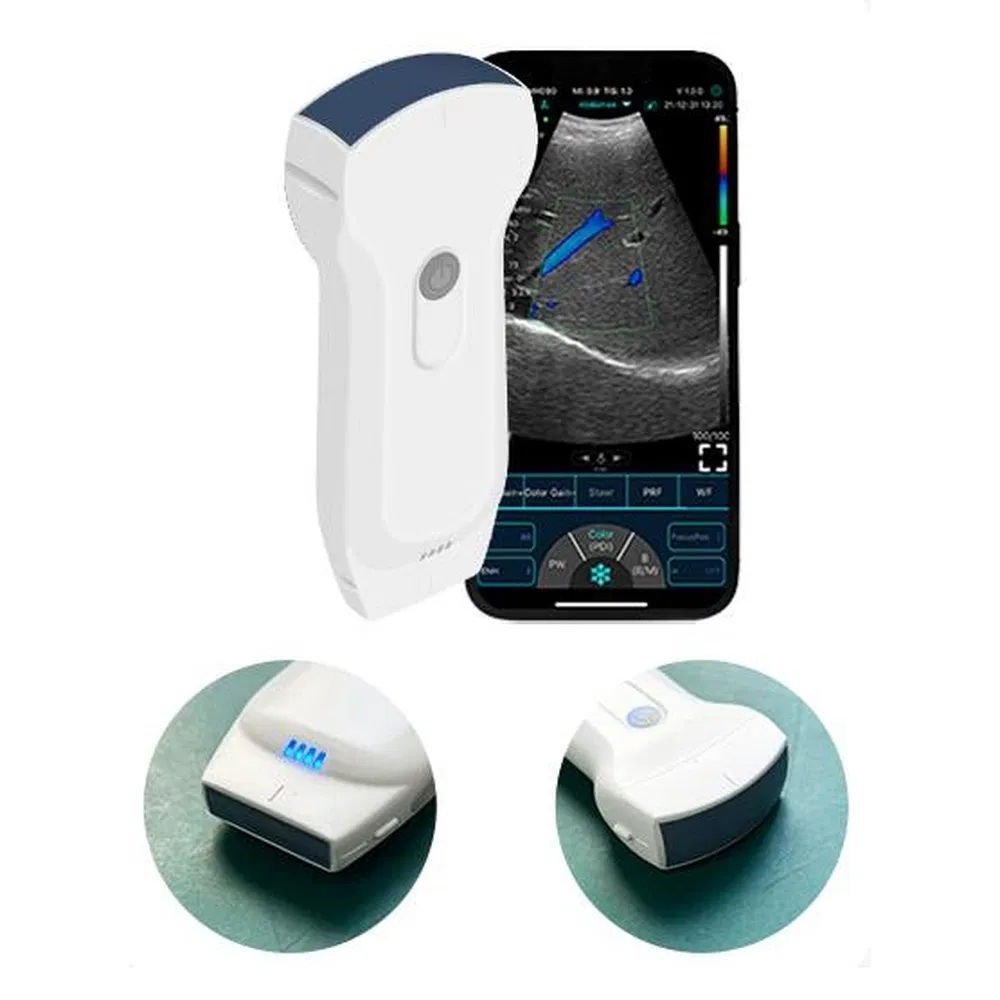

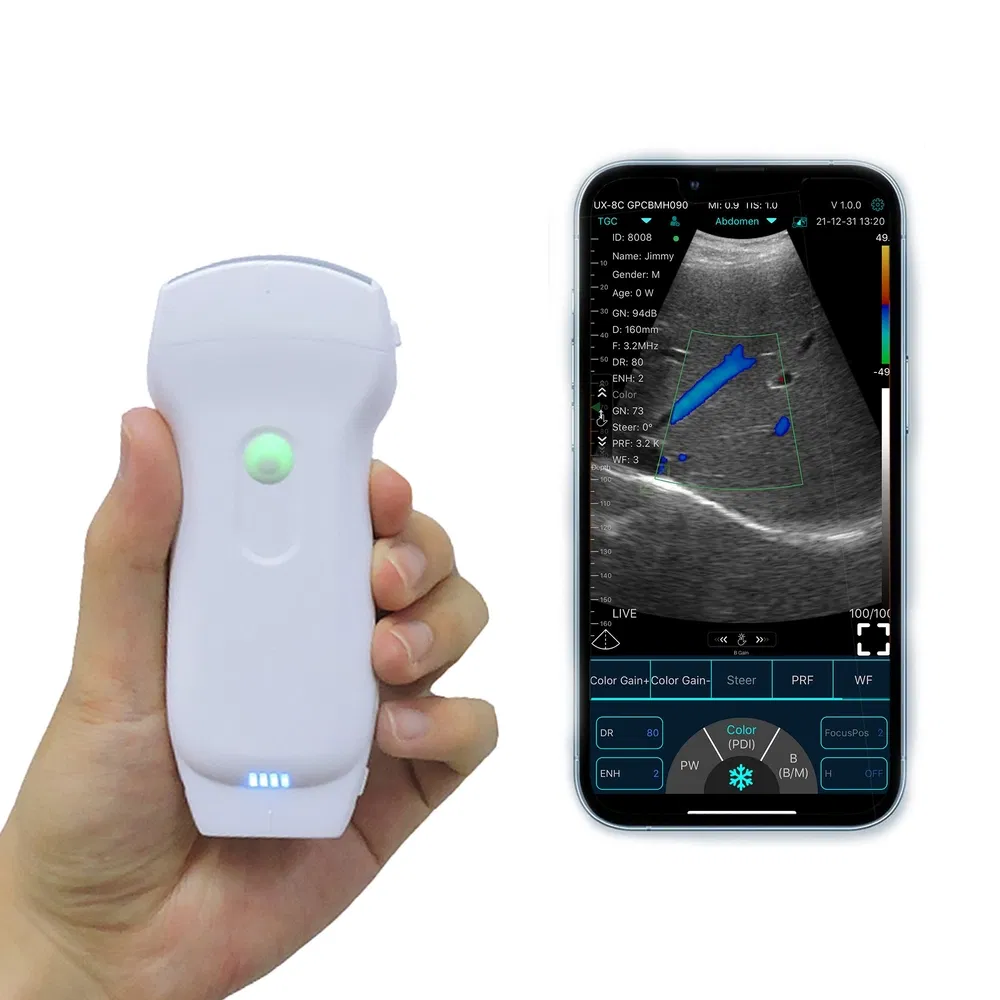

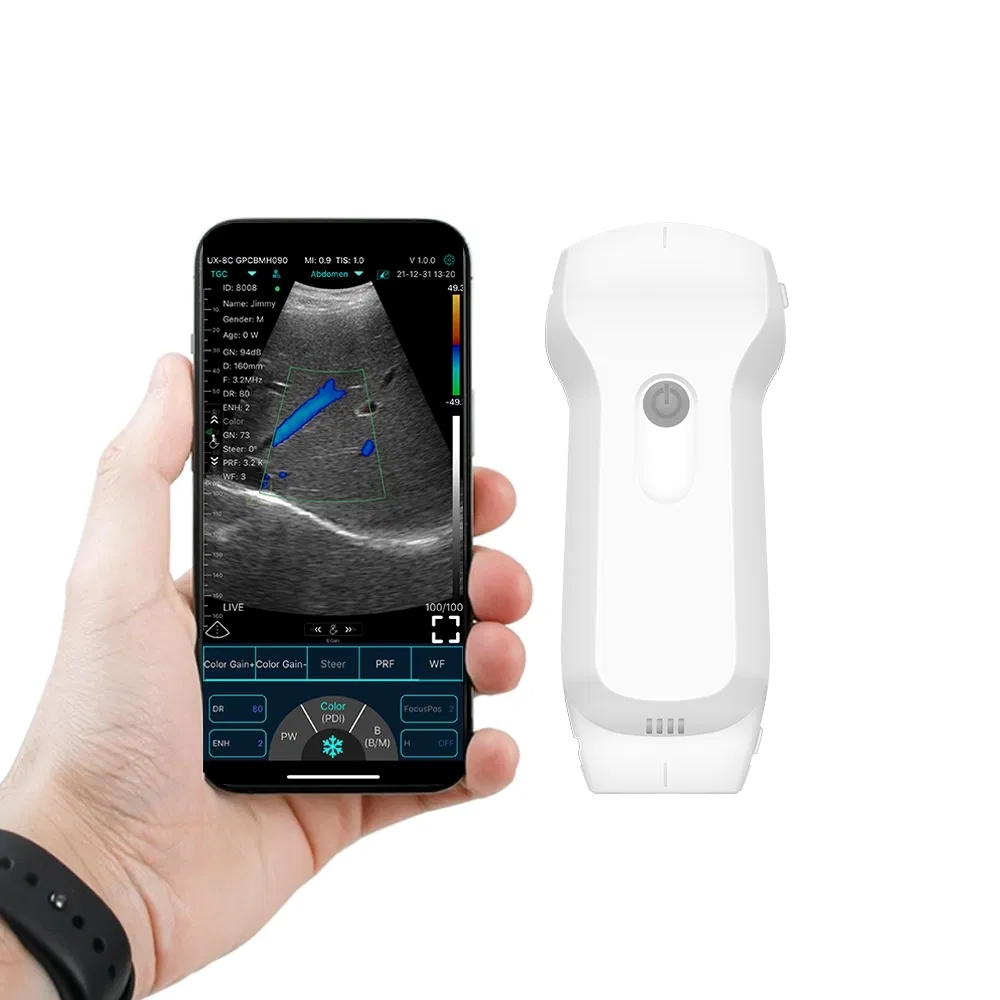

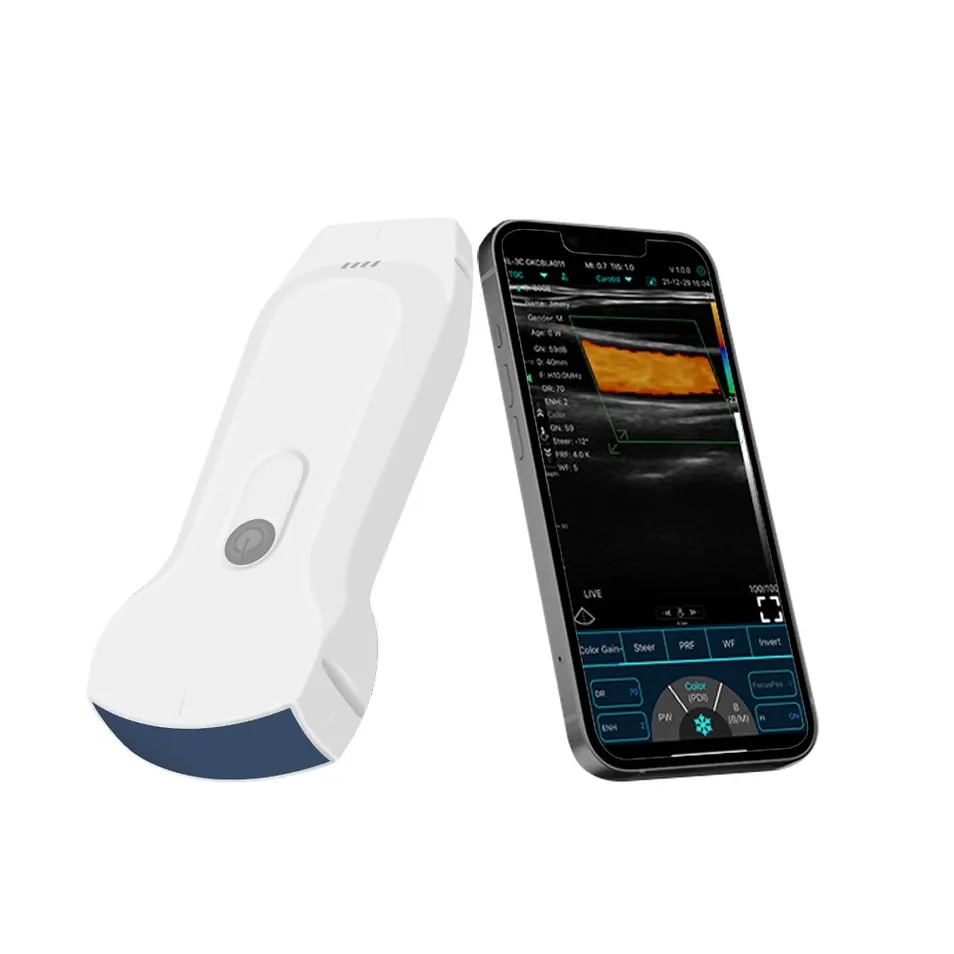

HANDHELD ULTRASOUND
Experience the future of medical diagnostics with our state-of-the-art handheld ultrasound system. This ultra-portable, pocket-sized ultrasound device empowers healthcare professionals to make faster, more accurate clinical decisions right at the point-of-care. By connecting wirelessly to your smartphone or tablet, it delivers crystal-clear, real-time imaging without the need for bulky, traditional equipment, transforming patient assessment in any setting—from the clinic to the field.

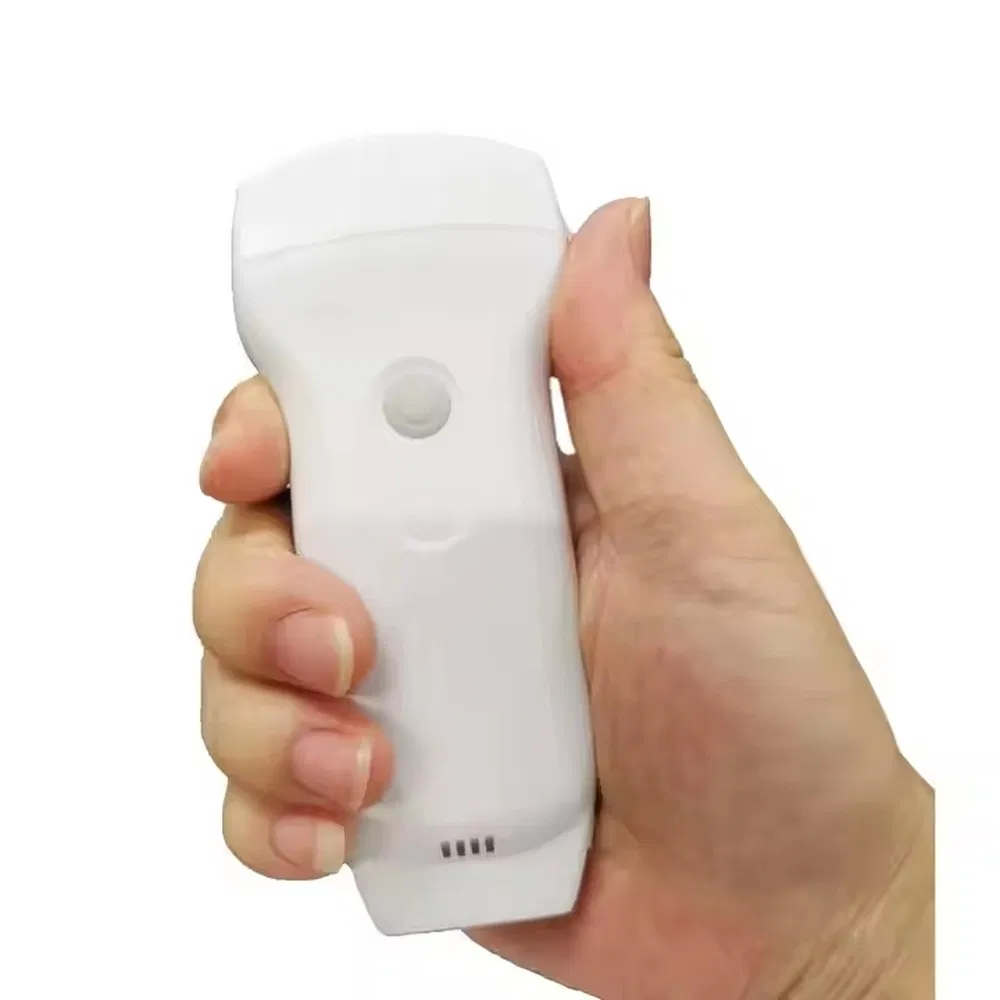

Weighs only a few ounces and fits easily into a lab coat pocket. Perfect for bedside examinations, emergency response, and home healthcare visits.
Enables immediate imaging at the patient's bedside or in ambulances. Reduces wait times and accelerates clinical decision-making.
Features a simplified, touch-based mobile app interface that reduces learning curves and training time significantly.
| Parameter | Specification |
|---|---|
| Probe Type | Wireless Dual Head Convex+Linear Probe |
| Elements | Dual 128 |
| Frequency | 3.2/5.0Mhz, 7.5/10Mhz, 2.5/5.0Mhz |
| Depth | 90-305mm (Convex), 20-100mm (Linear) |
| Presets | Abdomen, Gynecology, Cardiac, Urology, Small Parts, Vascular, MSK, Nerve, etc. |
| Display Mode | B, B+B, B/M, Color, PW, PDI, B+Color+PW |
| Connection | WiFi (802.11g/5G/450Mbps) & USB |
| Software Params | Gain, Depth, Enhancement, Dynamic Range, 8TGC, etc. |
| Measurement | Length, Area, Angle, Heart Rate, Obstetric GA, Vessel Flow (PS, ED, RI, etc.) |
| Battery | Replaceable Lithium Battery, 3h Working Time |
| Language | English, Chinese, German, Russian, French, Spanish, etc. |
Extended rechargeable battery life supports hours of continuous scanning, ensuring consistent performance throughout busy clinical shifts.
Engineered for demanding clinical environments with robust materials and IPX5 waterproof rating for easy cleaning.
