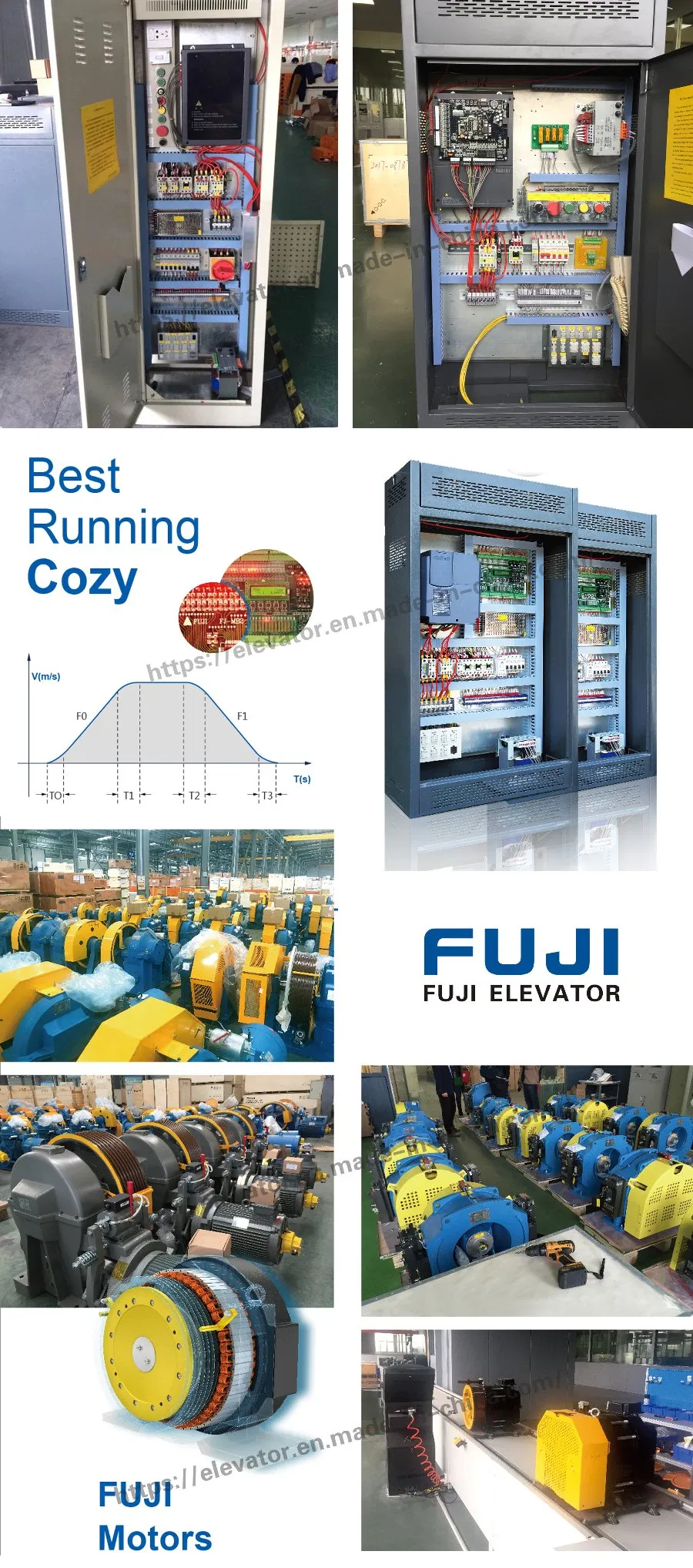

VVVF drive ensures the elevator operates more smoothly. Superior noise control provides a peaceful riding experience. Start, acceleration, and brake curves are ergonomically designed for maximum comfort. The permanent magnetic synchronous drive saves up to 48% in energy consumption.
Car displacement tracking technology ensures leveling safety. High-accuracy detection allows for almost perfect alignment between the car and the landing level.
Utilizing advanced VVVF variable voltage and frequency control technology for smooth and quiet door switching. The self-learning door load detector automatically adjusts open/shut speeds for every floor to guarantee reliability.

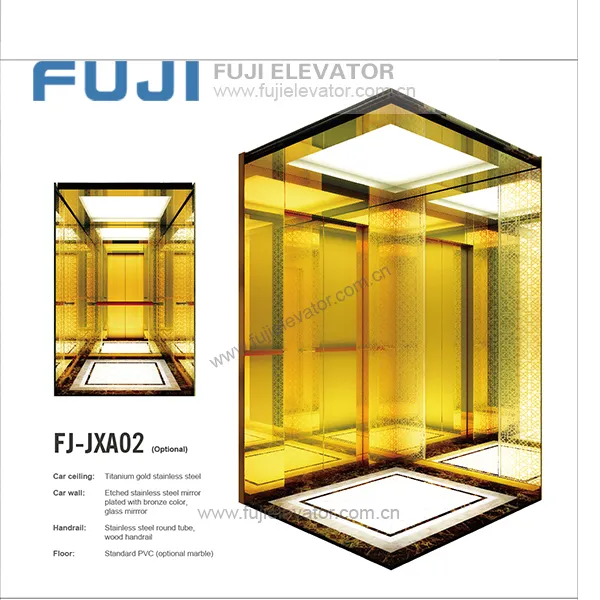

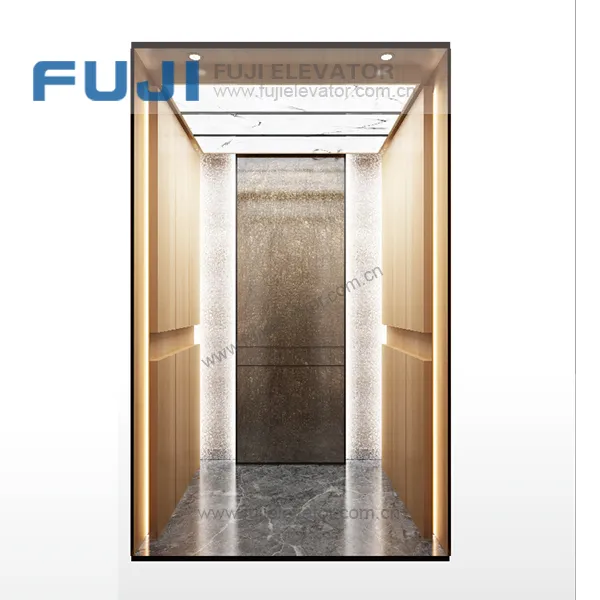

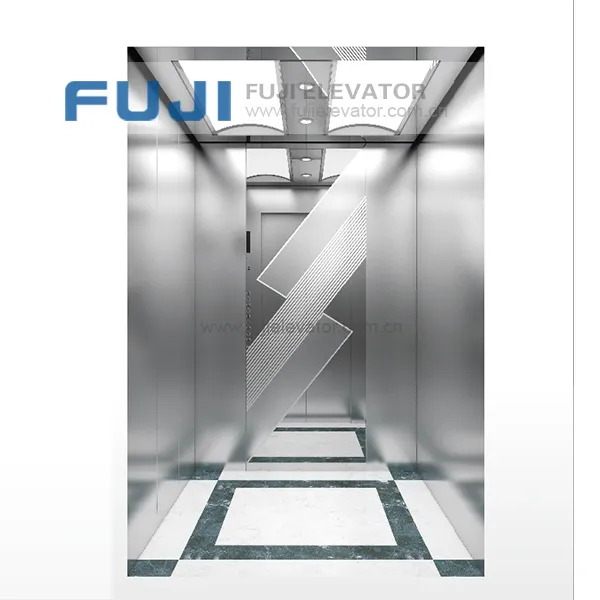

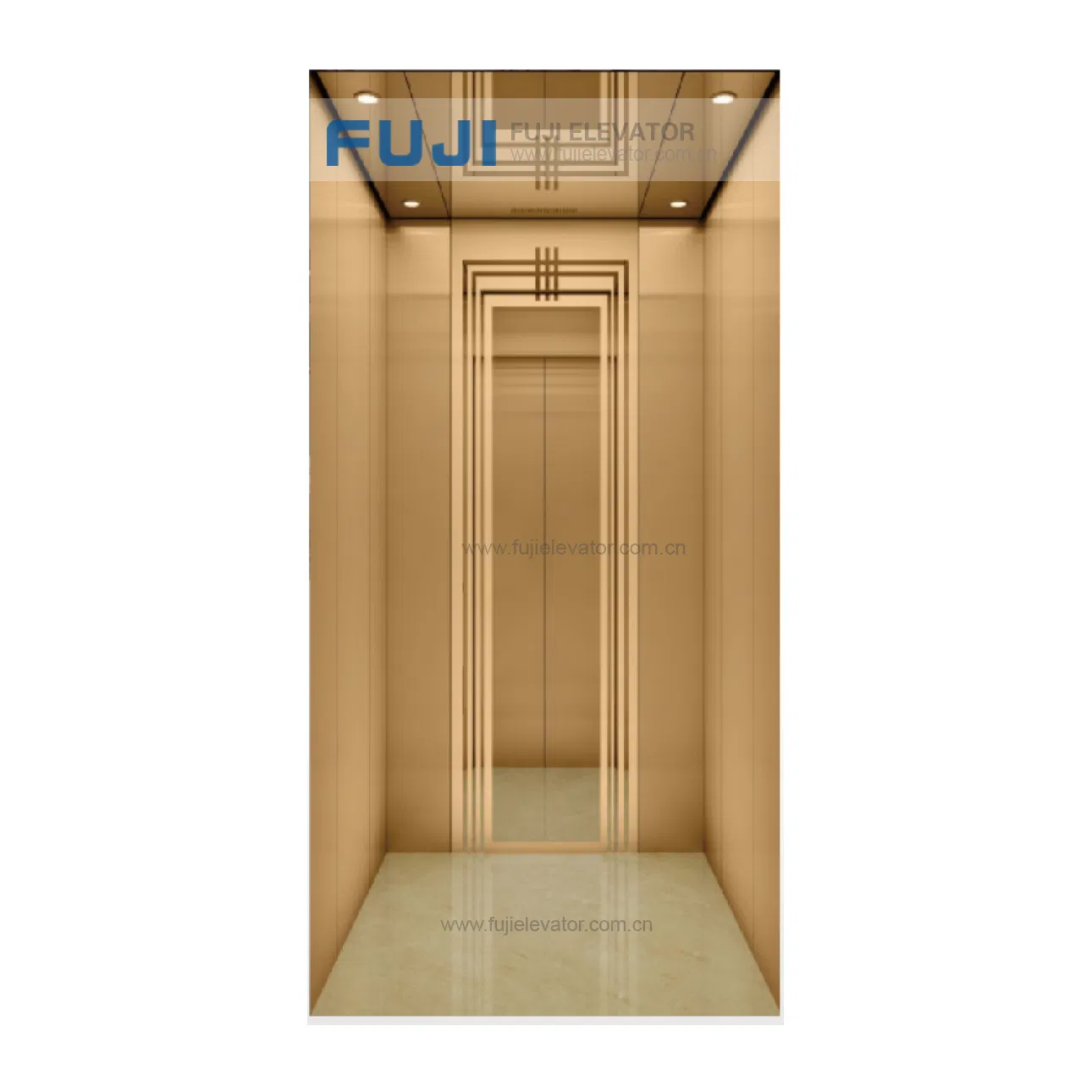

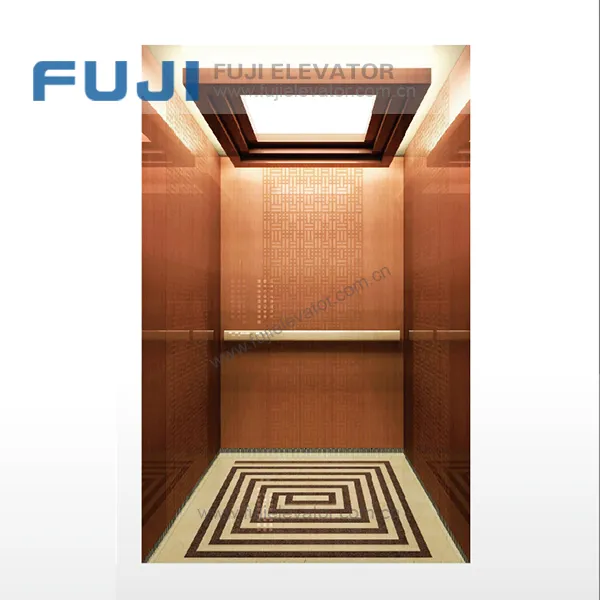

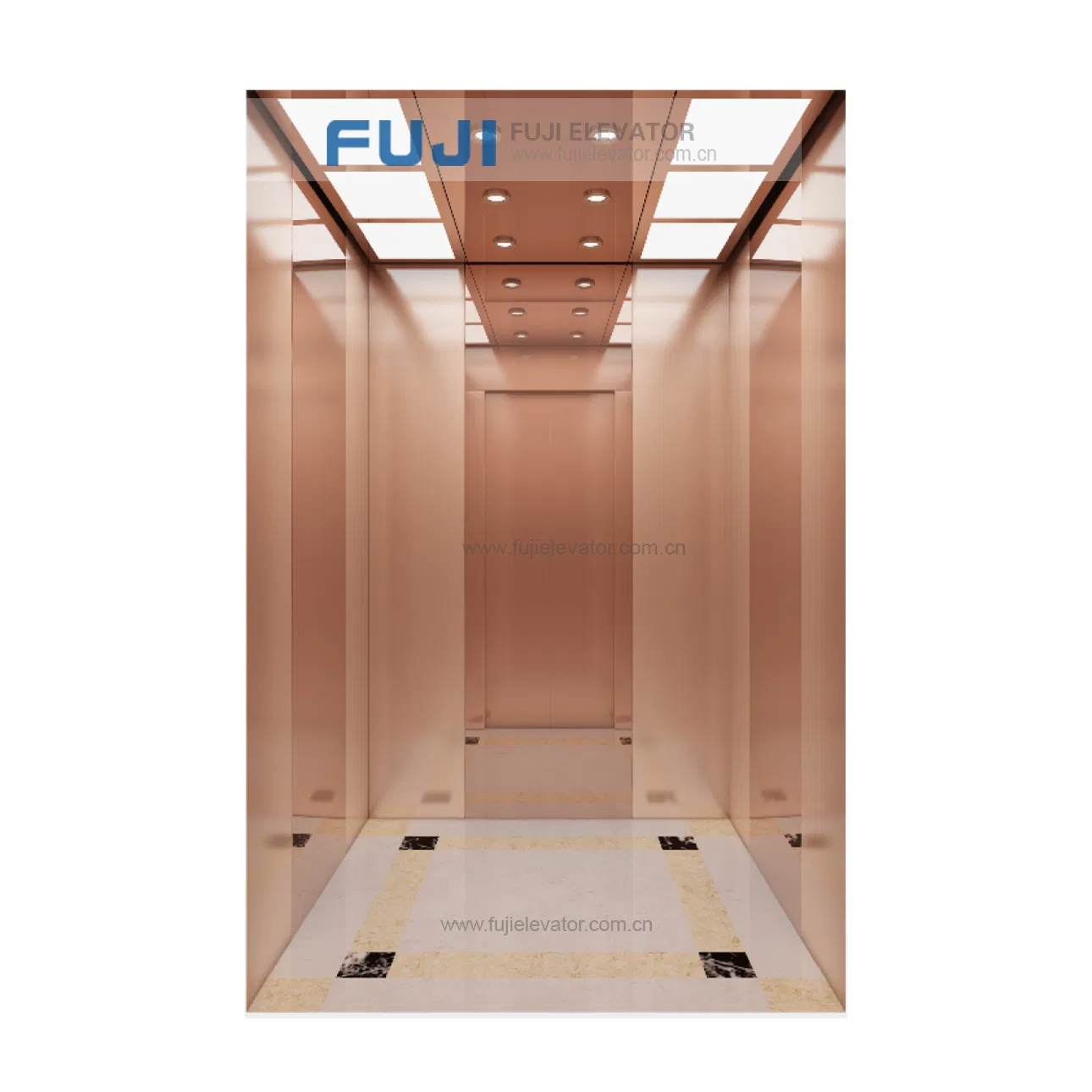

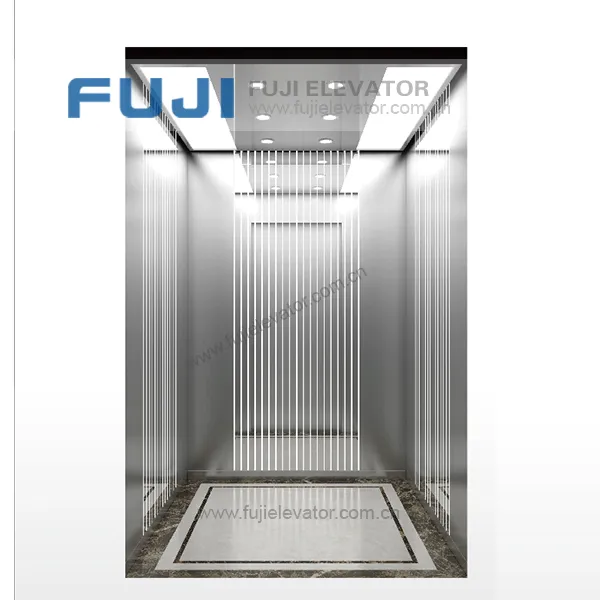

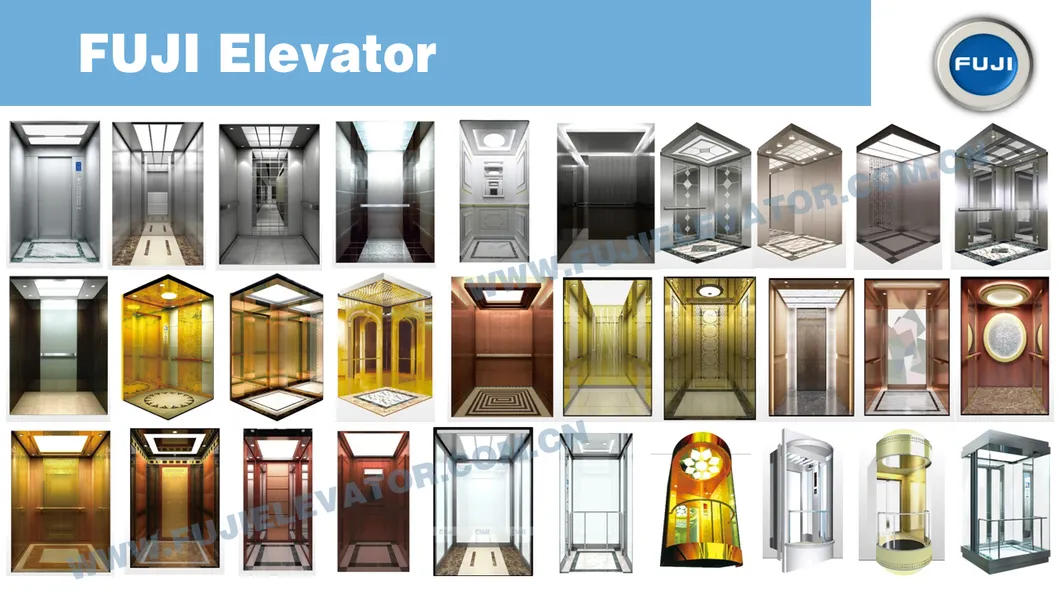

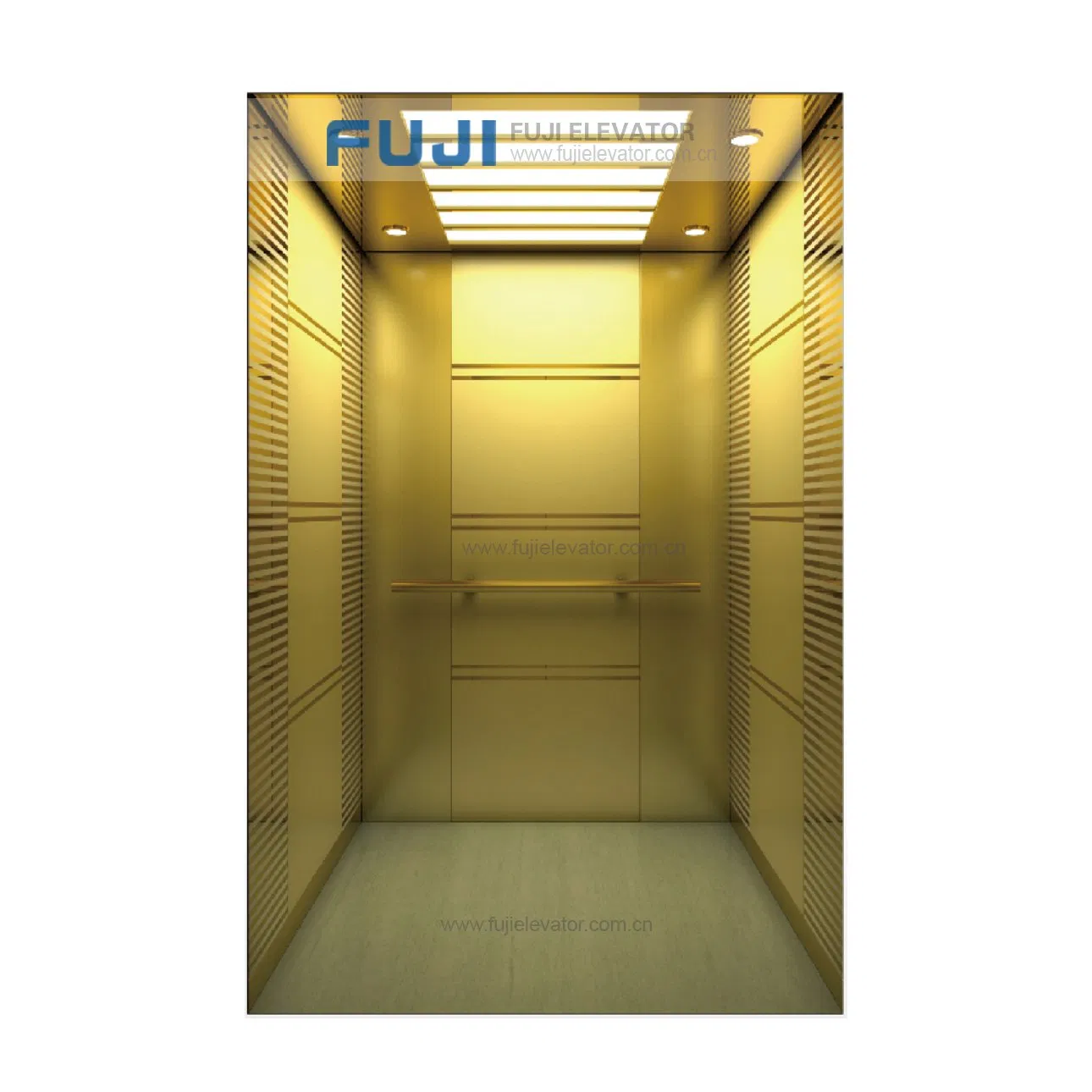

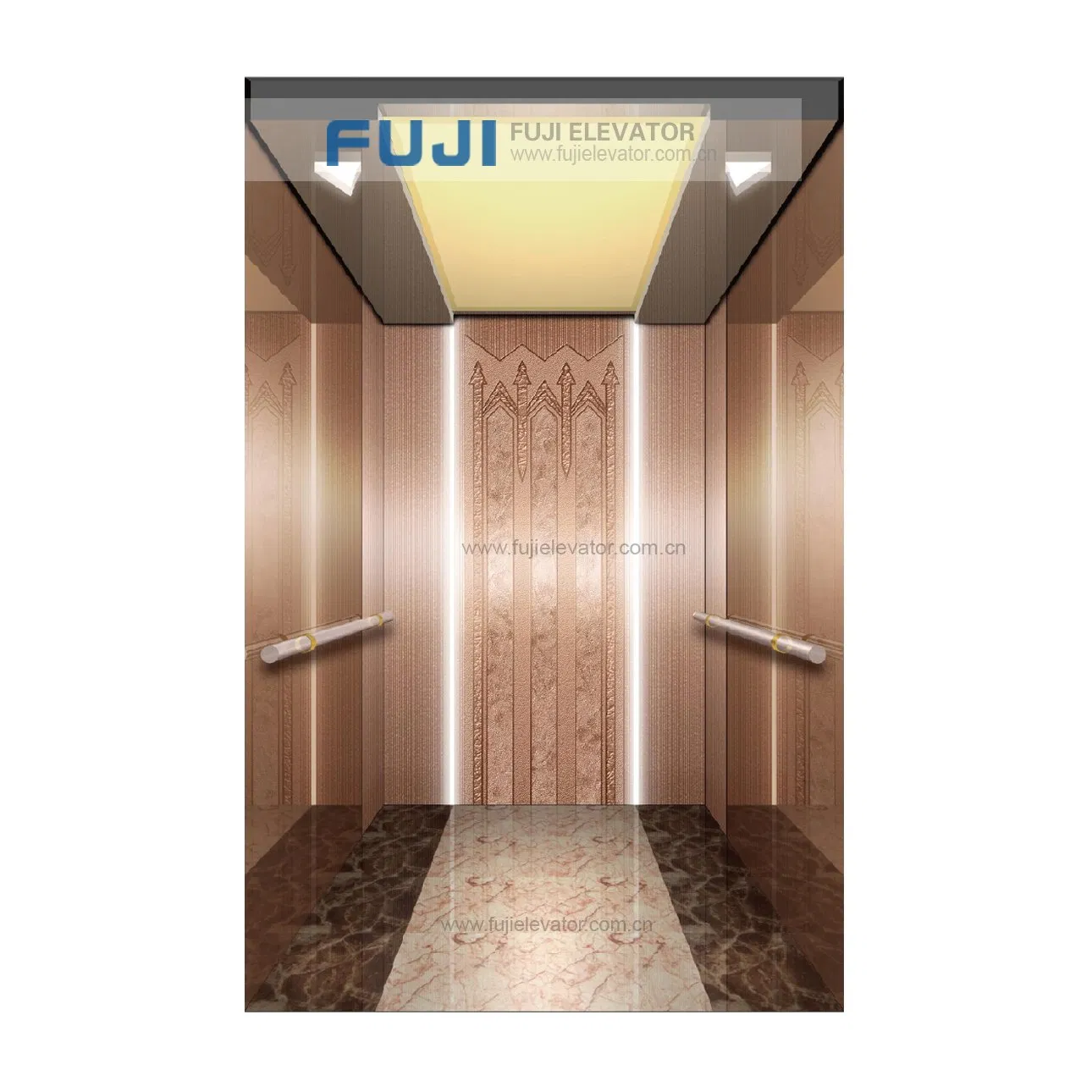

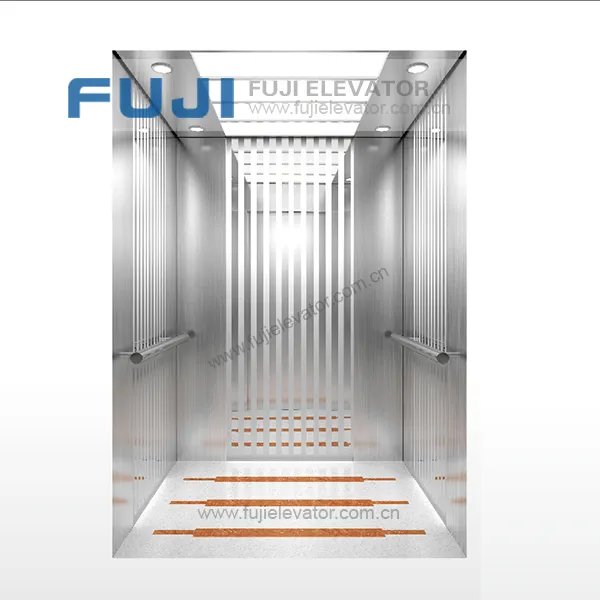

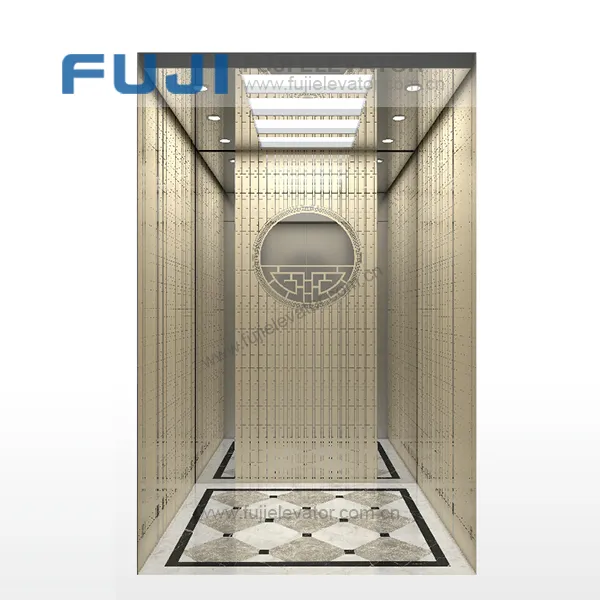

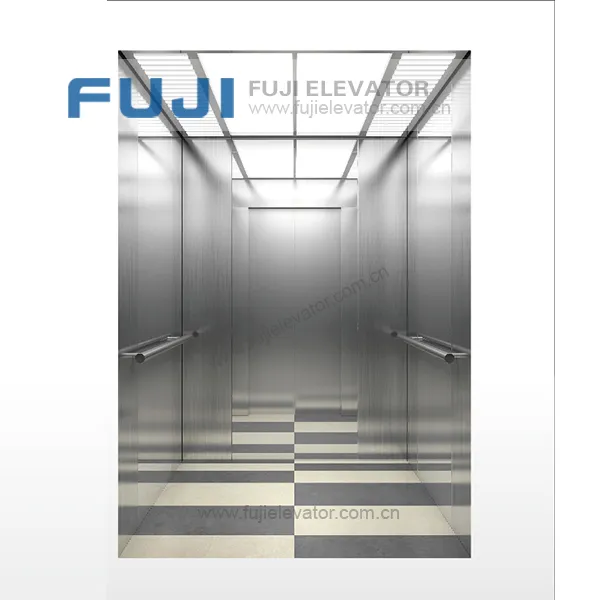

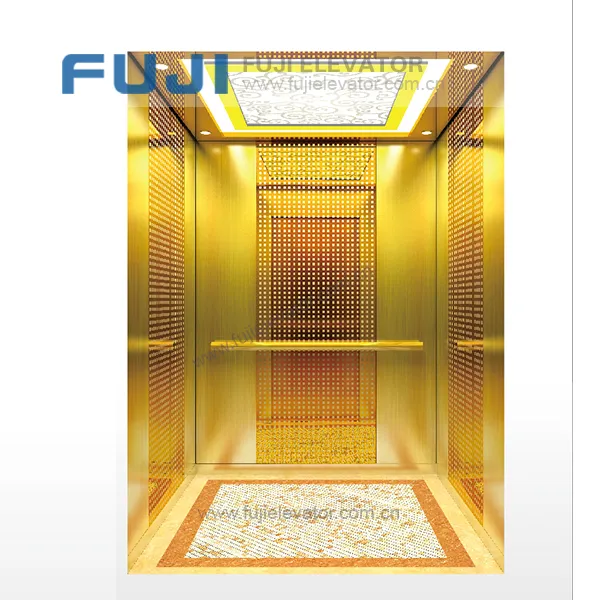

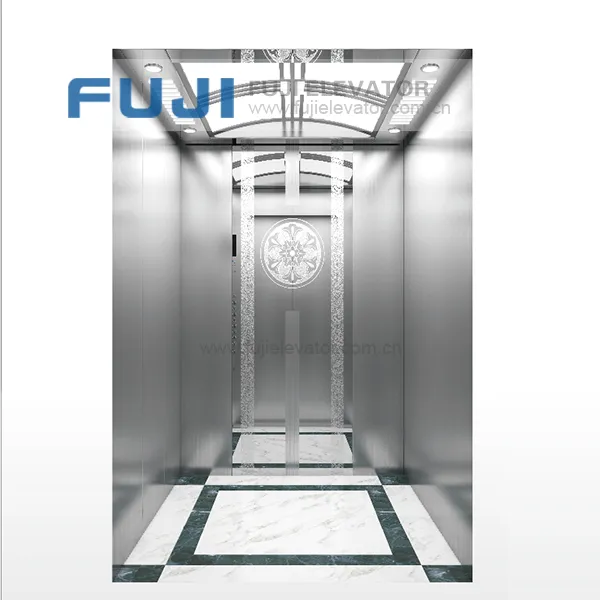

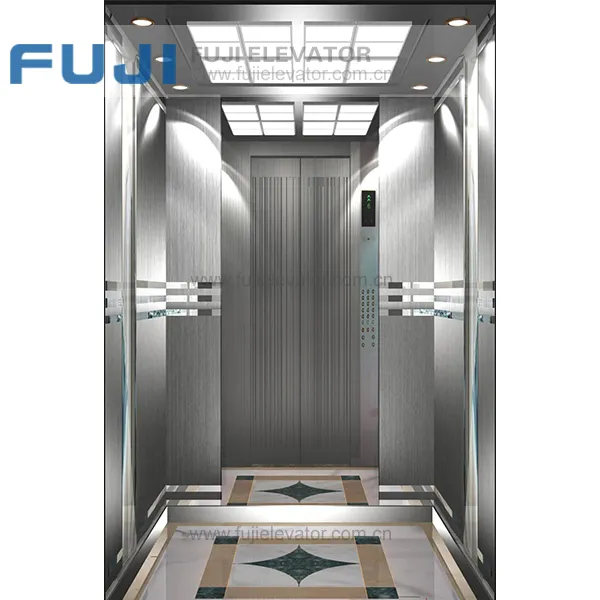

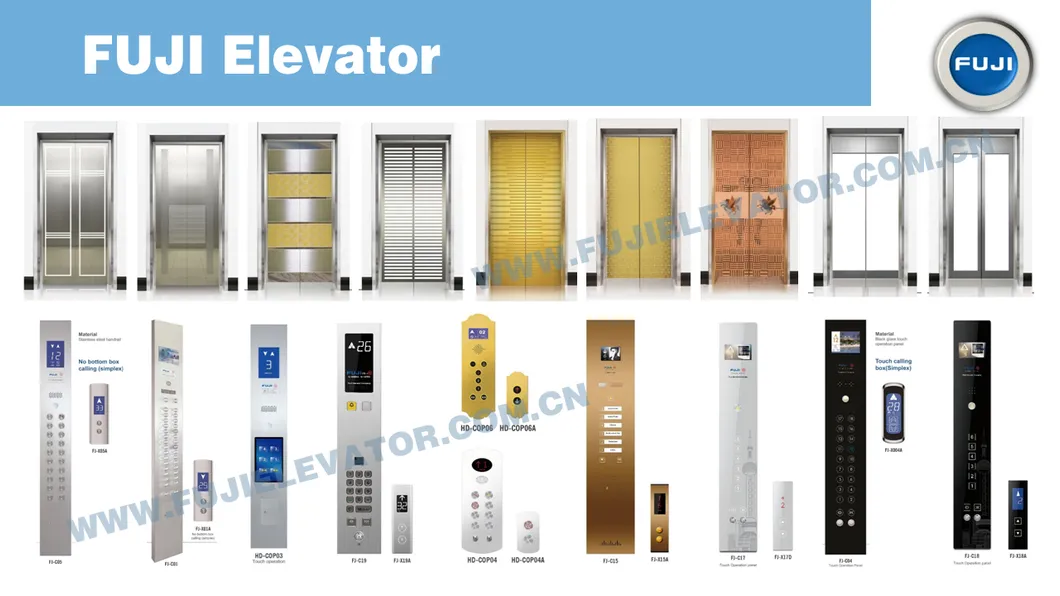

Material Options: Painted, Hairline stainless steel, mirror, etched, Titanium gold, rose gold, golden recess, glass.
Capacity Range: 450KG, 630kg, 800kg, 1000kg, 1250kg, 1350kg, 1600kg, 1800kg, 2000kg.
Speed Range: 1.0m/s to 6.0m/s.

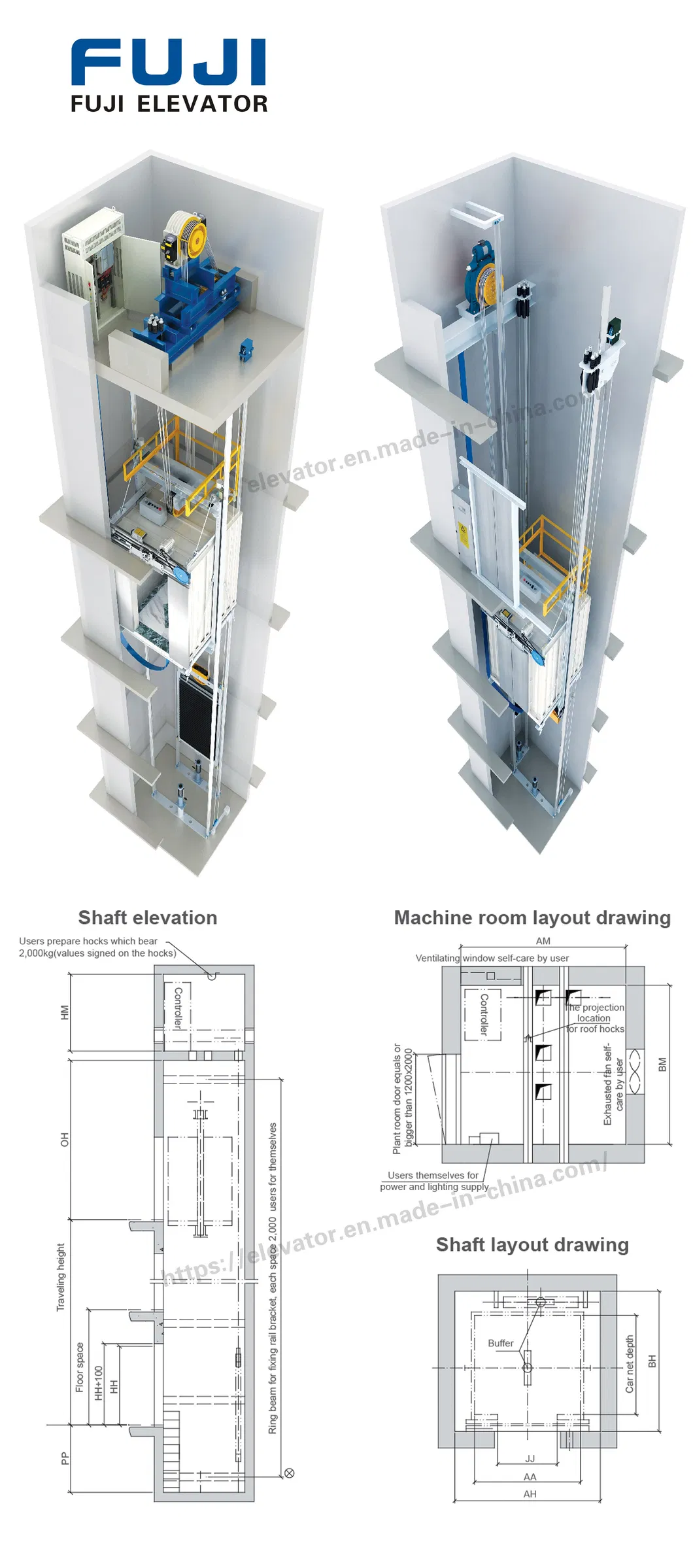

Room Configuration: Machine Room (MR) or Machine Roomless (MRL).
| 1 | Collective control | 32 | Door lock short circuit protection |
| 2 | VVVF drive | 33 | Brake switch failure protection |
| 3 | Door operator VVVF drive | 34 | Over speed protection |
| 4 | Inspection operation | 35 | Contact protection for brake |
| 5 | Slow speed running | 36 | Interphone communication |
| 6 | Auto door time adjustment | 37 | Wheeling protection |
| 7 | Full load bypass | 38 | Alarm bell |
| 8 | Auto lighting/fan shutoff | 39 | Emergency lighting |
| 9 | Auto return to home landing | 40 | Level switch protection |
| 10 | Door re-closing | 41 | False call canceling |
| 11 | Error recording | 42 | Auto reversal call canceling |
| 12 | Hoistway self-learning | 43 | Floor display directional setup |
| 13 | Automatic door opening | 44 | Isolate running |
| 14 | Attendant service | 45 | Dot matrix floor indicator |
| 15 | Bypass operation | 46 | Rolling direction display |
| 16 | Floor position correction | 47 | CAN communication protection |
| 17 | Lift locking | 48 | Arrival gong |
| 18 | Outer door lock protection | 49 | Emergency fire return |
| 19 | Infrared light curtain | 50 | Main control protection |
| 20 | Overload protection | 51 | CPU WDT protection |
| 21 | Reversal running protection | 52 | Service floor setup |
| 22 | Anti-skip protection | 53 | Test running |
| 23 | Terminal over-run protection | 54 | Clock control |
| 24 | Phase protection | 55 | Direct landing |
| 26 | Contactor protection | 56 | Load weighing device |
| 27 | Shaft self-learn analysis | 57 | Full collective control |
| 28 | Motor temperature protection | 58 | Door opening button (ext) |
| 29 | Door opening failure protection | 59 | Door opening button (int) |
Assembly is conducted on-site by professional project managers responsible for planning, coordination, and quality management. We utilize scaffold-less installation techniques to standardize procedures and shorten the installation period.
Unique maintenance procedures and specialized tools are developed for different operating environments. Periodical inspections using diagnostic technology help prevent potential issues and maximize operation time.
New technologies and materials can be applied to in-service elevators to expand functions, improve reliability, and enhance comfort.
