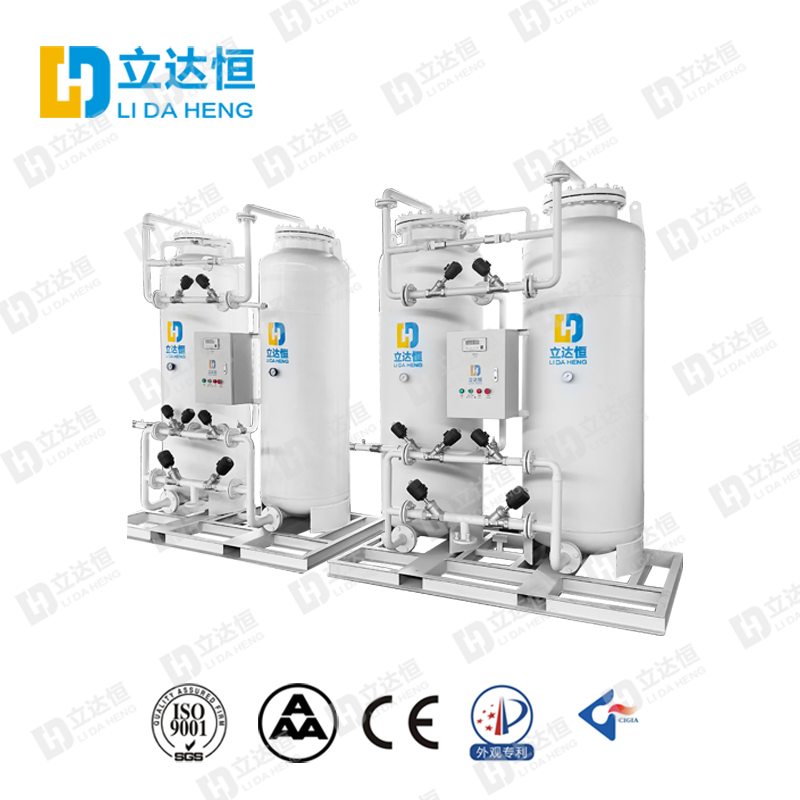

Smart IoT Oxygen Generator with Remote Monitoring & Customized Gas Solutions

Customization: Available
Application: Medical Institution
Scale: Large

Product Description

📊 Basic Information
Model NO.
LPO-50
Voltage
380V
Purity
90-95%
Cooling Water
Industrial Water
System Type
Open System
Packing
Wooden Case
Specification
1900*1800*2100
HS Code
841960
⚙️ Variable Pressure Adsorption Oxygen Machine
Oxygen Generator
Efficient, energy-efficient and convenient | Microcomputer co-control | Smart gas solutions

An integrator of cryogenic and pressure-swing adsorption (PSA) solutions. Certified by ISO 9001 and EU CE, the system utilizes national patents and software copyrights to deliver nitrogen, oxygen, and environmental-simulation systems that predict change and control the future.

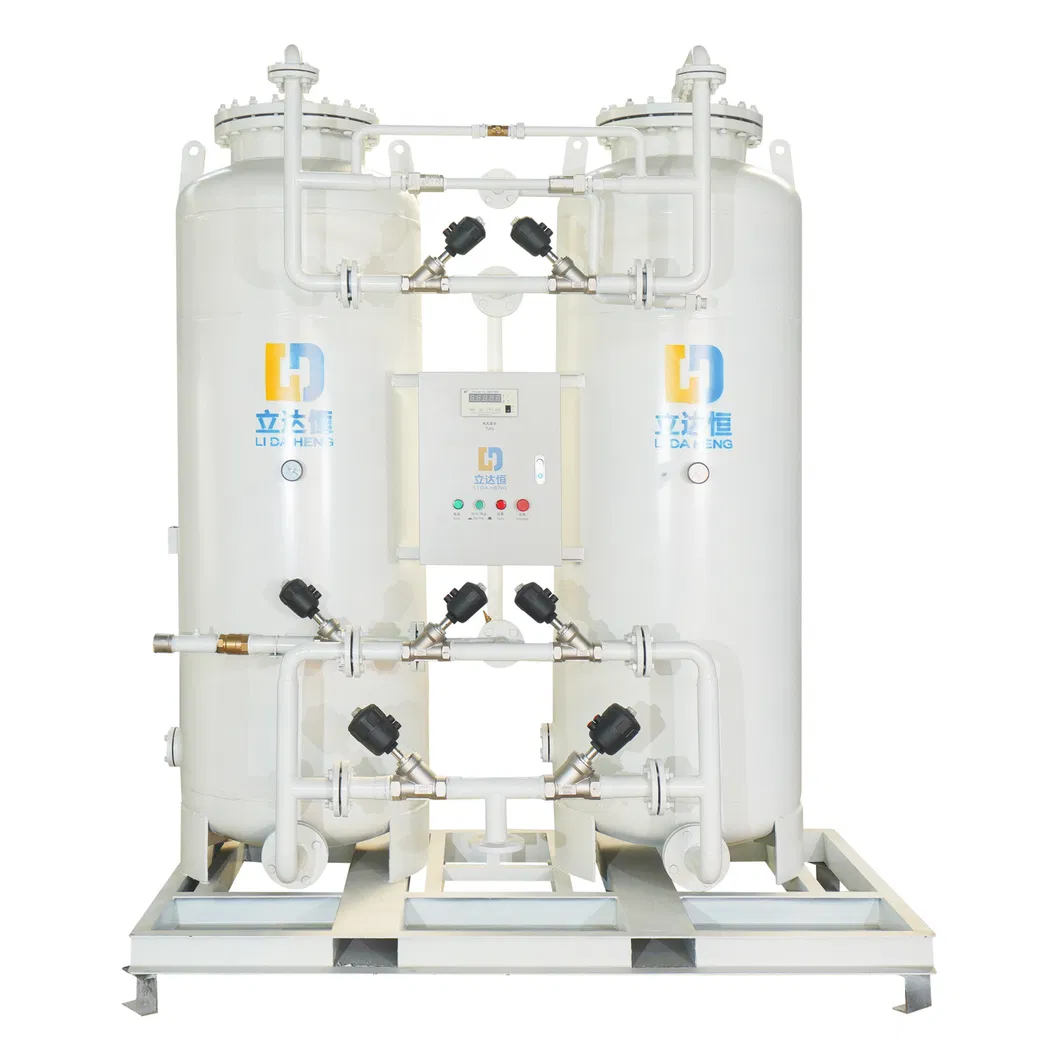

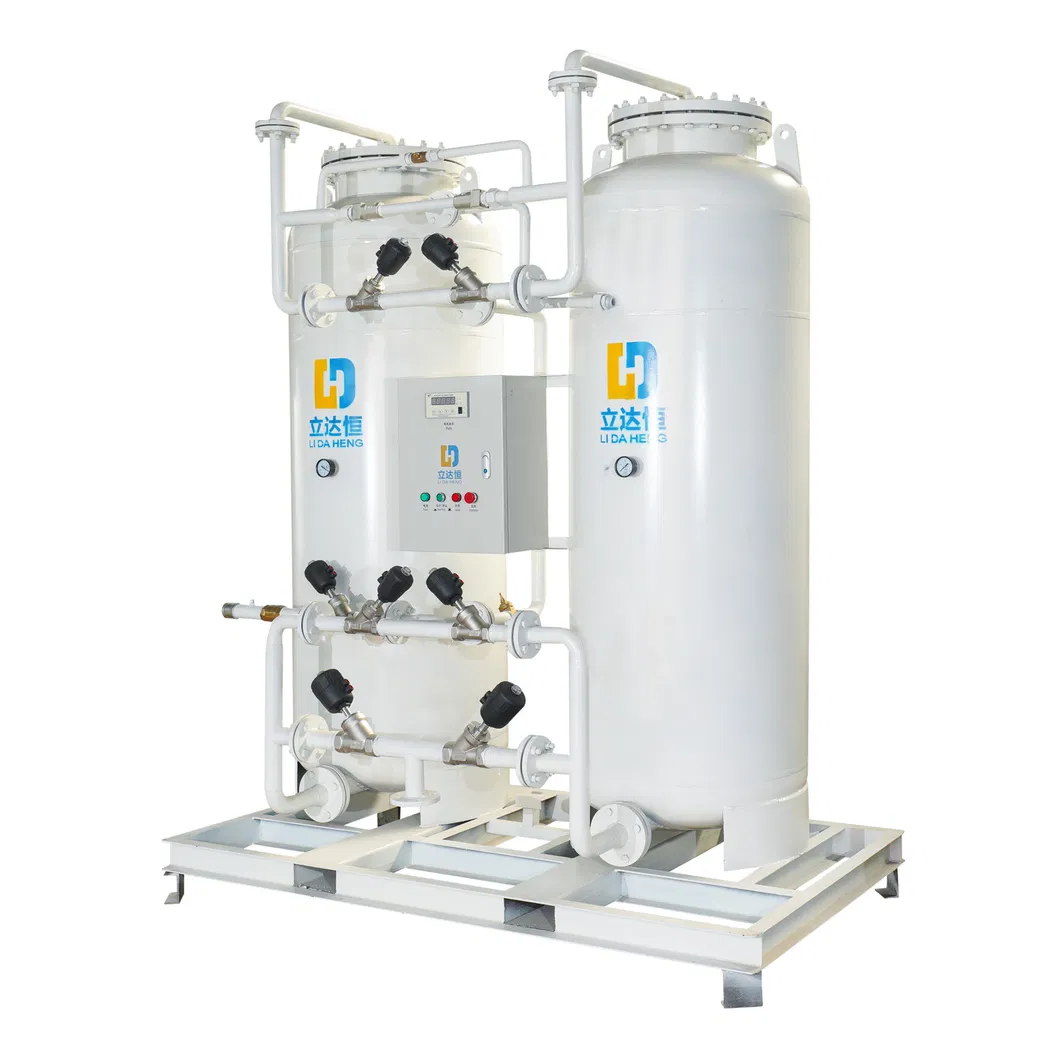

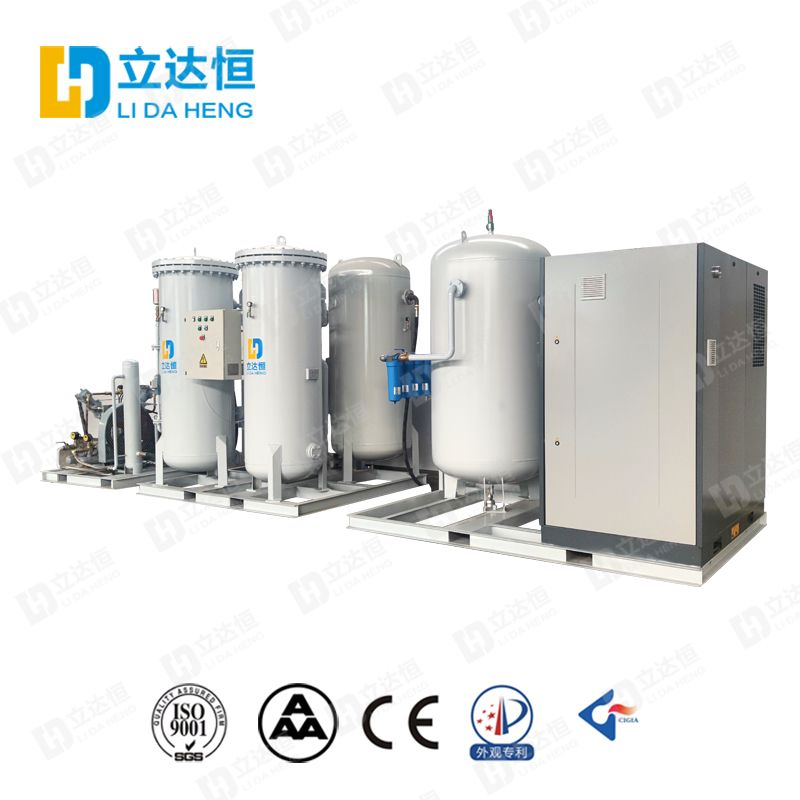

Equipment View 1 Equipment View 2
🚀 Product Performance Highlights
  • Technology: PSA using high-efficiency zeolite molecular sieve.
  • Purity: 93 % ± 3 % medical grade, upgradable to 99.5 % with built-in purifier.
  • Flow Range: 1-200 Nm³/h per modular unit; parallel units for unlimited flow.
  • Start-Up Time: ≤ 20 minutes to qualified oxygen.
  • Energy Consumption: 0.32-0.38 kWh/Nm³ O₂ via patented energy-saving algorithm.
  • Remote Monitoring: Cloud + Wi-Fi + 4G, OTA firmware upgrade, mobile-app alarms.
  • Environment: Operates 5-35 °C, altitudes ≤ 4,000 m.
Performance Chart
🌐 Application Domains
  • Industrial: Steel melting assistance, glass furnace enrichment, paper pulp bleaching, metal cutting.
  • Medical & Homecare: Hospital oxygen supply, chronic disease therapy, high-altitude travel support.
  • Environmental Solutions: Enhancing wastewater aeration efficiency and reducing treatment costs.
💎 Key Advantages
  • Cost-Efficiency: Replace expensive bottled oxygen with low-maintenance on-site generation.
  • Smart Integration: IoT-enabled monitoring for real-time status tracking and remote control.
  • Eco-Friendly Design: Energy-saving compressors and noise-reduction technology.
  • Compact Engineering: Small-footprint systems for easy installation.
📋 Product Parameters
Parameter Item Technical Specifications
Oxygen flow 1~200Nm³/h
Oxygen purity 30%-99.5%
Oxygen dew point ≤-45ºC
Export pressure 0.1~0.8Mpa
📐 Technical Details

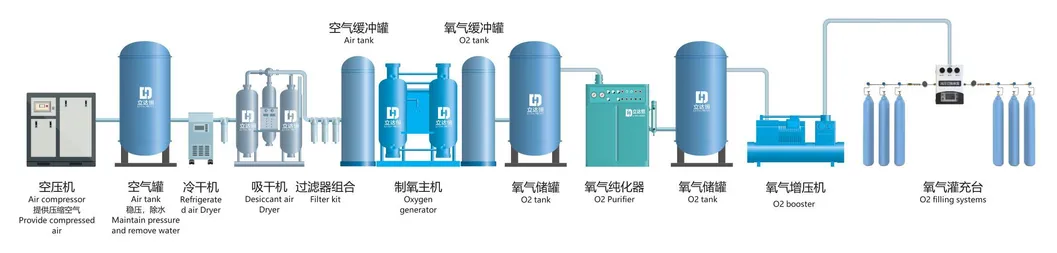

Technical Specifications Detail Oxygen System Workflow
💬 Frequently Asked Questions
What is the purity of the PSA oxygen machine?
The average PSA oxygen machine is 90%-93%. Our specialized systems can reach 95%, 98%, and up to 99.5% purity levels.
Can the system run continuously?
Yes, the units are designed for 24/7 continuous operation with automated cycle management and high reliability.
How long does it take to start producing qualified oxygen?
Qualified oxygen is typically produced within 20 to 60 minutes after startup, depending on the system size and configuration.
Is remote monitoring and IoT connectivity available?
Yes, we offer optional IoT connectivity including Cloud, Wi-Fi, and 4G for real-time data tracking, fault alarms, and remote control.
What is the energy consumption of these systems?
The energy consumption typically ranges between 0.32-0.38 kWh/Nm³ O₂ thanks to our energy-saving algorithms.
Are there customization options for harsh environments?
Yes, we provide specialized models tailored for high-altitude (up to 4,000m) or corrosive industrial sites and specific purity/flow requirements.
