Product Description

SY-C005C Medical 12 Inches LCD Multi Parameter Vital Signs Cardiac Monitor Patient Monitor

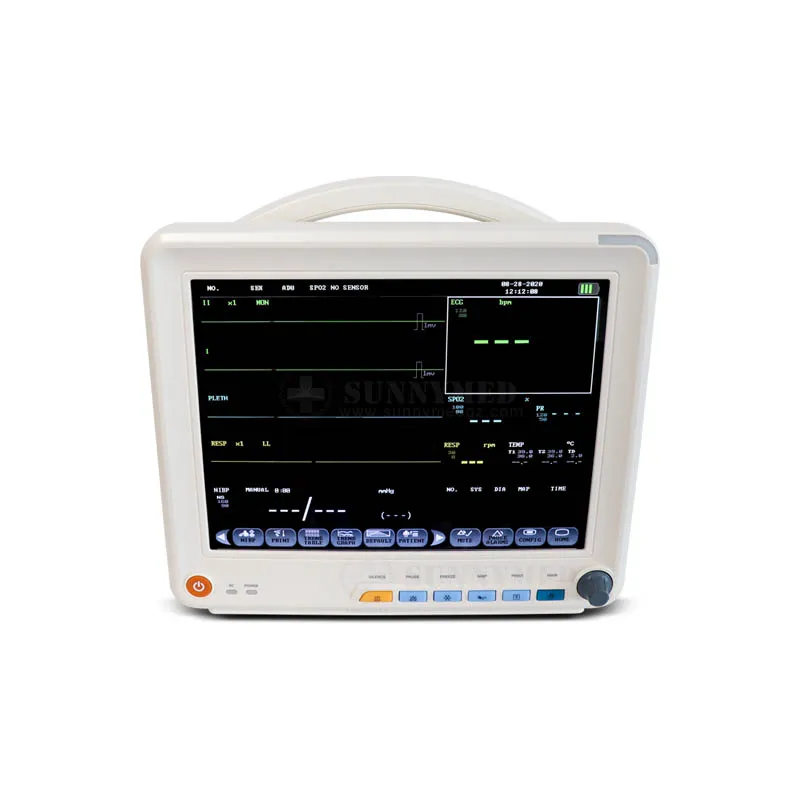

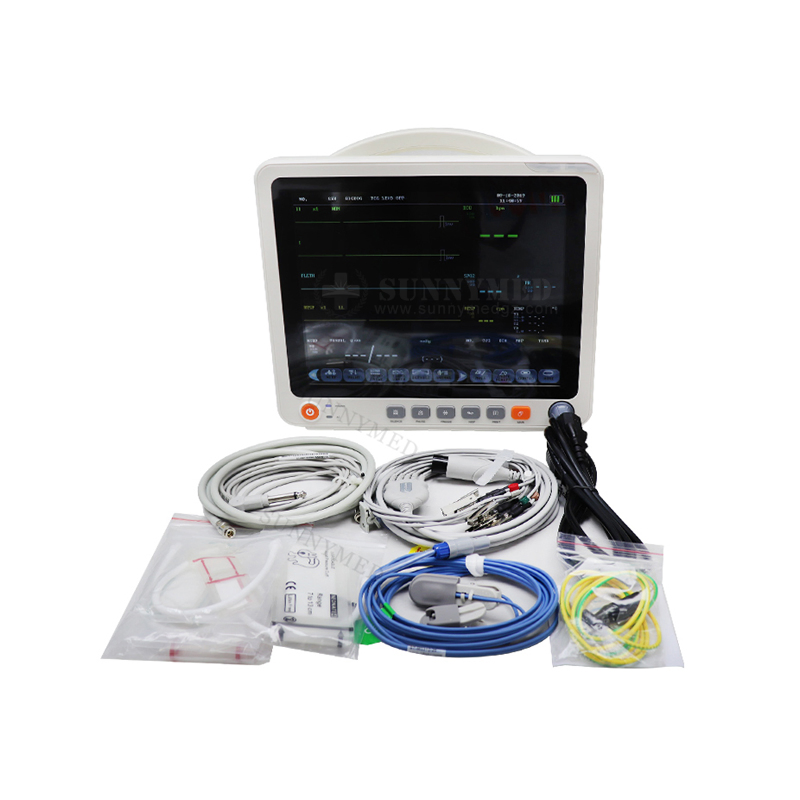

SY-C005C Patient Monitor Main View
📋Specification:

• 12.1'' TFT LCD, suitable for bedside, operation room, ICU, etc.

• Support various modules including 3/5/12 Leads ECG, RESP, SPO2, NIBP, IBP, CO2, AG etc.

• Multi-display: Large font, Standard, Full-leads, trend, oxyCRG.

• 720h monitoring data storage.

• Built-in detachable rechargeable lithium battery (about 4h).

• Support multi-language, Central Monitoring system.

🫀ECG Technical Data
ParameterDetails
Lead modeI, II, III, AVR, AVL, AVF, V
Gainx0.25, x0.5, x1, x2
Heart Rate15-300BPM (Adult), 15-350BPM (Neonatal)
Resolution1BPM
Accuracy±1%
ST measurement Range-2.0 to +2.0mV
Accuracy±10%
PacemakerYes
Sweep Speed12.5mm/s, 25mm/s, 50mm/s
BandwidthDiagnostic: 0.05~130 Hz | Monitor: 0.5 - 40 Hz | Surgery: 1 ~ 20 Hz
🩸SPO2 Technical Data
ParameterDetails
Measure range0-100%
Resolution1%
Accuracy2% (70-100%)
Pulse Rate20-250 BPM
Resolution1BPM
Accuracy±3BPM
🩺NIBP Technical Data
ParameterDetails
Work ModeManual, Automatic, Continuous
UnitmmHg, kPa
Measure range (Adult)SYS: 40-280mmHg, DIA: 10-225mmHg, MEAN: 20-240mmHg
Measure range (Pediatric)SYS: 40-220mmHg, DIA: 10-160mmHg, MEAN: 20-170mmHg
Measure range (Neonatal)SYS: 40-135mmHg, DIA: 10-100mmHg, MEAN: 20-110mmHg
Resolution1mmHg
Accuracy±5mmHg (Support upgrade via network)
🫁RESP & TEMP Data
ParameterDetails
RESP Measure range0-150BrPM
RESP Resolution1 BrPM
RESP Accuracy±2%
TEMP Measure range0-50ºC
TEMP Resolution0.1ºC
TEMP Accuracy±0.1ºC
🖼️Detailed Images

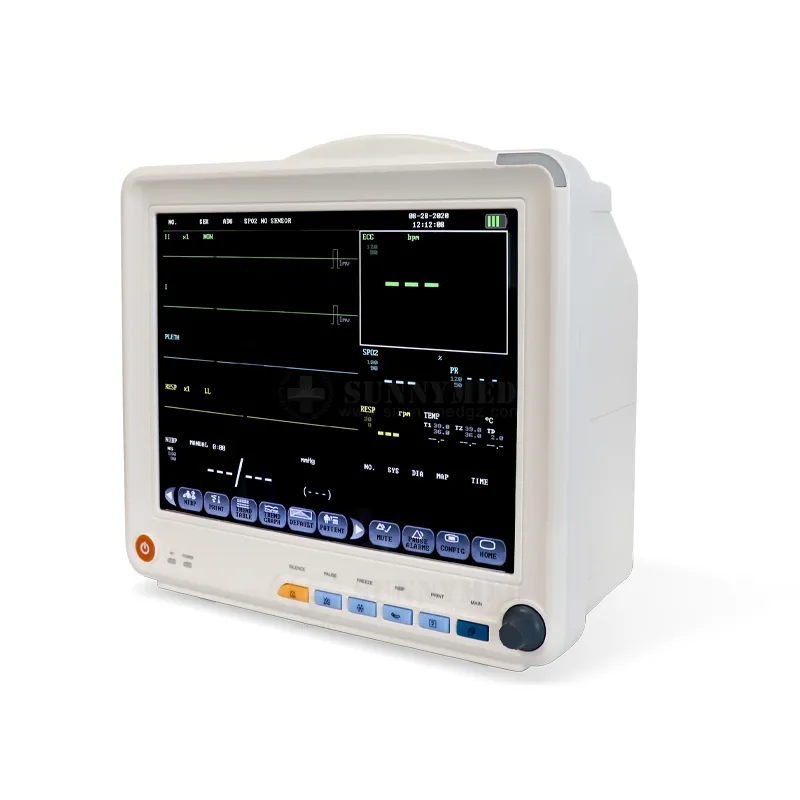

Monitor Detail 1

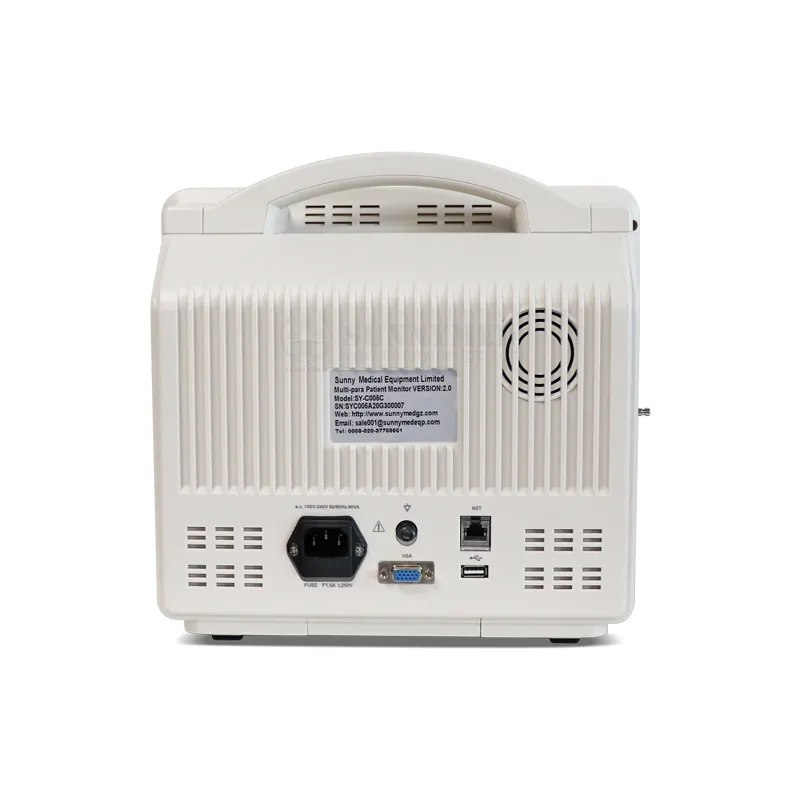

Monitor Detail 2

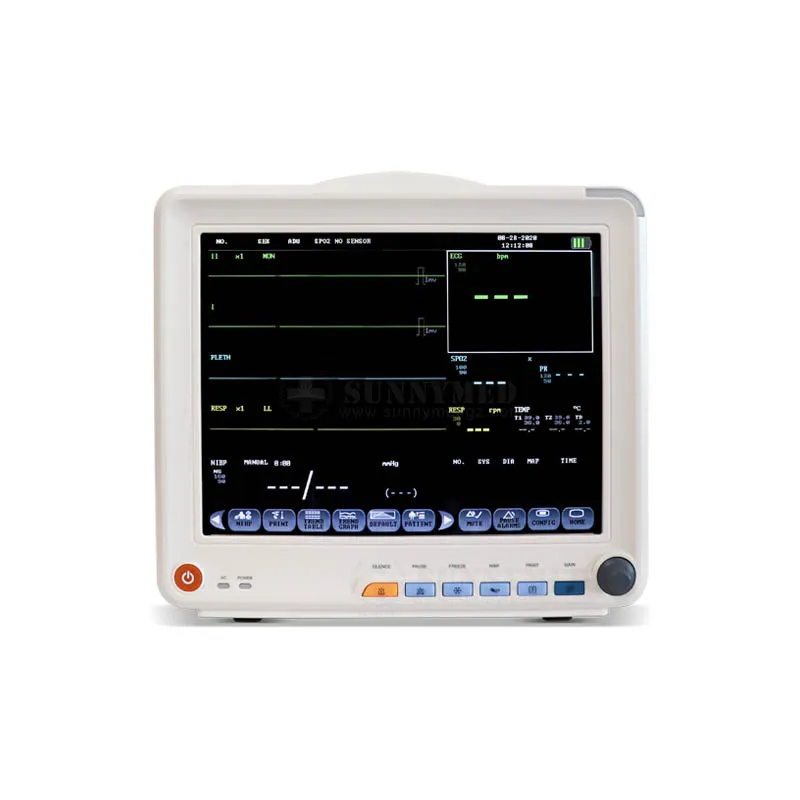

Monitor Detail 3
Monitor Detail 4

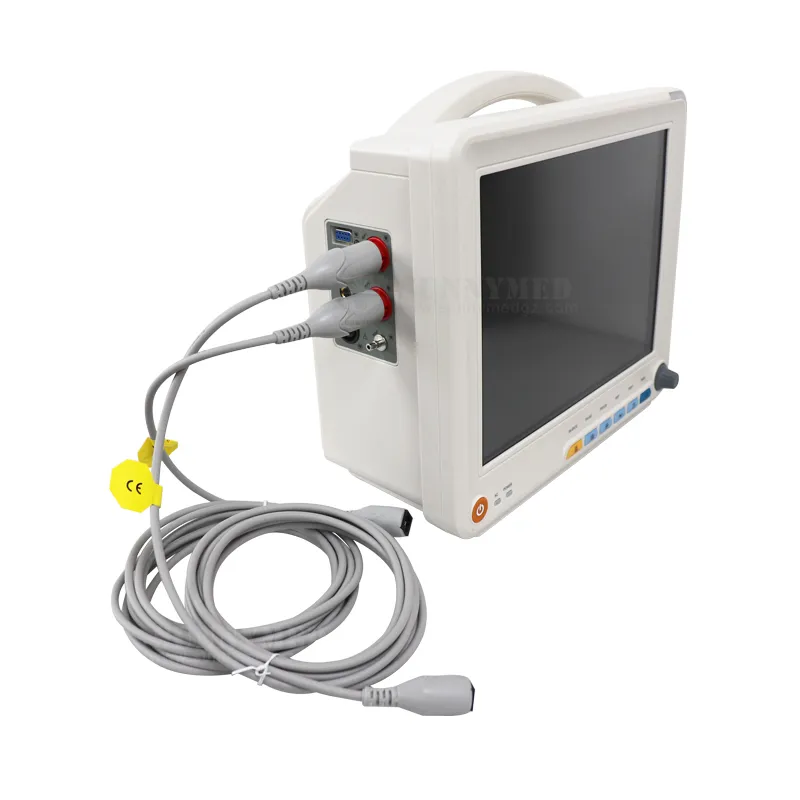

Monitor Detail 5
Monitor Detail 6

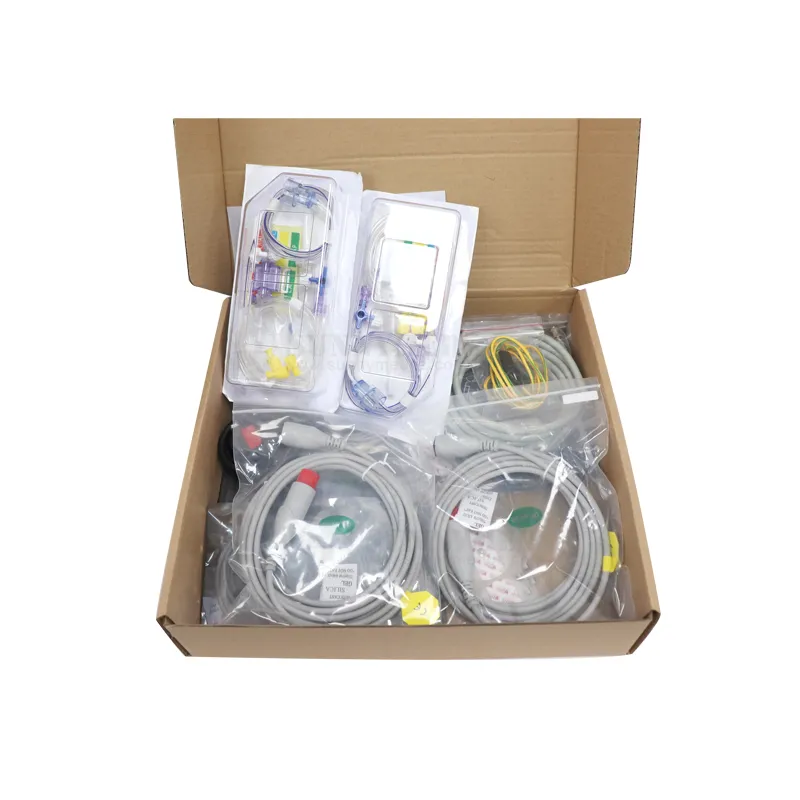

Monitor Detail 7
Monitor Setup
Monitor Dimensions
Product Layout
Monitor Interface
Frequently Asked Questions
What are the primary monitoring parameters of the SY-C005C?
The monitor supports standard vital signs including ECG (3/5/12 Leads), RESP, SPO2, NIBP, and TEMP. It can also be upgraded for IBP, CO2, and AG modules.
Is this monitor suitable for neonatal use?
Yes, the device features dedicated measurement ranges for neonatal, pediatric, and adult patients, ensuring accurate heart rate and NIBP readings across different age groups.
How long does the battery last during portable use?
It is equipped with a built-in detachable rechargeable lithium battery that provides approximately 4 hours of continuous operation.
Does the monitor store historical patient data?
Yes, the system supports up to 720 hours of monitoring data storage, allowing medical professionals to review trends and historical events effectively.
What display modes are available on the 12.1'' screen?
Users can choose from multiple display modes, including Standard, Large Font, Full-leads ECG, Trend view, and oxyCRG, depending on clinical requirements.
Can this device be connected to a central monitoring system?
Yes, it supports central monitoring system integration and multi-language interfaces, making it ideal for hospital-wide deployment in ICUs and operation rooms.
