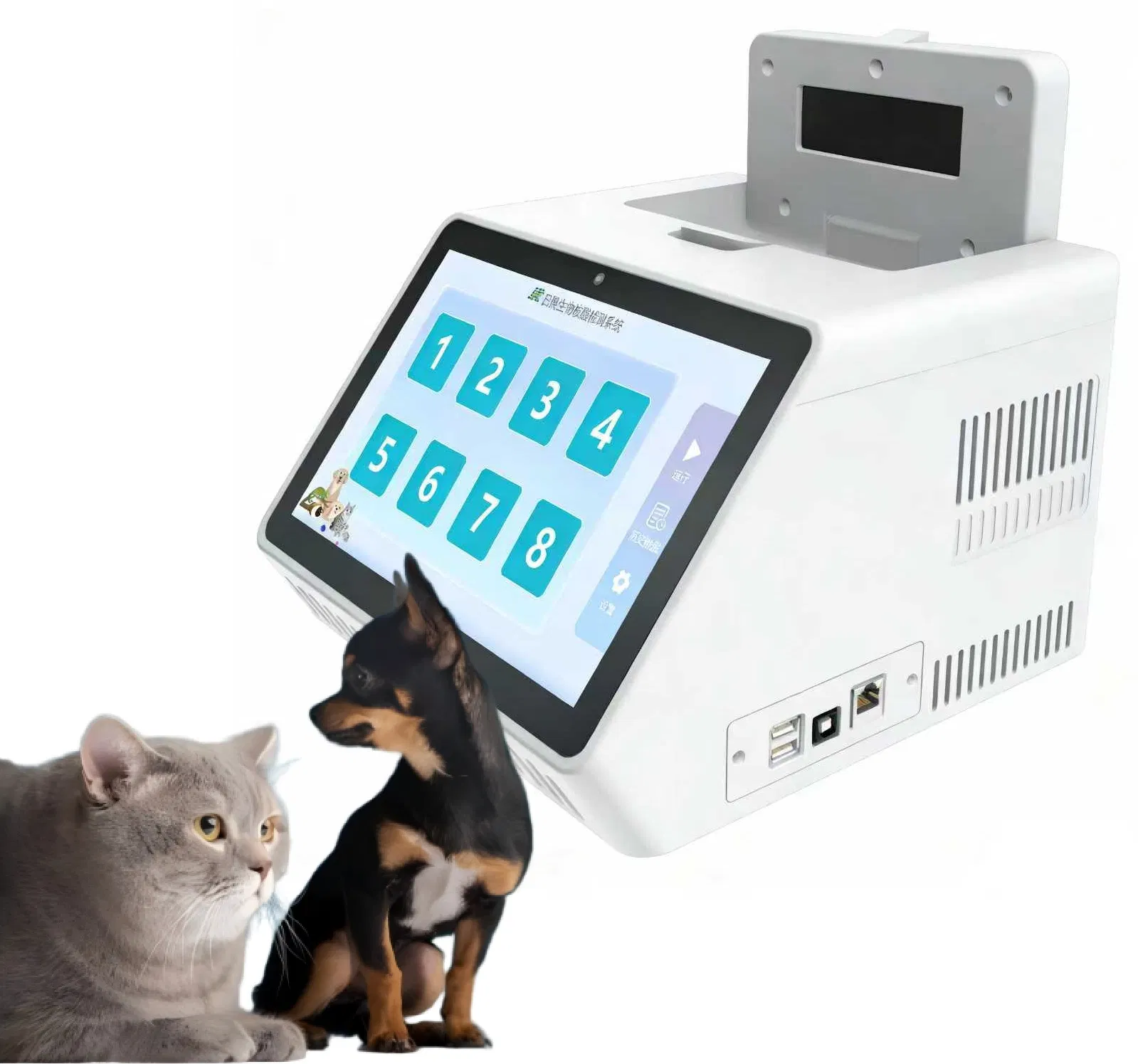

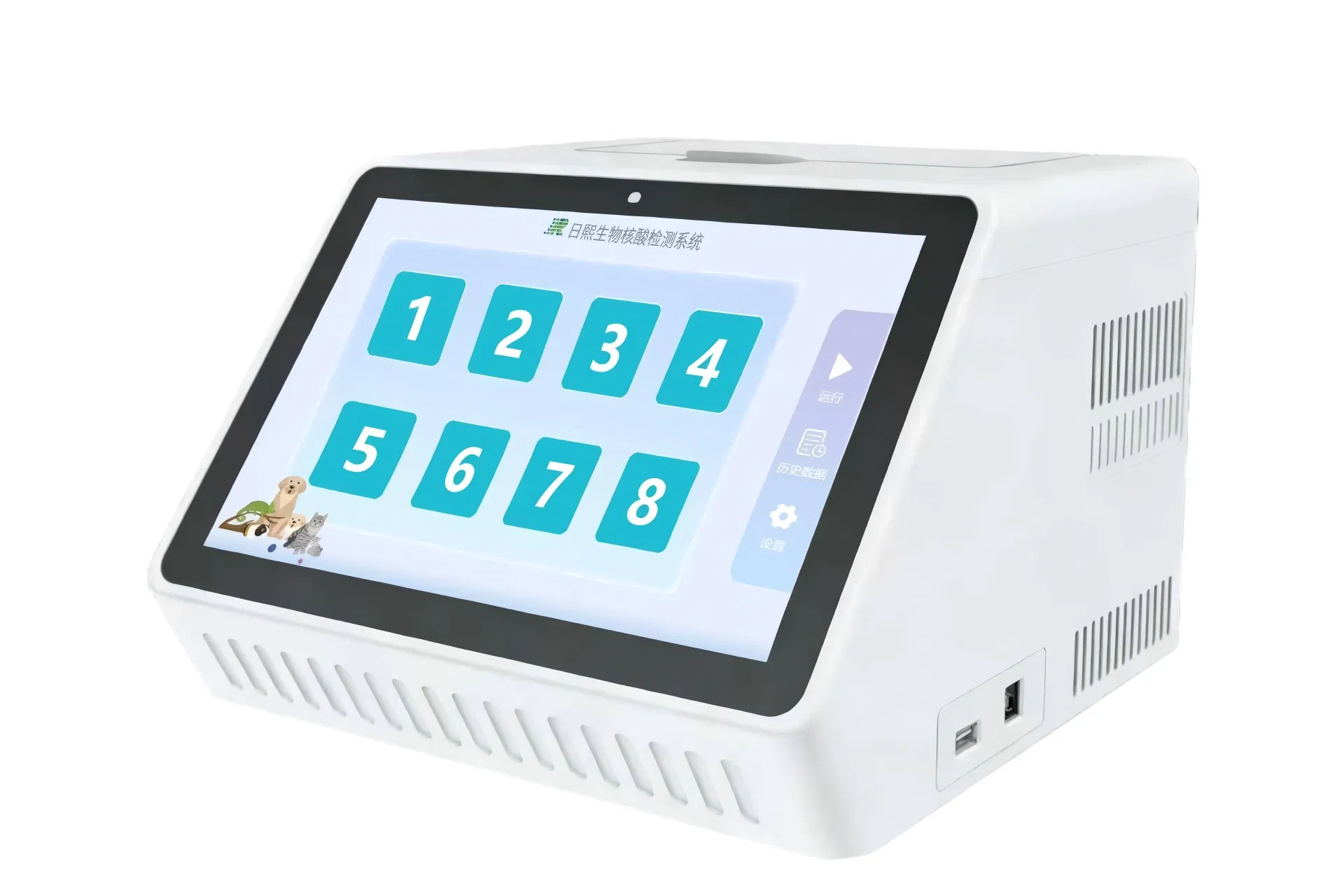

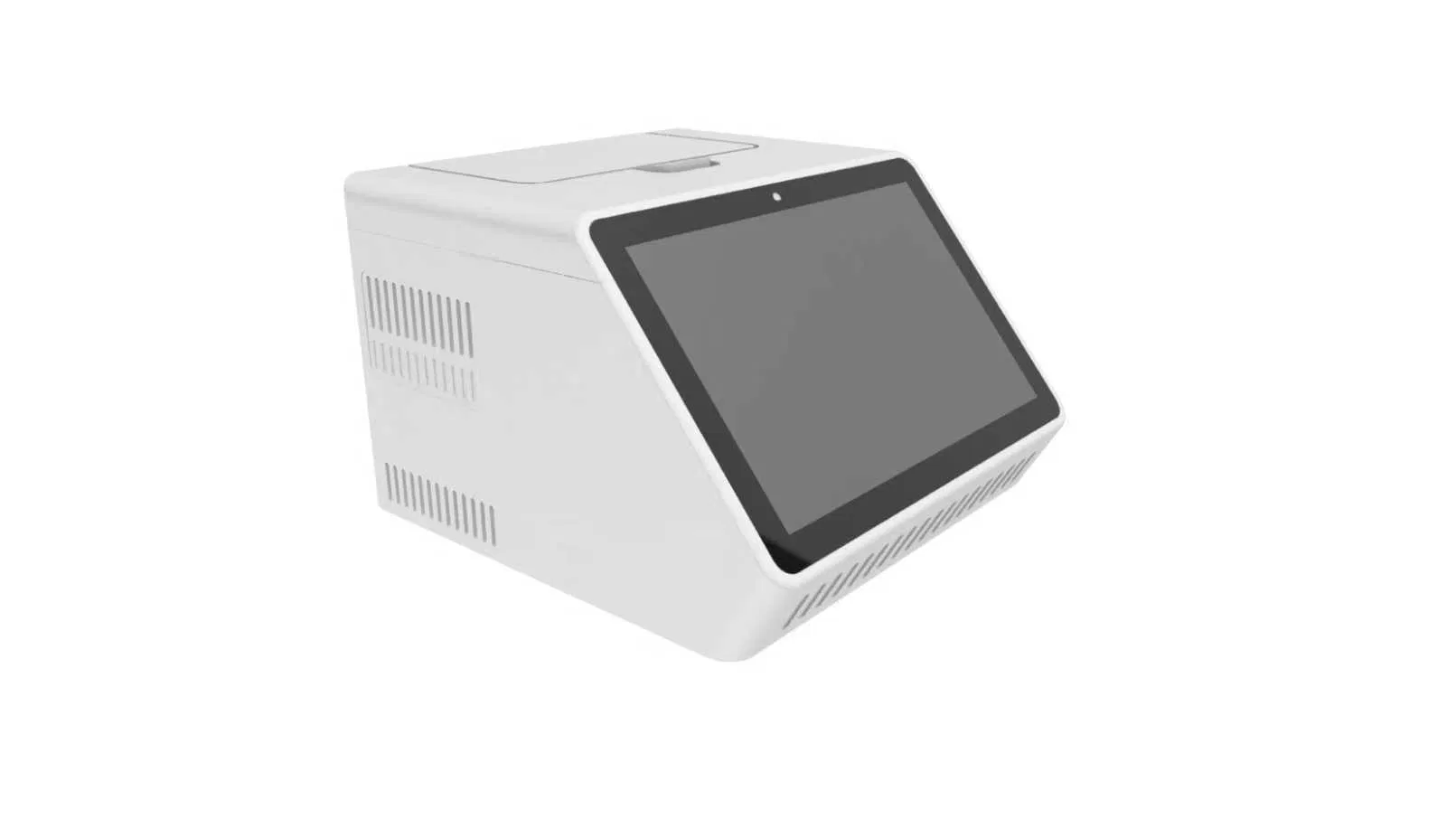

Veterinary Machine Real-Time PCR System for Quantitative DNA Analysis

ℹ️

Basic Info.

Model NO.

T8

Certification

CE, FDA, EEC, ISO13485

Group

Animal

Dimension Size

L275*W260*H186mm

Weight

4.8kg

Operating Interface

10-Inch Android Operating System

Electrical Parameters

220V/50Hz, 255W

Detection Sensitivity

Detectable Single-Copy Gene

Linear Detection Range

10^0~10^10 Copies

Transport Package

Wooden Box

Origin

China

HS Code

90275000

🔬

Product Description

Portable Rapid PCR System

The system uses fluorescence signal monitoring during PCR cycles to provide real-time quantification of DNA/RNA. By detecting the Ct value, it accurately measures pathogen loads in pets or livestock samples within 30 minutes.

Applications:

Pet Care: Rapid screening for Canine Parvovirus (CPV), Distemper (CDV), and Feline Leukemia and so on.
Livestock: On-site detection of African Swine Fever (ASF), Bird Flu, and Foot-and-Mouth Disease.
Safety: Foodborne pathogen testing and veterinary research.

Why Choose PCR Diagnostics?

Accurate Diagnosis: Direct detection of viral nucleic acids before antibody seroconversion. Differential diagnosis for pathogens with overlapping clinical symptoms.

Efficient & Economic: Multiplex detection saves time and costs.

📋

Specifications

Mode	T8	Sample size	0.2ml * 8 holes
Reaction Volume	20-120ul	Applicable consumables	0.2ml Single tube / 8-strip tube
Heating method	Semiconductor Heating/Cooling	Temperature range	4-99℃
Heating rate	Max. 6℃/s	Cooling rate	Max. 4℃/s
Accuracy	±0.1℃	Temperature uniformity	±0.25℃
Light source	Maintenance-free LED	Channels	Four-channel

🧬

Multi-plex Detection Items

Species	Project Name	Project Details
Feline	Respiratory 7-plex	FHV-1, FCV, M. felis, C. felis, Bb, FIV, S. aureus
	Enteric Virus 5-plex	FPV, FCoV, FechPV, Bocavirus, Astrovirus
	FIP Diagnostic	FIP (Feline Infectious Peritonitis) + FCoV
Canine	Canine Wellness 4-plex	CPV, CDV, CCoV, CPIV
Canine	Vector-Borne 4-plex	Babesia, Lyme, Anaplasma, Ehrlichia
Zoonotic	Zoonotic 4-plex	Toxoplasma, Babesia, Bartonella, Leptospira

🦜

Exotic Pet Panels (Coming Soon)

Parrot: PBFD, Chlamydia psittaci, Polyomavirus

Rabbit: E. cuniculi, RHDV

Pigeon: Herpesvirus, Adenovirus, Trichomonas

Turtle: TeHV, Mycoplasma agassizii

Mink: MEV, Aleutian Disease

Frog: Ranavirus (RV)

❓

Frequently Asked Questions

1. How long does it take to get PCR results? The Portable Rapid PCR System can accurately measure pathogen loads and provide results within 30 minutes.

2. Which species can be tested with the T8 system? The system supports a wide range of species including canines (dogs), felines (cats), livestock, and exotic pets like parrots, rabbits, and turtles.

3. What are the key certifications of this device? The T8 PCR system is certified with CE, FDA, EEC, and ISO13485, ensuring international quality and safety standards.

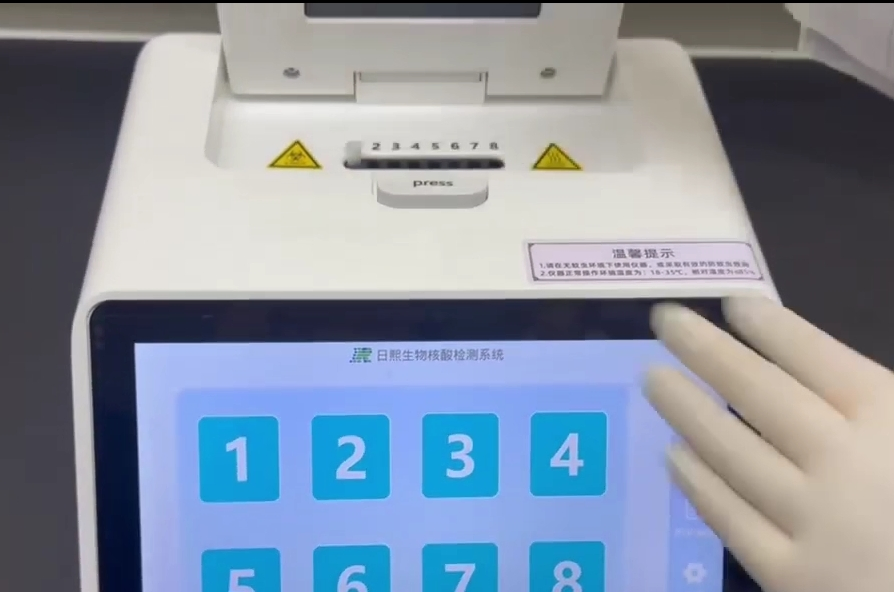

4. Is the device easy for clinical staff to operate? Yes, it features a 10-inch Android operating system with pre-programmed protocols for one-click clinical operation.

5. Can it detect multiple diseases at once? Yes, it is a multi-channel system (four-channel) that supports multiplex PCR, allowing for the detection of multiple pathogens in a single run.

6. What is the sensitivity level of the detection? The system has high sensitivity and is capable of detecting even a single-copy gene, making it ideal for early diagnosis.
