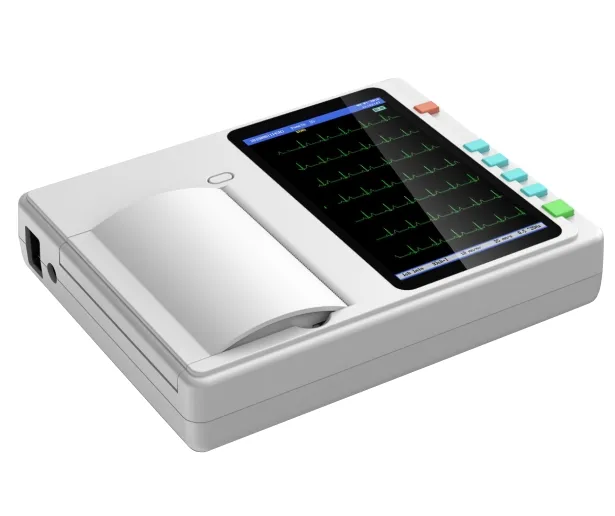

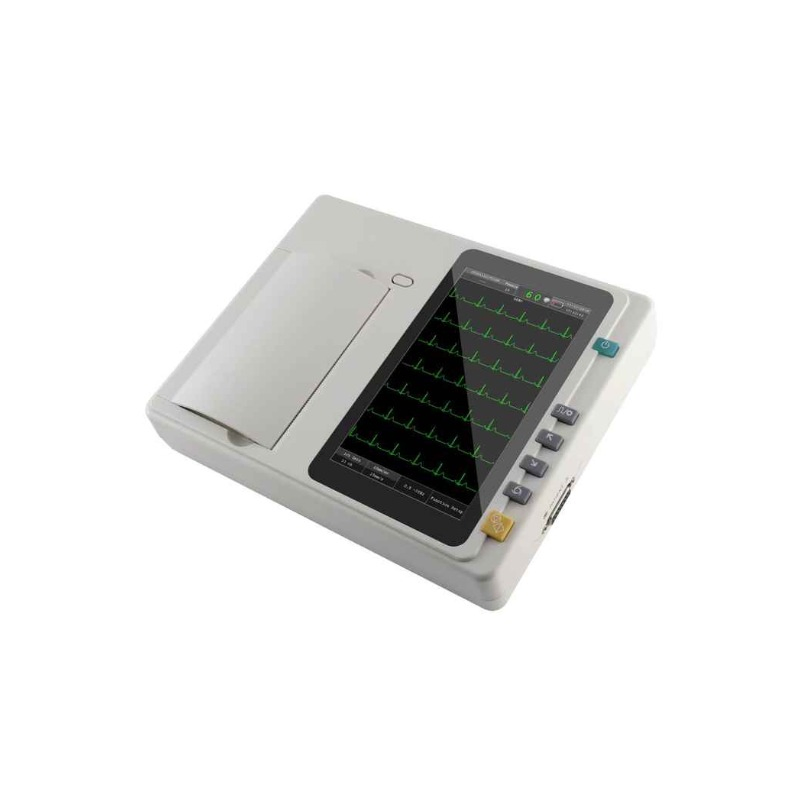

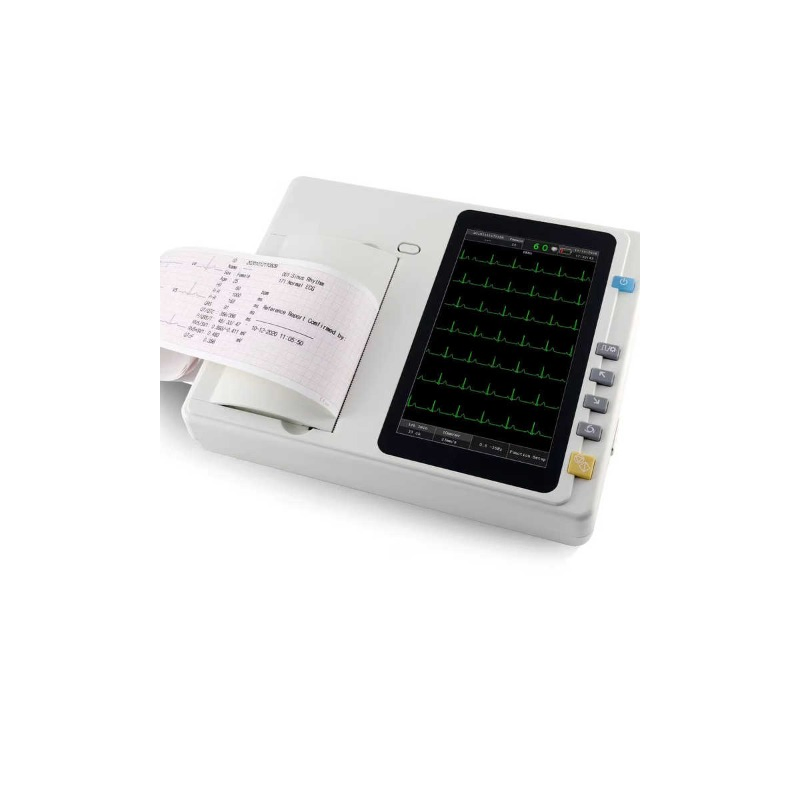

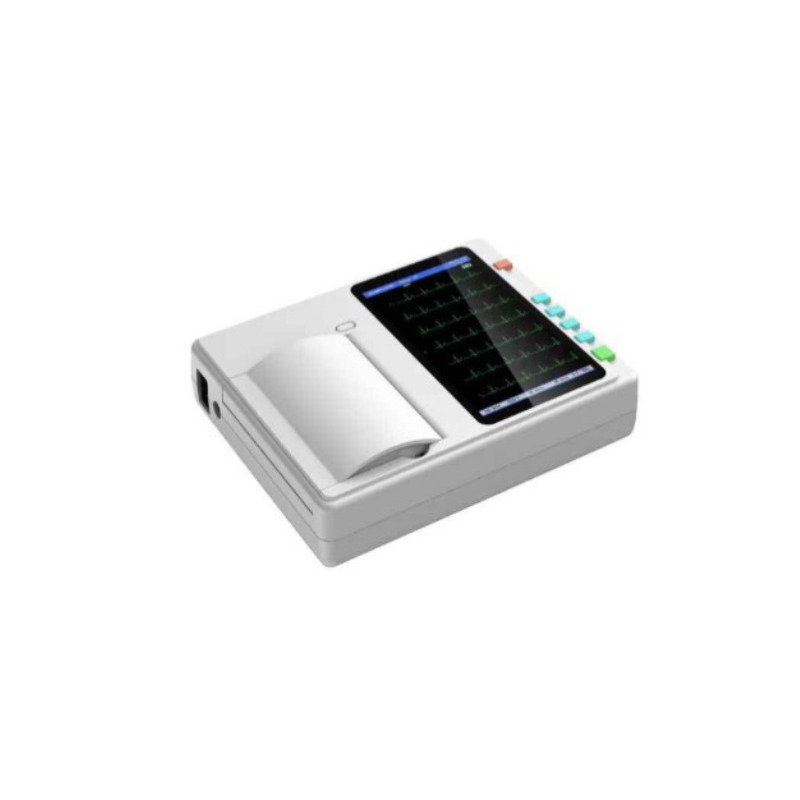

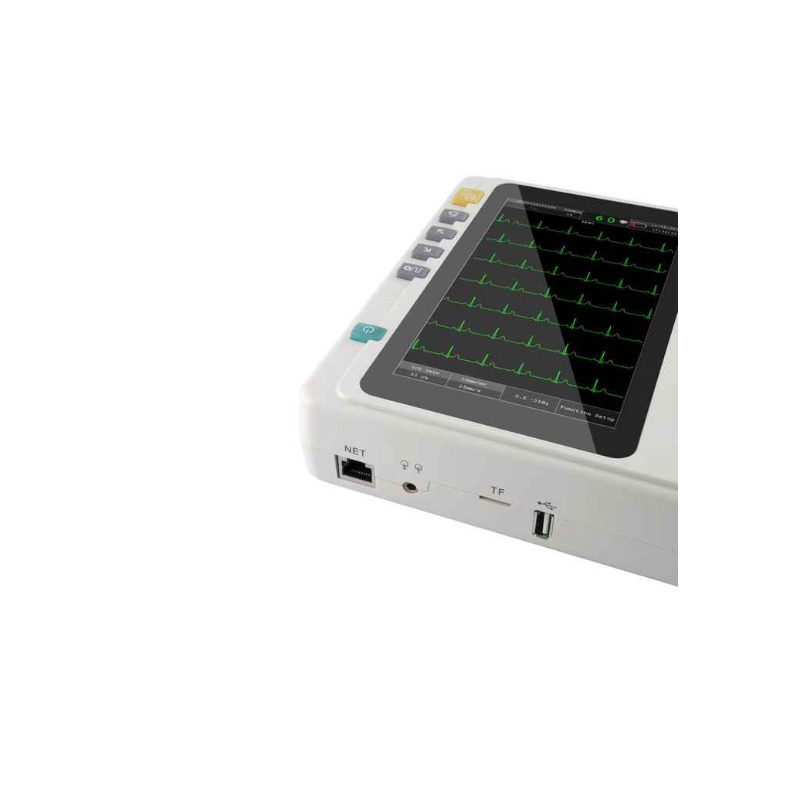

Advanced Compact ECG Machine with 6-Lead Monitoring Features

Customization:	Available
Model:	Stg-601
Warranty:	1 Years

Send Inquiry

Product Description

Basic Information

Model NO.

STG-601

Material

Clastic

Power Source

Electric

Safety Standard

ISO13485

Package

Standard for Export

Specification

5kg

Origin

China

Capacity

100,000/Year

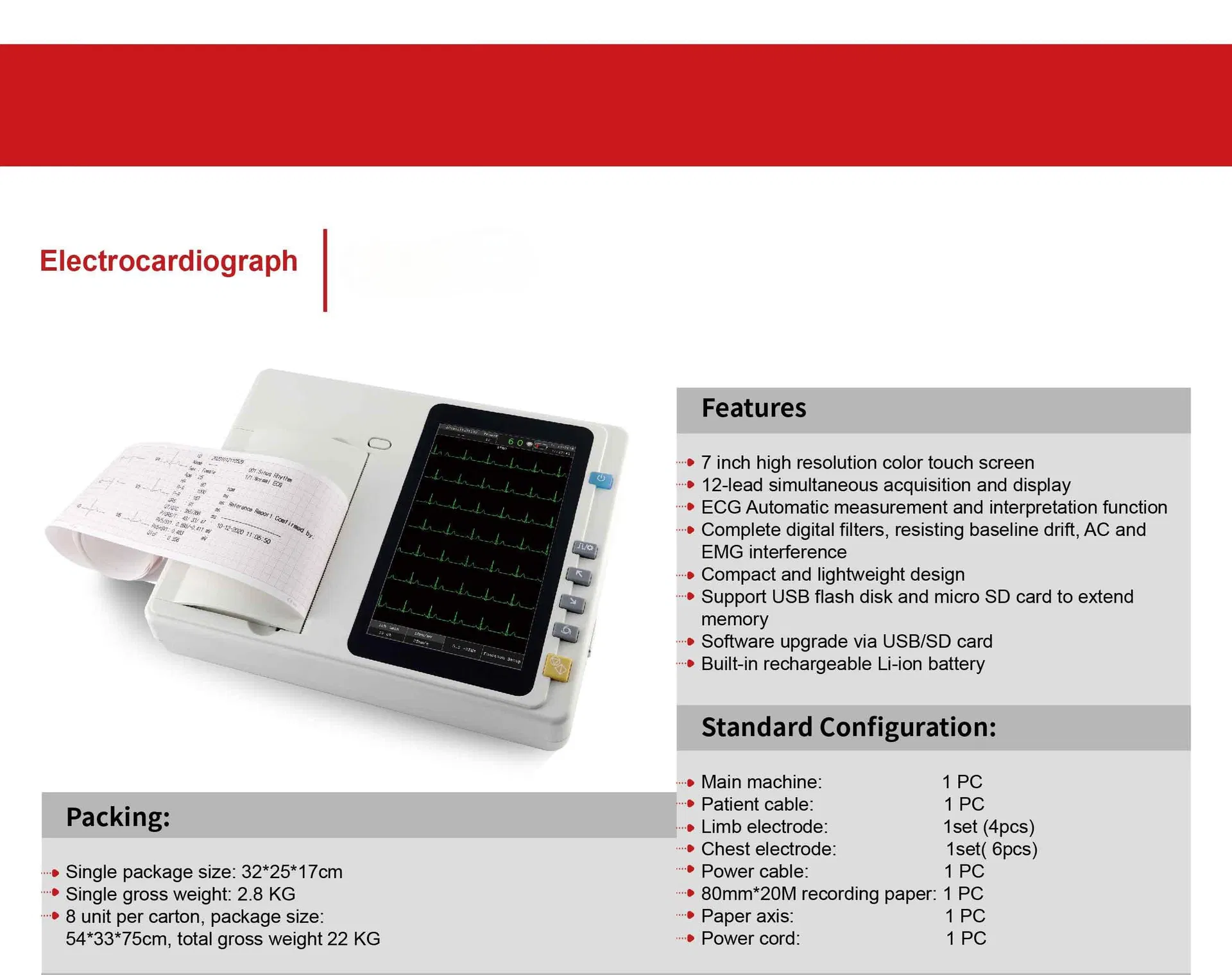

Product Description

Experience fast, accurate cardiac monitoring with our portable ECG device — designed for clinics, ambulances, and home use. Compact, reliable, and easy to operate anytime, anywhere.

📱 1. Portable & Lightweight Design Easily carried for emergency, clinic, or home monitoring—fits in one hand.

⚡ 2. Accurate Real-Time Monitoring Captures precise heart signals instantly with advanced filtering technology.

🖱️ 3. User-Friendly Interface Intuitive display and controls for easy operation by professionals or first-time users.

🏥 4. Multi-Scene Application Perfect for hospitals, ambulances, community care, or remote rural use.

💾 5. Fast Data Storage & Transfer Supports quick report generation and USB/Bluetooth export for medical review.

Specification

Items	Technical Parameters
Lead	Standard 12 leads
Acquisition Mode	Simultaneous 12 leads acquisition
Measurement Range	±5mVpp

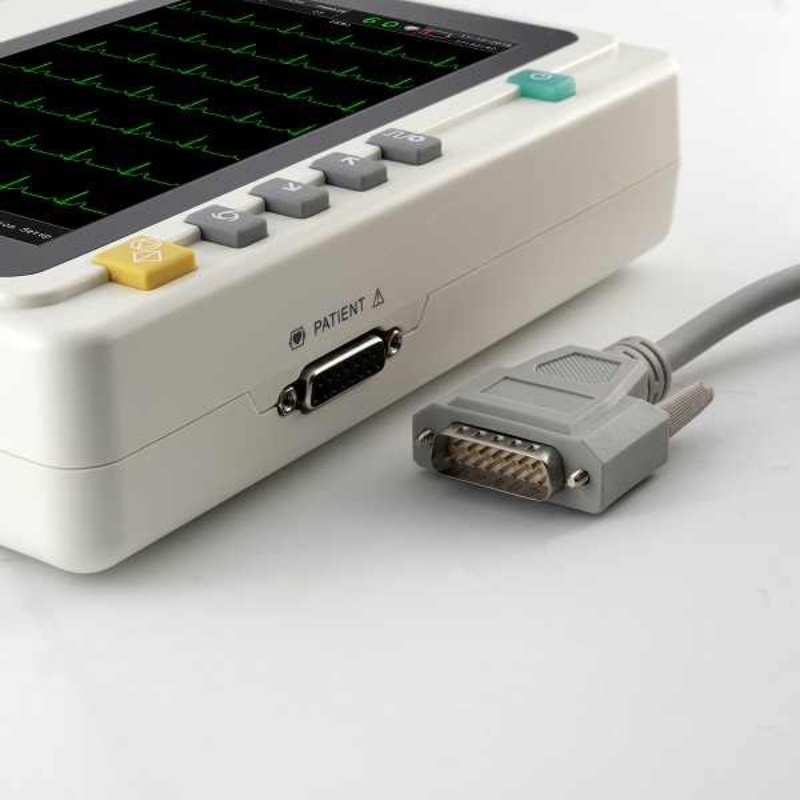

Input circuit	Floating: Protection circuit against Defibrillator effect
Input Impedance	≥50MΩ
Input circuit current	<0.05μA
Record mode	Automatic, Manual, Rhythm (Any lead selectable)
Filter	EMG (25-150Hz), DFT (0.05-0.15Hz), AC (50/60Hz)
CMRR	>100dB
Frequency Response	0.05Hz~150Hz(-3dB)
Sensitivity	2.5, 5, 10, 20 mm/mV
Paper speed	12.5, 25, 50 mm/s
Recording mode	Thermal printing system
Paper specification	Roll 80mm x 20M
Sample Rate	Normal: 1000sps/channel
Power Supply	AC: 100-240V, 50/60Hz, 30VA~100VA

Packing & Delivery

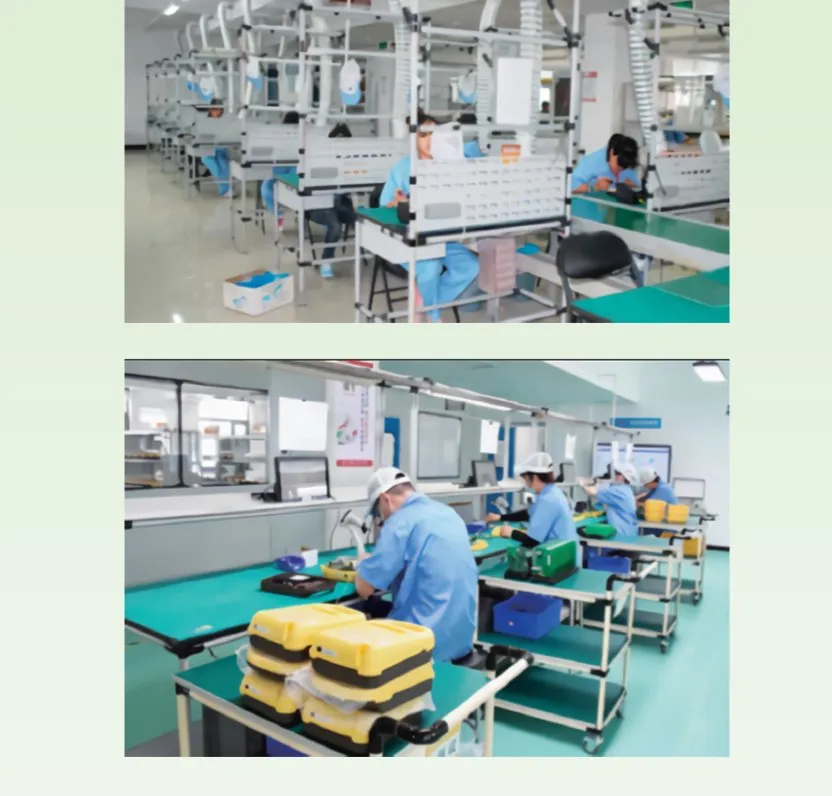

Manufacturing & Certifications

Frequently Asked Questions

Do you have CE and ISO13485 certifications?

Yes, all our products are fully approved by CE and ISO13485 standards, ensuring high quality and safety for medical use.

What are your standard packing details?

We use reinforced wooden cases or professional carton packages designed for standard export. Every unit is carefully inspected by our QC team before delivery.

What is the estimated delivery time?

For items in stock, delivery takes 5-10 days after payment. For custom or bulk orders not in stock, production typically takes 20-30 days depending on the quantity.

What range of medical products do you supply?

We provide a comprehensive range of hospital furniture, operation tables, and diagnostic equipment including advanced ECG machines.

Is this ECG machine suitable for home use?

Yes, the STG-601 features a portable design and user-friendly interface, making it suitable for both professional clinic environments and home monitoring.

Does the machine support multiple recording modes?

Absolutely. It supports Automatic (multiple channel variations), Manual, and Rhythm modes with selectable leads for precise diagnosis.
