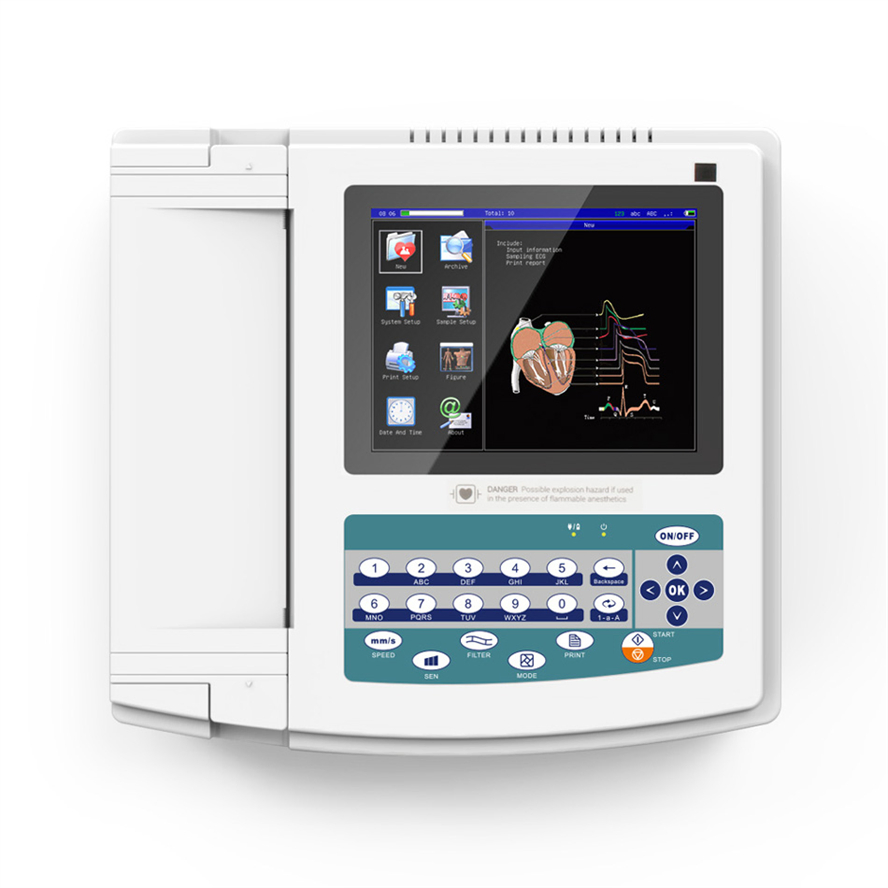

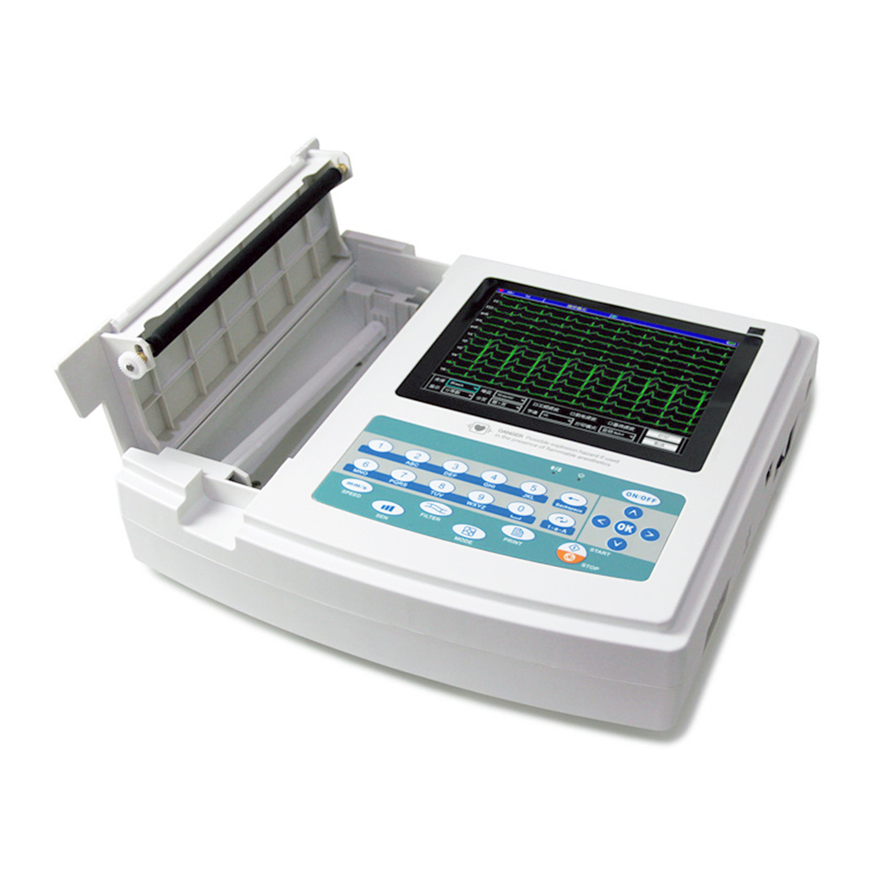

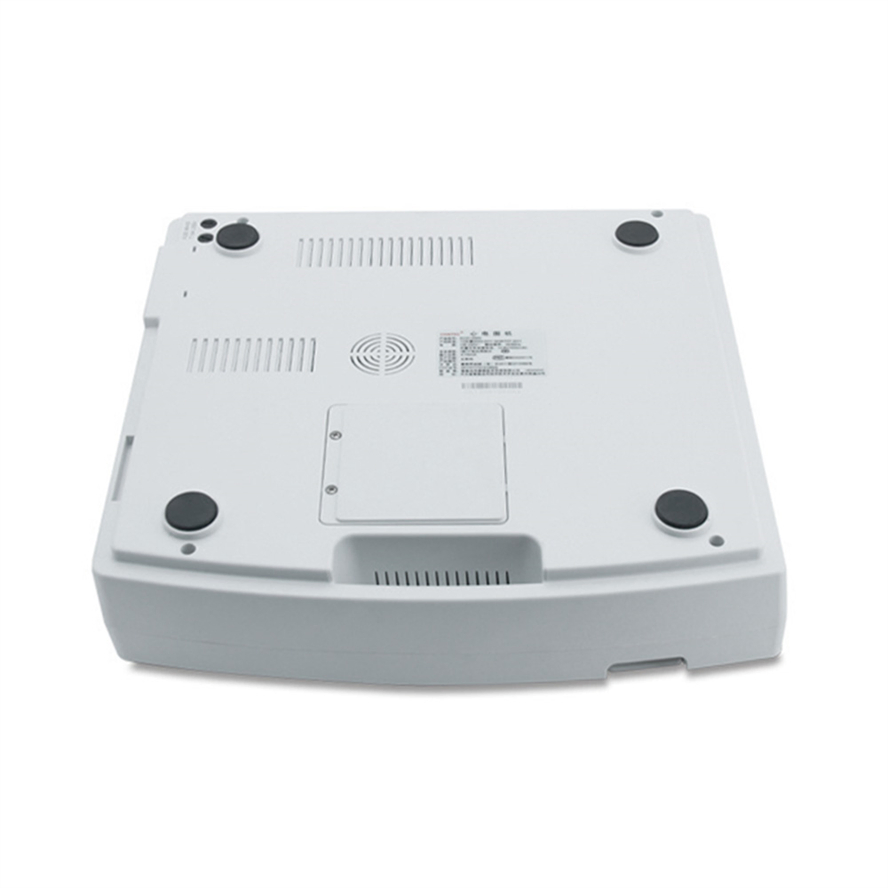

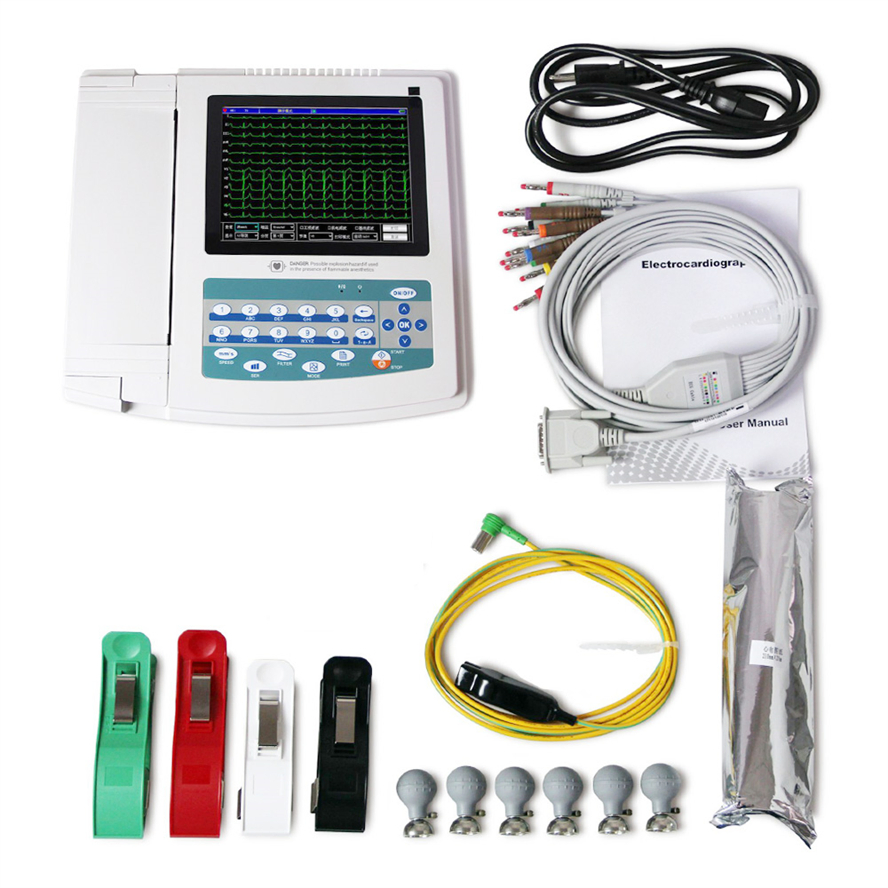

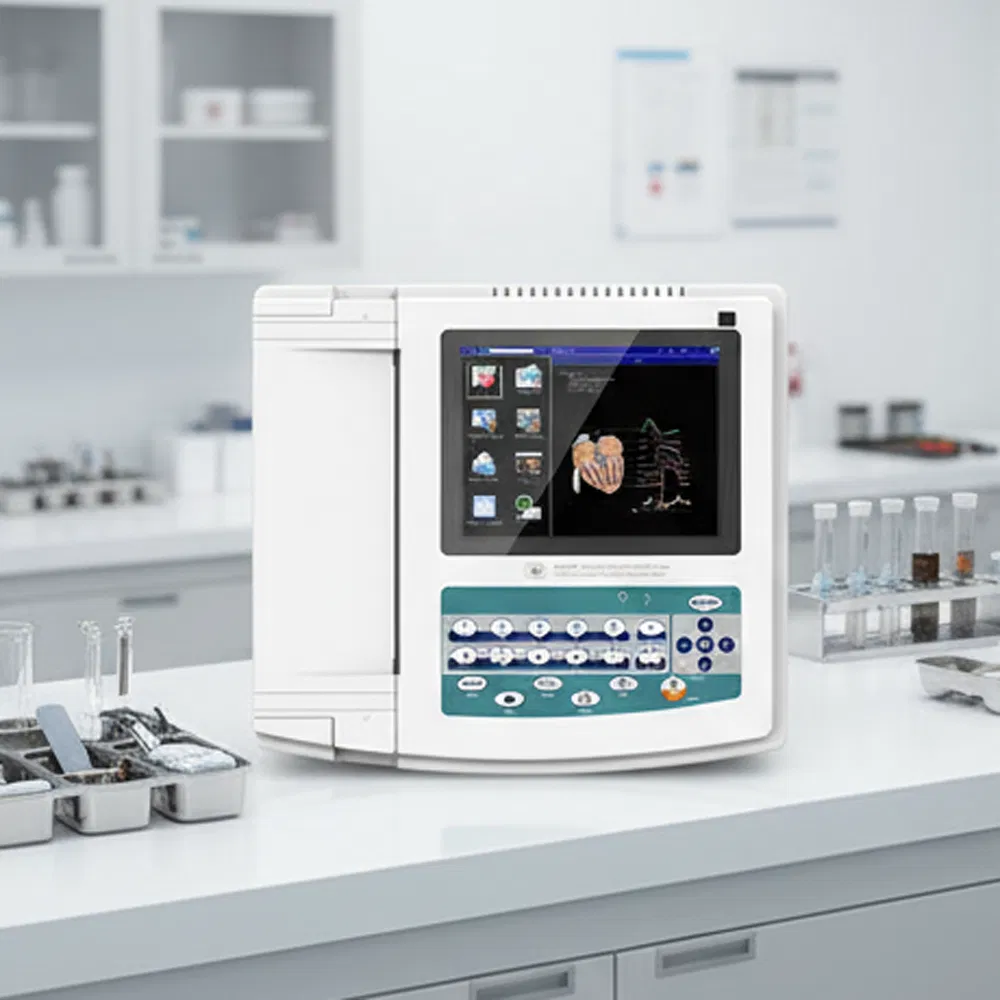

Contec 1200g Electrocardiograph 12 Channel ECG

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️

Model NO.

ECG1200G

Screen Size

8 Inches

Paper Size

210mm*20m

Lead

12 Leads

Multi-Language

Yes

Origin

China

HS Code

9018110000

📋

CE Approved Electrocardiogram Digital 12-channel ECG

✨

Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter.
Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
Multiply printing modes and formats, including auto 12x1, auto 6x2+1, rhythm 12, rhythm 10, manual, etc. Trend chart and histogram of P-R interval can be printed.
Paper speed options: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.
Auto-analysis and auto-diagnosis for routine ECG parameters (HR, P-R interval, QRS Duration, etc.), reducing the doctor's burden.
Built-in memory stores up to 1000 cases, convenient for case review and statistic.
Multi-language interface and report: Turkish, French, Chinese, English, German, Russian, Spanish, and more.
Up to 10-hour standby time and continuous print more than 3-hour in optimal DC state.

⚙️

Screen Size	8 inches
Input Way	Floating and defibrillation protection
Patient Leak Current	<10µA
Frequency Response	0.05Hz~150Hz(-3dB)
Recording Way	Thermal printing system
Paper Spec	210mm(W)*20m(L) high-speed thermal paper
Sensitivity	2.5, 5, 10, 20, 40mm/mV
Safety Class	Class I CF applied part with defibrillation protection
Net Weight	3.2Kg

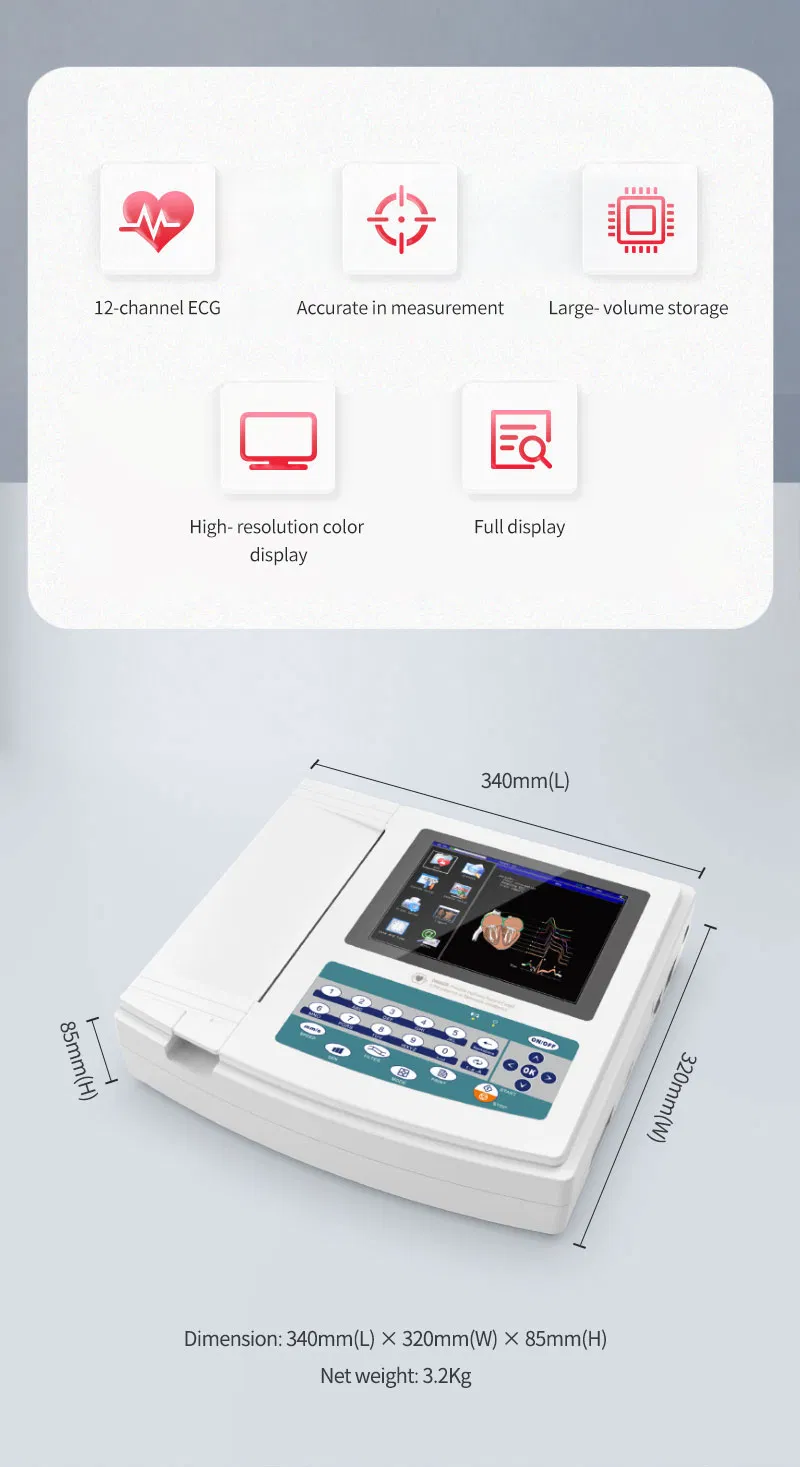

Dimensions	340mm(L) * 320mm(W) * 85mm(H)
