⚙️ Load Moment Indicator (LMI), also known as a safe load indicator or crane computer, is an essential safety device installed on various crane types, including mobile, crawler, tower, gantry, portal, marine, and offshore cranes.
It alerts operators if a lift exceeds the safe operating range and can physically lock out machinery in unsafe circumstances to prevent accidents.

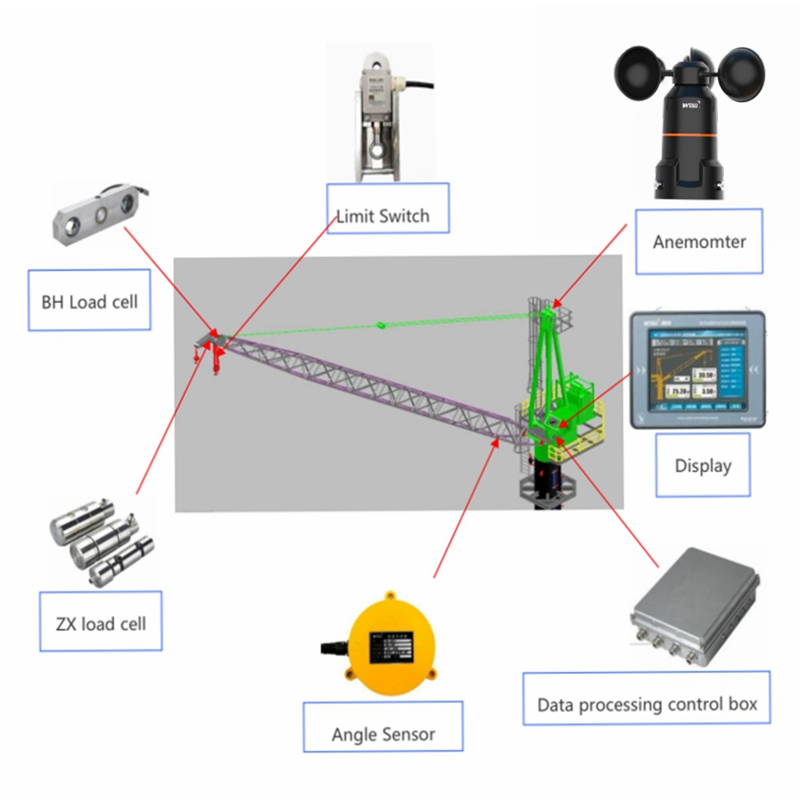

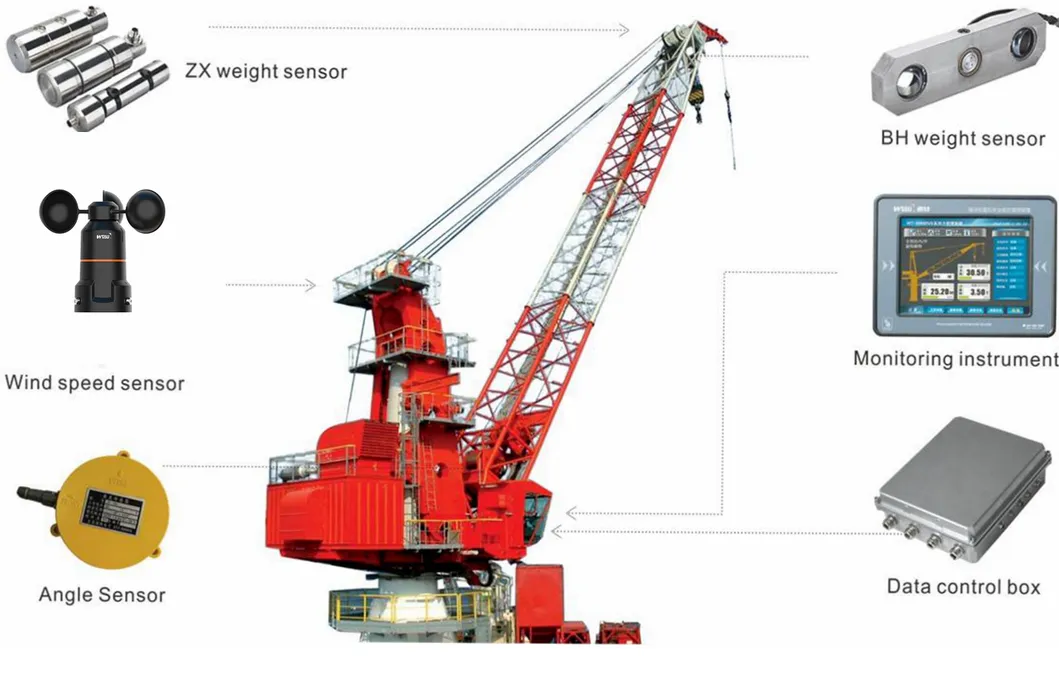

The system controls lifting equipment to function according to the manufacturer's suggested safe load charts. Key parameters such as load weight, working radius, control limit, boom angle, and extension are displayed clearly in the operator's cabin.

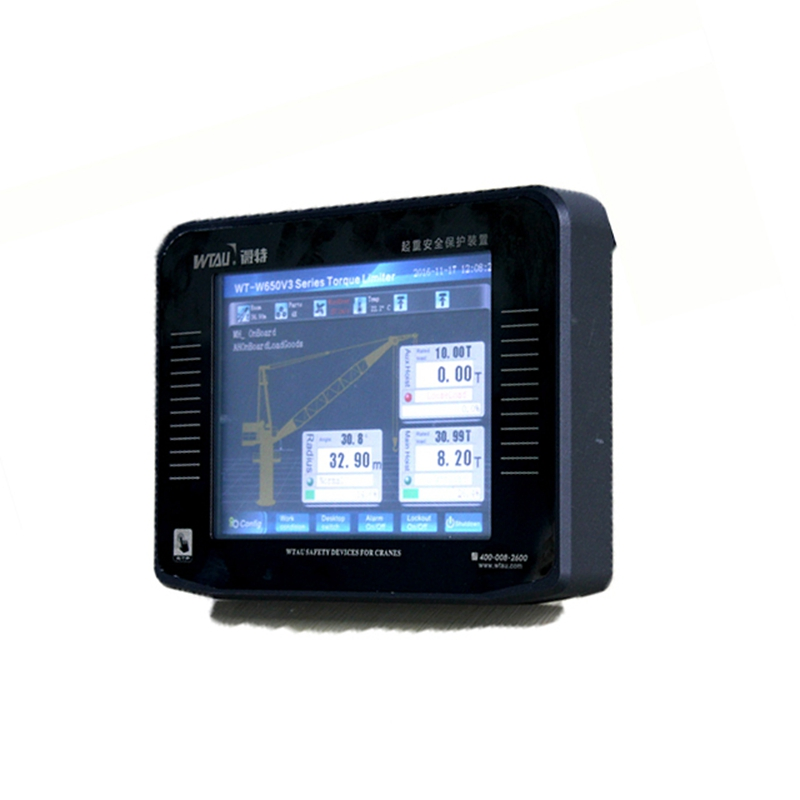

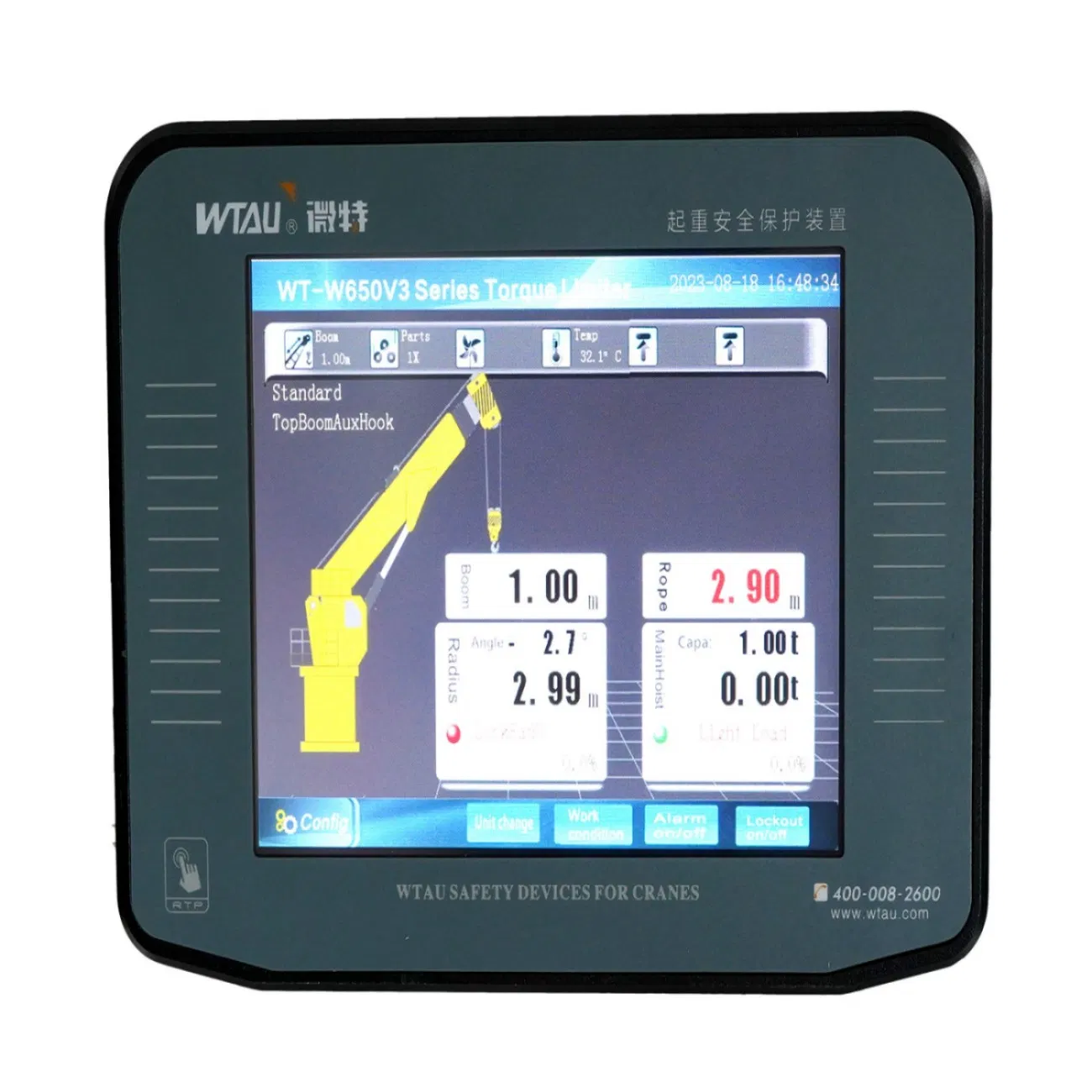

| Model: WT-W650V3 | Control Output: ≤ 6 Channels |
| Display: 8 inch LCD | System Composition Error: ±5%(F.S.) |
| Working Temperature: -20ºC~70ºC | Power Consumption: <30W |
| Operating Humidity: 95%RH(25ºC) | Alarm Volume: >60db |
| Weight Measurement Range: 0T~999.9T | IP Grade: IP 65 |
| Resolving Ability: 0.1T | Power Supply: AC220V / DC24V |

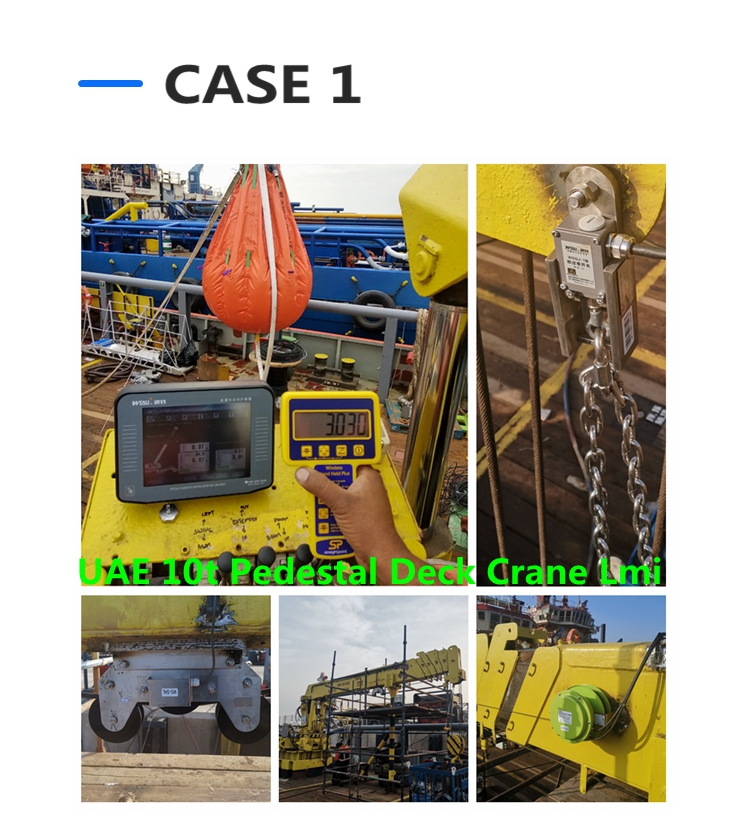

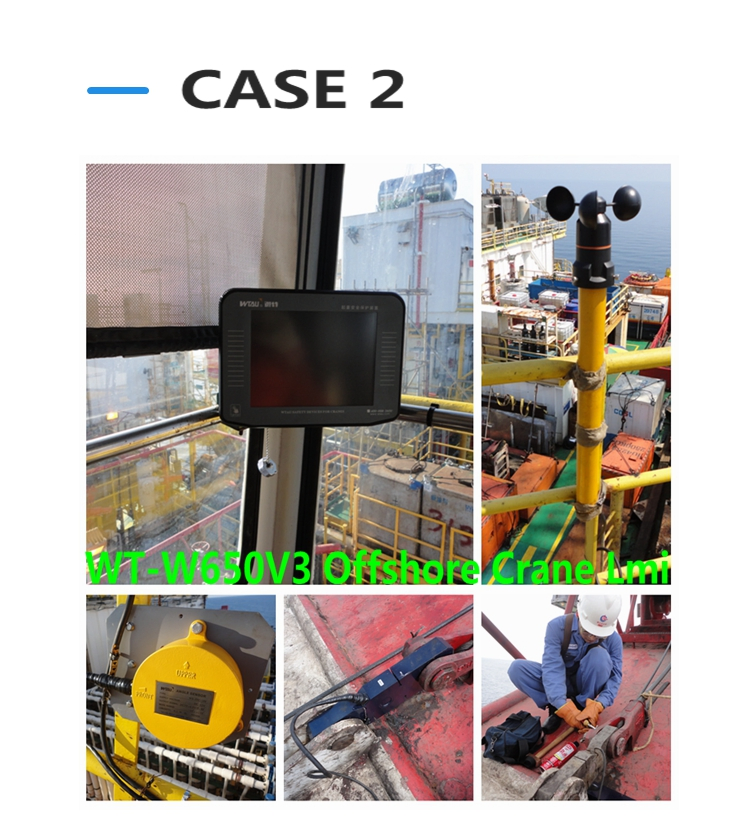

| Signal Input: ≤ 6 Channels | Application: Offshore, Vessel, Pedestal, Deck, & Floating Cranes |
Focused on R&D and manufacturing of lifting safety protection devices, the production range includes Load Moment Indicators, safe monitoring systems, overload limiters, load cells, and anemometers. The goal is ensuring lifting equipment operates safely over the long term.
Our products are widely utilized in marine, electrical, chemical, steel, metallurgy, construction, and port industries, spanning over 70 countries and regions globally.
