Ocent Monitor
1 / 5
| Model NO. | FSTH-PL671RMC |
| Type | Drone Detector |
| Application | Outdoor |
| Usage | Anti Drone |
| Certification | ISO |
| Working Mode | Passive |
| Working Principle | Electromagnetic |
| Transmission Mode | Wireless |
| Alarm Volume (Within 1m) | ≥100db |
| Receive Frequency | 100-6000MHz |
| OEM/ODM | Yes |

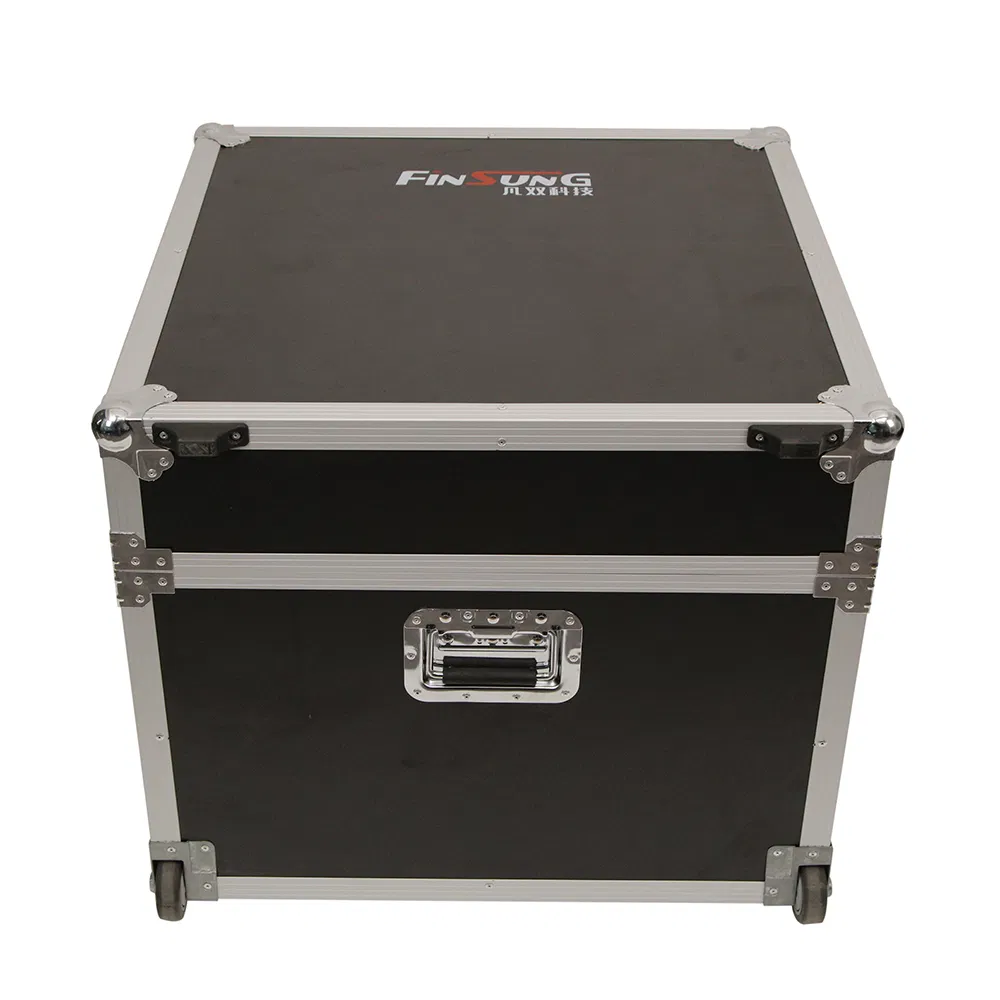

| Transport Package | Flight Case |
| Origin | China |

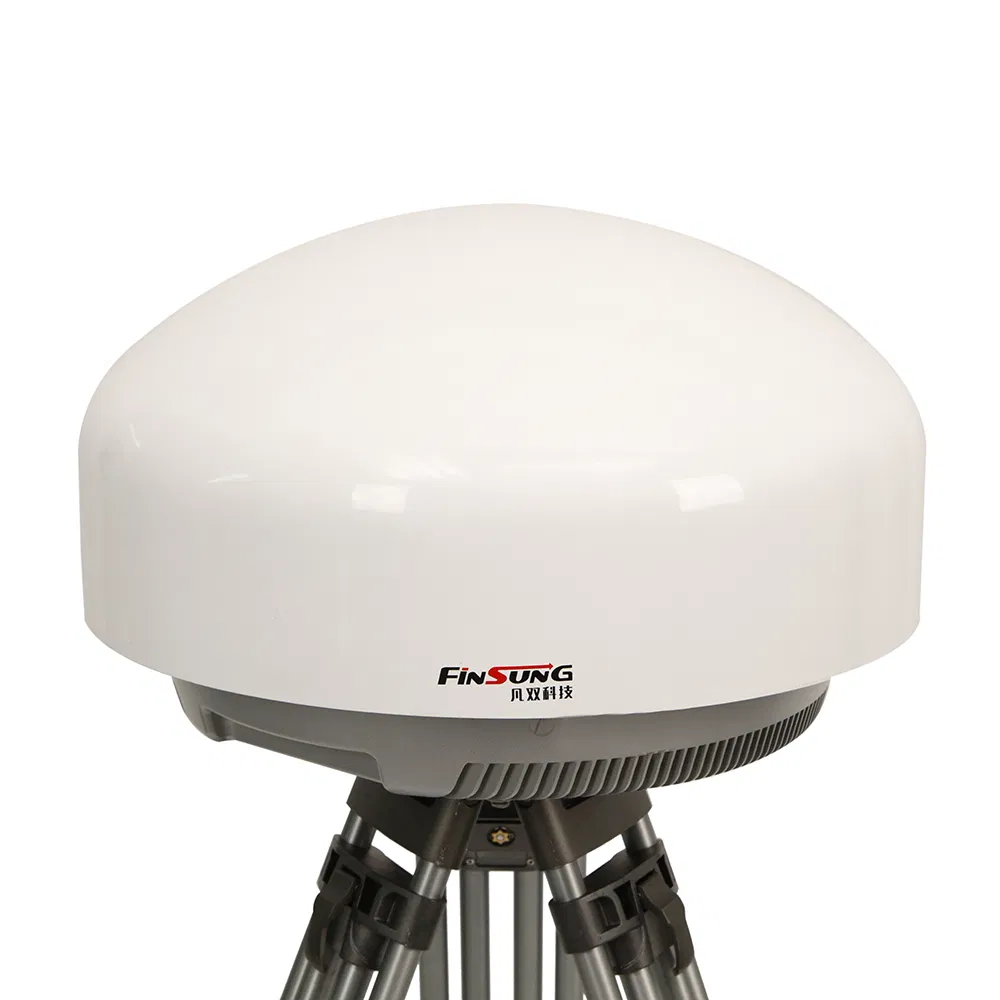

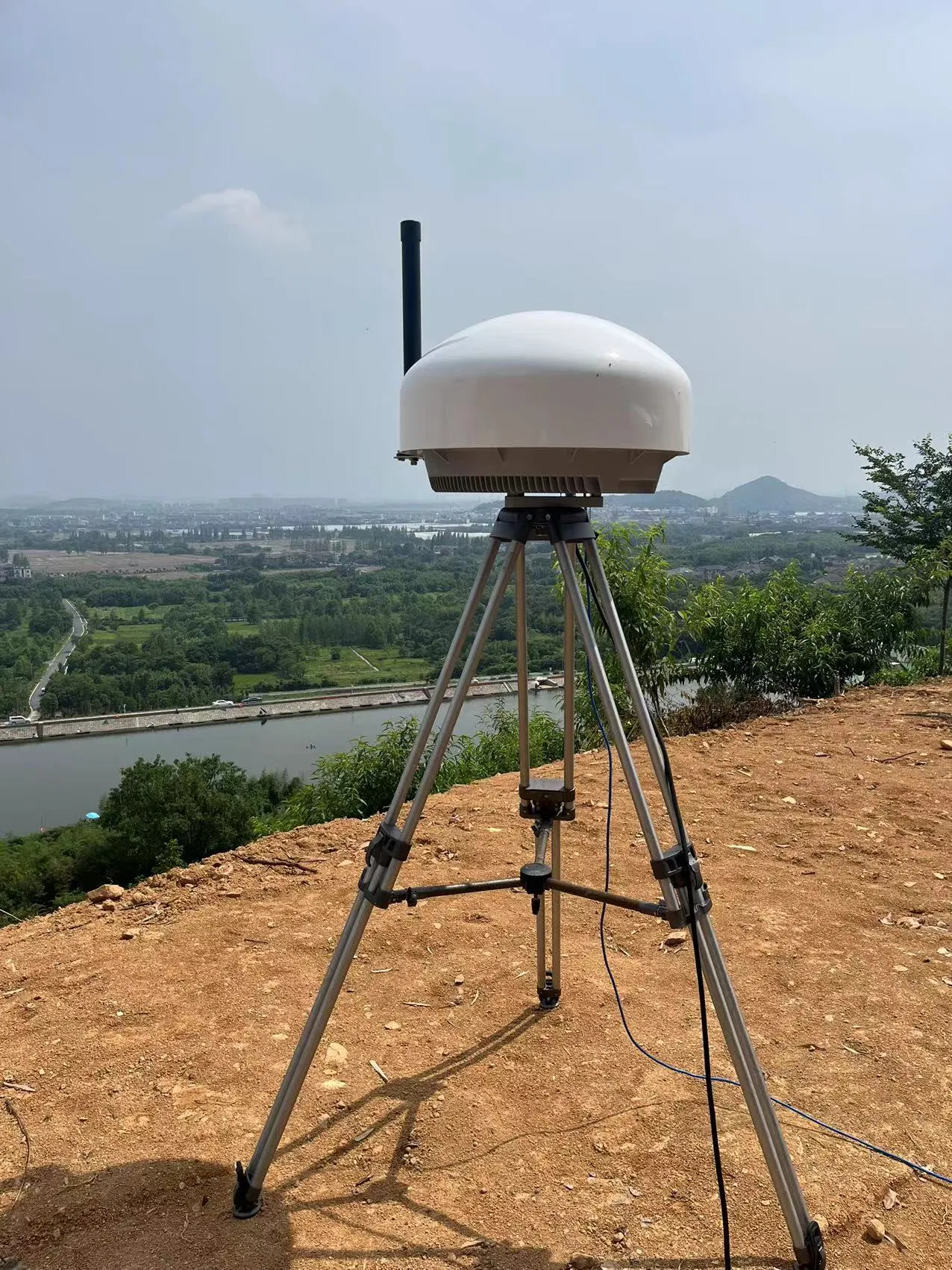

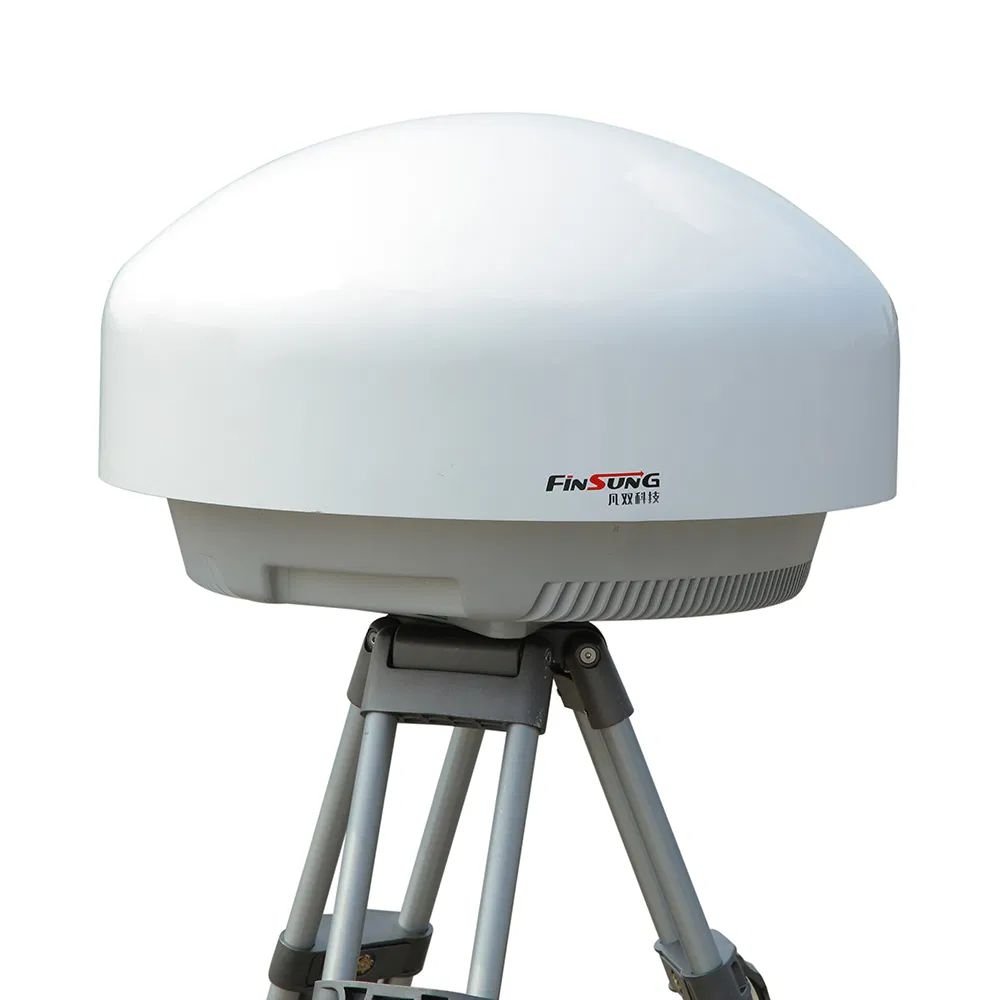

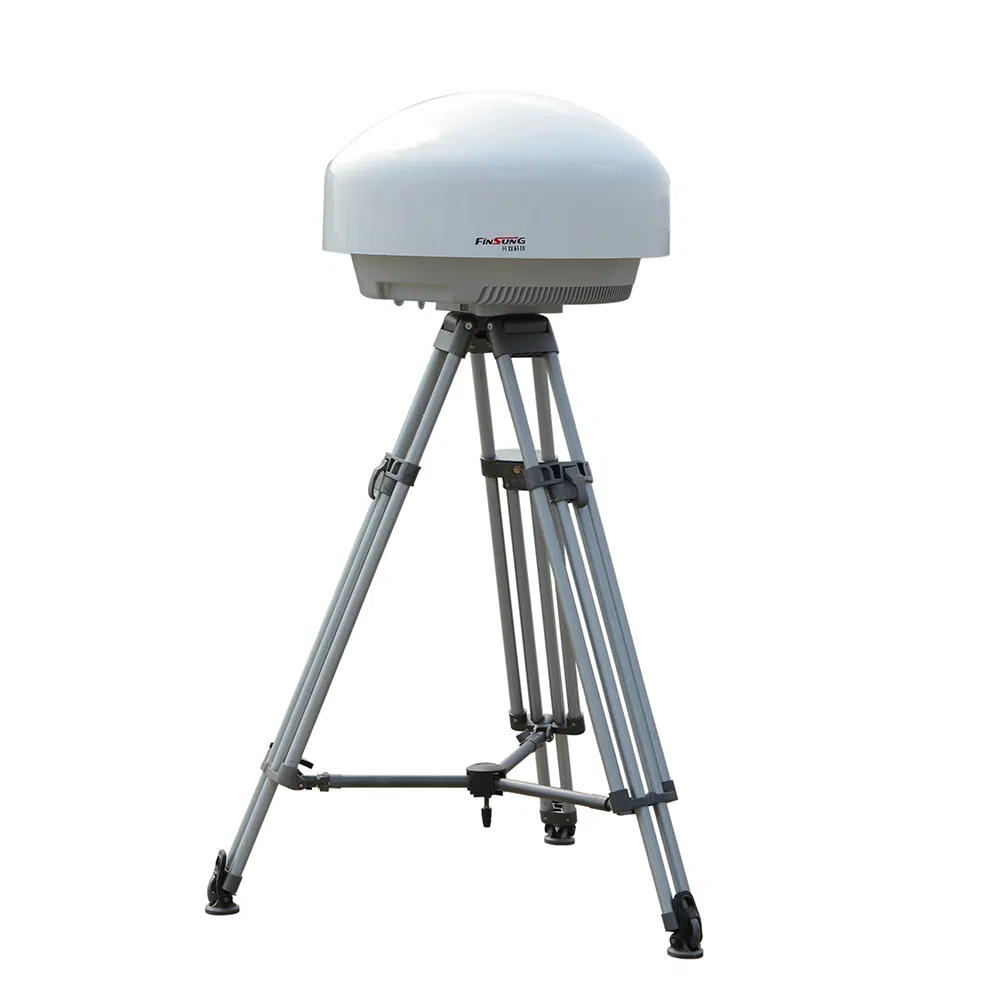

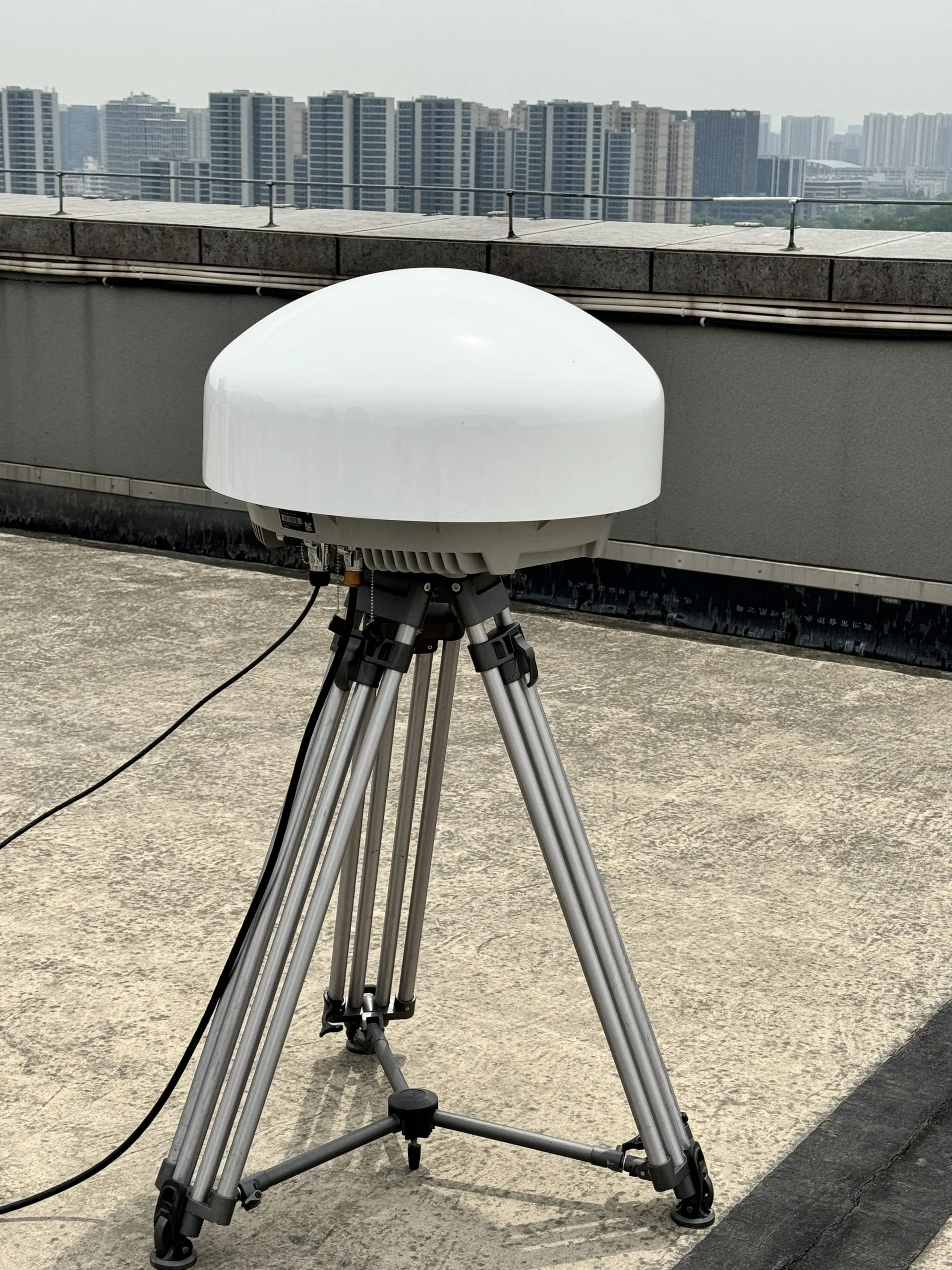

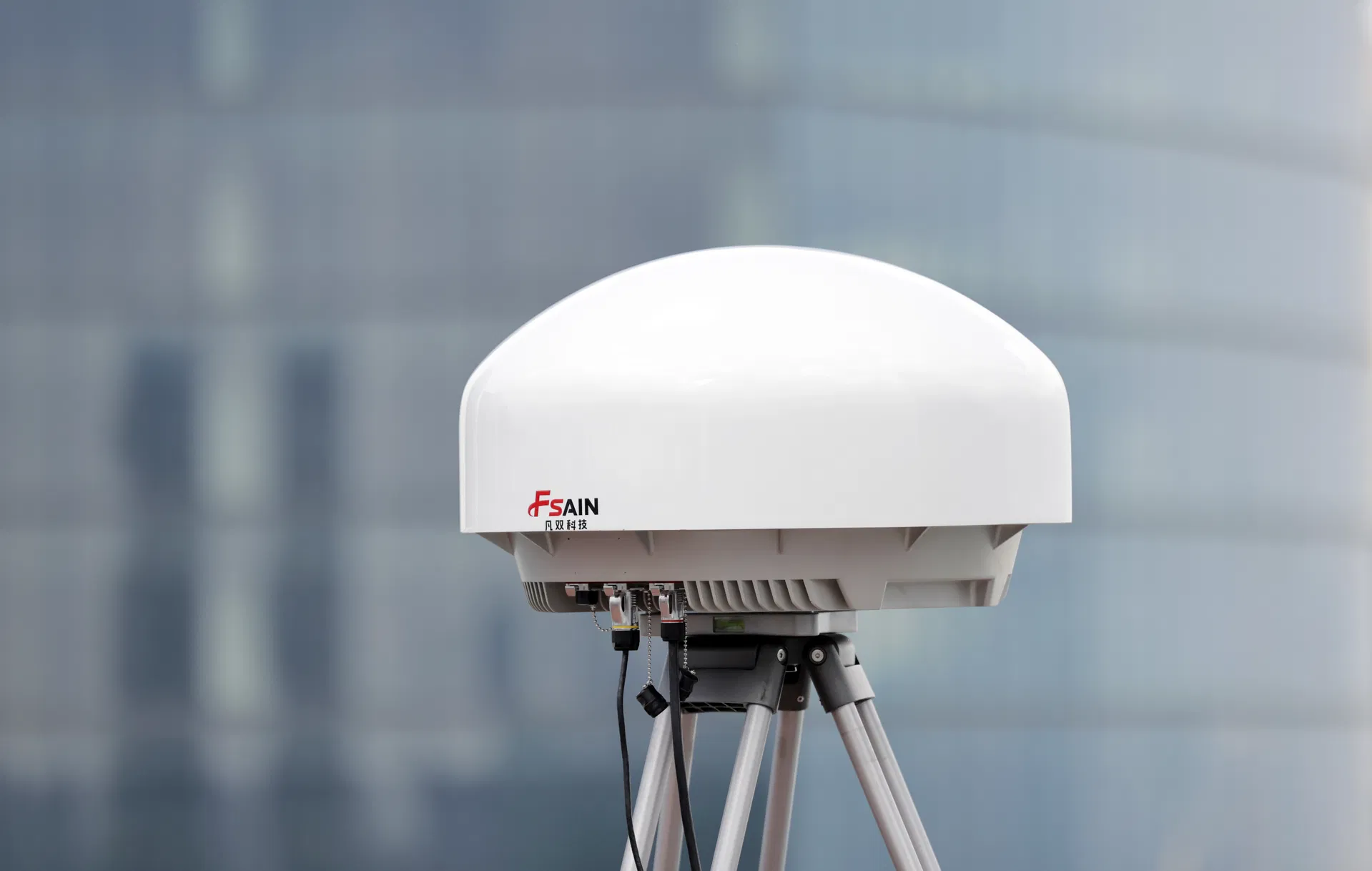

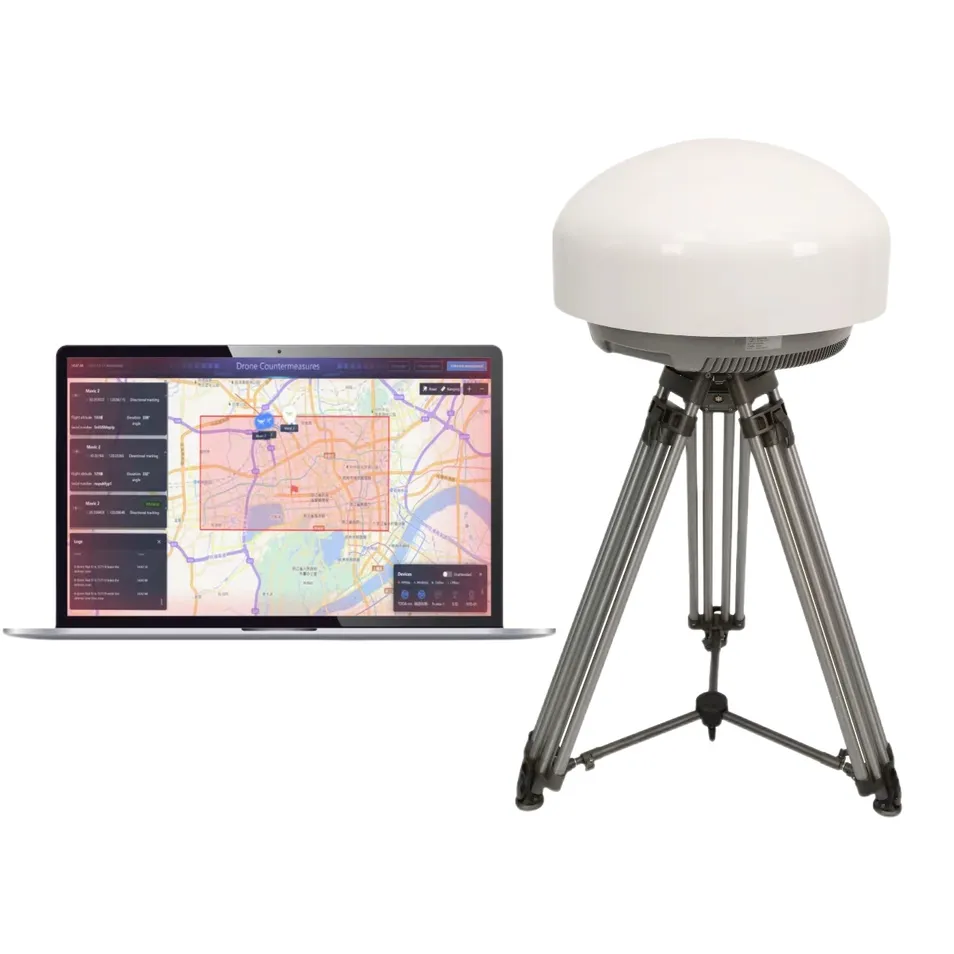

The UAV radio detection equipment can detect and find the UAV radio signals in the full spectrum range of 300MHz to 6000MHz, monitoring at a radius of 4KM. The equipment automatically sends audible and visible alarms once turned on. Based on the detected location and frequency, the system can activate radio blocking equipment via a low-altitude safety control platform to suppress the target area, blocking signals and forcing the UAV to return to base or land.
| Frequency Range | 20MHz-8000MHz / 20MHz-6000MHz / 300MHz-6000MHz |
| Response Time | < 2s |
| Detection Angle | Horizontal: 360°; Vertical: -20°~+70° (Finding), -70°~+90° (Identification) |
| Detection Radius | > 4km (DJI); > 3km (FPV, etc.) |
| Direction Finding Accuracy | ≤ 3° |
| Protection Level | IP66 |
| Decoy Radius | 4km (Adjustable) |
| Working Temperature | -45°C ~ +70°C |
| Dimension | Φ590mm x H350mm |
