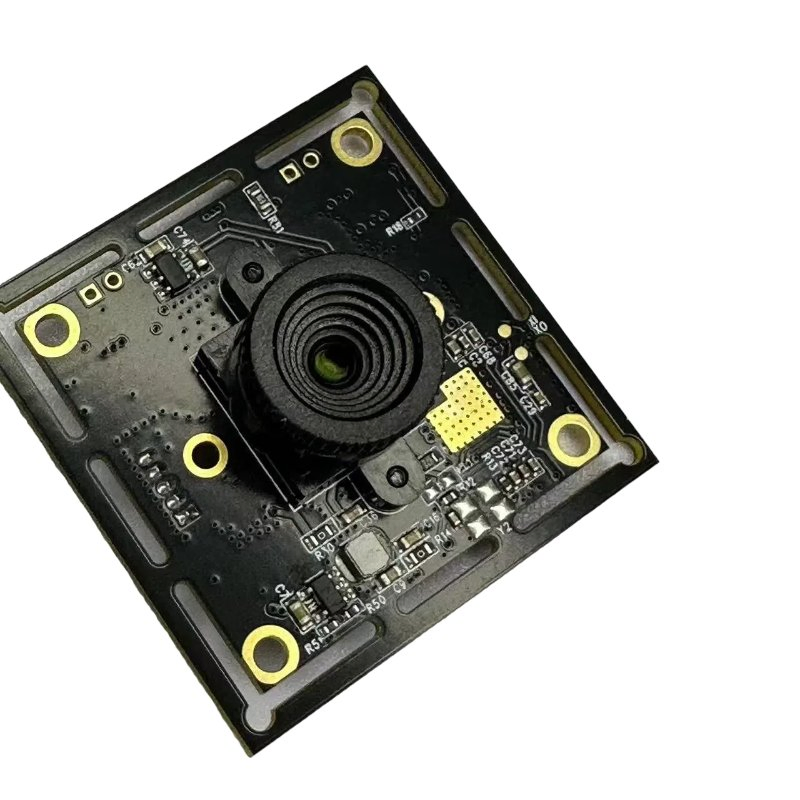

Global Shutter USB3.0 Imx568 Camera Module for Low-Light Applications

1 / 5

Global Shutter USB3.0 Imx568 Camera Module for Low-Light Applications

Send Inquiry

Product Description

5MP USB3.0 Global Shutter Camera Module

Unlock precision and performance with our 5MP USB3.0 Global Shutter Camera Module, engineered for demanding applications like industrial inspection, surveillance, video conferencing, and machine vision systems. Featuring a 1/1.8" CMOS image sensor and global shutter technology, this compact camera delivers distortion-free, high-resolution imaging even in fast-moving or low-light environments.

Product Specifications

Parameter	Value
Image Sensor Size	1/1.8" inch
Effective Pixels	H2448 × V2048
Pixel Size	2.74 µm × 2.74 µm
Image Sensor Data Output	Raw Bayer 10 bits
Video Output Formats	MJPG / YUY2
Maximum Frame Rates	2448 × 2048 @ MJPG 60 FPS
Digital Interface	USB 3.0 (Type B)
Transfer Rate	3 Gbps
Power Requirements	5V ± 5%
Operating Temperature	-30°C to +60°C
Supported Operating Systems	Windows XP / Vista / 7 / 8.1 / 10, Mac, Android, Linux 2.6.2 (UVC compatible)
Lens Mount	M12 × P0.5
Effective Focal Length (EFL)	4.2 mm ± 5%
Field of View (FOV)	Diagonal: 94°, Horizontal: 78°, Vertical: 68°
Optical Distortion	< -1.2%
PCB Ink Color	Black

Key Features

✓

5MP High Resolution Capture ultra-sharp details for accurate analysis in industrial automation and access control.

✓

High-Speed USB 3.0 Supports data transfer up to 5 Gbps, enabling smooth 60FPS video at 1080p.

✓

Global Shutter Technology Eliminates motion blur for clear imaging of moving objects—ideal for robotics and logistics.

✓

Plug-and-Play (UVC) Compatible with Windows, Linux, and macOS without additional drivers.

Typical Applications

★

Industrial Automation PCB inspection, robotic guidance, and quality control.

★

Security & Surveillance ATM monitoring, facial recognition, and license plate capture.

★

Healthcare & Retail Document scanning, biometric verification, and interactive kiosks.

Why Choose This Camera?

Optimized for developers and integrators, this module combines cost-efficiency with professional-grade performance. Its UVC compliance simplifies deployment across platforms, while the global shutter ensures reliability in dynamic scenarios. Included accessories: USB3.0 cable (1m), Lens mounting adapter (C/CS to M12), and SDK for Windows/Linux.

Product Display

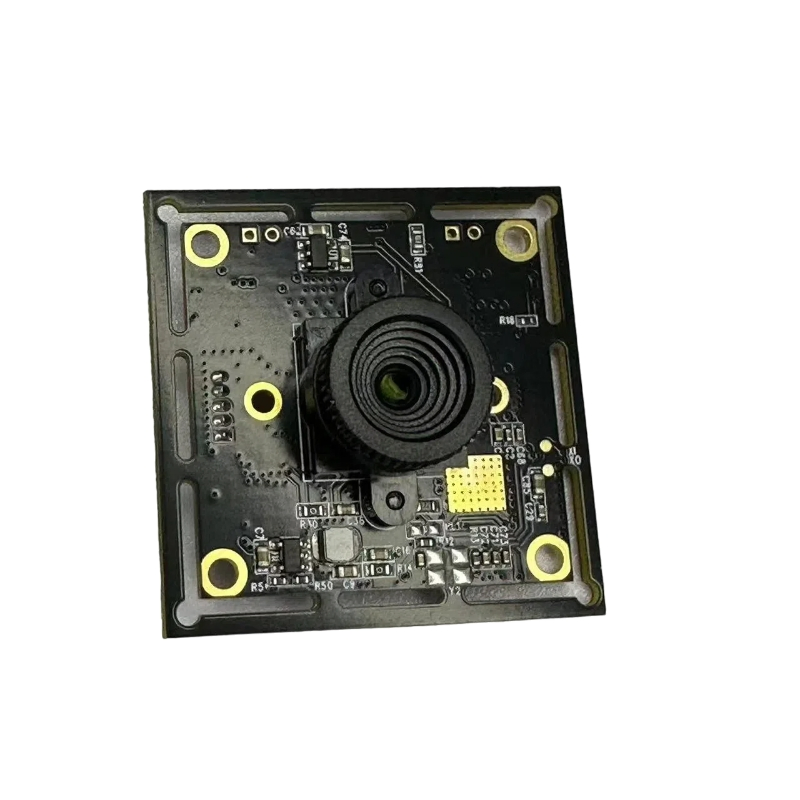

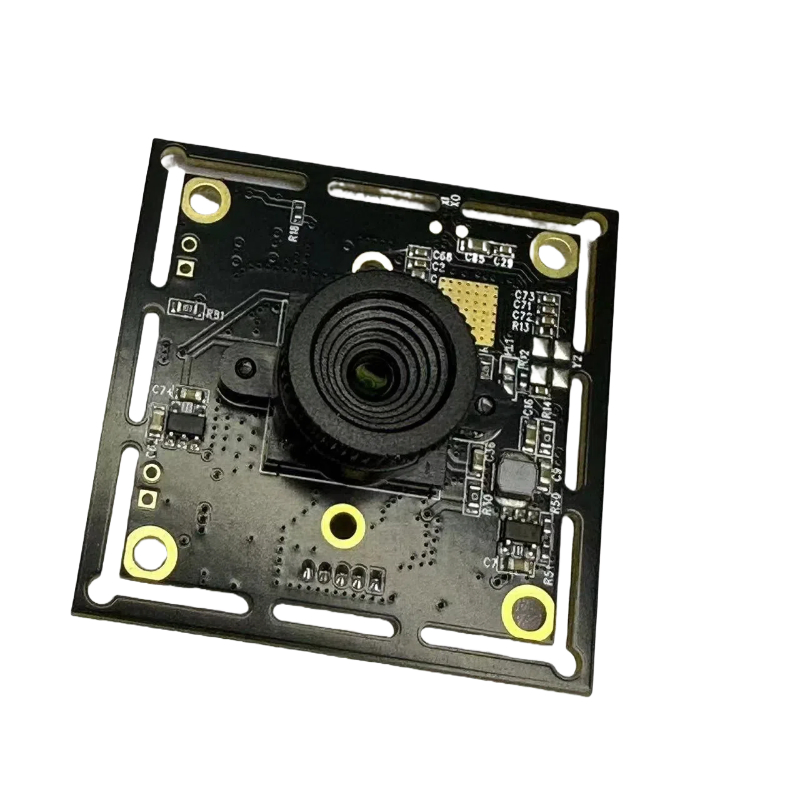

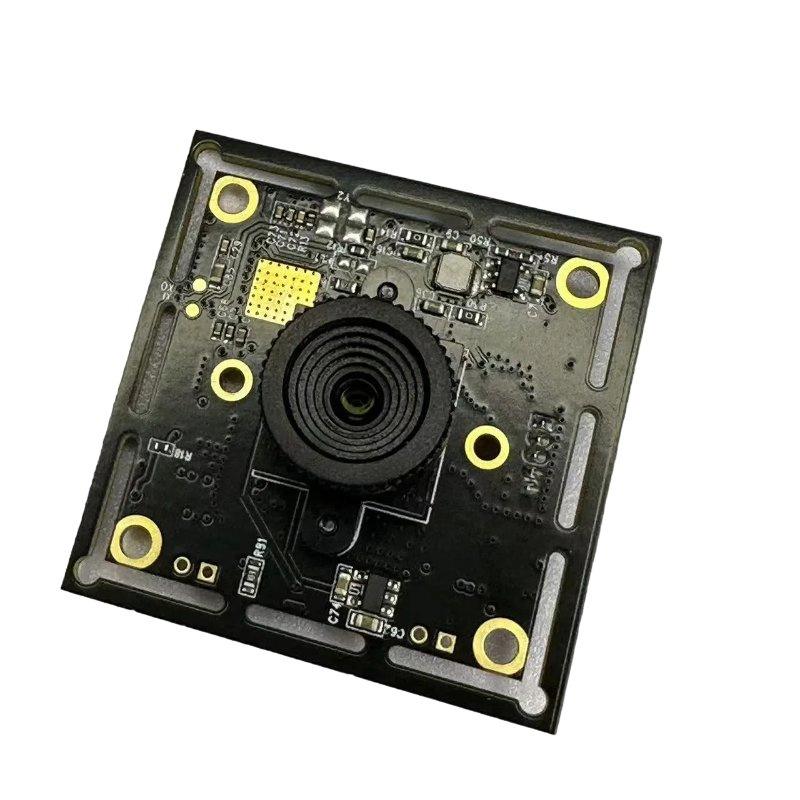

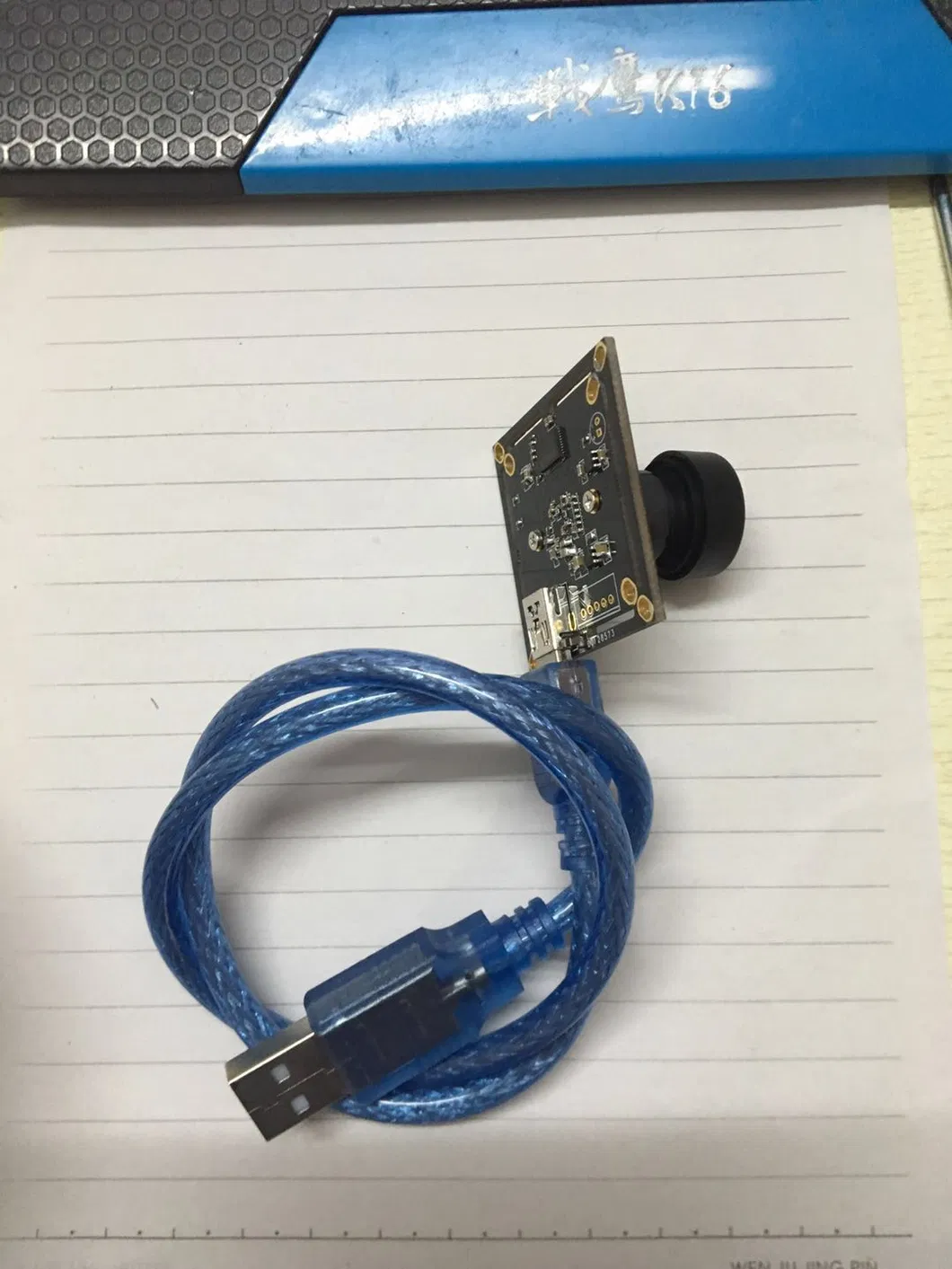

Global Shutter USB3.0 Imx568 Camera Module

Frequently Asked Questions

What is the main advantage of a Global Shutter over a Rolling Shutter?

Global Shutter technology captures the entire frame at once, eliminating the "jello effect" or motion blur seen in fast-moving objects, which is essential for industrial automation and high-speed imaging.

Is this camera module plug-and-play?

Yes, it is UVC (USB Video Class) compliant, meaning it works immediately upon connection with standard operating systems like Windows, Linux, and macOS without the need for manual driver installation.

What is the maximum frame rate achievable?

The camera can reach up to 60 FPS at 1080p resolution and maintains high-speed performance at its full 5MP resolution (2448 × 2048).

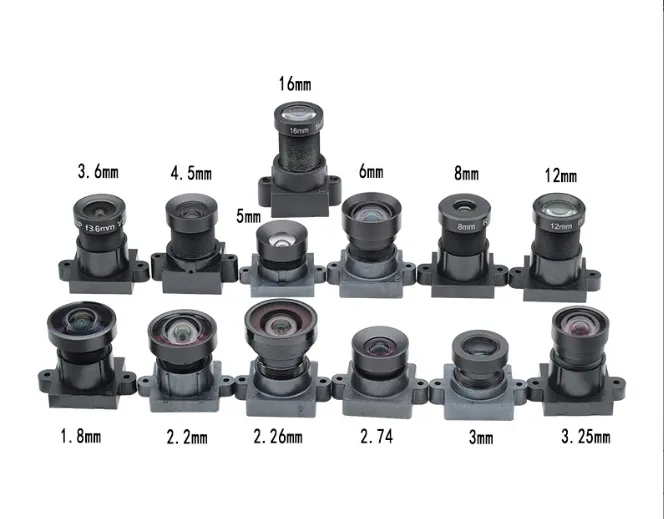

What lens mounts are supported?

The module standardly uses an M12 mount, but it comes with a mounting adapter that supports C/CS-mount lenses for greater flexibility in professional optics.

Does it support low-light environments?

Yes, with a 1/1.8" large CMOS sensor and 2.74 µm pixel size, it is designed for superior light sensitivity and performance in diverse lighting conditions.

Is an SDK provided for custom development?

Yes, we provide a comprehensive SDK for Windows and Linux with support for OpenCV, Python, and C++ to help developers integrate the camera into their specific systems.
