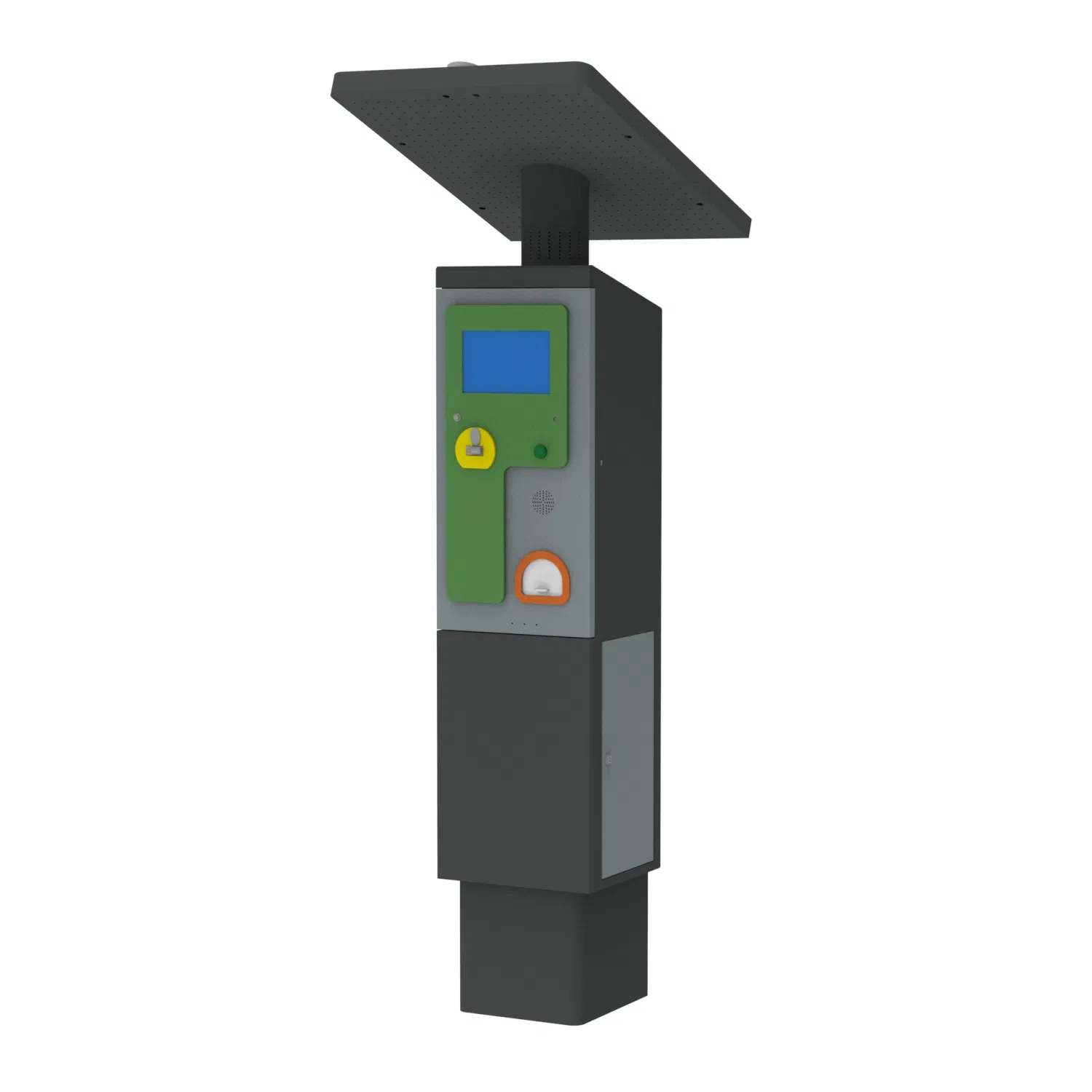

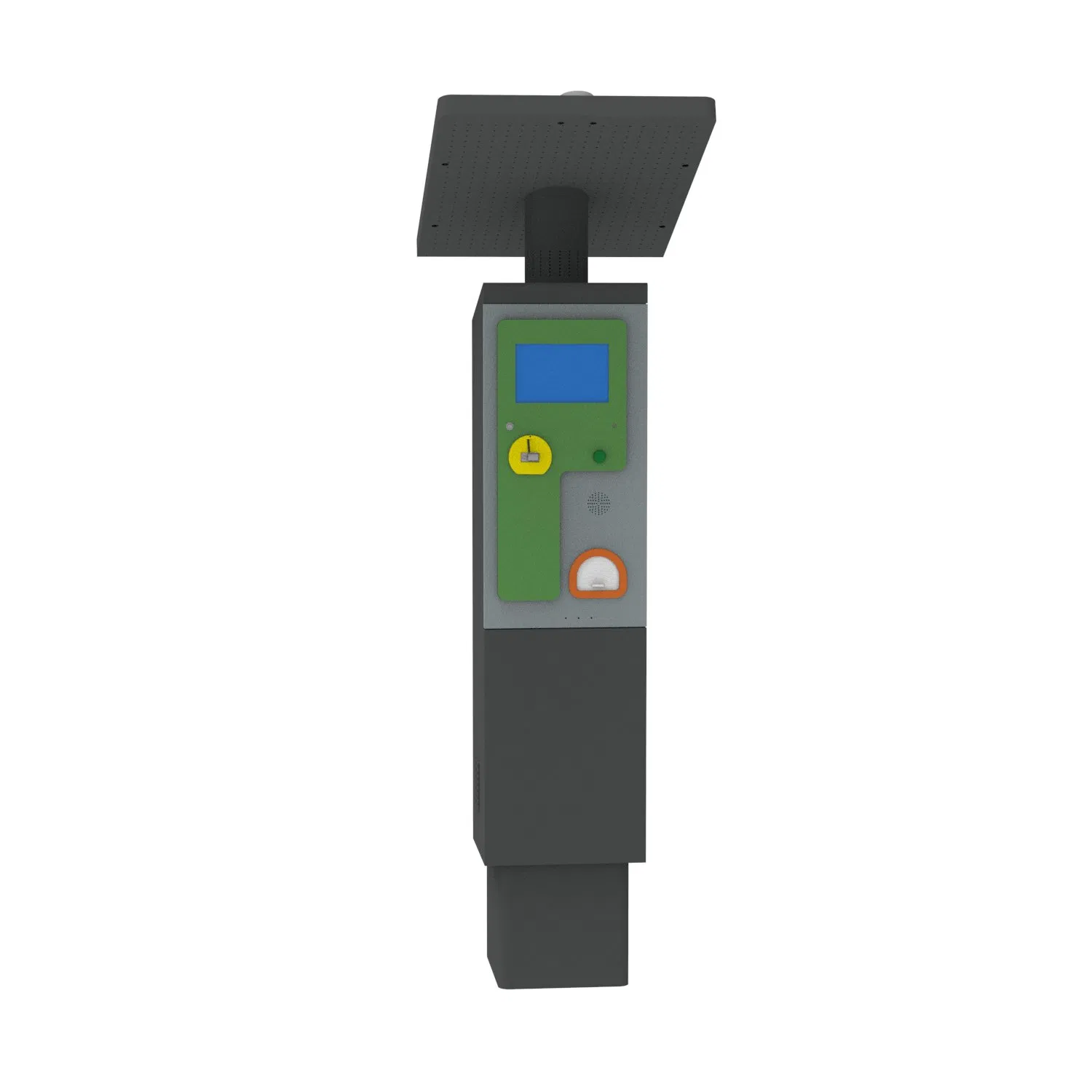

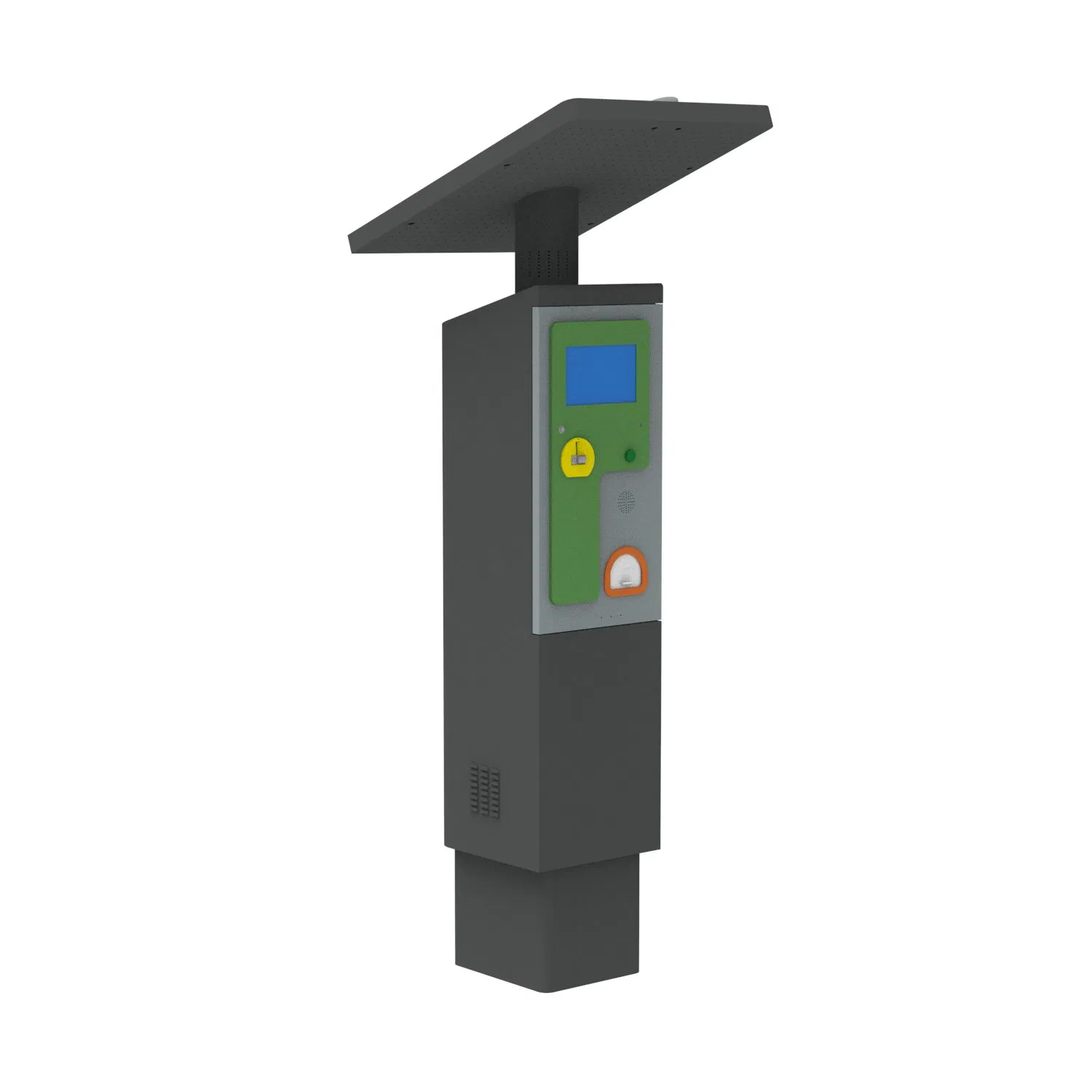

100ah DC12V Intelligent Wiiparking Parking Meter for Efficient Self Service

Basic Specifications

Model NO.

PSM Series

Interface

Multi-language (Spanish Support)

Fee Statistics

Supported

Space Navigation

Supported

Payment Method

Mobile & Contactless

Remote Monitoring

Supported

Self-service

Supported

Dimensions

380 × 398 × 2066 mm

Cabinet Material

Galvanized/Stainless Steel

Network

4G, Wi-Fi, RJ45 Ethernet

Weight

110 Kg

Operating Mode

Automatic

Product Description

Advanced Parking Payment Terminal for On-Street Management

The Smart Parking Meter is a next-generation self-service payment terminal designed for efficient and reliable urban parking management. With robust hardware, flexible payment options, and remote management capabilities, it's ideal for cities, municipalities, and private operators seeking a smart, low-maintenance parking solution.

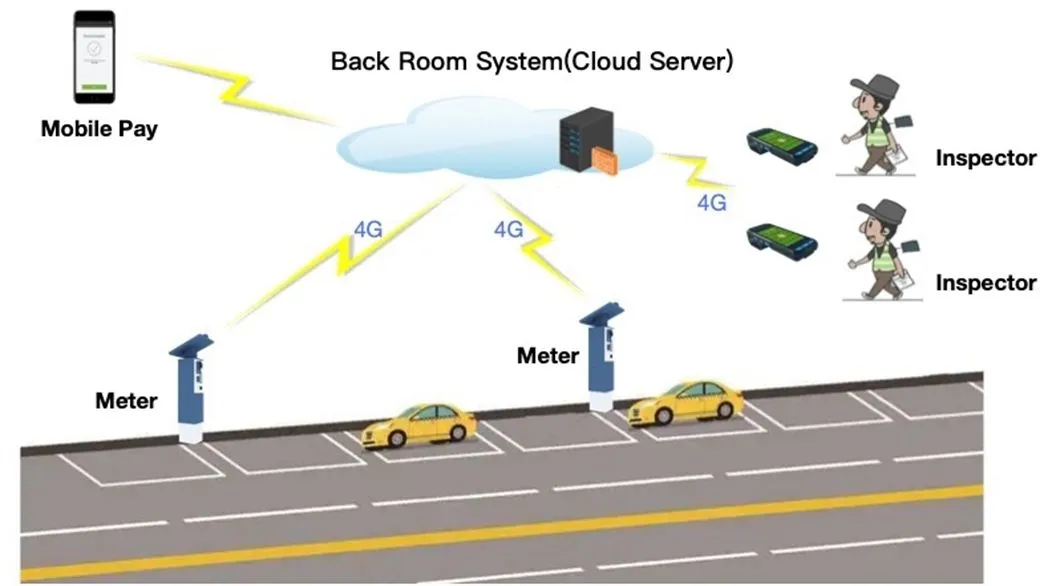

📊 System Topology Diagram

⭐ Key Features & Benefits

📱

10.1" Full-Color Touchscreen & Waterproof Keypad - User-friendly interface suitable for all weather conditions.

🖨️

Custom Ticket/Receipt Printing - Supports over 4,000 tickets per roll with programmable content.

☀️

Low Power Consumption (<2.8W) - Energy-efficient; compatible with solar power and long-life batteries.

💳

Multi-Payment Options - Accepts coins, banknotes, contactless cards (Visa, Mastercard), and mobile payments (Apple Pay, Google Pay).

🛡️

Rugged, Secure Design - Anti-rust steel cabinet, dual-lock system, and tamper alerts for vandal protection.

🌐

Remote Connectivity - Supports 4G, Wi-Fi, and Ethernet with real-time system alerts and remote software updates.

Technical Specifications

Item	Specification
Cabinet	2mm galvanized steel (stainless steel optional)
Size & Weight	380 × 398 × 2066 mm, Weight: 110 kg
Display	10.1" LCD Touch Screen
Control System	Android embedded industrial control system
Cash Function	Banknote/coin receiving; storage up to 800 notes
Bank Card Support	Visa, Mastercard contactless
Receipt Printing	Max width: 60mm/80mm; auto cutter; low paper detection
Network	4G, Wi-Fi, RJ45 Ethernet
Recommended Battery	100AH DC12V
Environment	-25ºC to 75ºC, Humidity 5%-95% non-condensing

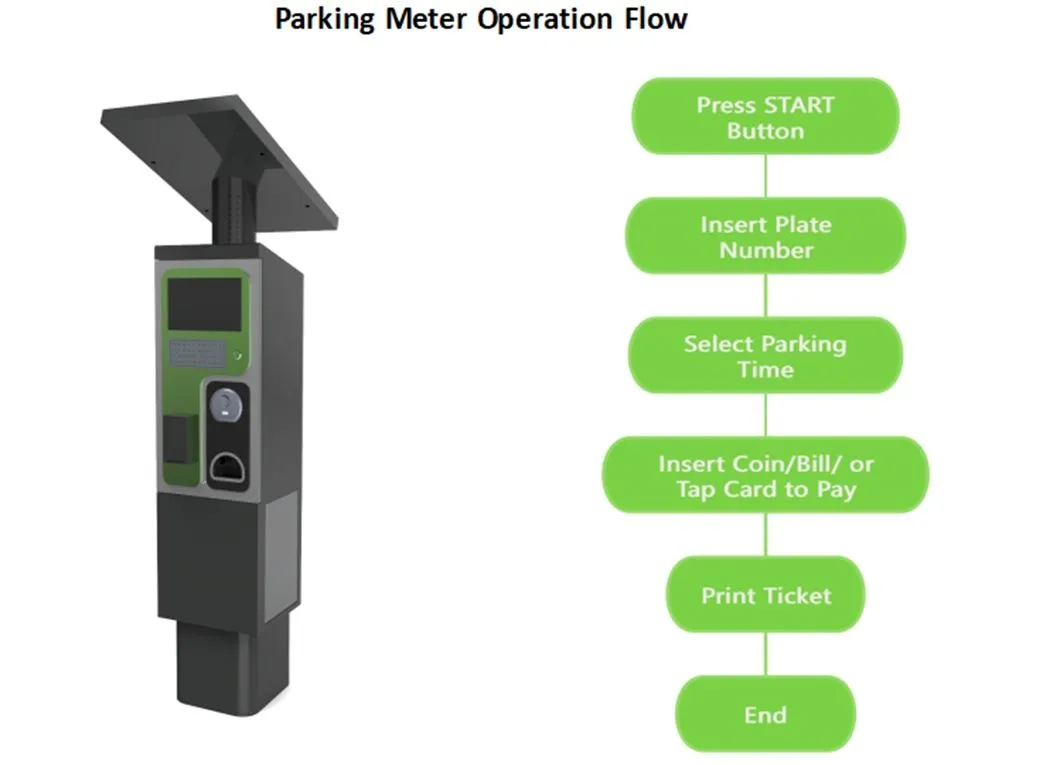

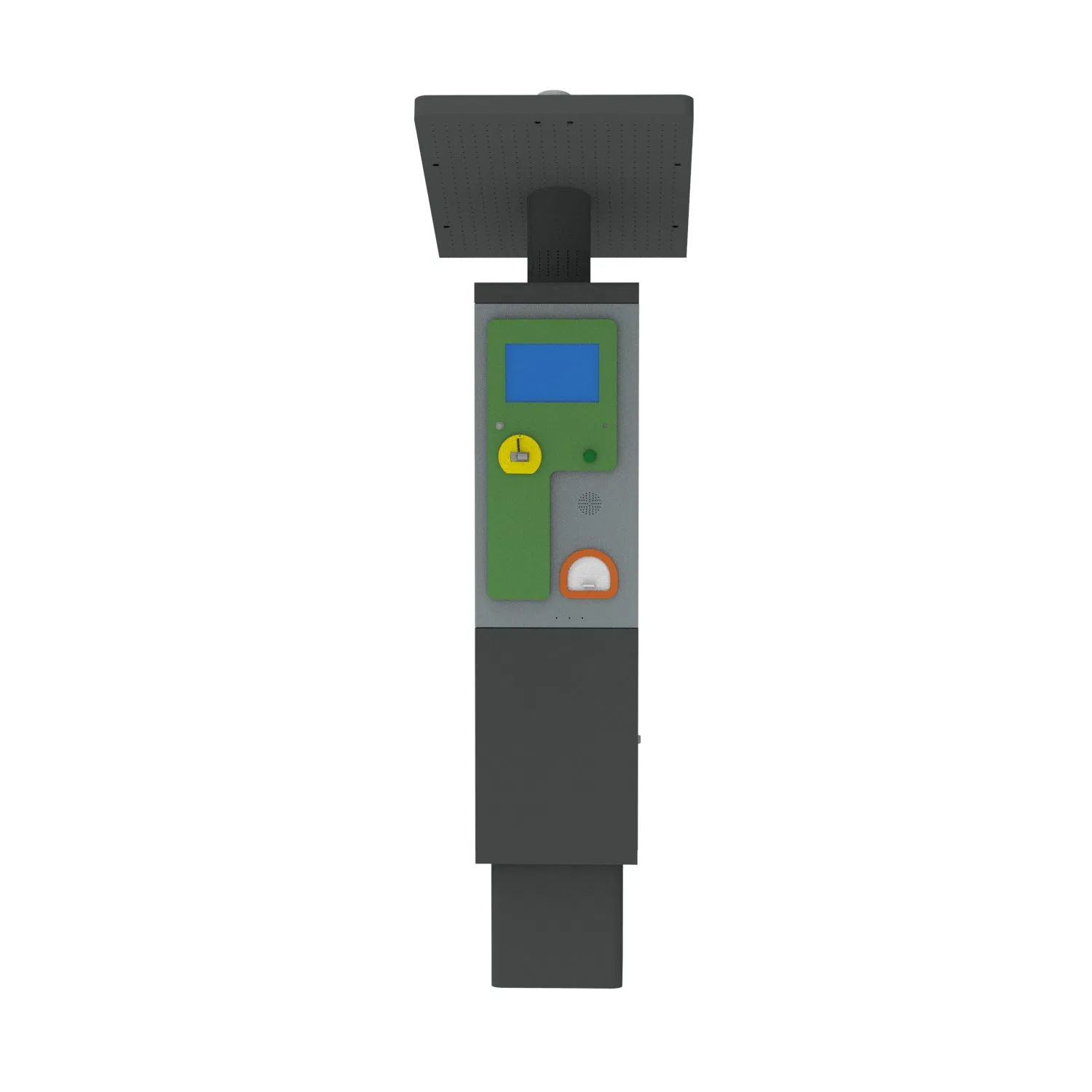

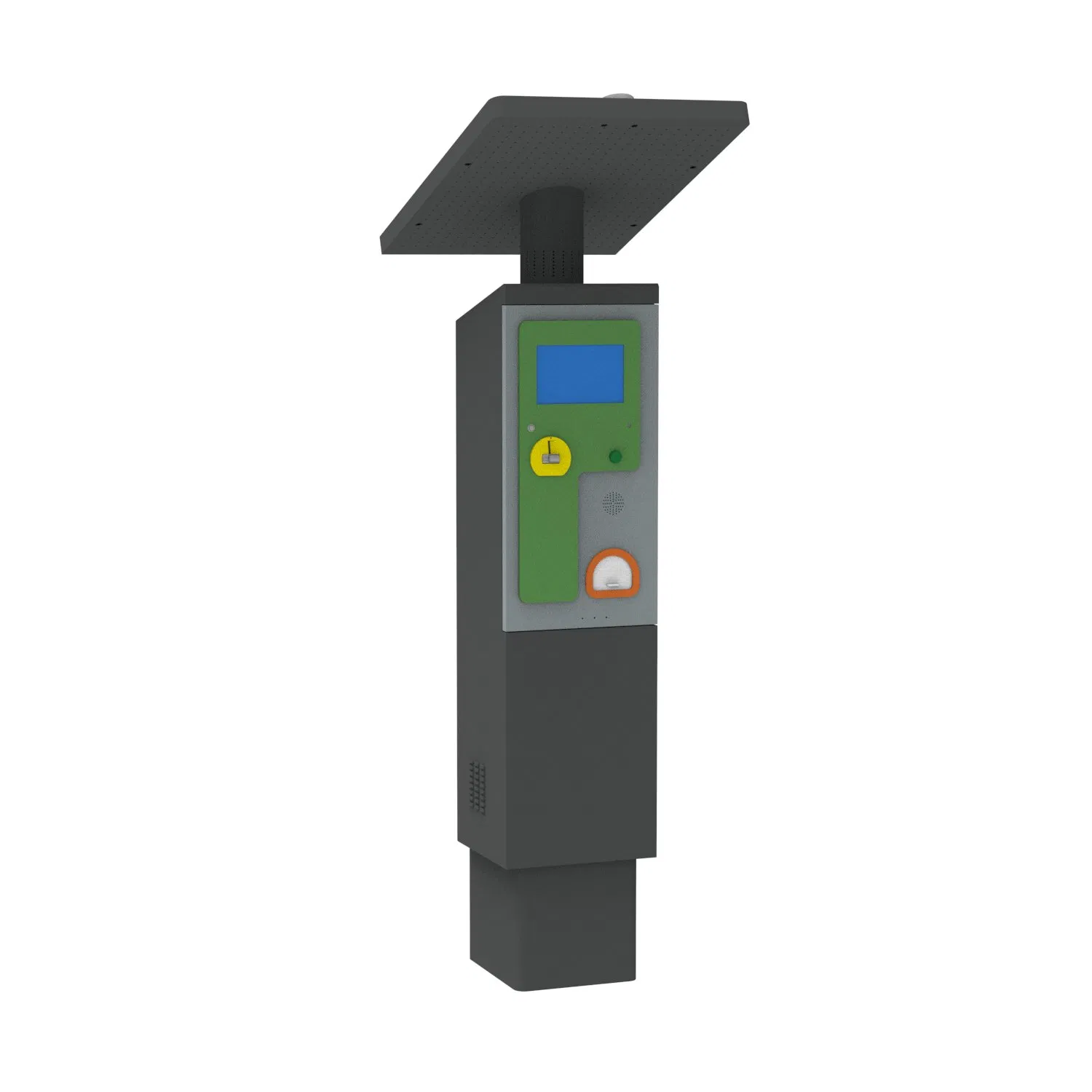

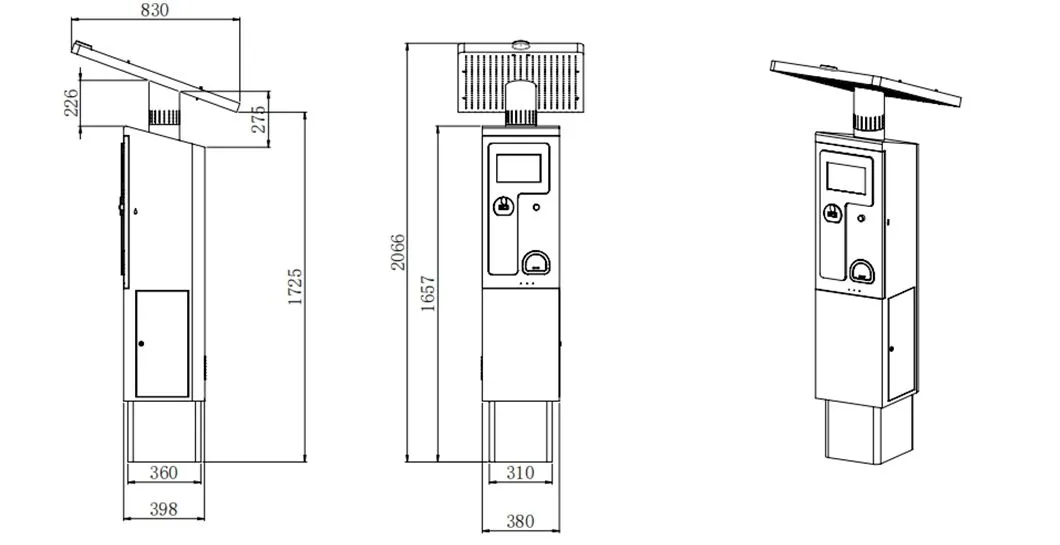

Product Illustrations

🏙️ Application Scenarios

On-Street Parking: Ideal for municipal use with unattended, secure terminals.

Commercial Zones: Retail districts and business centers requiring efficient self-service.

Tourist Attractions: Provides solar-powered outdoor operation with intuitive guidance.

Transportation Hubs: High-throughput access for airports and railway stations.

Healthcare Facilities: Serves patients and visitors with easy payment options.

Additional Capabilities

The Parking Meter can be integrated into a smart city ecosystem or linked with centralized parking management platforms. It supports data analytics, enforcement interfaces, cloud-based monitoring, and remote diagnostics. With support for firmware over-the-air (FOTA) upgrades and secure audit logging, it ensures future-proof deployment across cities or private facilities.

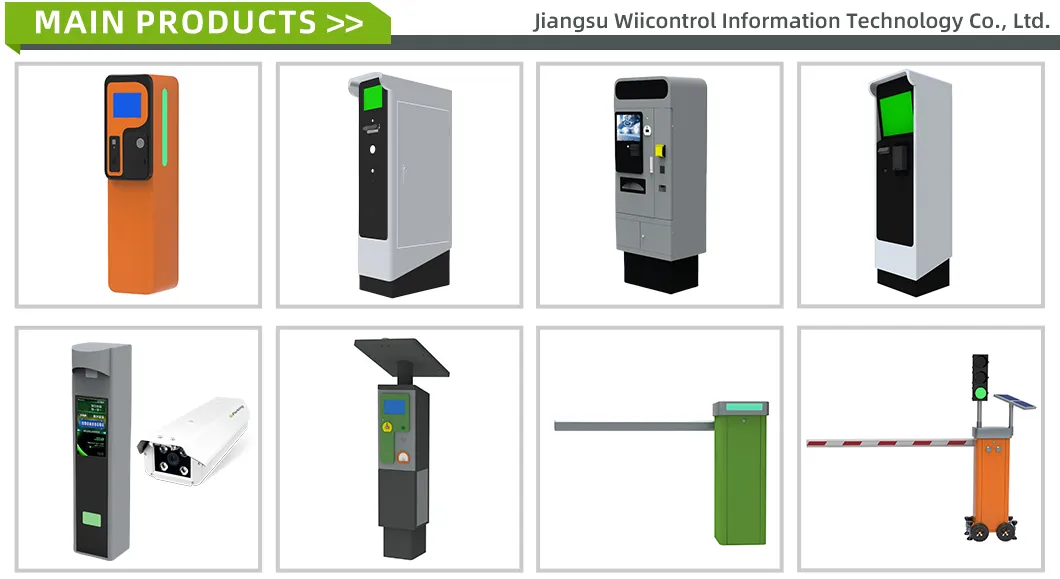

Core Products & Profile

As a technology-driven company specializing in smart vehicle connectivity and automated parking systems, we design and deliver fully customized, cloud-based parking solutions to modernize parking operations. Backed by strong in-house R&D, we offer a full suite of intelligent parking products designed to meet the needs of both private developments and public infrastructure.

Global Presence

Certifications & Exhibitions

Packaging & Partners

Frequently Asked Questions

What products and solutions do you offer?

We provide complete hardware and software solutions for intelligent parking and payment systems, including on-street parking meters, off-street management systems, smart payment terminals, and back-end cloud platforms.

Can the equipment be customized for specific project needs?

Yes. We offer flexible customization for both hardware and software, including device colors, logo branding, specific payment modules, and system integration with your existing platforms.

Do you provide SDK or API for system integration?

Yes. We provide comprehensive SDKs and APIs for our core systems to facilitate integration with existing management software, supported by technical documentation and remote assistance.

What kind of after-sales service is provided?

We provide a 12-24 month warranty depending on the product. Technical support is available via various digital channels, including video calls and remote debugging tools.

Are OEM and branding services supported?

Absolutely. We support OEM and ODM services, including custom logo printing, RAL color matching, and UI customization to fit your local market identity.

How does the meter handle remote updates?

Our terminals support Firmware Over-the-Air (FOTA) upgrades, allowing for remote software updates and diagnostics without the need for on-site technician visits.
