MP USB3.0 Global Shutter Camera Module for Surveillance and Live Streaming

1 / 5

MP USB3.0 Global Shutter Camera Module for Surveillance and Live Streaming

Send Inquiry

Product Description

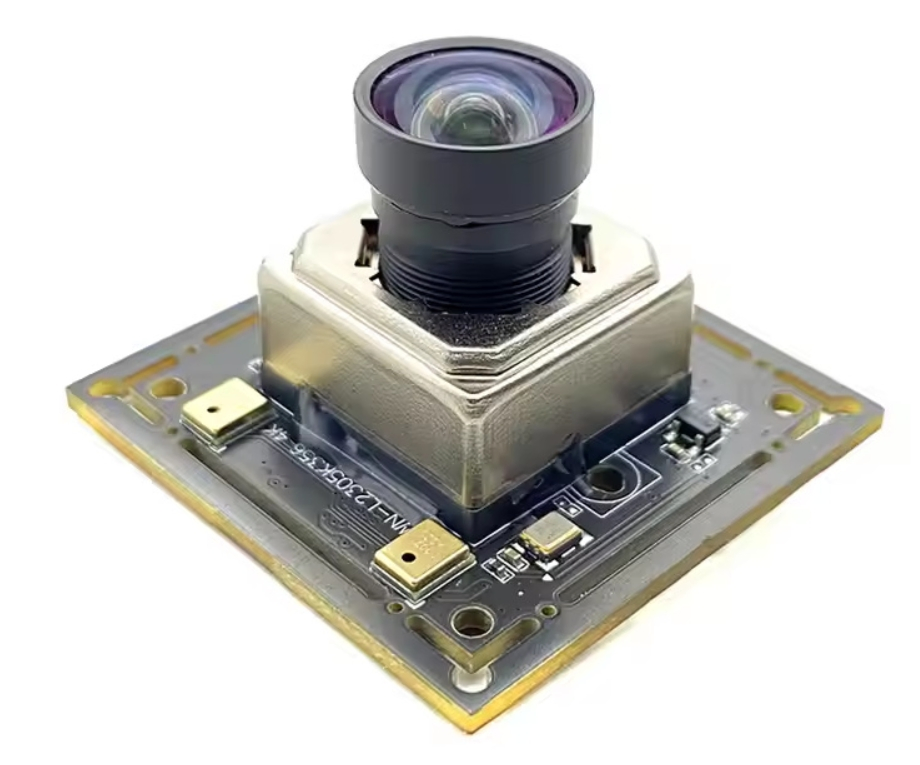

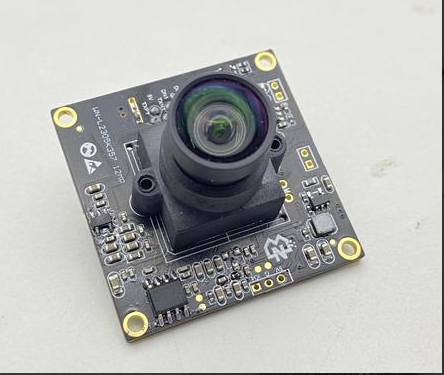

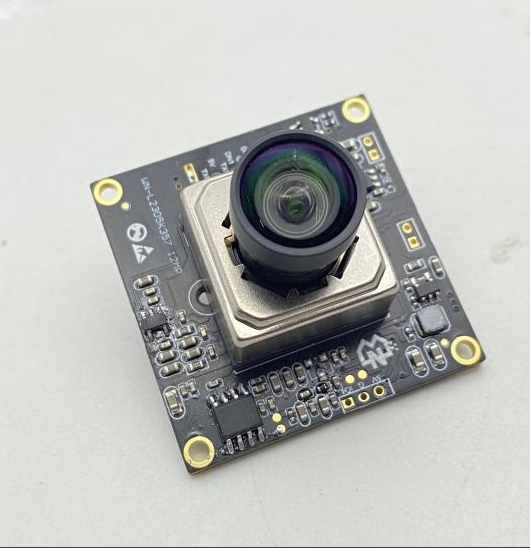

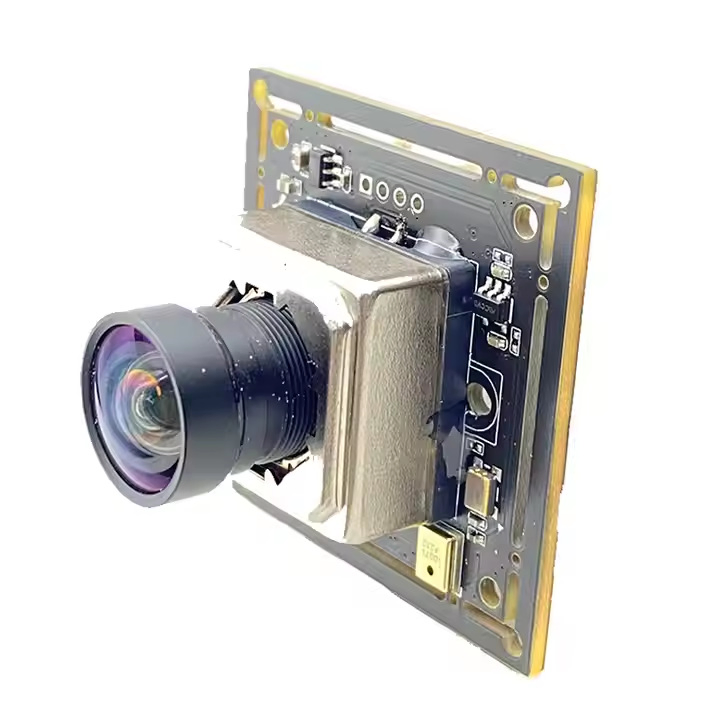

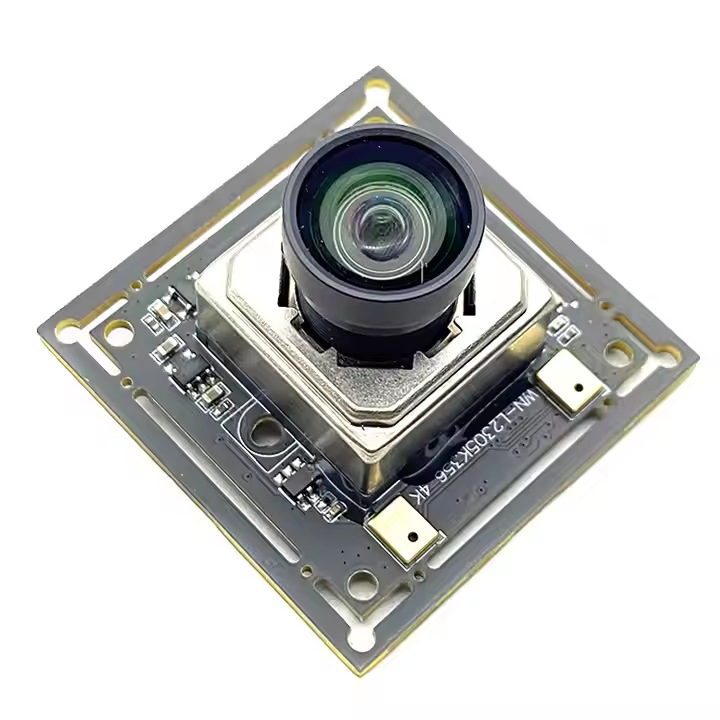

5MP USB3.0 Global Shutter Camera Module

Unlock precision and performance with our 5MP USB3.0 Global Shutter Camera Module, engineered for demanding applications like industrial inspection, surveillance, video conferencing, and machine vision systems. Featuring a 1/1.8" CMOS image sensor and global shutter technology, this compact camera delivers distortion-free, high-resolution imaging even in fast-moving or low-light environments.

Technical Parameters

Parameter	Value
Image Sensor Size	1/1.8" inch
Effective Pixels	H2448 × V2048
Pixel Size	2.74 µm × 2.74 µm
Image Sensor Data Output	Raw Bayer 10 bits
Video Output Formats	MJPG / YUY2
Maximum Frame Rates	2448 × 2048 @ MJPG 60 FPS
Digital Interface	USB 3.0 (Type B)
Transfer Rate	3 Gbps
Power Requirements	5V ± 5%
Operating Temperature	-30°C to +60°C
Supported Systems	Windows XP/7/8/10, Mac, Android, Linux (UVC)
Lens Mount	M12 × P0.5
Effective Focal Length (EFL)	4.2 mm ± 5%
Field of View (FOV)	D: 94°, H: 78°, V: 68°
Optical Distortion	< -1.2%

Key Features

⚡

5MP High Resolution Capture ultra-sharp details (2592x1944) for accurate analysis in industrial automation and access control.

🚀

USB3.0 Interface Supports high-speed data transfer enabling smooth 60FPS video at 1080p and real-time processing.

🎯

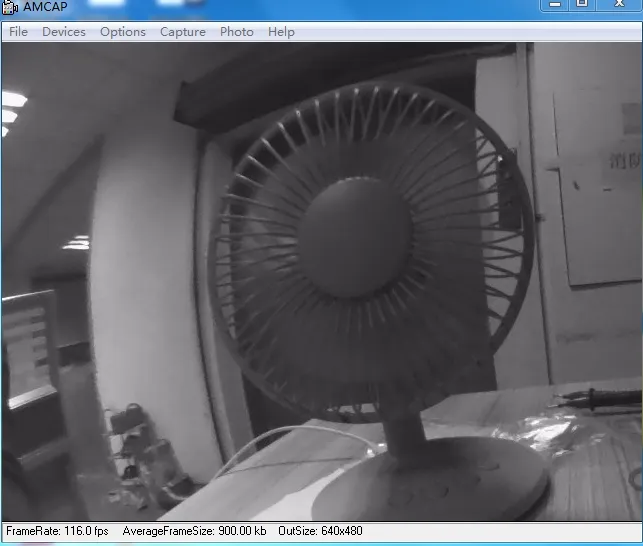

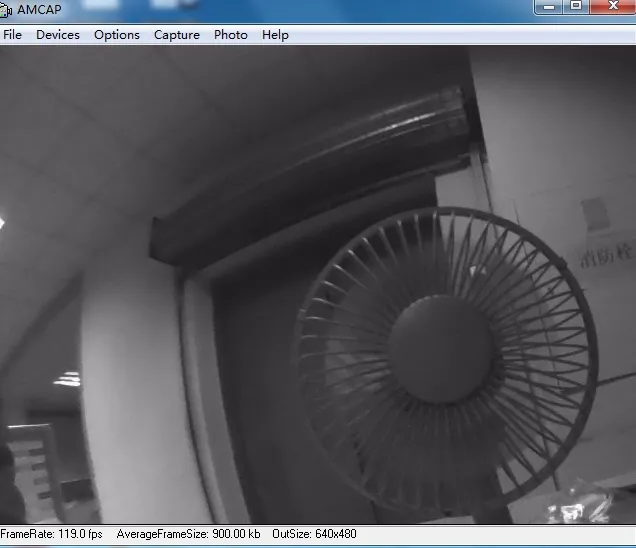

Global Shutter Eliminates motion blur for clear imaging of moving objects—ideal for robotics and logistics.

🔌

UVC Compliance Plug-and-play compatibility with Windows, Linux, and macOS—no additional drivers required.

🔄

Dual Output Formats Flexible MJPG and YUY2 encoding for seamless integration with diverse software ecosystems.

🛠️

Robust Design Compact and lightweight housing ensures durability in industrial settings while saving space.

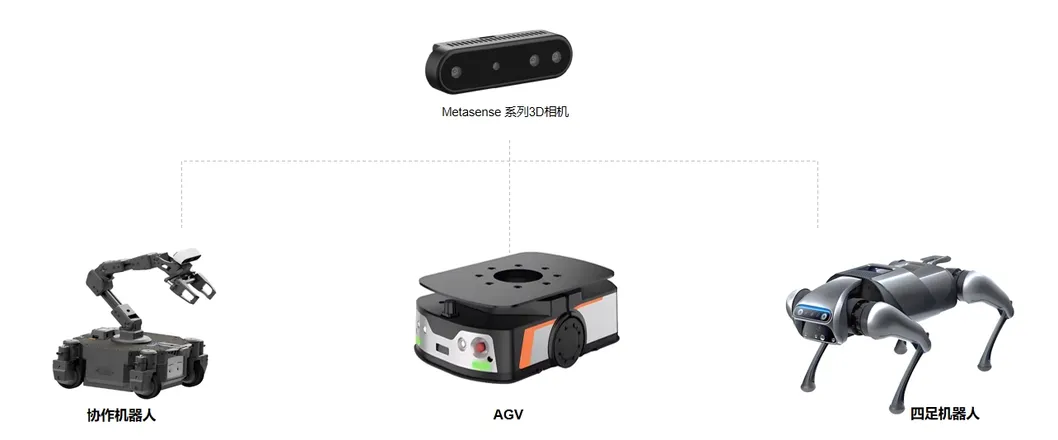

Applications

Industrial Automation PCB inspection, robotic guidance, and high-speed quality control.

Security & Surveillance ATM monitoring, facial recognition, and license plate capture.

Video Collaboration High-clarity webcams for conference rooms and remote education.

Healthcare & Retail Document scanning, biometric verification, and interactive kiosks.

Product Gallery

Accessories Included

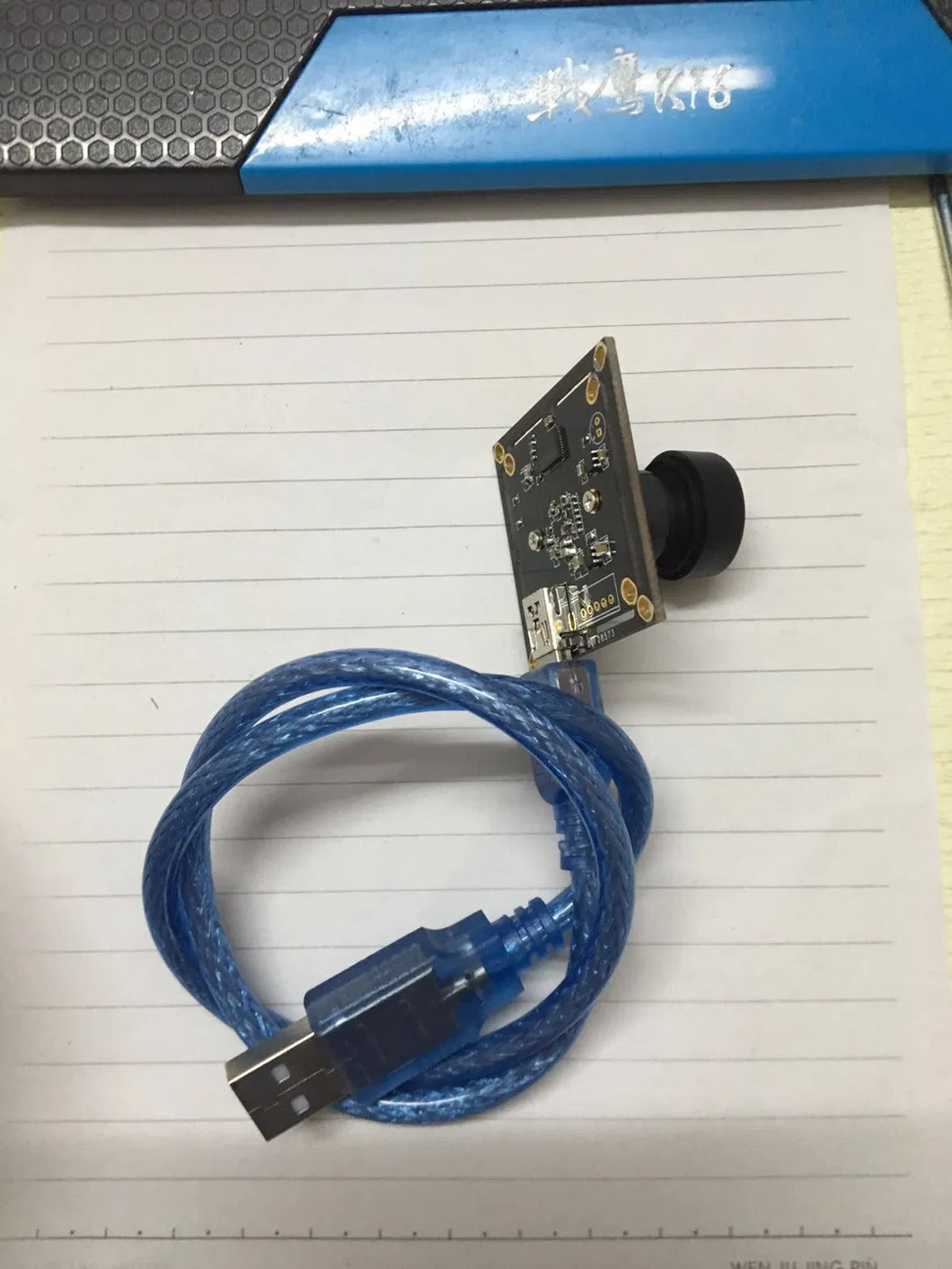

USB3.0 cable (shielded, 1m)
Lens mounting adapter (C/CS to M12)
SDK for Windows/Linux (OpenCV, Python, C++ support)

Frequently Asked Questions

Q1: What is the advantage of a Global Shutter over a Rolling Shutter? A: Global Shutter captures the entire frame at once, eliminating the "jello effect" or motion blur seen in rolling shutters when capturing fast-moving objects.

Q2: Does this camera require special drivers? A: No, it is UVC (USB Video Class) compliant, making it plug-and-play on Windows, Linux, Mac, and Android systems.

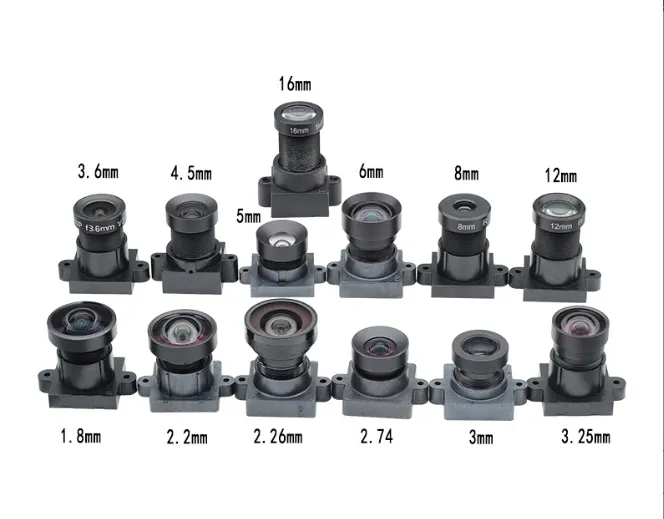

Q3: Can I change the lens on this module? A: Yes, it features an M12 mount and includes a C/CS to M12 adapter, allowing for significant flexibility in focal length and FOV adjustments.

Q4: What is the maximum frame rate at 1080p? A: The module supports up to 60FPS at 1080p resolution using the MJPG output format via its USB 3.0 interface.

Q5: Is an SDK provided for developers? A: Yes, we provide a comprehensive SDK compatible with Windows and Linux, supporting popular libraries like OpenCV, Python, and C++.

Q6: What are the power requirements? A: The camera is powered directly via the USB bus (5V ± 5%), requiring approximately 900mA during full operation.
