Frequently Asked Questions
How long does the RH505 sensor battery last?
The battery lifetime is approximately 2 years when taking vibration values every five minutes and time waveforms every 2 hours.
What is the communication range and protocol?

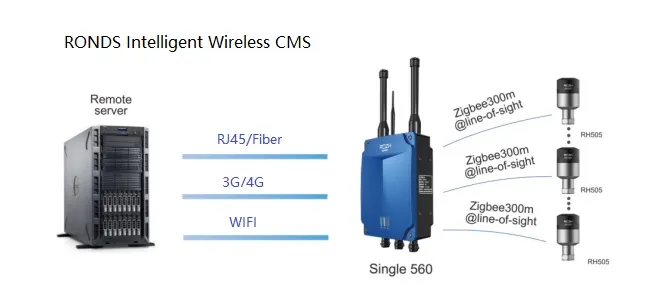

The system uses the 2.4GHz IEEE 802.15.4 protocol. One RH560 collector can connect between 30 to 60 RH505 sensor units depending on the site environment.
Can it measure both temperature and vibration?

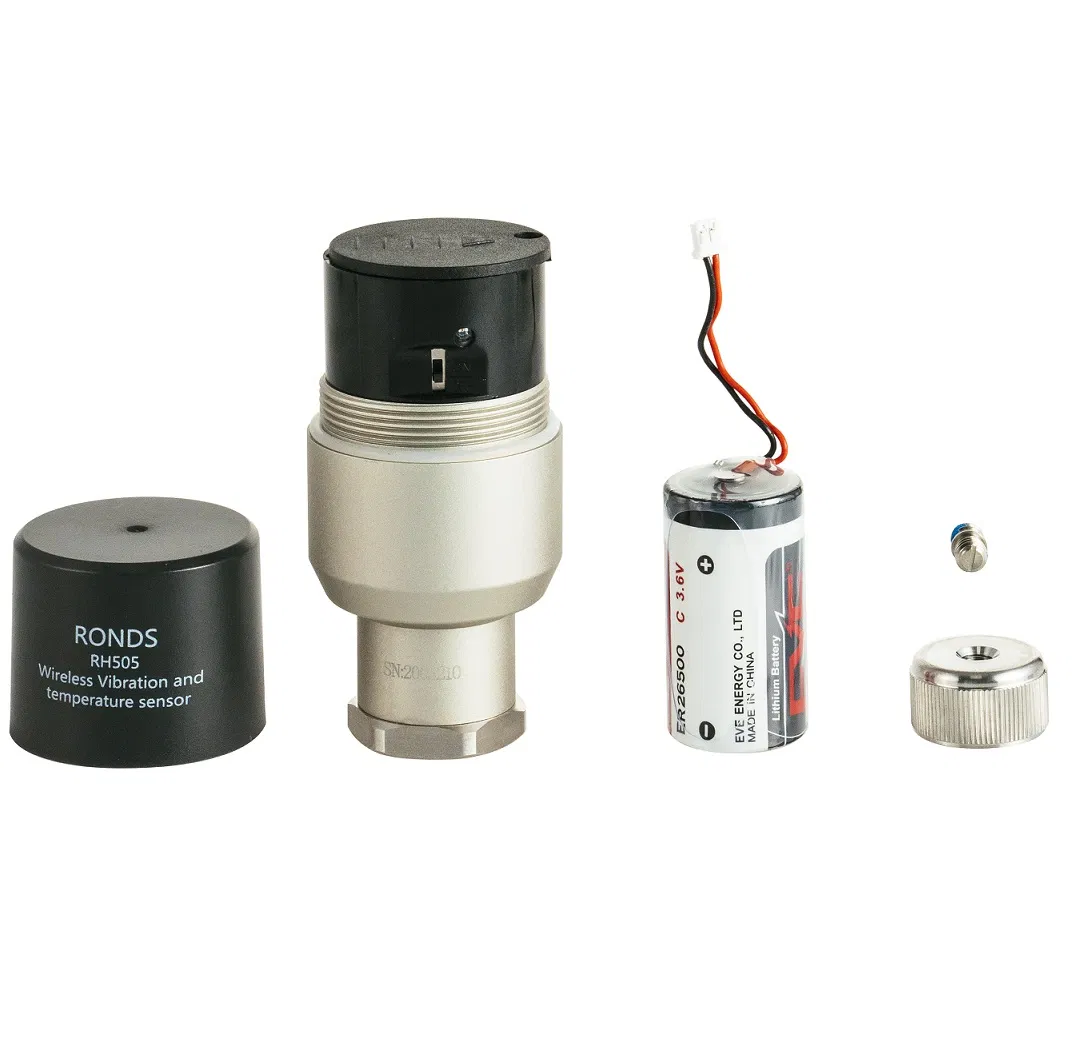

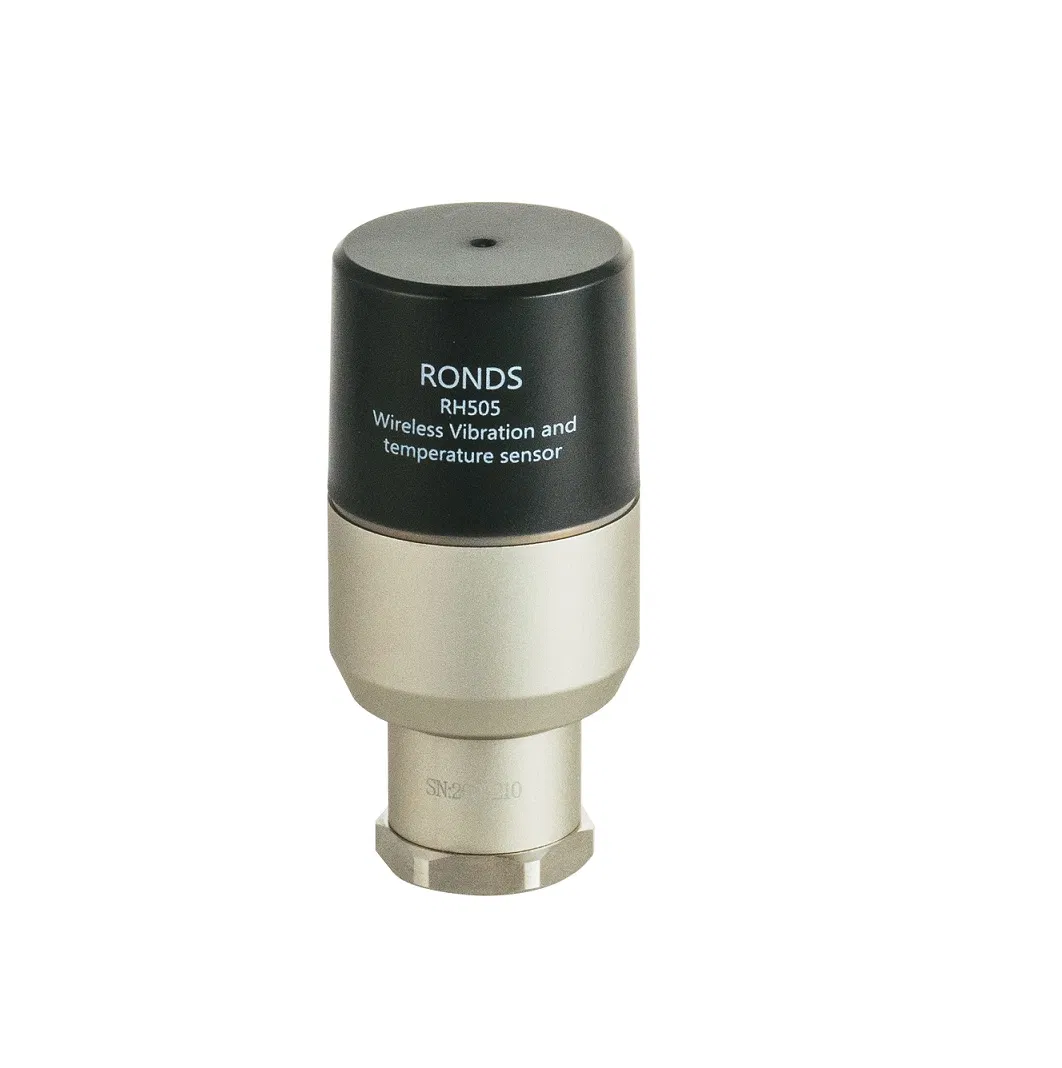

Yes, the RH505 is an integrated sensor designed to measure both vibration data (acceleration, velocity, displacement) and temperature simultaneously.
Is the equipment suitable for harsh industrial environments?
Absolutely. The RH505 sensor is IP67 rated and the RH560 collector is IP66 rated, with working temperatures ranging from -40°C to 70°C.
What types of vibration analysis can be performed?
The system supports multiple measurement types including Overall value, FFT analysis, Time signal waveform, and Envelope FFT.
Is special wiring required for installation?

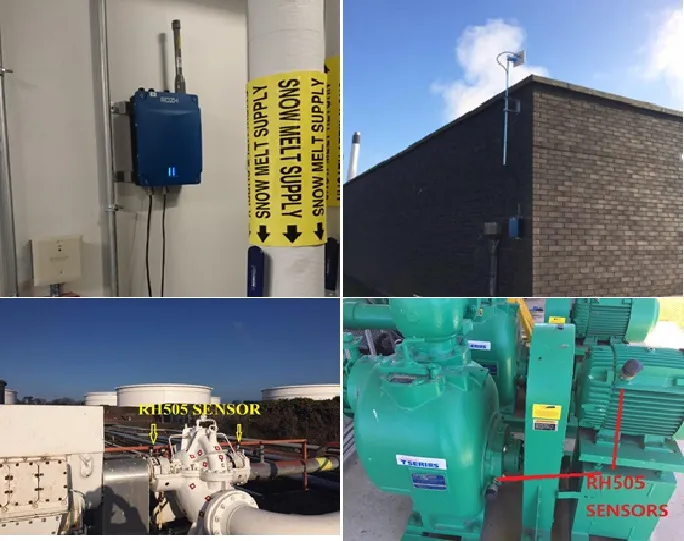

No, the system is designed for easy installation with no wiring required, making it ideal for condition-based maintenance in hard-to-reach areas.
