Product Description

Basic Information

Model NO.	VSU-MG0201
Function	APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer, Voice Control
Bus Voltage	21-30 VDC
Auxiliary Voltage	24V DC
Operating Temp	-5°C to +45°C
Installation	35mm DIN Rail Mounting
Dimensions	145mm x 90mm x 64mm

Product and Function Overview

✔

Equipped with coupler function, coupling different KNX branches.

✔

KNX lines with the same group ID can communicate without interfering with other groups.

✔

4-channel RS485 standard interface and 4-channel dry contact I/O signal input.

✔

3-channel infrared IR emission and 2 LAN network interfaces (8 TCP/IP or UDP ports).

✔

Comprehensive clock timing management function supporting up to 128 event times.

✔

Wide application: Projectors, AC systems, security, lighting, and medical management.

Detailed Parameters

Bus Current	≤12mA
Auxiliary Current	<75mA
Functional Interface	4-ch RS485, 3-ch IR, 2 LAN ports, 4-ch I/O, 1 KNX/EIB
Shell Material	PA66
Weight	Approx. 0.3KG
Relative Humidity	Max 90%

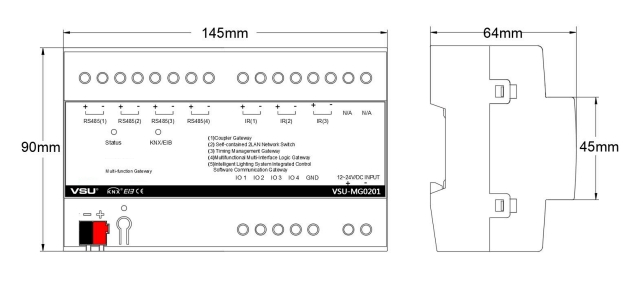

Dimensional and Wiring Diagrams

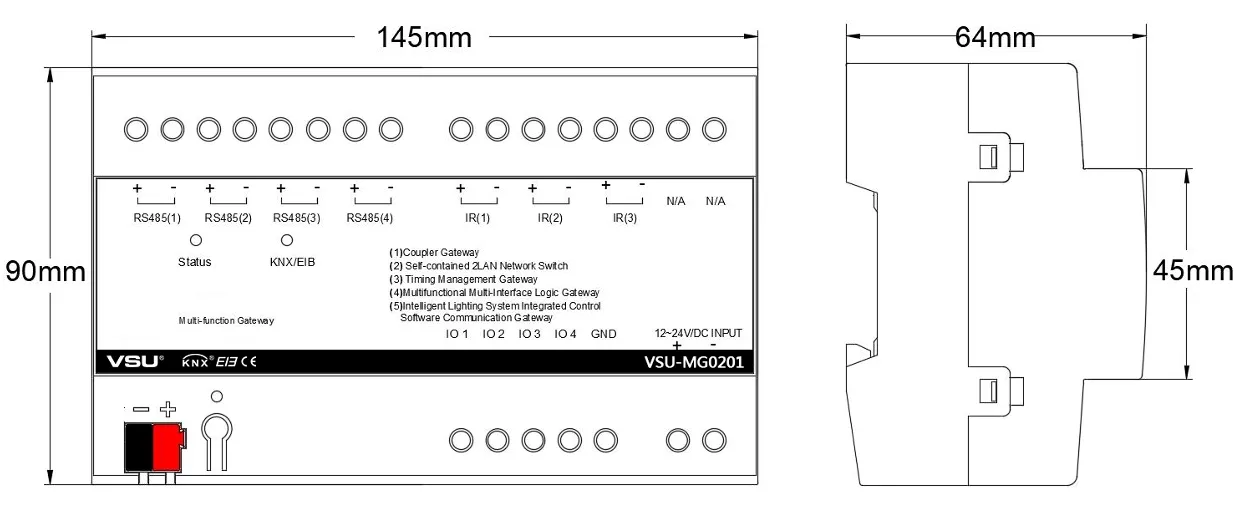

Dimension

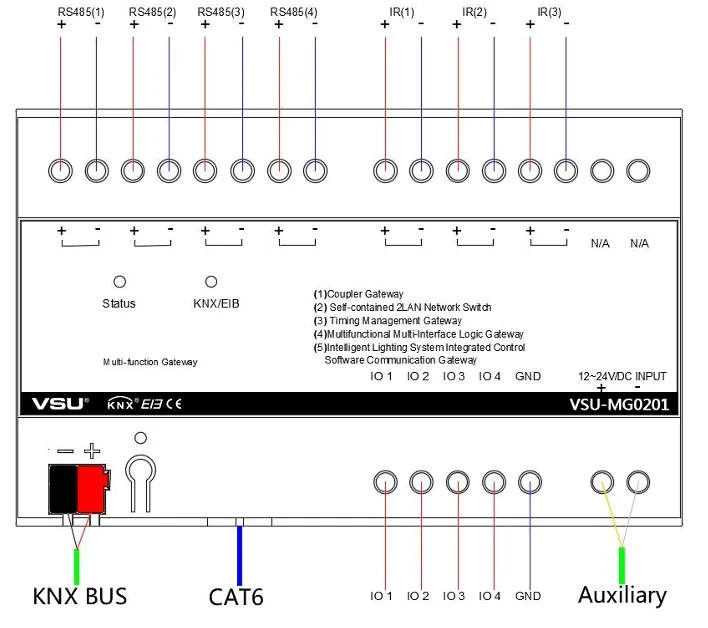

Wiring Diagram

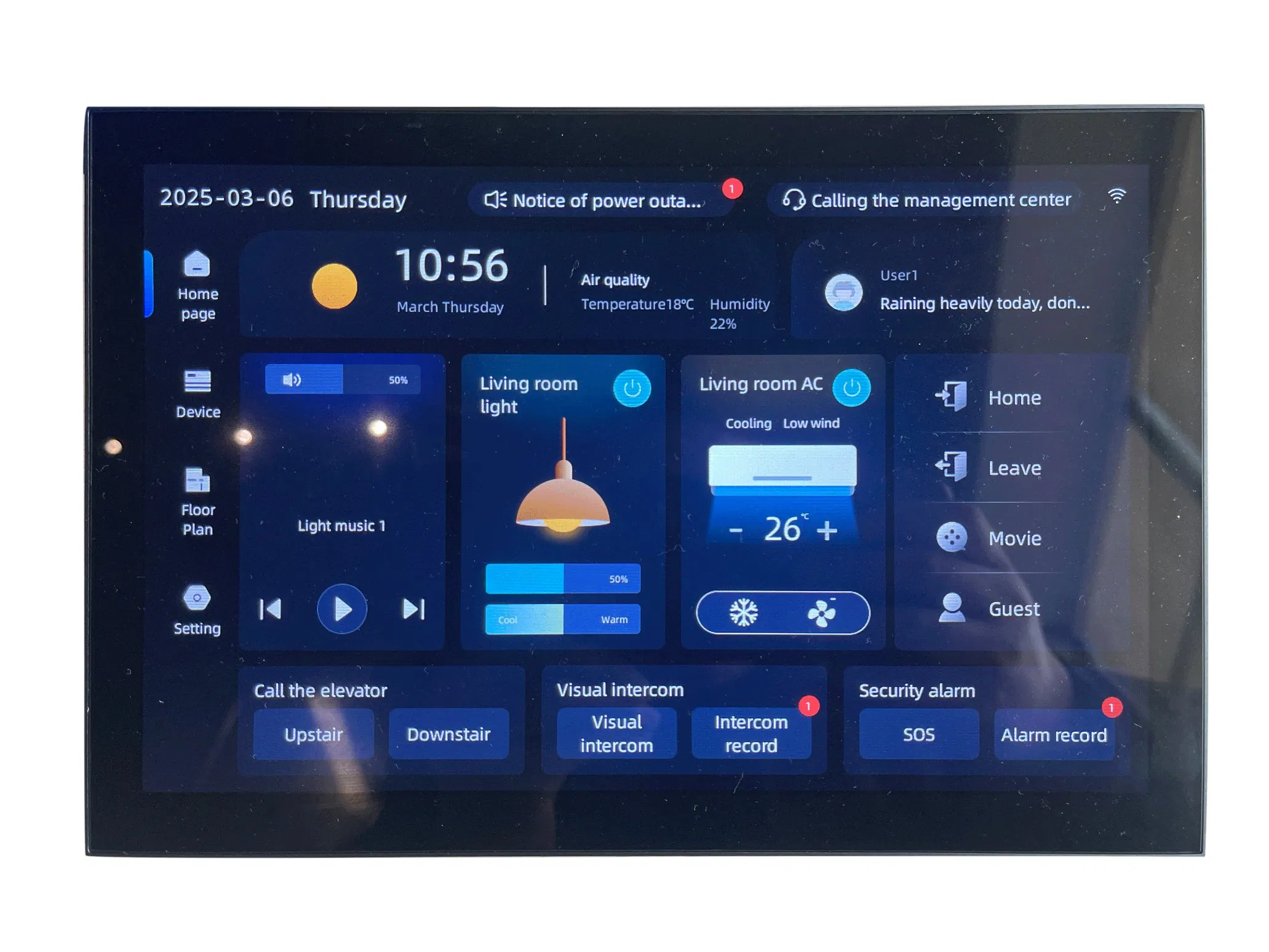

Product Gallery & Application

Frequently Asked Questions

Q1: What are your main product offerings? A1: We specialize in energy conservation, monitoring, and power quality solutions. Our core products include smart electrical systems, energy meters, smart circuit breakers, lighting controllers, and smart gateways.

Q2: Why should we choose your company as a supplier? A2: With over 15 years of experience in smart power energy management, we offer the flexibility to develop customized solutions according to specific customer requirements while maintaining high-quality standards.

Q3: Are the products original and certified? A3: Yes, all products are original and produced by original manufacturers. They have passed international CE certification, ISO9001, and other quality system audits.

Q4: What is the typical lead time for orders? A4: For products in stock, there is no lead time. Most standard orders can be shipped within 7 days after payment confirmation.

Q5: Do you provide OEM or ODM services? A5: Yes, we provide full OEM/ODM services. Your specific logo and design can be integrated into the merchandise according to your needs.

Q6: What is the warranty period for your equipment? A6: We provide a standard warranty period. If quality problems arise within the specified terms (standard 90 days post-delivery for specific parts), we take full responsibility.
