Product Description

📋Basic Info.

Model NO.

VSU-MG0201

Function

APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer, Voice Control

Material

Plastic

Bus Voltage

21-30 VDC

Auxiliary Voltage

24V DC

Bus Current

≤12 Ma

Auxiliary Current

≤ 75 Ma

Operating Temperature

-5°C to +45°C

Relative Humidity

Max 90%

Shell Material

PA66

Installation Method

35mm DIN Rail Mounting

Specification

145mm x 90mm x 64mm (L x W x H)

📦Packaging & Delivery

Package Size

20.00cm * 20.00cm * 18.00cm

Package Gross Weight

3.000kg

Lead Time

3 days (1 - 100 Pieces); To be negotiated (> 100 Pieces)

⚙️Product and Function Overview

Equipped with coupler function, coupling different KNX branches;

KNX lines with the same group ID can be set to communicate with each other, while KNX lines with different group IDs do not interfere with each other;

Can communicate with integrated control software systems;

4-channel RS485 standard interface (customizable);

4-channel dry contact I/O contact signal input interface;

3-channel infrared IR emission;

2 LAN network interfaces (built-in 8 TCP/IP or UDP ports, can be used as server or client);

All interfaces can be used interchangeably for communication;

All protocol or interface data are unified into action library, event library, and time action execution library;

Built-in clock, timing, data processing, bus transmission/reception, and scene modules for central control;

Clock timing management: specific occasion time control with schedule for lights; manages up to 128 event times with full calendar settings;

Applications: projectors, HVAC, background music, landscape lighting, fire emergency systems, security access, geothermal heating, and central management systems;

Open integration with third-party software platform systems.

📊Detailed Parameters

Bus Voltage	21-30V DC
Bus Current	≤12mA
Auxiliary Voltage	24V DC
Auxiliary Current	<75mA
Functional Interface	4-channel RS485, 3-channel IR, 2 LAN ports, 4-channel I/O, 1 KNX/EIB
Shell Material	PA66
Size (LxWxH)	145mmX90mmX64mm
Weight	Approx. 0.3KG
Installation	35mm DIN rail installation
Relative Humidity	Max 90%

📐Dimensional and Wiring Diagrams

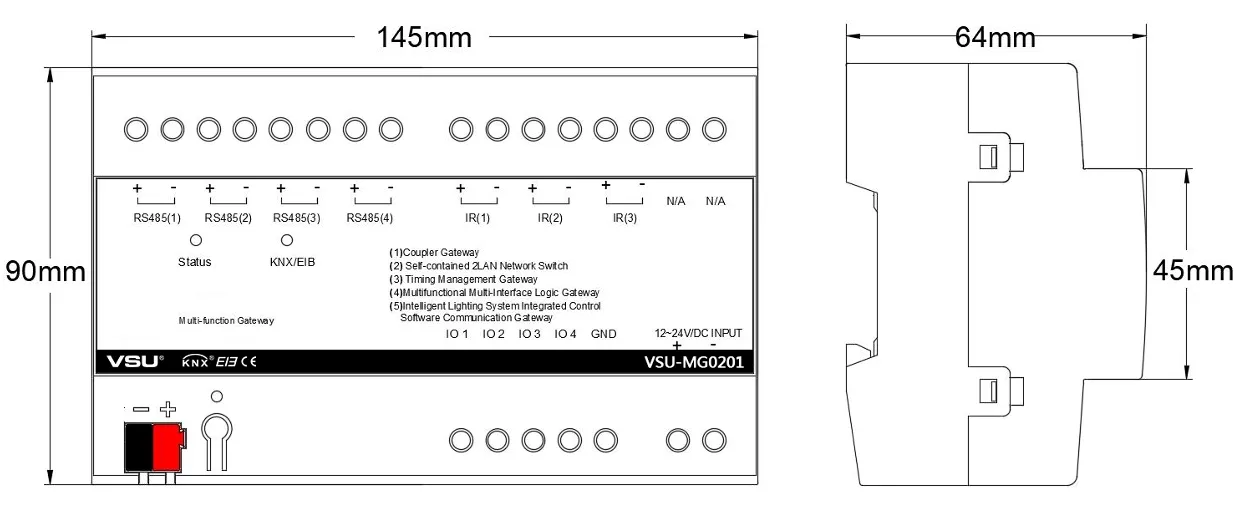

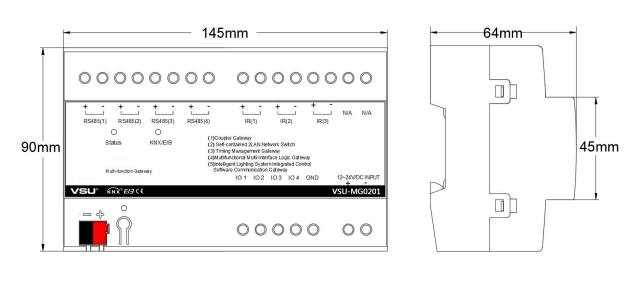

Dimension

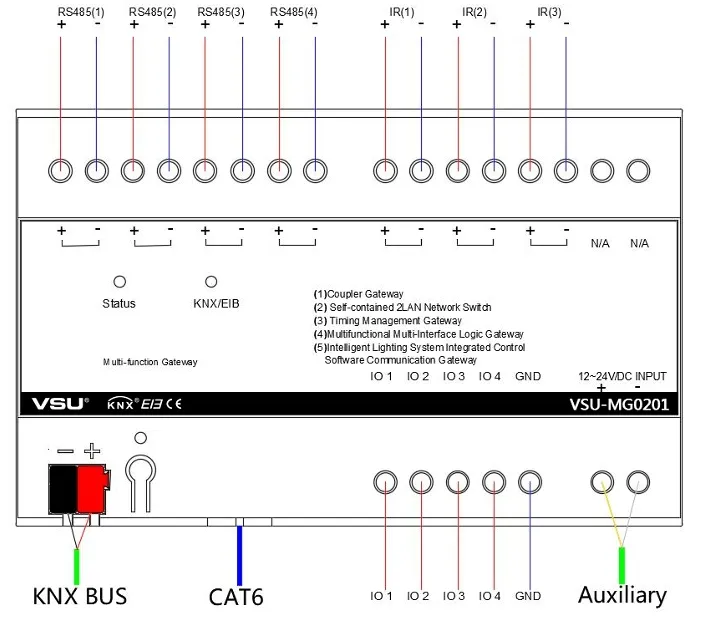

Wiring Diagram

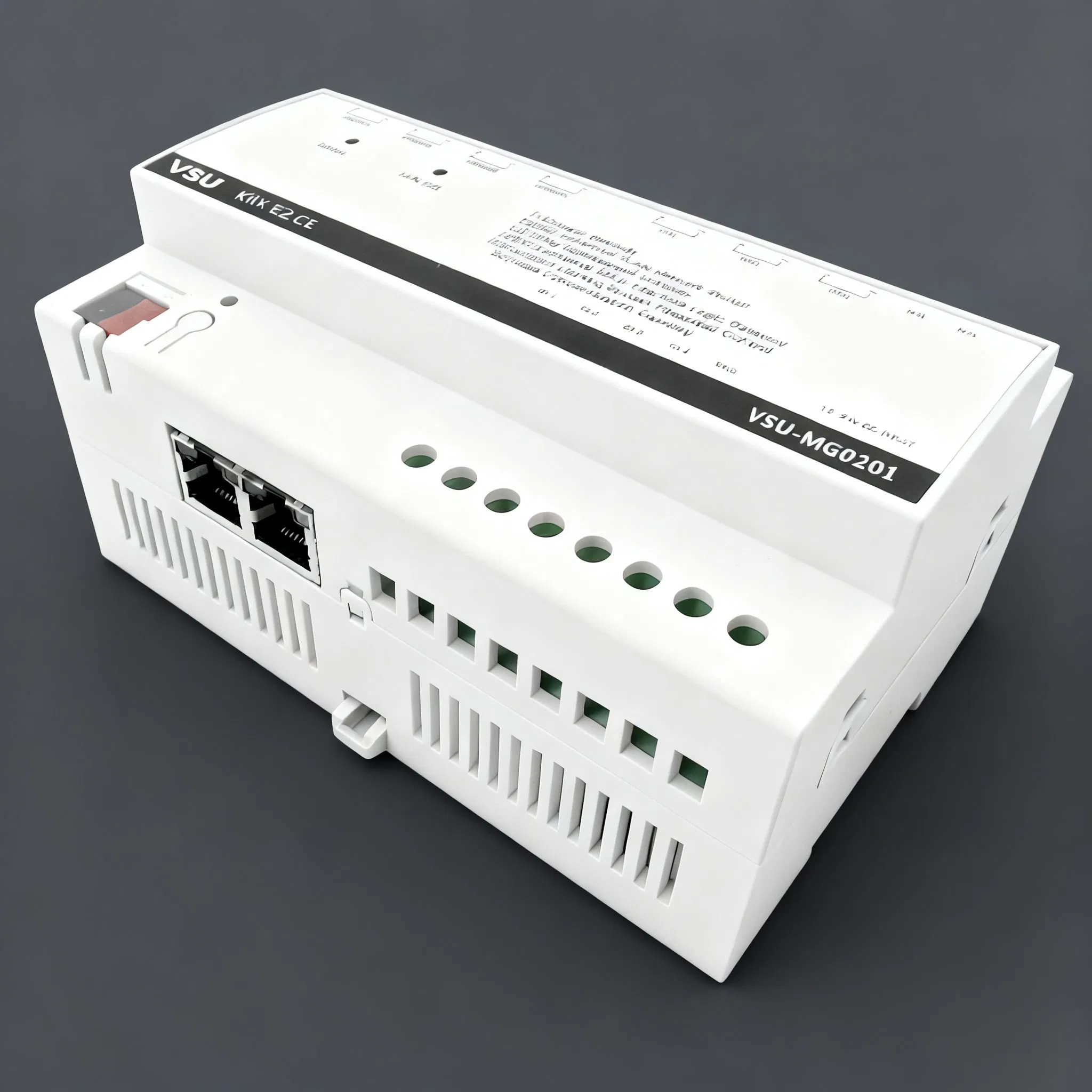

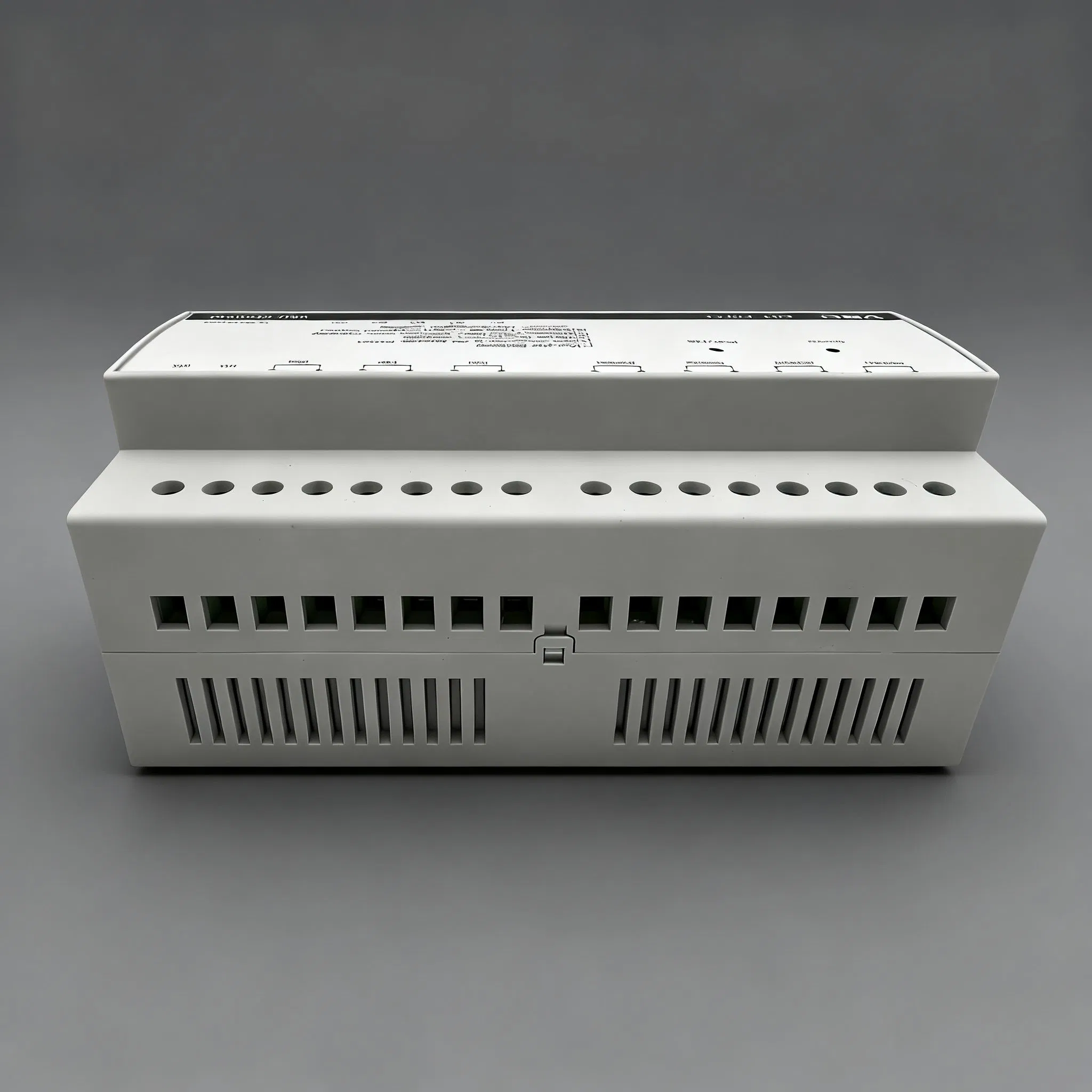

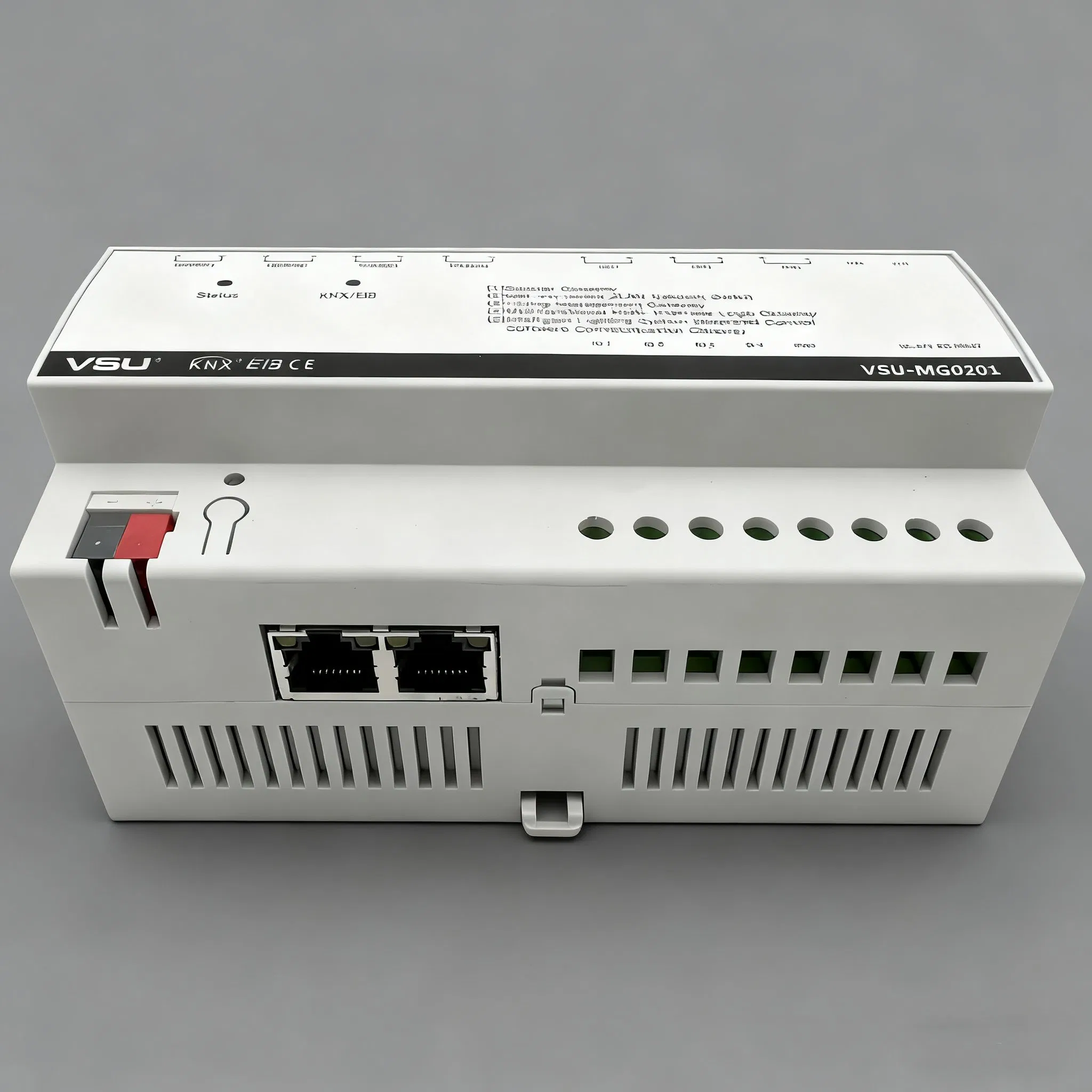

🖼️Product Showcase

❓Frequently Asked Questions

Q1: What are the main applications for this smart controller? A1: It is ideal for advanced home domotics, including lighting, air conditioning, background music, security access, and energy management systems.

Q2: What is the typical lead time for orders? A2: Products in stock can be shipped within 7 days. For standard orders under 100 pieces, the lead time is approximately 3 days after payment.

Q3: Does the device support integration with third-party software? A3: Yes, it offers open integration with third-party software platforms and supports various protocols via RS485 and LAN interfaces.

Q4: What is the minimum order quantity (MOQ)? A4: We accept small orders to accommodate our customers' needs. Please contact us for specific requirements.

Q5: What payment methods are accepted? A5: We accept payments via TT, PayPal, and Western Union for your convenience.

Q6: Do you provide OEM/ODM services? A6: Yes, we provide full OEM/ODM services, allowing your logo and specific designs to be integrated into the merchandise.
