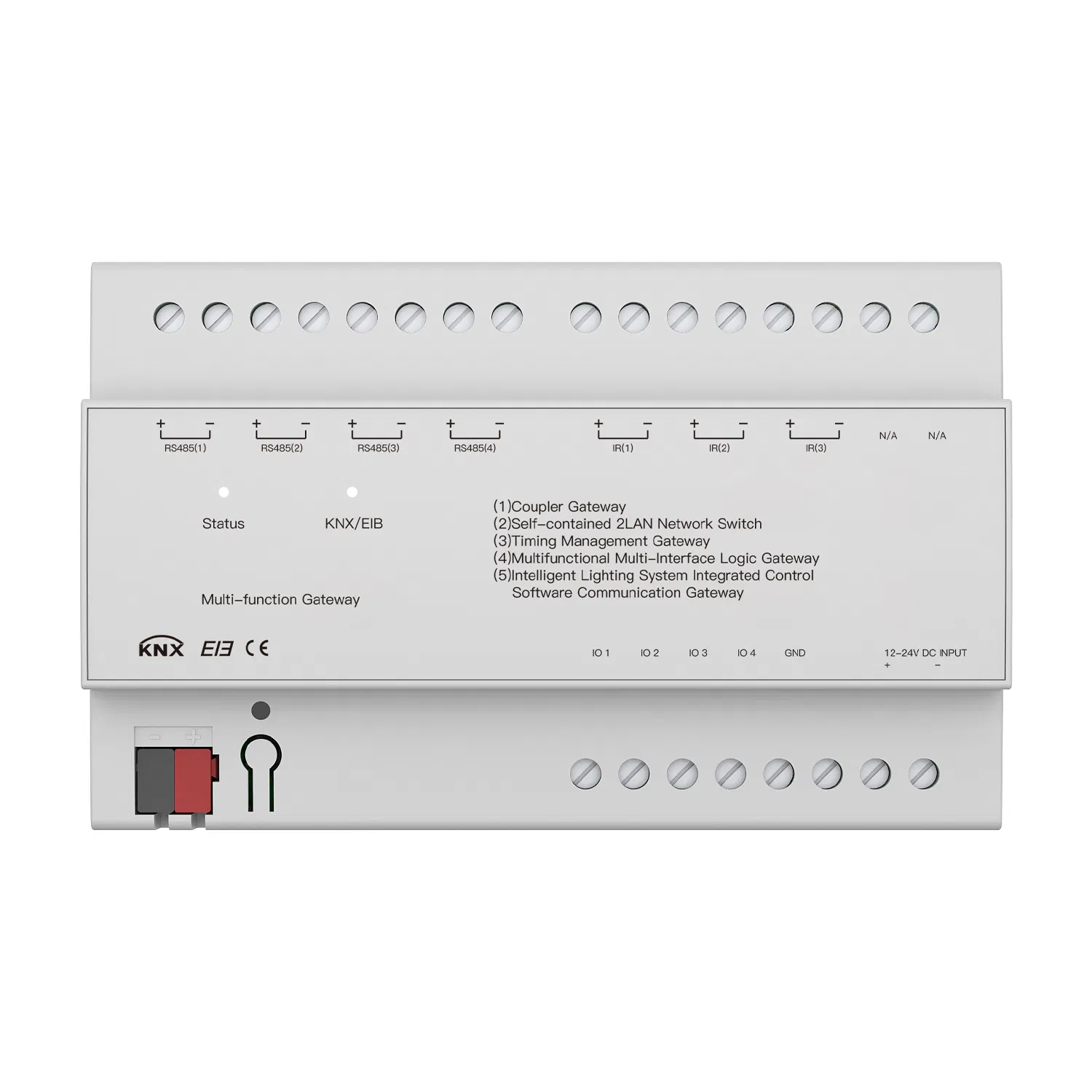

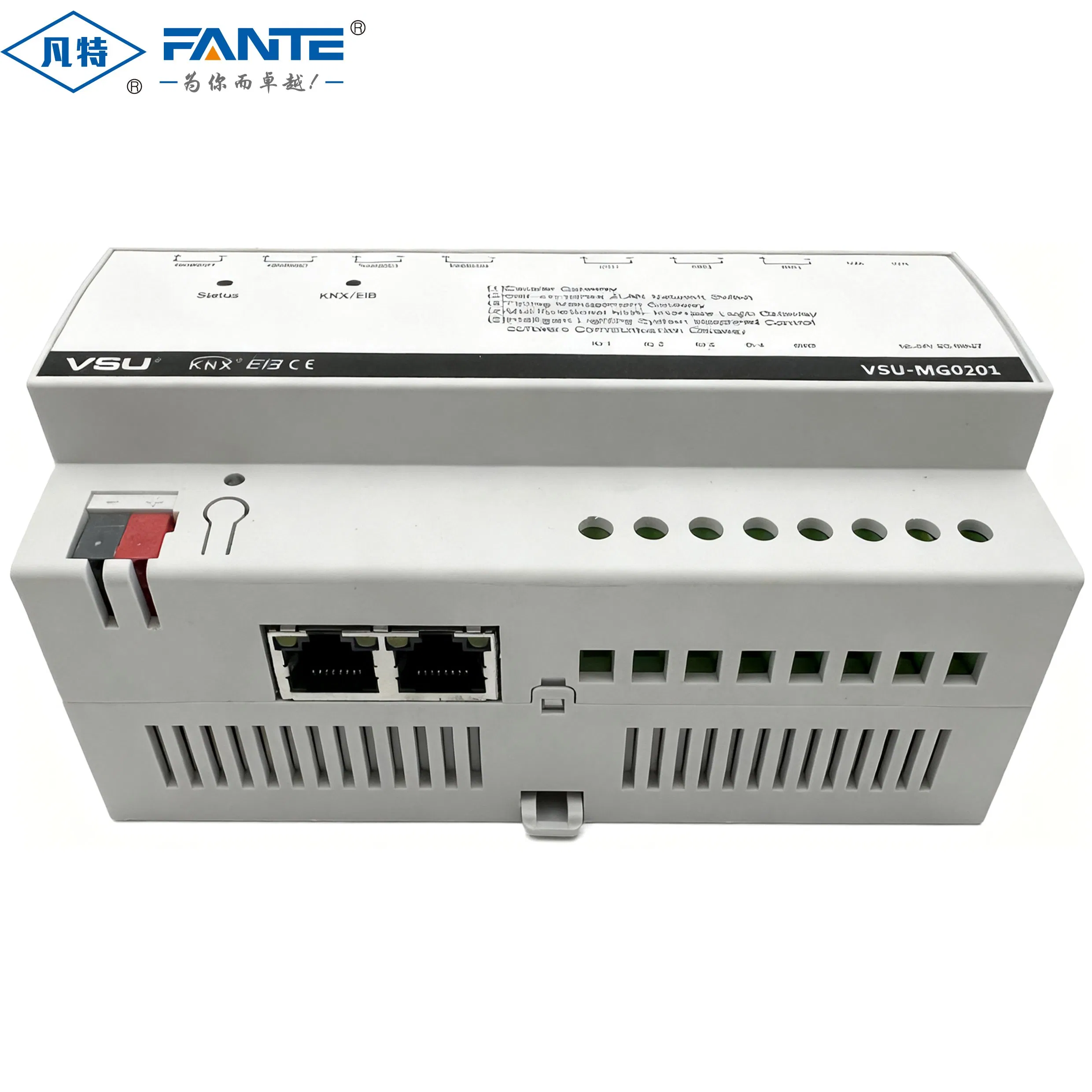

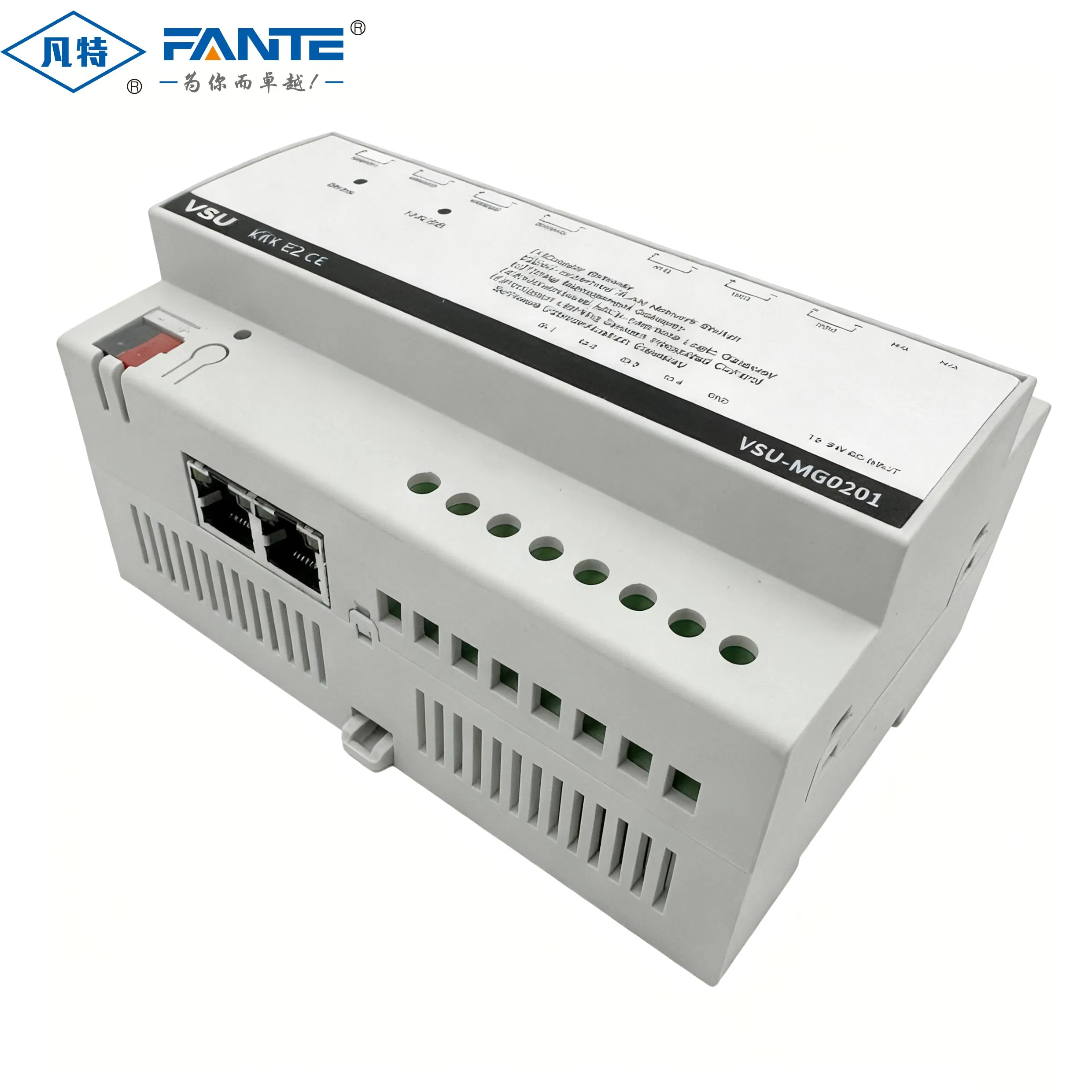

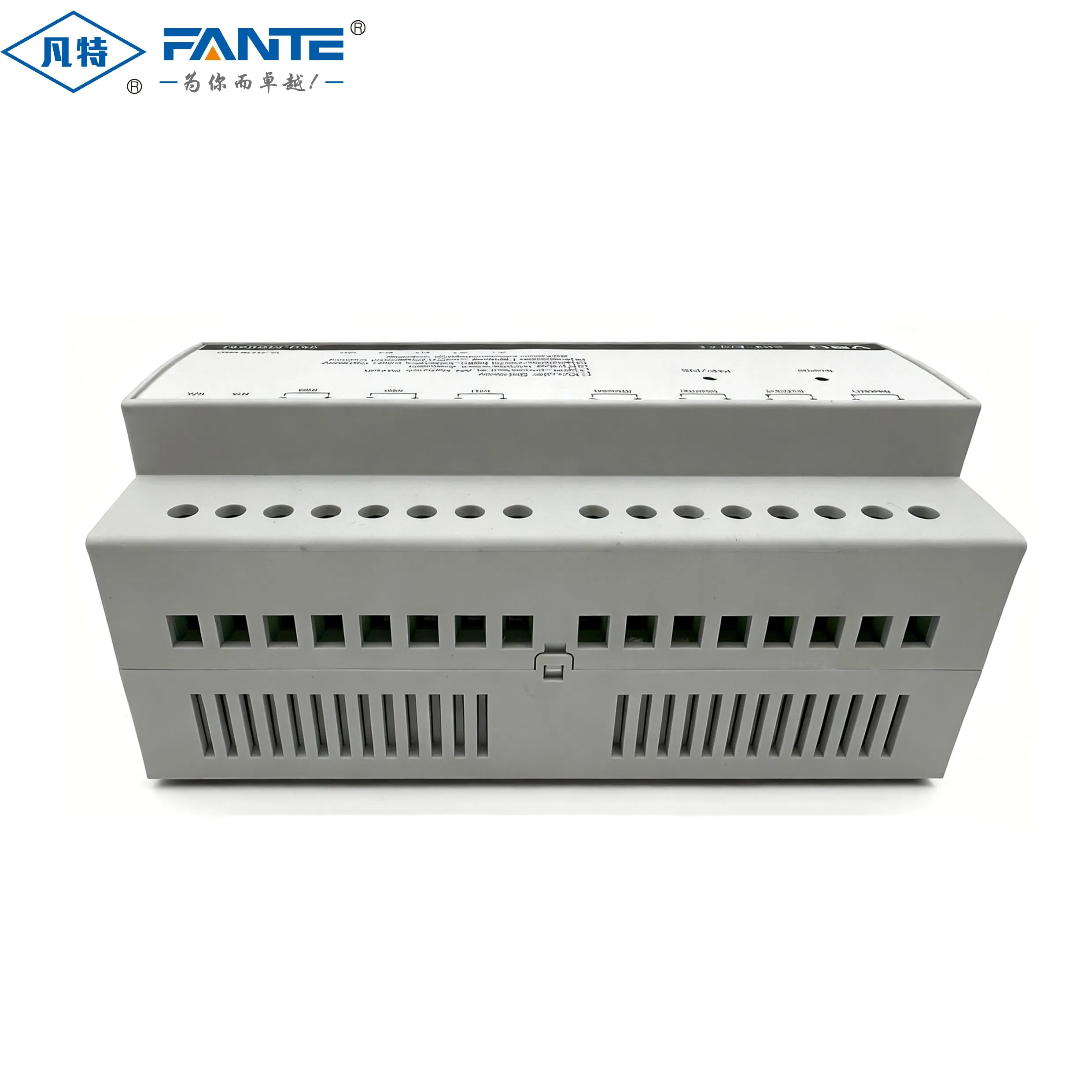

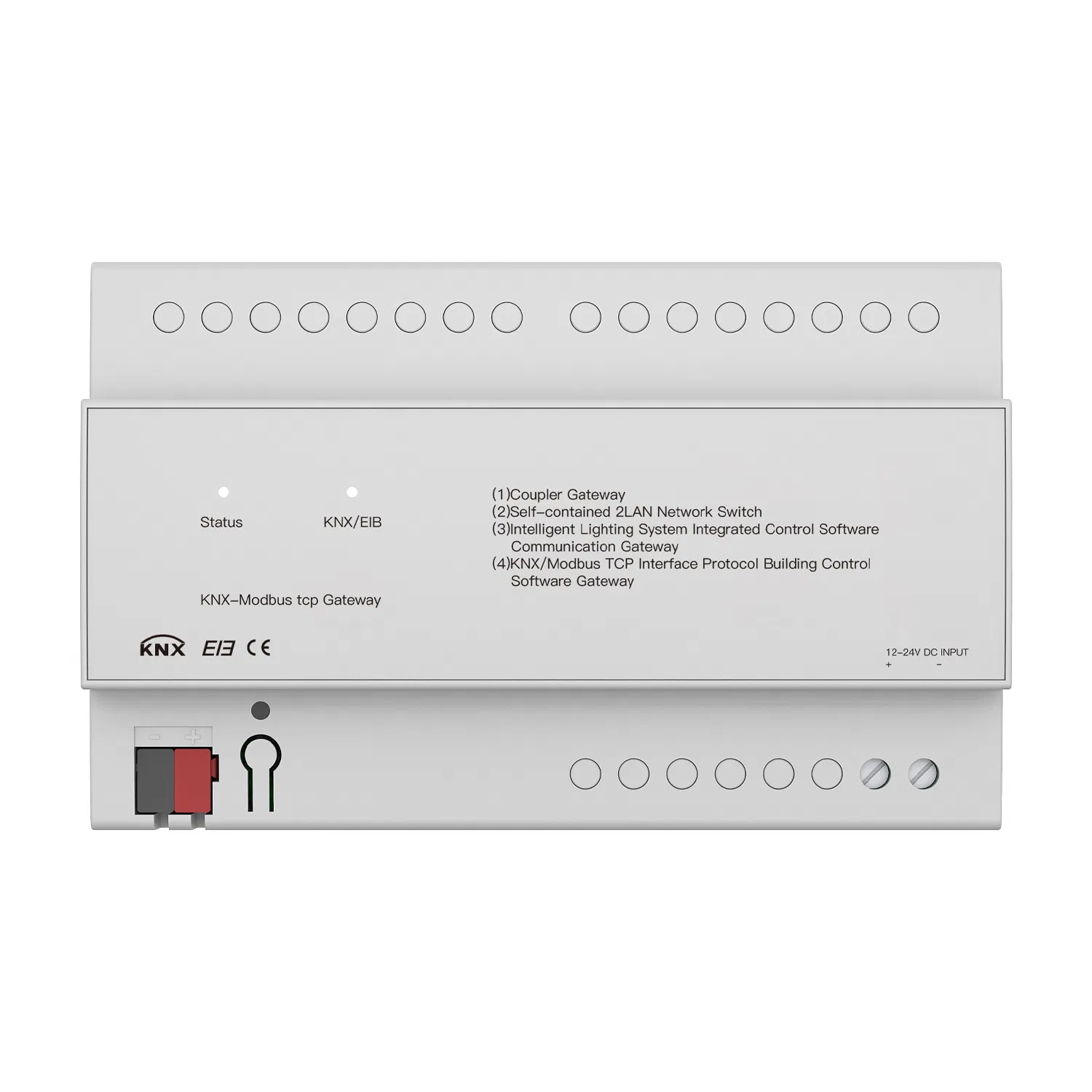

Smart Lighting Switch Knx System Multifunction Dimmer Switch Smart Home
Smart Lighting Switch Knx System Multifunction Dimmer Switch Smart Home
Smart Lighting Switch Knx System Multifunction Dimmer Switch Smart Home
Smart Lighting Switch Knx System Multifunction Dimmer Switch Smart Home
Smart Lighting Switch Knx System Multifunction Dimmer Switch Smart Home
1 / 5
Smart Lighting Switch Knx System Multifunction Dimmer Switch Smart Home
Smart Lighting Switch Knx System Multifunction Dimmer Switch Smart Home
Smart Lighting Switch Knx System Multifunction Dimmer Switch Smart Home
Smart Lighting Switch Knx System Multifunction Dimmer Switch Smart Home
Smart Lighting Switch Knx System Multifunction Dimmer Switch Smart Home

Smart Lighting Switch Knx System Multifunction Dimmer Switch Smart Home

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📑 Basic Information
Model NO.
VS-MG0201
Function
APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer
Material
Plastic (PA66 Shell)
Certification
CE, ISO9001
Bus Voltage
21-30V DC
Auxiliary Voltage
200~240VAC, 50/60Hz
Operating Temp
-5°C to 45°C
Size
W217mm x H90mm x D64mm
🚀 Product and Function Overview
✓ Equipped with coupler function, coupling different KNX branches for seamless communication.
✓ Multi-channel support: 4-channel RS485, 4-channel dry contact I/O, and 3-channel infrared IR emission.
✓ Dual LAN network interfaces with built-in 8 TCP/IP or UDP ports, functioning as server or client.
✓ Advanced central control: Integrated action library, event library, and time action execution library.
✓ Precision Management: Built-in calendar and clock timing for up to 128 event settings.
✓ Wide Application: Compatible with projectors, AC systems, background music, security access, and geothermal heating.
⚙️ Detailed Parameters
Bus Voltage21-30V DC
Bus Current≤12mA
Auxiliary Current<128mA, 220VAC
DALI Device Distance0.5mm²—100m | 1.5mm²—300m
Installation Method35mm DIN rail installation
Storage Temperature-25℃ to +55℃
Relative HumidityMax 90%
WeightApprox. 0.3KG
📊 Dimensional and Wiring Diagrams

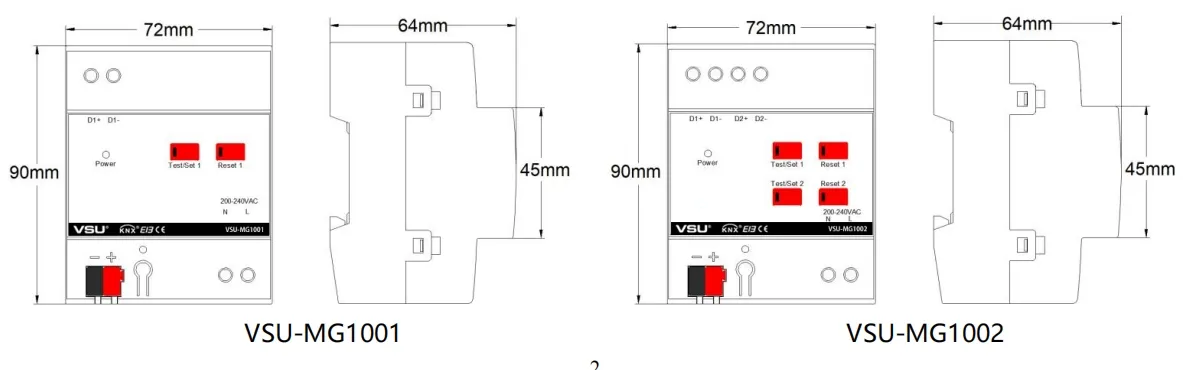

Dimension Diagram
Dimension Overview

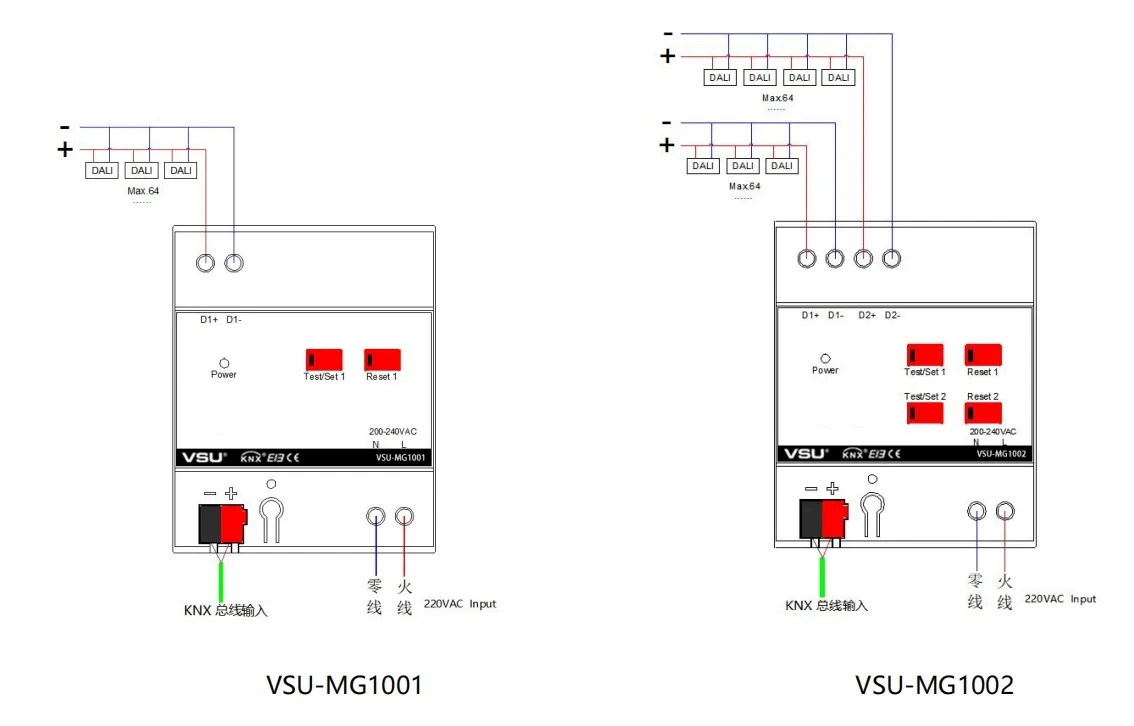

Wiring Diagram
Wiring Diagram
Smart Lighting System
💡 Smart Control Solutions
The system provides application solutions for smart electrical, smart lighting, and smart city infrastructure. By integrating digital technology, it ensures electrical safety and energy saving across building environments. The solution package includes IoT gateways, application terminal equipment, and energy-saving integrated devices.
🏭 Manufacturing Excellence

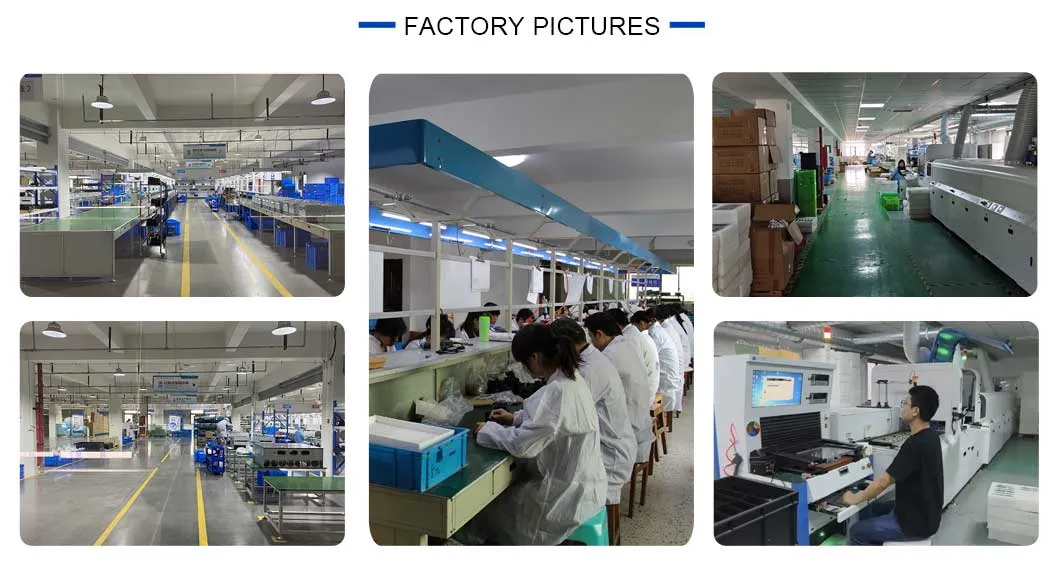

Factory Image 1
Factory Image 2
Factory Image 3
Equipment 1
Equipment 2
Equipment 3
❓ Frequently Asked Questions
Q1: What are the main applications of this smart gateway?
A1: It is designed for energy conservation, monitoring, and power quality solutions, including smart lighting controllers, smart energy meters, and central building management.
Q2: Are the products original and certified?
A2: Yes, all products are original and have passed international certifications such as CE and ISO9001 quality system standards.
Q3: What is the typical lead time for orders?
A3: For in-stock items, there is no lead time. Most standard products can be shipped within 7 days after payment verification.
Q4: Do you offer OEM/ODM services?
A4: Yes, we provide comprehensive OEM and ODM services, allowing for custom logos and designs on the merchandise based on customer specifications.
Q5: What is the warranty period for the equipment?
A5: We provide a standard warranty policy, and we take full responsibility for any quality problems verified within the specified acceptance period.
Q6: How are the products shipped internationally?
A6: We primarily use reliable express services such as DHL, FedEx, TNT, and EMS to ensure safe and timely delivery.
