Ocent Monitor
1 / 5
| Model NO. | Agn16 | Brand | Astop |
|---|---|---|---|
| Customized | Available (OEM/ODM) | Portable | Desktop / Handheld |
| Certification | CE | Gas Type | CO2 |
| Analysis Type | Non-Dispersive Infrared (NDIR) | HS Code | 9027100090 |

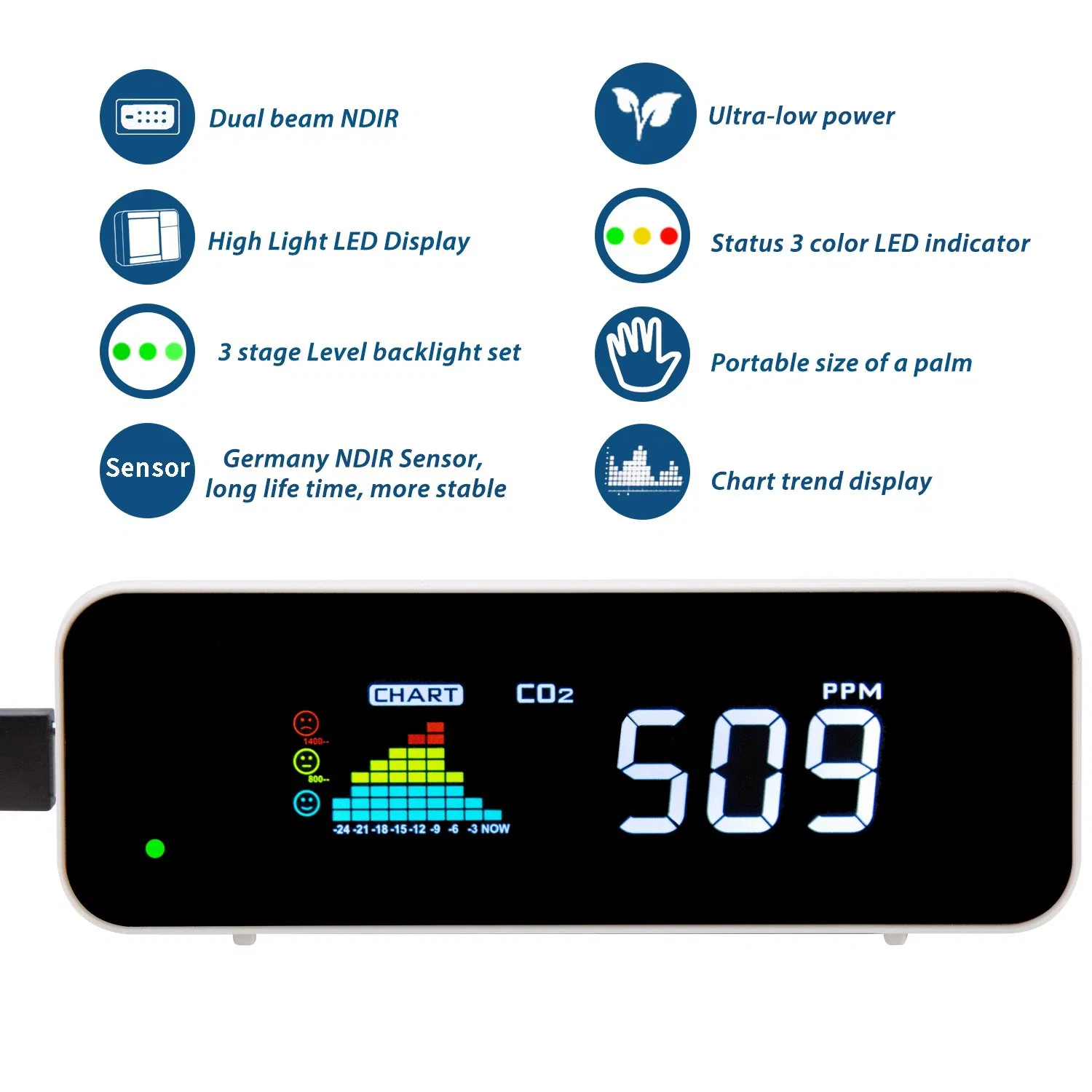

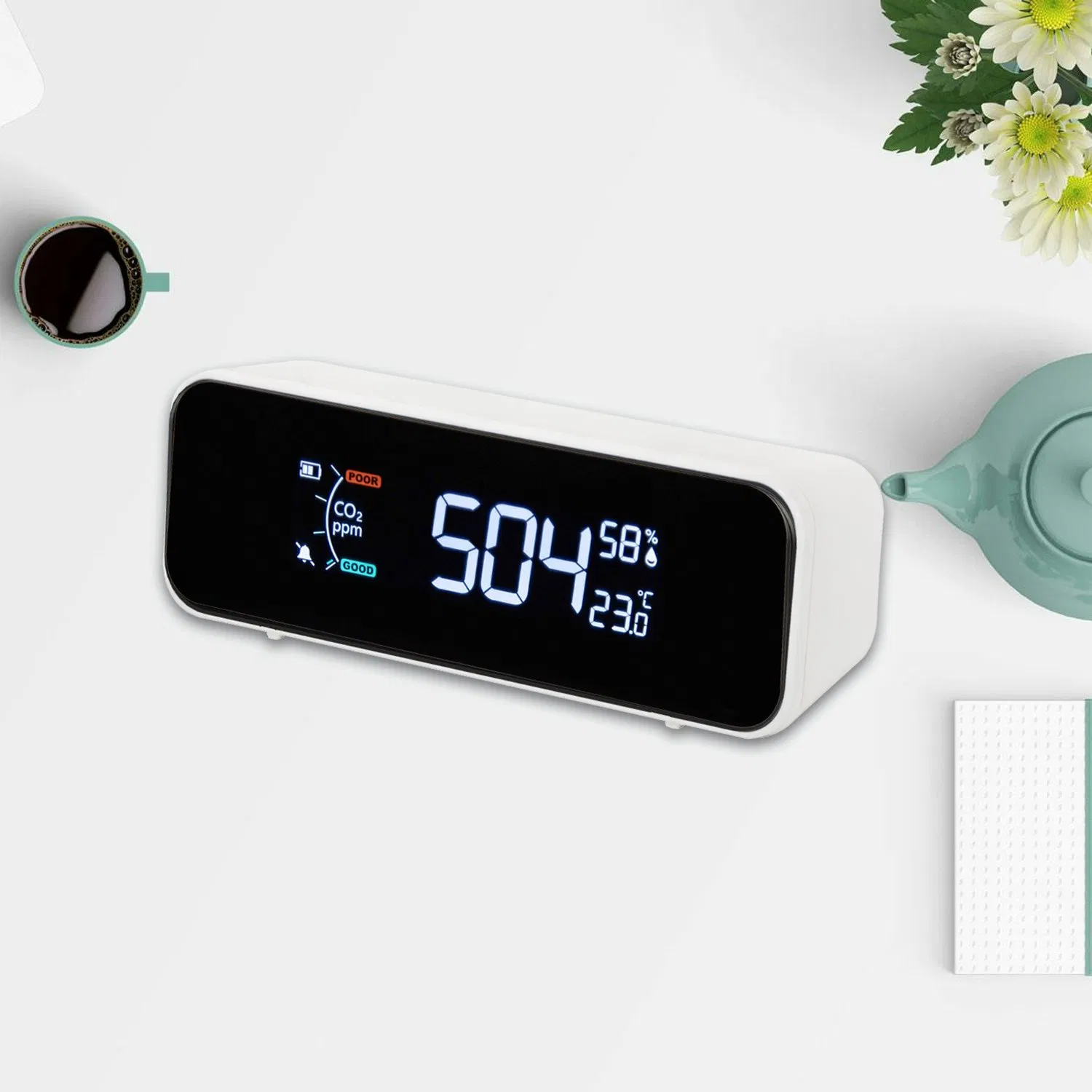

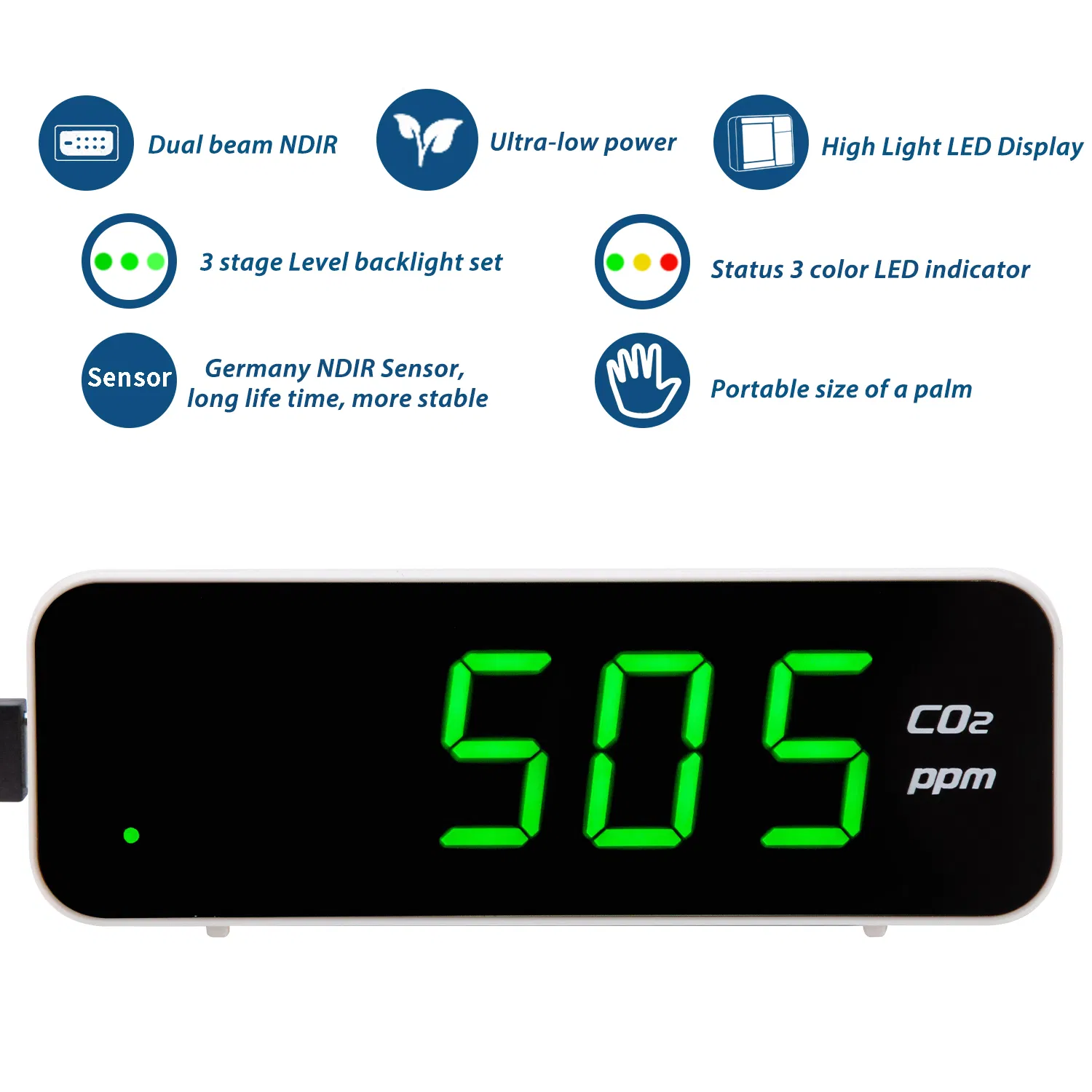

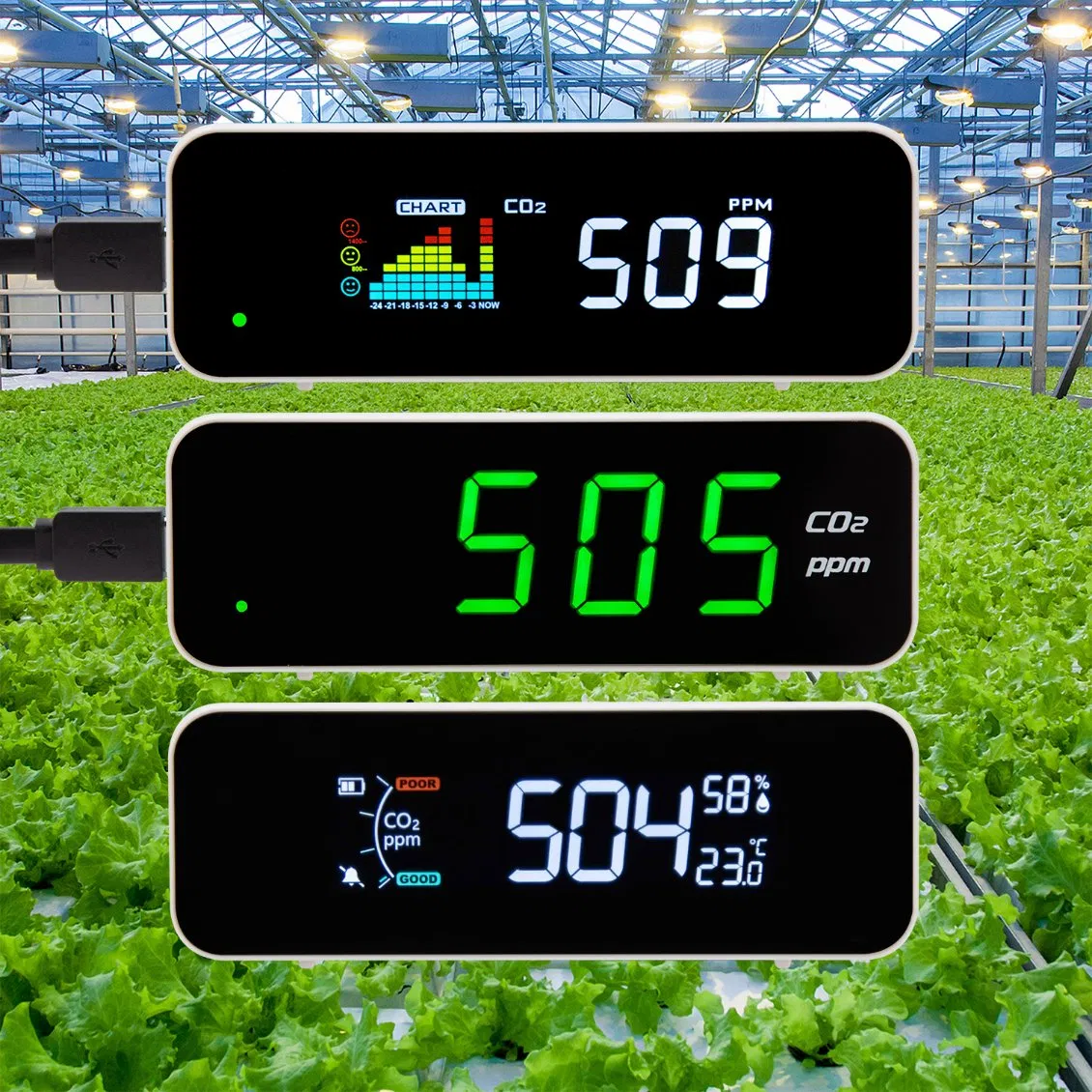

With built-in NDIR technology to improve long-term stability, AKn16 is a smart desktop mini CO2 monitor, designed to accurately track air quality including CO2 levels, temperature, and humidity. This palm-sized portable CO2 detector is easy to carry and suitable for schools, office buildings, hotels, hospitals, laboratories, and greenhouses. Featuring an internal rechargeable Li-battery, it can operate for up to 48 hours without an external power supply.

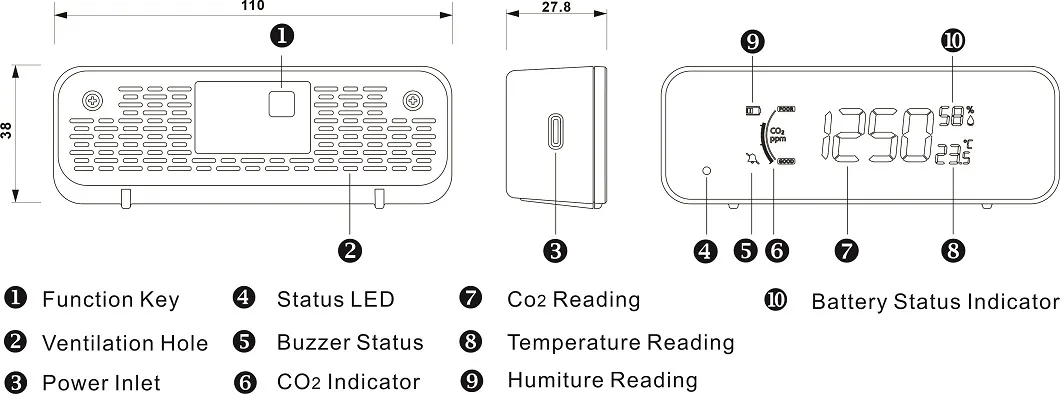

Initial Setup: When first unboxing, plug the unit into a Type-C USB power source. The LED display will show a 15-second countdown for sensor warm-up. Once complete, the device is ready for use.
Three Color Indicator LED:
CO2 < 800ppm
CO2 800 ~ 1200ppm
CO2 > 1200ppm
| Measurement | Specification |
|---|---|
| CO2 Range | 0 ~ 5000ppm |
| CO2 Accuracy | ±50ppm or ±5% of reading (0~3000ppm) |
| Temperature Range | 32°F to 122°F (0°C to 50°C) |
| RH Range | 0 - 100% |
| Warm-up Time | < 30 seconds |
| Response Time | < 2 minutes (63% step change) |
| Battery Life | 1000mA Rechargeable Li Battery (Up to 48 hours) |
| Dimensions | 120 * 91.2 * 27mm (4.7 * 3.6 * 1.1 inch) |

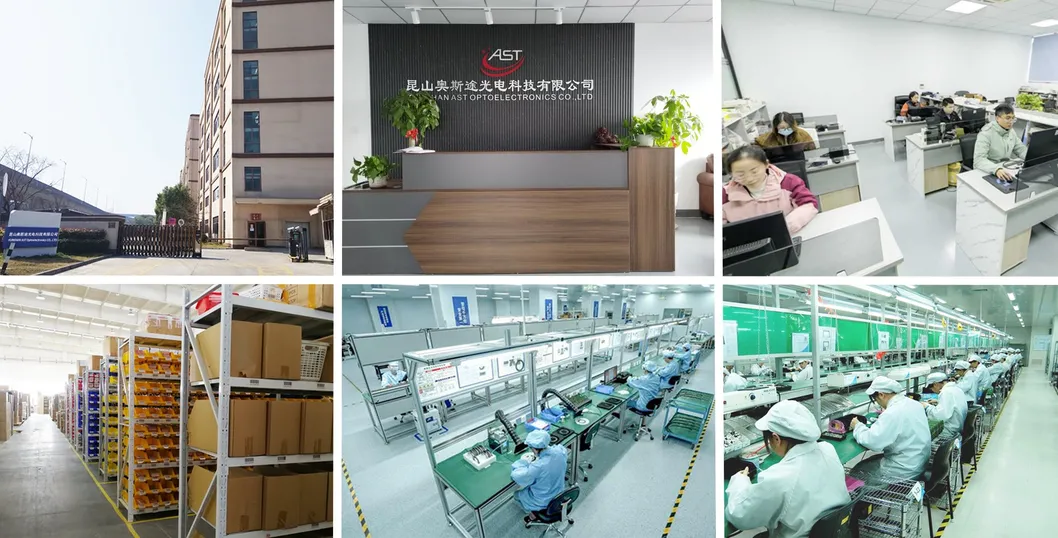

As an ISO 9001 certified ODM/OEM provider, we design, develop, and manufacture high-quality electronic devices. Our products are recognized globally across the United States, Europe, and Asia. With over 15 years of experience in NDIR gas measurement, our engineering team ensures the highest levels of quality and accuracy.
We utilize automatic calibration and testing equipment to meet the rigorous expectations of our global partners, focusing on innovation and precision in infrared measurement.

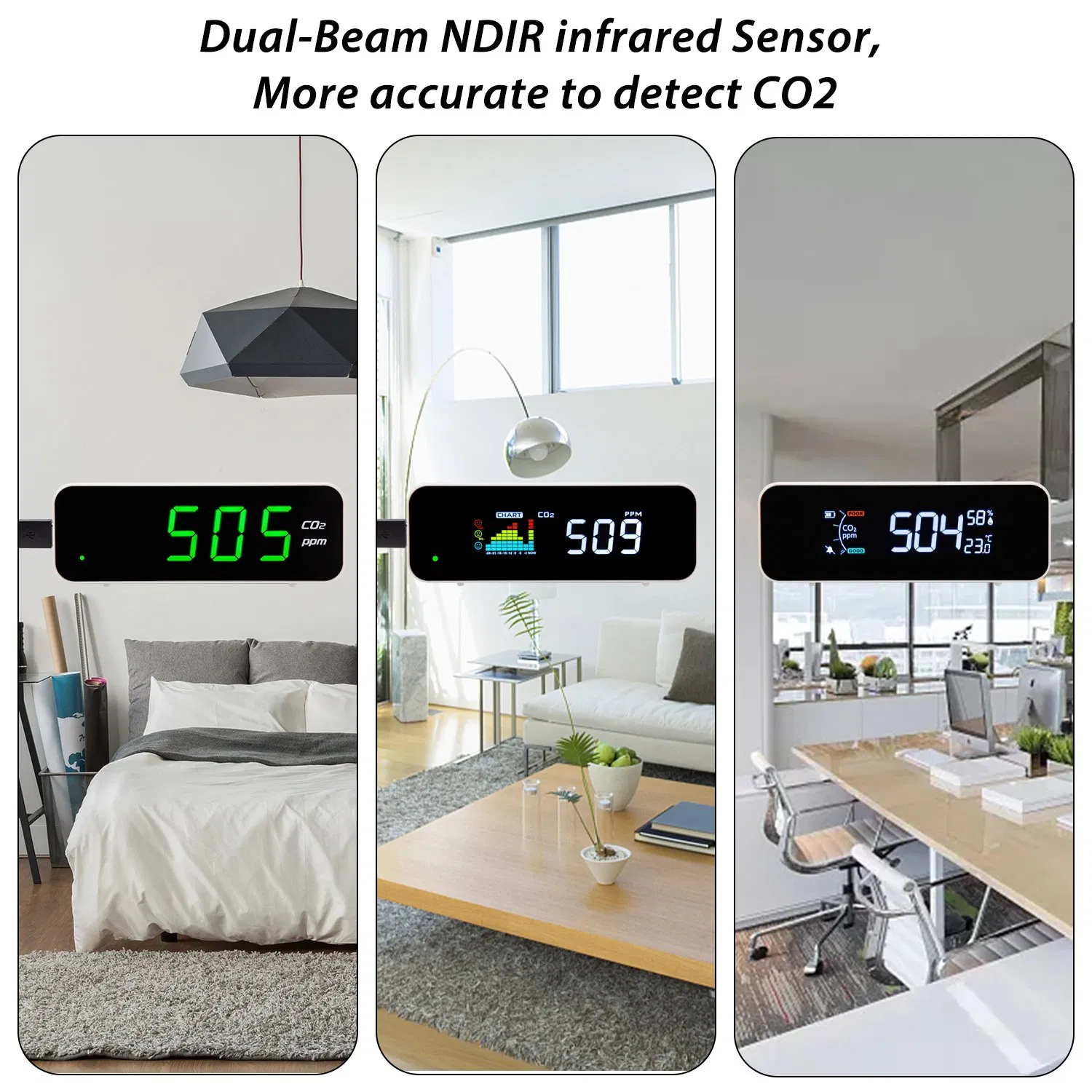

NDIR (Non-Dispersive Infrared) technology is a spectroscopic sensor used for gas analysis. It is highly valued for CO2 monitoring because it offers excellent long-term stability and high accuracy compared to other sensor types.
The device features a 1000mA internal rechargeable Li battery that can provide up to 48 hours of continuous monitoring without an external power source.

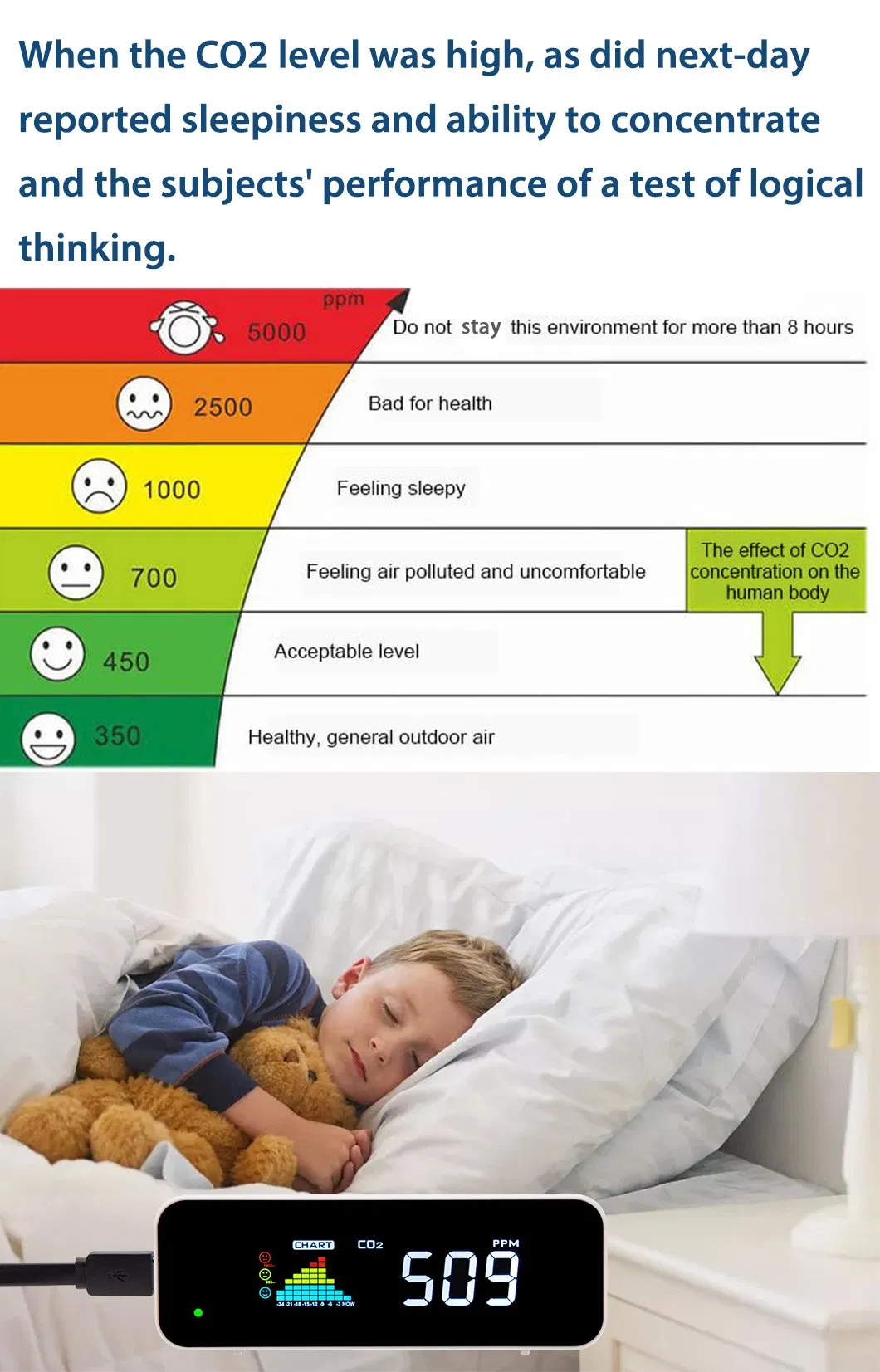

The indicator bar changes based on CO2 concentration: Green is for healthy levels (< 800ppm), Yellow for caution (800-1200ppm), and Red for high concentration (> 1200ppm).
No, it is a plug-and-play desktop device. Simply connect it to a Type-C USB power source for the initial 15-second warmup, and it will start monitoring immediately.
Yes, the AKn16 is ideal for greenhouses, schools, offices, and homes where tracking CO2 levels is critical for plant growth or human health.
Yes, the device features an adjustable three-stage backlight function which can be switched easily using the main function key.
