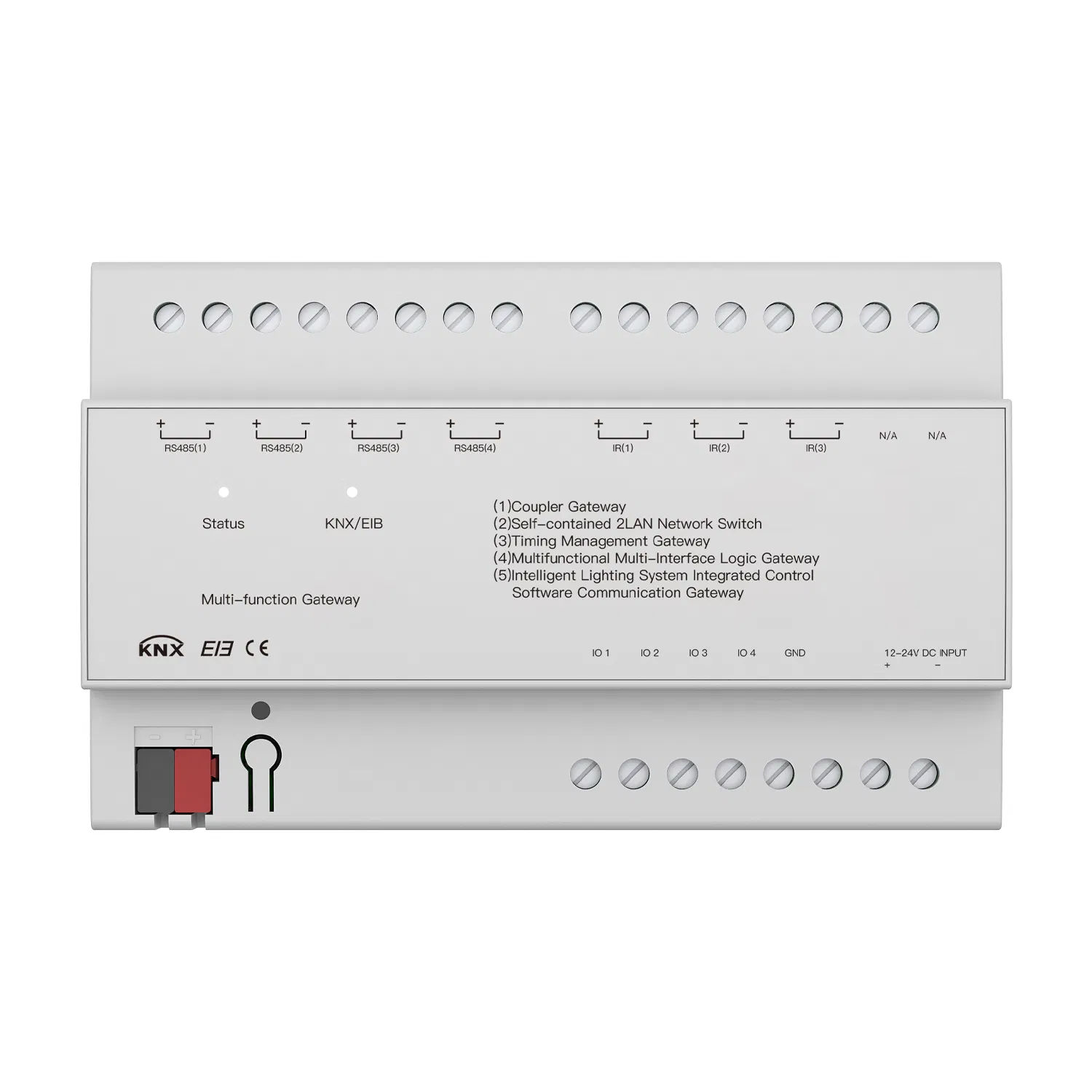

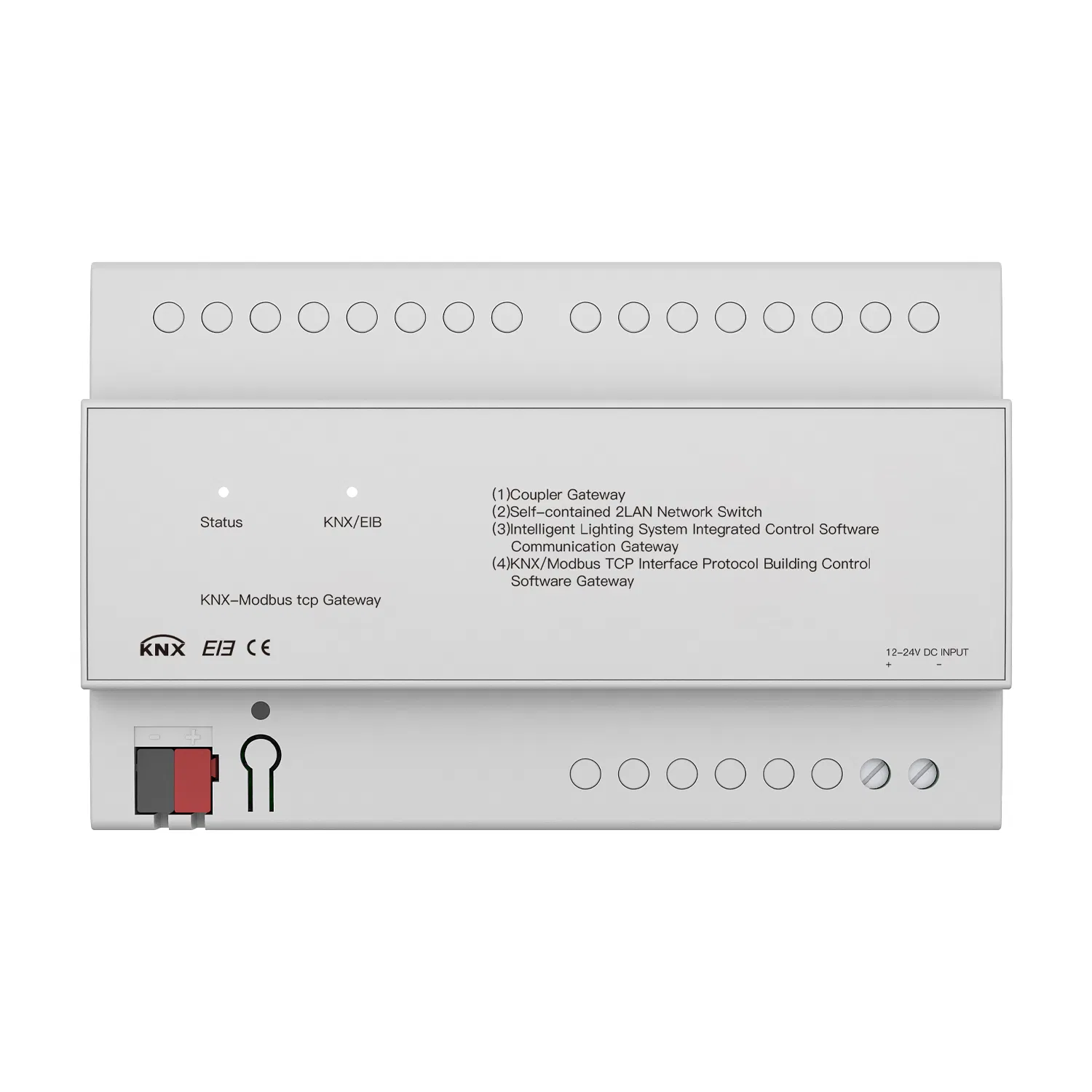

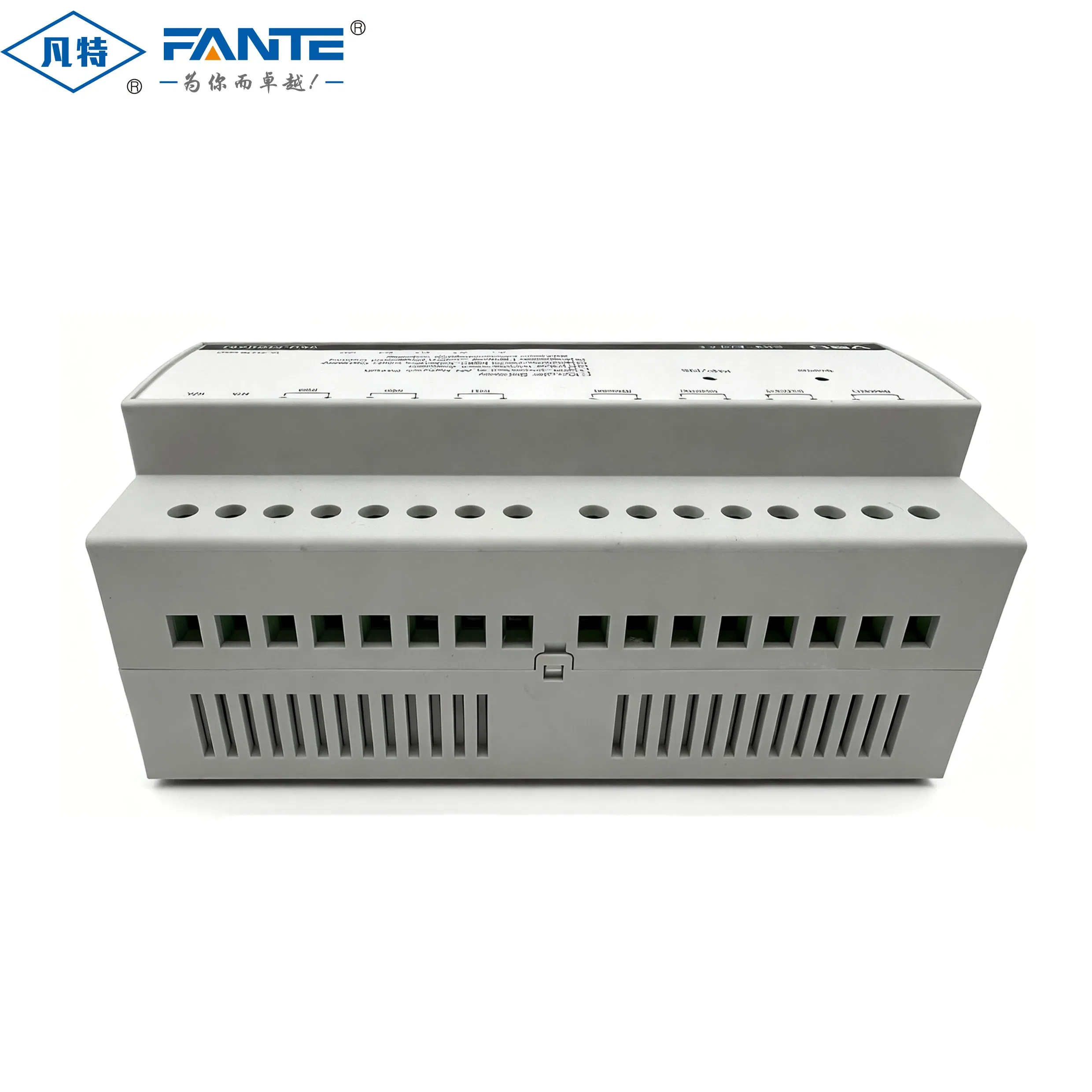

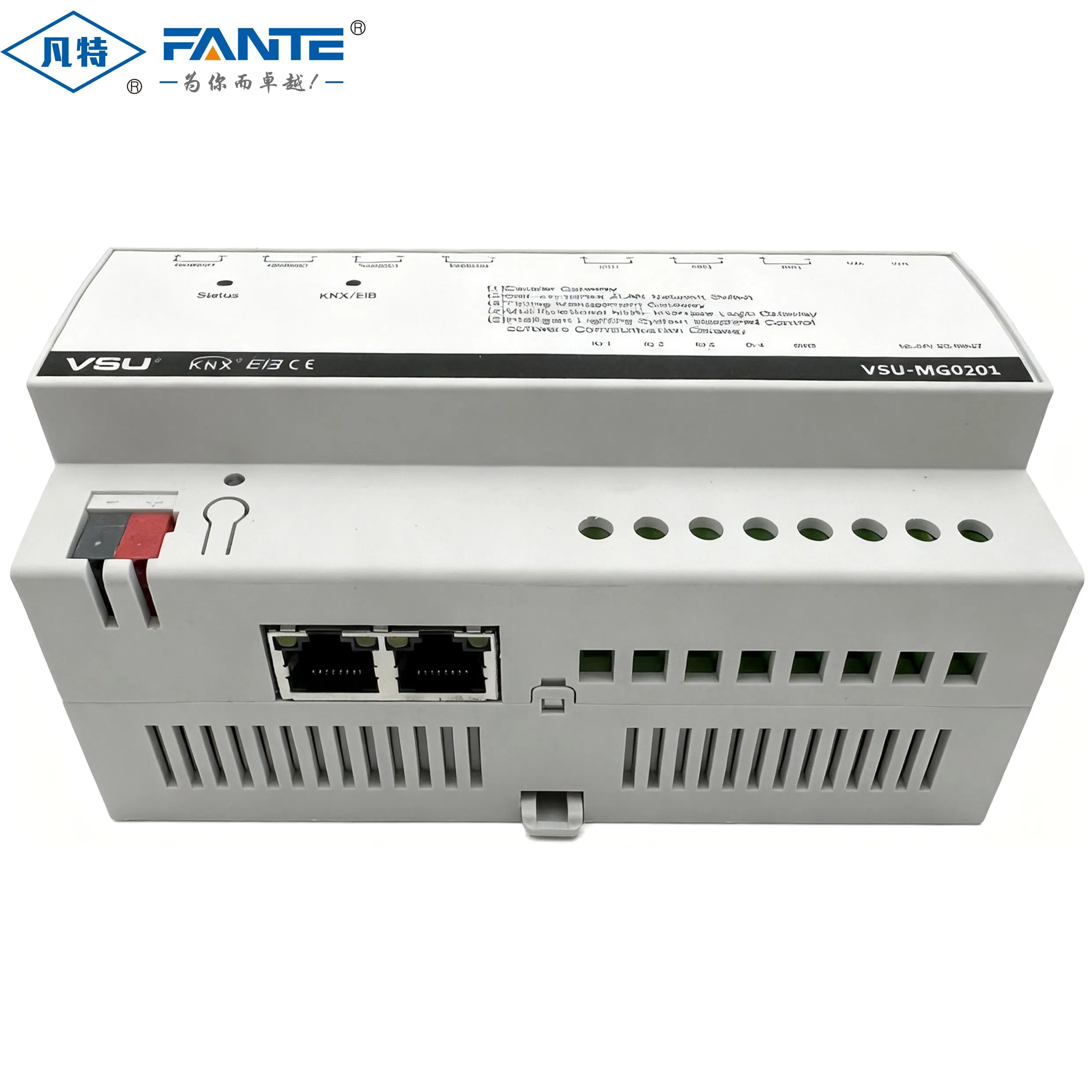

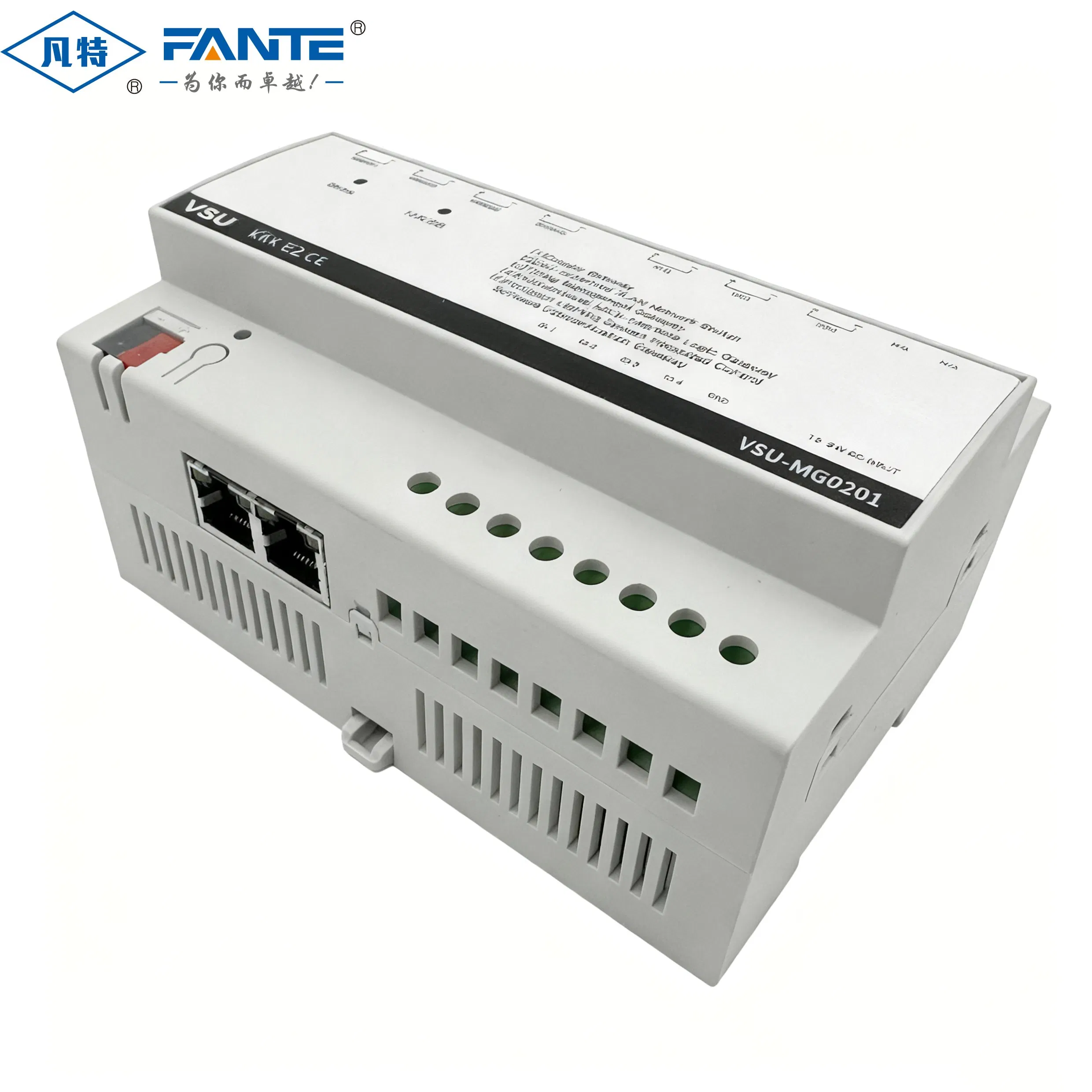

Smart Lighting Switch Knx Smart Home Control Switch Module
Smart Lighting Switch Knx Smart Home Control Switch Module
Smart Lighting Switch Knx Smart Home Control Switch Module
Smart Lighting Switch Knx Smart Home Control Switch Module
Smart Lighting Switch Knx Smart Home Control Switch Module
1 / 5
Smart Lighting Switch Knx Smart Home Control Switch Module
Smart Lighting Switch Knx Smart Home Control Switch Module
Smart Lighting Switch Knx Smart Home Control Switch Module
Smart Lighting Switch Knx Smart Home Control Switch Module
Smart Lighting Switch Knx Smart Home Control Switch Module

Smart Lighting Switch Knx Smart Home Control Switch Module

Send Inquiry

Product Description

Product and Function Overview
◈
Equipped with coupler function, coupling different KNX branches.
◈
KNX lines with the same group ID can communicate, while different IDs do not interfere.
◈
Communicates with WINCON intelligent lighting system integrated control software.
◈
4-channel RS485 standard interface (customizable).
◈
4-channel dry contact I/O contact signal input interface.
◈
3-channel infrared IR emission.
◈
2 LAN network interfaces with built-in 8 TCP/IP or UDP ports.
◈
Unified action, event, and time execution libraries via upper-level software.
◈
Advanced clock timing management with calendar and up to 128 event settings.
◈
Open integration with third-party software platform systems.
Detailed Parameters
Bus Voltage21-30V DC
Bus Current≤12mA
Auxiliary Voltage200~240VAC, 50/60Hz
Auxiliary Current<128mA, 220VAC
DALI Device Distance0.5mm² — 100m / 1.5mm² — 300m
Shell MaterialPA66
Size (LxWxH)72mm X 90mm X 64mm
WeightApprox. 0.3KG
Installation35mm DIN rail installation
Operation Temp-5...+45℃
Storage Temp-25℃...+55℃
Relative HumidityMax 90%
Dimensional and Wiring Diagrams

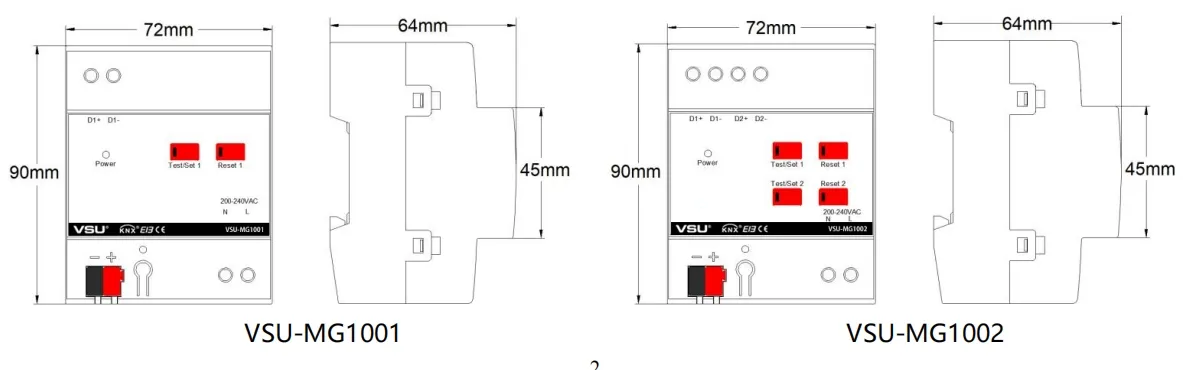

KNX Control Module Dimension
Dimension Diagram

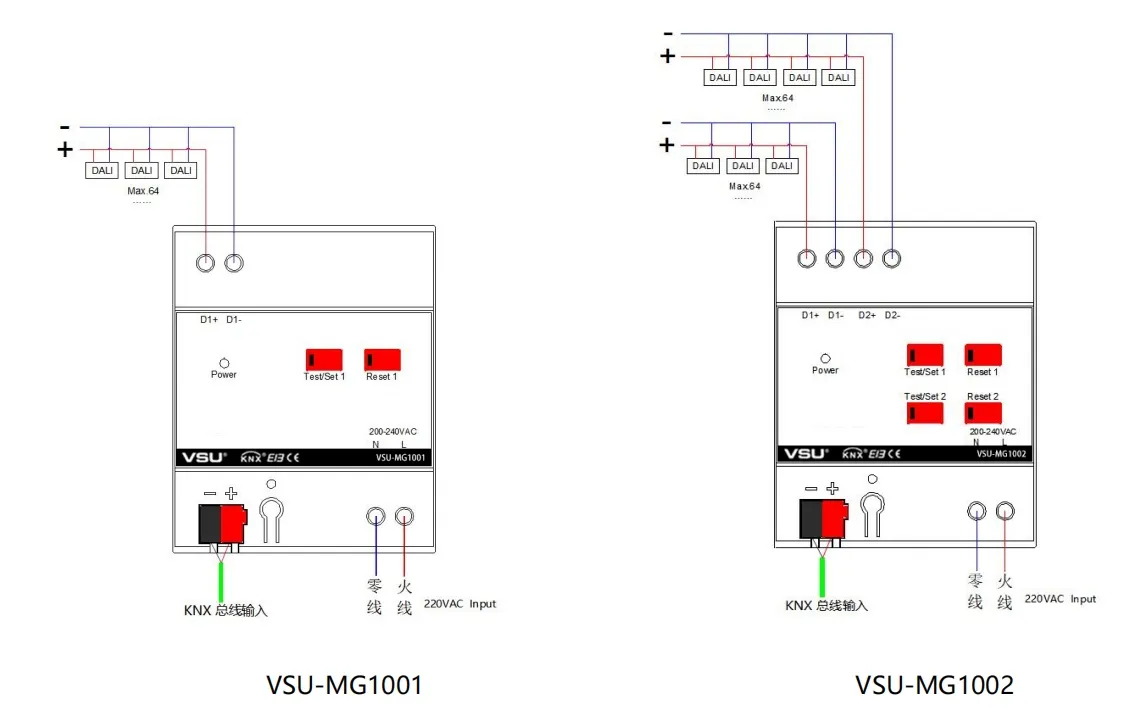

KNX Control Module Wiring
Wiring Diagram
Product Application & Details
Smart Lighting Application
Smart Control Hardware
System Interface
Installation Guide
Module Connection
Hardware Details
Comprehensive Diagram
Frequently Asked Questions
What are the primary applications for this gateway?
The gateway is designed for projectors, air conditioning systems, background music, landscape lighting, security access control, and hospital medical management systems.
How is the device installed in an electrical cabinet?
It uses a standard 35mm DIN rail installation, making it compatible with most industrial and residential distribution boards.
Does this module support third-party software integration?
Yes, it offers open integration capabilities with third-party software platform systems and can communicate with WINCON intelligent lighting systems.
What is the maximum cable distance for DALI devices?
The distance depends on the wire gauge: 100 meters for 0.5mm² cables and up to 300 meters for 1.5mm² cables.
Can I use this as a server or a client?
The device features 2 LAN network interfaces with 8 built-in TCP/IP or UDP ports that can be configured as either a server or a client.
What kind of timing management does it offer?
It includes a full calendar system allowing for year, month, day, and week selection, managing up to 128 specific event times for automated control.
